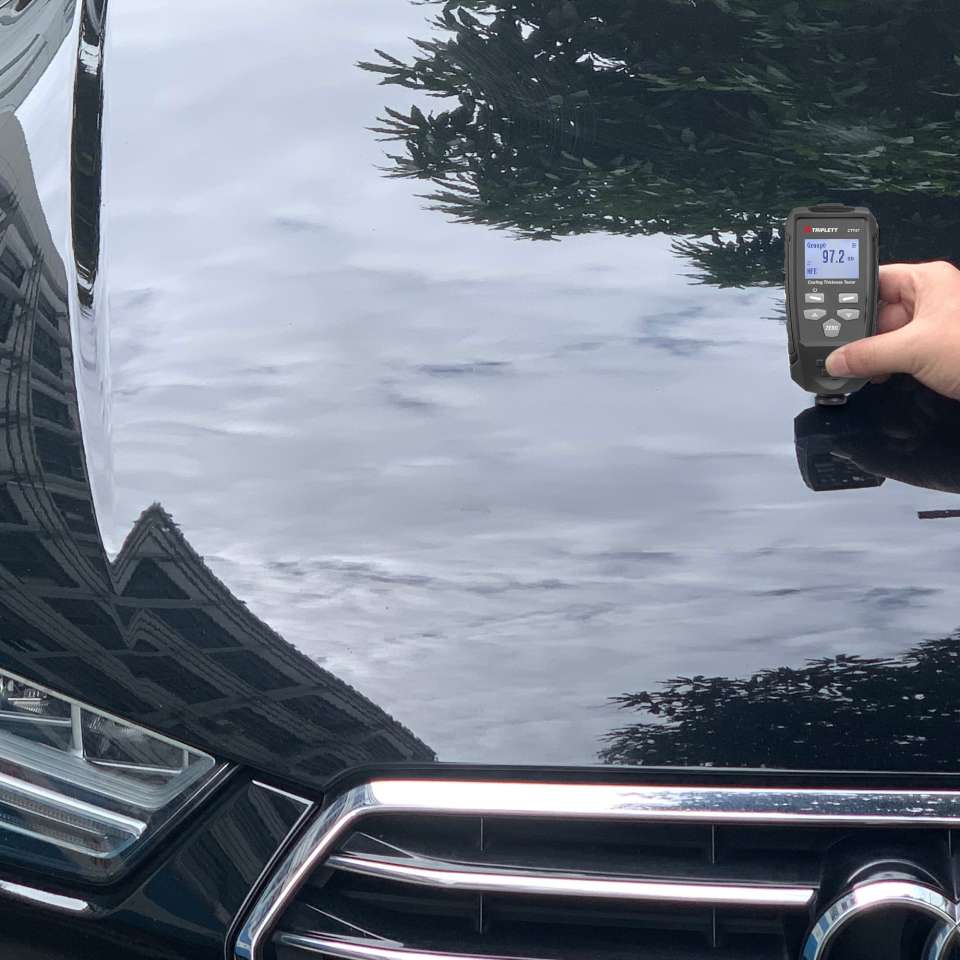

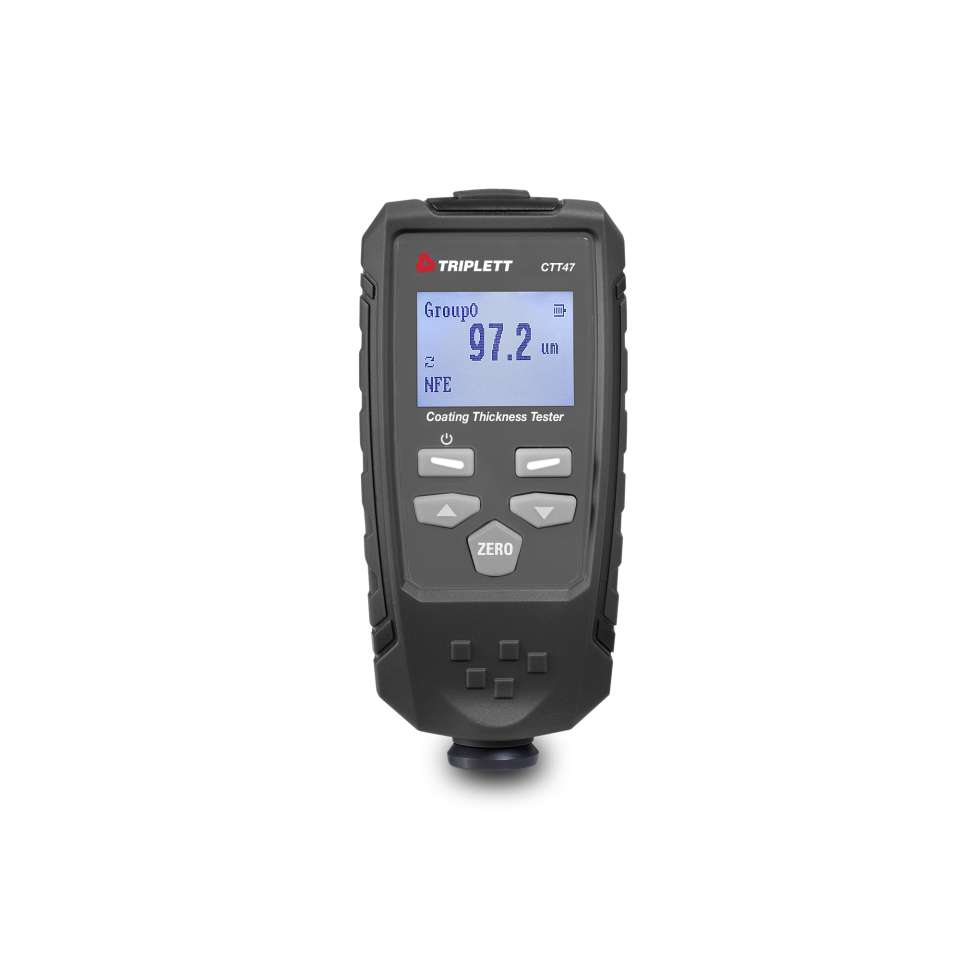

The Triplett Model CTT47 Coating Thickness Tester with USB uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, two point calibration with Zero adjust, and two working modes: Direct and Group. Built-in memory stores up to 1500 readings (30 Group readings). Readings can be transfered to a PC via the USB interface. Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case. 1-year warranty.
Features:
- Smart automatic recognition of ferrous and non-ferrous substrates
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to use menu system
- Two working modes: Direct and Group
- Two point calibration with Zero adjust
- Memory storage up to 1500 readings (30 Group readings)
- Data transfer to PC via USB interface
- 8 level adjustable backlight
- Low battery indicator

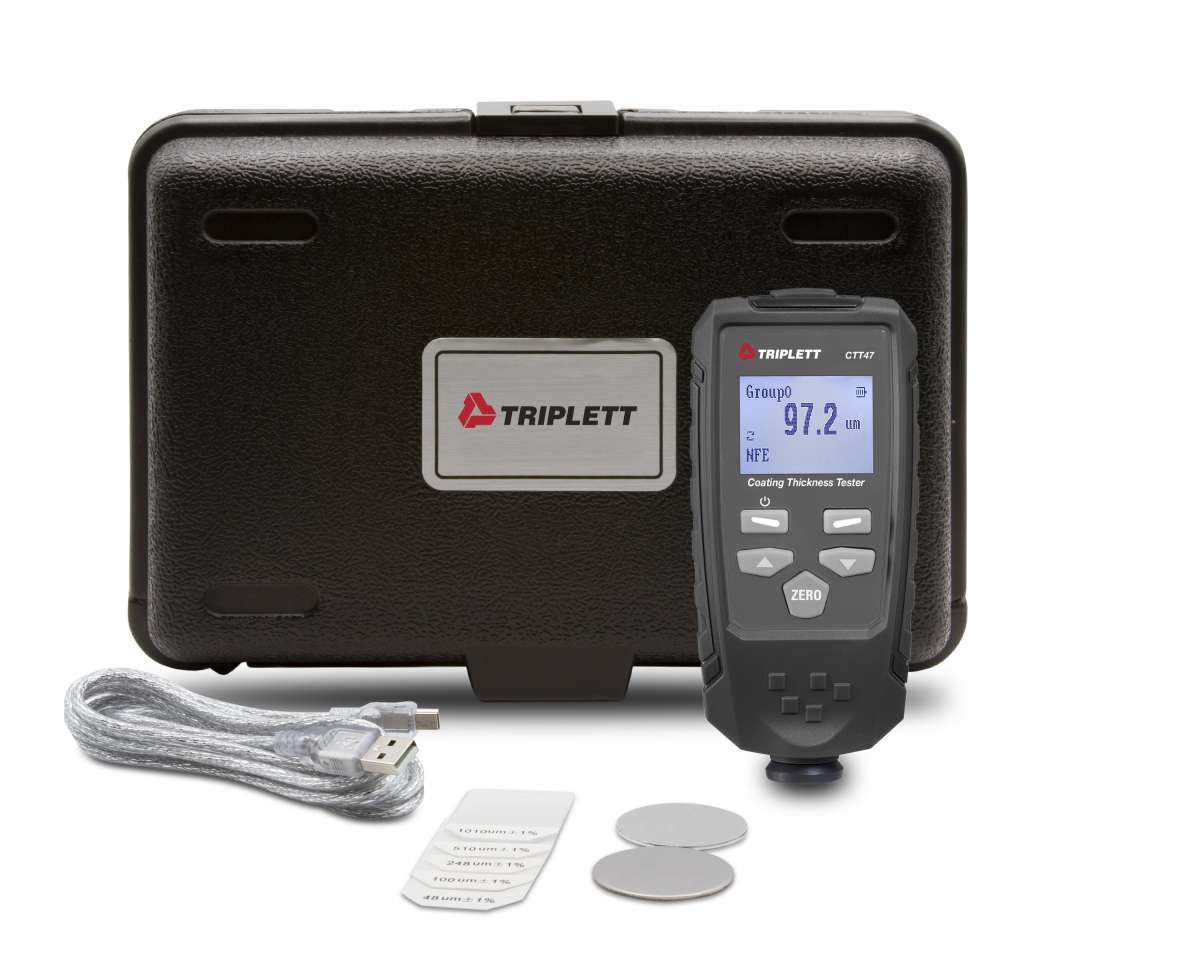

Includes: Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case
Battery Type: (2) AAA batteries
| Specifications |
|---|
| CTT47 | Ferrous |
| Measuring Range | 0 to 1350μm (0 to 53mils) |
| Resolution | 0.1μm (0.004mils) |
| Accuracy | ±2.5% |
| Minimum Curvature Radius | 1.5mm (59.06mils) |
| Minimum Diameter | 7mm (275.6mils) |
| Minimum Thickness | 0.5mm (19.69mils) |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 2 AAA batteries |
| Dimensions | 4.7 x 2.4 x 1.25” (120 x 62 x 32mm) |
| Weight | 6.8oz (175g) |
