The Triplett Model CTT42 Coating Thickness Tester uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, user-programmable high/low alarms, min/max/average, two point calibration with Zero adjust, two measuring modes (single, continuous), and two working modes (direct and group). Built-in memory stores up to 400 readings (80 direct and 320 group). Readings can be transfered to a PC via the USB interface. Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case. 1-year warranty.
Features:
- Smart automatic recognition of ferrous and non-ferrous substrates
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to use menu system
- Two measuring modes: Single and Continuous
- Two working modes: Direct and Group
- Two point calibration with Zero adjust
- Memory storage up to 400 readings (80 Direct and 320 Group)
- User-programmable high/low alarms
- Min/Max/Average, one or two point calibration

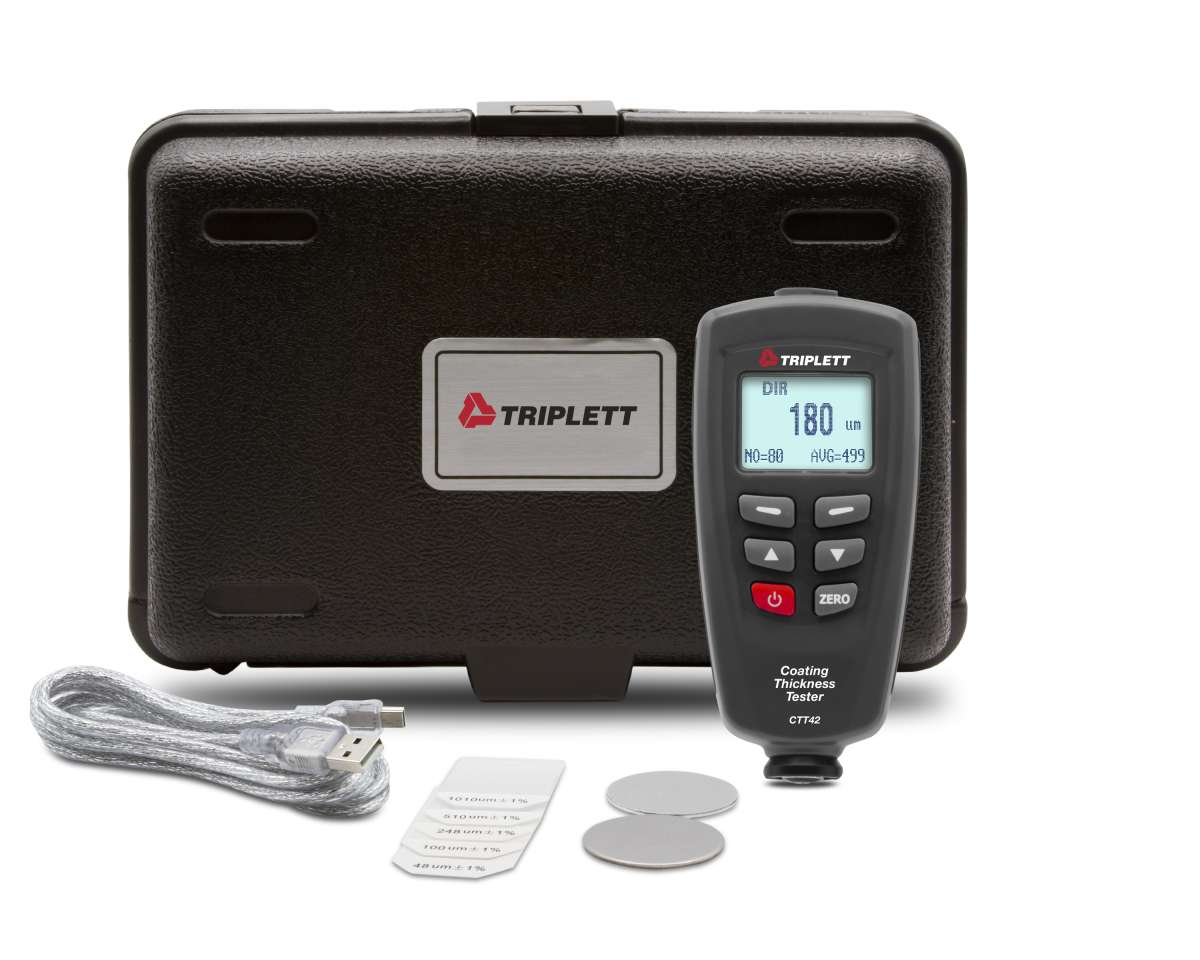

Includes: Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case
Battery Type: (2) AAA batteries
| Specifications |
|---|
| CTT42 | Ferrous |
| Measuring Range | 0 to 1250μm; 0 to 49mils |
| Resolution | 0.1μm (0.004mils) |
| Accuracy | ±3% |
| Minimum Curvature Radius | 1.5mm (59.06mils) |
| Minimum Diameter | 7mm (275.6mils) |
| Minimum Thickness | 0.5mm (19.69mils) |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 2 AAA batteries |
| Dimensions | 4.3 x 2.0 x 1.0” (110 x 50 x 23mm) |
| Weight | 3.9oz (100g) |
