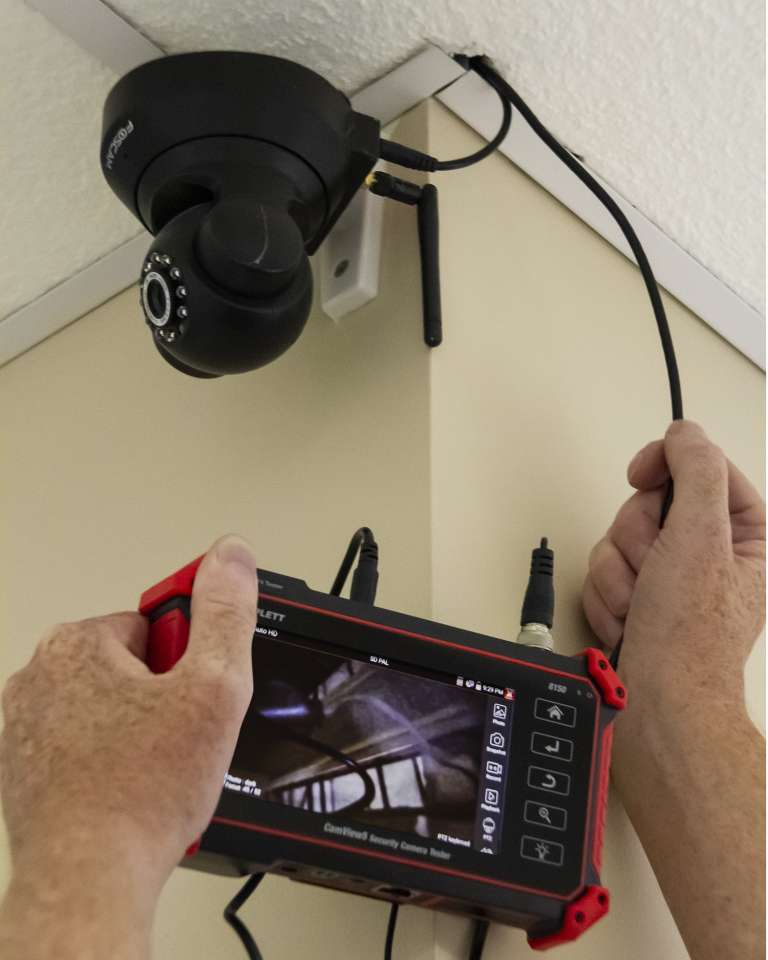

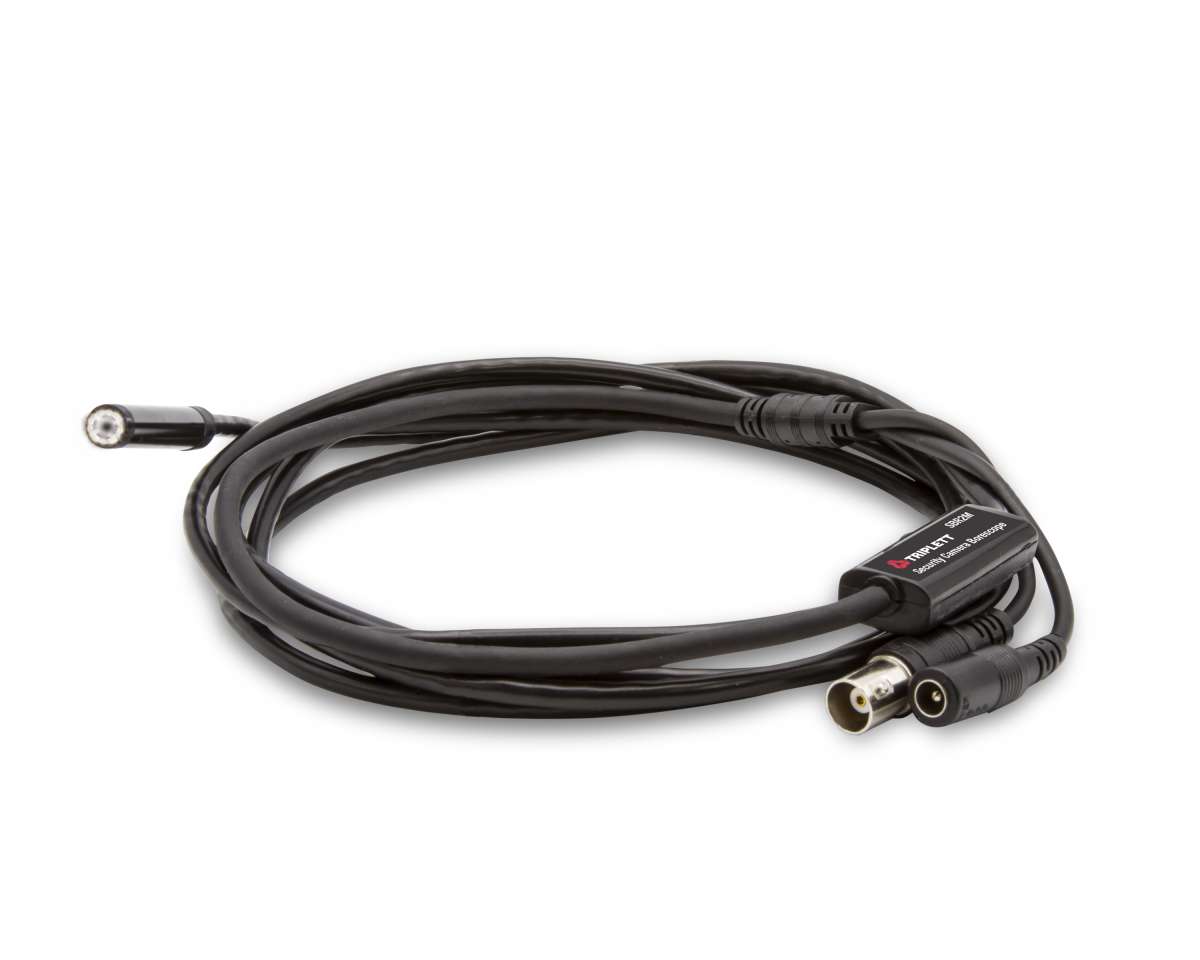

The Triplett Model SBR2M connects to virtually any security camera tester and turns it into a borescope. It features a IP67 waterproof (lens only) 8mm camera with a 2m (6.5ft) cable that has 6 ajustable LEDS with thumbwheel control. The borescope connects using the cables already included with your camera tester. Power is provided by the camera tester (12V 1/2/3A) — no batteries are needed. The borescope utilizes the display resolution of your camera tester. Image snapshot and video record functions are dependent on camera tester's capability. Includes hook, mirror and magnet.
Features:
- Adds a borescope function to your security camera tester
- Waterproof (IP67) 8mm camera (Lens only)
- 2m cable (6.5ft)
- 6 adjustable LEDs with thumbwheel control
- Power provided by the camera tester (12V 1/2/3A) — no batteries needed
- Connection cables already included with your camera tester
- Utilizes the display resolution of your camera tester
- Image snapshot and Video record functions dependent on camera tester capability
Includes: Includes hook, mirror and magnet
| Specifications |
|---|
| Camera | 8mm |
| Field of View | 60° |
| Depth of View | 1.2 to 4" (3 to 10cm) |
| Cable Length | 2m (6.5ft) |
| Resolution | 640 x 480 |
| Illumination | 6 adjustable LEDs |
| Still Image Capture | dependent on camera tester |
| Video Recording | dependent on camera tester |
| Power | 12V 1/2/3A (provided by camera tester) |
| Interface | BNC |
| Dimensions | Camera & Cable: 6.5ft x 0.3” (2m x 8mm)
LED Thumbwheel: 2x0.5x0.25" (51x13x6.4mm) |
| Weight | 5.6oz (159g) |
Warranty: 2yrs
