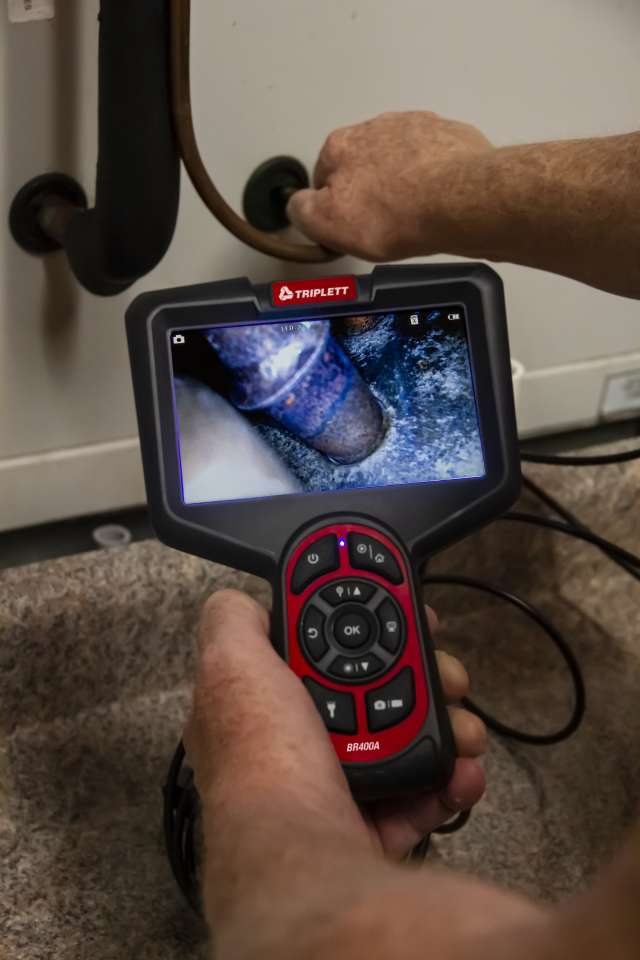

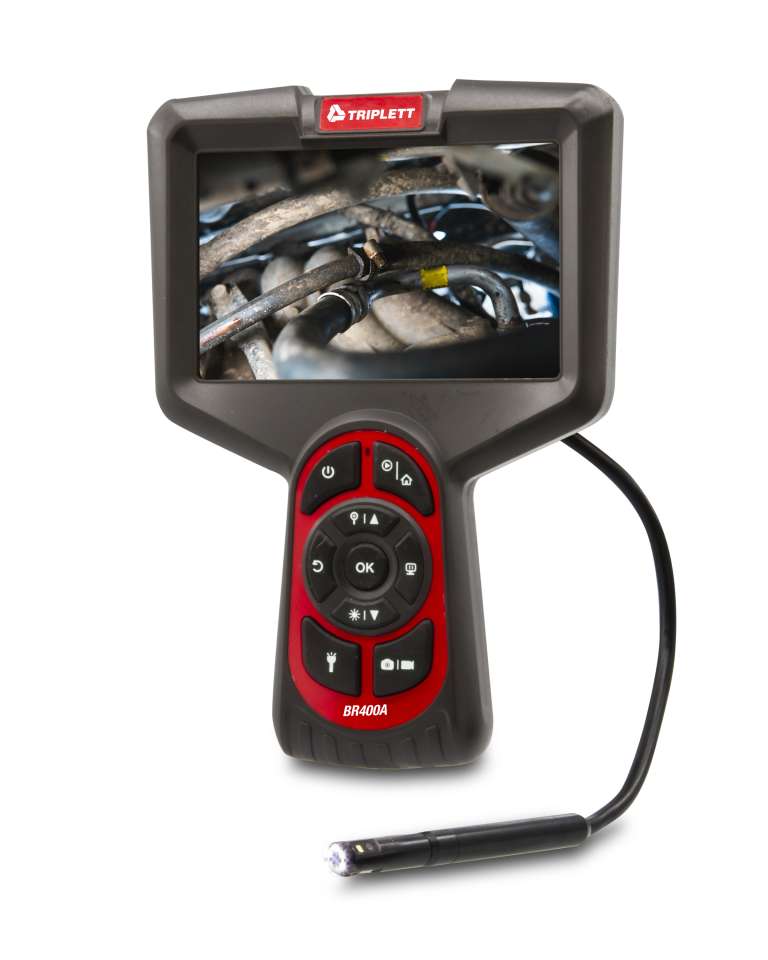

The Triplett BR400A High Definition Borescope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has dual 8.5mm waterproof (IP67) cameras with 6 adjustable LEDs with 3 brightness levels. It features a 5" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 360° screen view rotation. Dual screen function simultaneously displays both camera views. The BR400A has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function while recording video. You can view captured video/images on the display or transfer to your PC using the USB interface or removable SD card. The BR400A can store up to 19k images/20 minutes of video (3 minute files) on the included 4GB SD card and supports 12 languages (English, Spanish, French, German, Italian, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Portuguese, Arabic). It comes complete with Videoscope, dual 8.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, SD card, USB cable, and camera accessories (magnet, hook, protective cap). 1 year warranty.
Features:
- Dual waterproof (IP67) 8.5mm cameras and 360° screen rotation
- 5" Color LCD monitor with 1920 x 1080 resolution
- 6 adjustable LEDs on forward camera (1 LED on side camera) with 3 brightness levels
- Dual screen simultaneously displays both camera views
- Screen view rotates 360°
- 3X zoom
- Built-in clock/calendar
- Freeze function while recording video
- View captured video/images on the display or transfer to your PC using the USB interface or removable SD card
- Store up to 19k images/20 minutes of video (3 minute files) on the included 4GB SD card

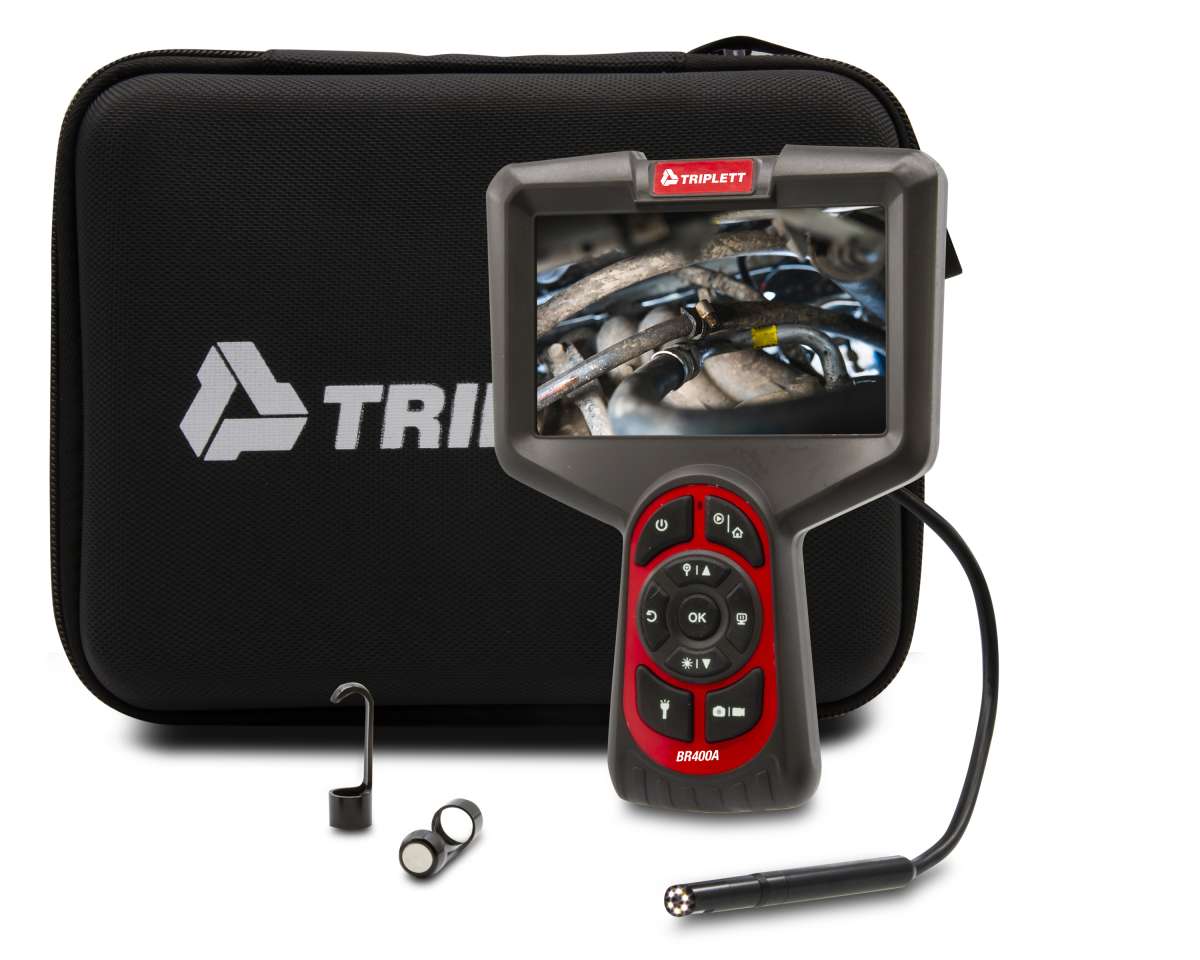

Includes: Includes Videoscope, dual 8.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, SD card, USB cable, and camera accessories (magnet, hook, protective cap)
Battery Type: 3.7V Li-Po; 3000mAh; 11.1Wh; 48.2g;
| Specifications |
|---|
| Camera | Dual (Forward and Side View) |
| Diameter | 8.5mm |
| Field of View | 70° |
| Depth of View | 1.2" to 4.0" (3cm to 10cm) |
| Resolution | 1920 x 1080 |
| Display Unit | |
| Display | 5" Color (1920 x 1080) |
| Image Zoom | 3X |
| Video Output Format | NTSC or PAL |
| Storage | 4G SD Card included |
| Still Image Format | JPEG (1920 x 1080) |
| Video Recording Format | AVI (1920 x 1080) |
| Interface | USB |
| Power | 5V Li-Po Battery |
| Dimensions | 7.6 x 5.6 x 2.6” (192 x 143 x 66mm) |
| Weight | 0.9lbs (0.4kg) |
Datasheet: http://files.triplett.com/datasheet/br400a.pdf
User Manual: http://files.triplett.com/manual/br400a.pdf
