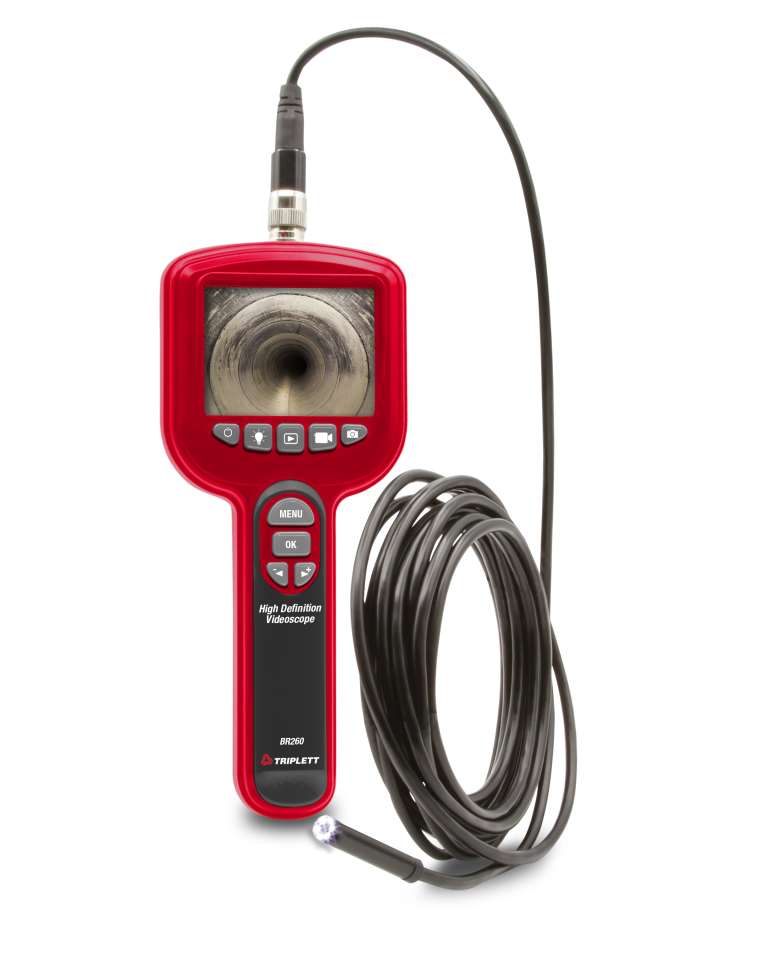

Triplett BR260 Borescope Inspection Camera

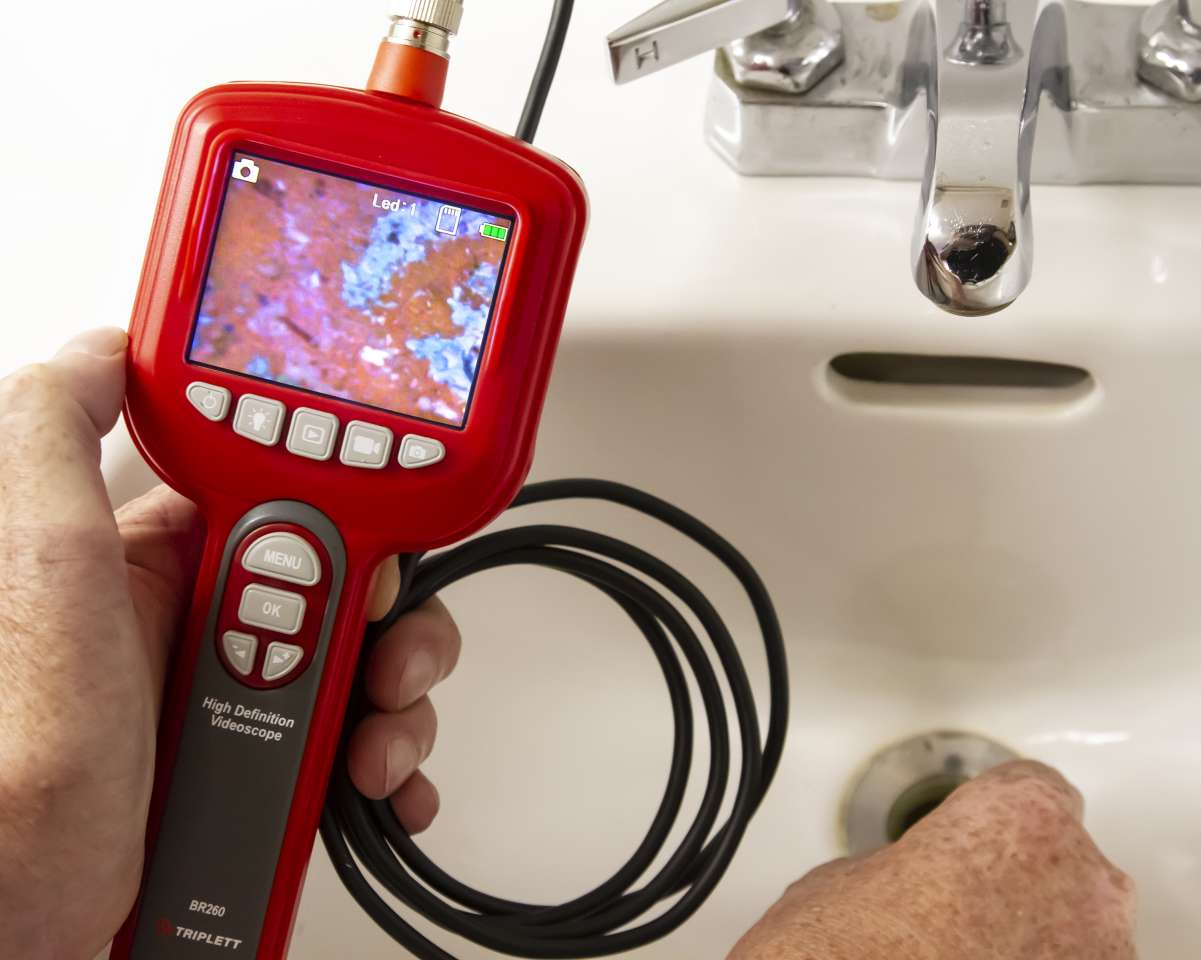

The Triplett BR260 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation.

More info

Triplett BR260 Borescope Inspection Camera
Roll over image to zoom Click image to expand
  • Triplett BR260 Borescope Inspection Camera

The Triplett BR260 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation.

It has an 5.5mm waterproof (IP67) camera with 6 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection. It features a 3" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. It has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing.

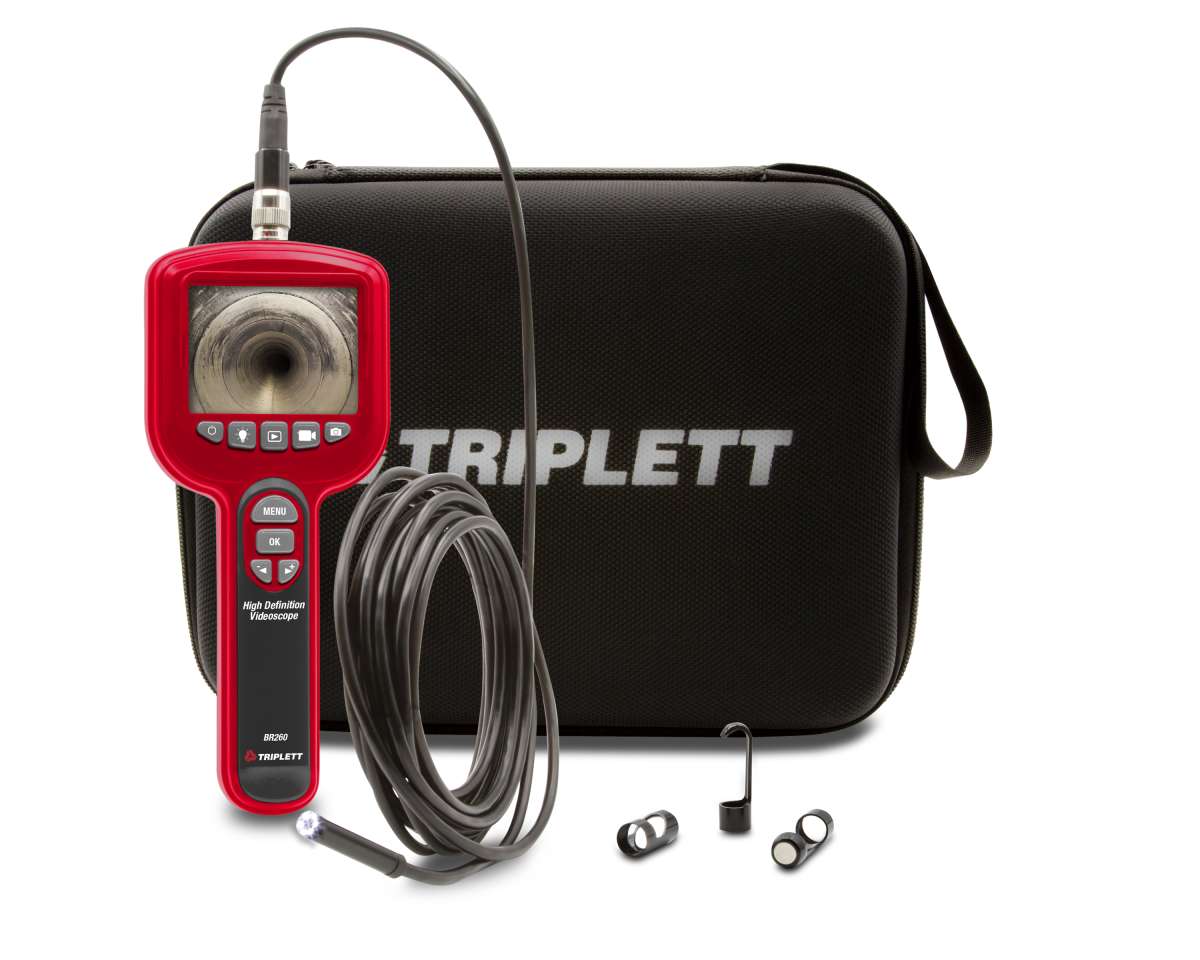

You can view captured video/images on the display or transfer to your PC using the USB interface or removable SD card (64GB max). The BR260 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Japanese, Russian, Simplified Chinese, Traditional Chinese). Operates on 4 x AA batteries (not included). Comes complete with Videoscope, 5.5mm camera probe with 2m cable, SD card, USB cable, and camera accessories (magnet, hook, mirror).

Features:

  • Waterproof (IP67) 5.5mm camera
  • 3" Color LCD monitor with 1920 x 1080 resolution
  • 6 adjustable LEDs with 3 brightness levels
  • Built-in auxilliary light illuminates darkened work areas for inspection
  • Screen view rotates 180°
  • 3X zoom
  • Built-in clock/calendar
  • View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
  • Store up to 4k images on the included 4GB microSD card
  • Supports 8 languages
  • Includes 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, camera accessories (magnet, hook, mirror) and case
Specifications
Camera Single (Forward View)
Diameter 5.5mm
Field of View 60°
Depth of View 1.2 to 4" (3cm to 10cm)
Resolution 1920 x 1080
Display Unit
Display 3" Color (1920 x 1080)
Image Zoom 3X
Video Output Format NTSC
Storage 4G SD Card included (up to 64GB max)
Still Image Format JPG (1270 x 1080)
Video Recording Format AVI (1920 x 1080)
Interface USB
Power (4) AA batteries (not included)
Dimensions 9 x 6.7 x 3.1” (230 x 170 x 80mm)
Weight 1.8lbs (0.8kg)
