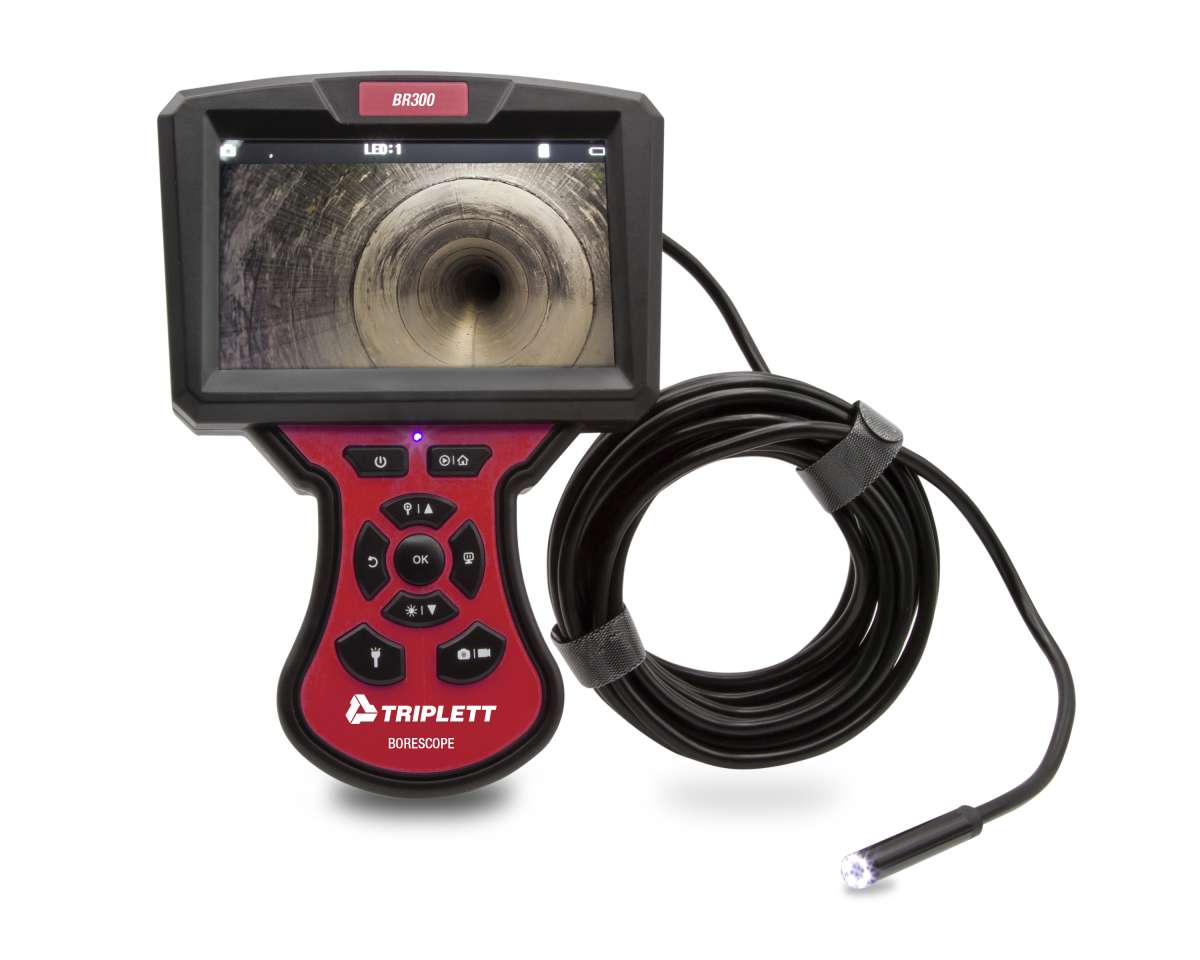

Triplett BR300 High Definition Borescope Inspection Camera

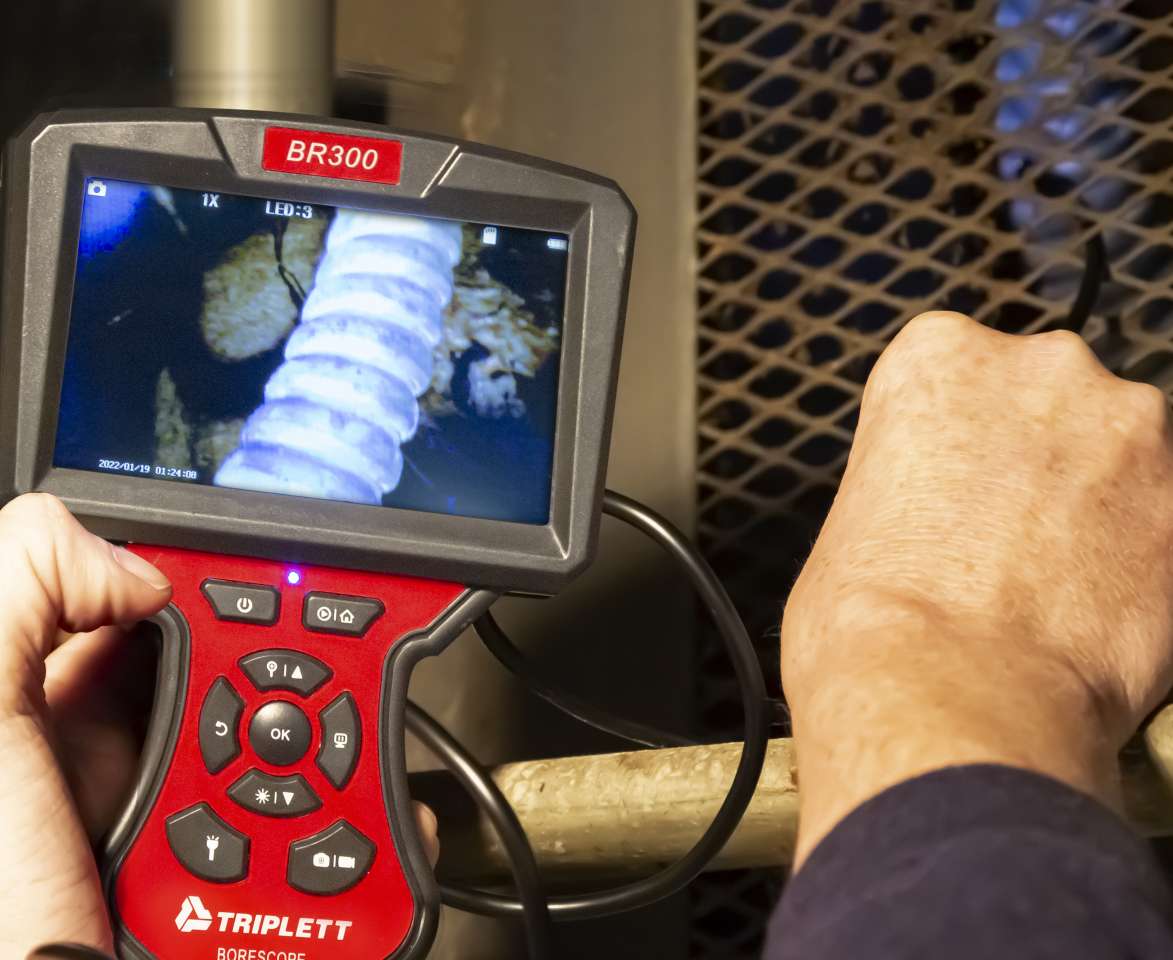

The Triplett BR300 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation.

More info

Triplett BR300 High Definition Borescope Inspection Camera
Roll over image to zoom Click image to expand
  • Triplett BR300 High Definition Borescope Inspection Camera

It has an 5.5mm waterproof (IP67) camera with 8 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection.

It features a 5" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. It has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing. You can view captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max).

The BR300 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Russian, Japanese, and Chinese). It comes complete with Videoscope, 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, mirror).

Features:

  • Waterproof (IP67) 5.5mm camera
  • 5" Color LCD monitor with 1920 x 1080 resolution
  • 8 adjustable LEDs with 3 brightness levels
  • Built-in auxiliary light illuminates darkened work areas for inspection
  • Screen view rotates 180°
  • 3X zoom
  • Built-in clock/calendar
  • View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
  • Store up to 4k images on the included 4GB microSD card
  • Freeze function during live viewing

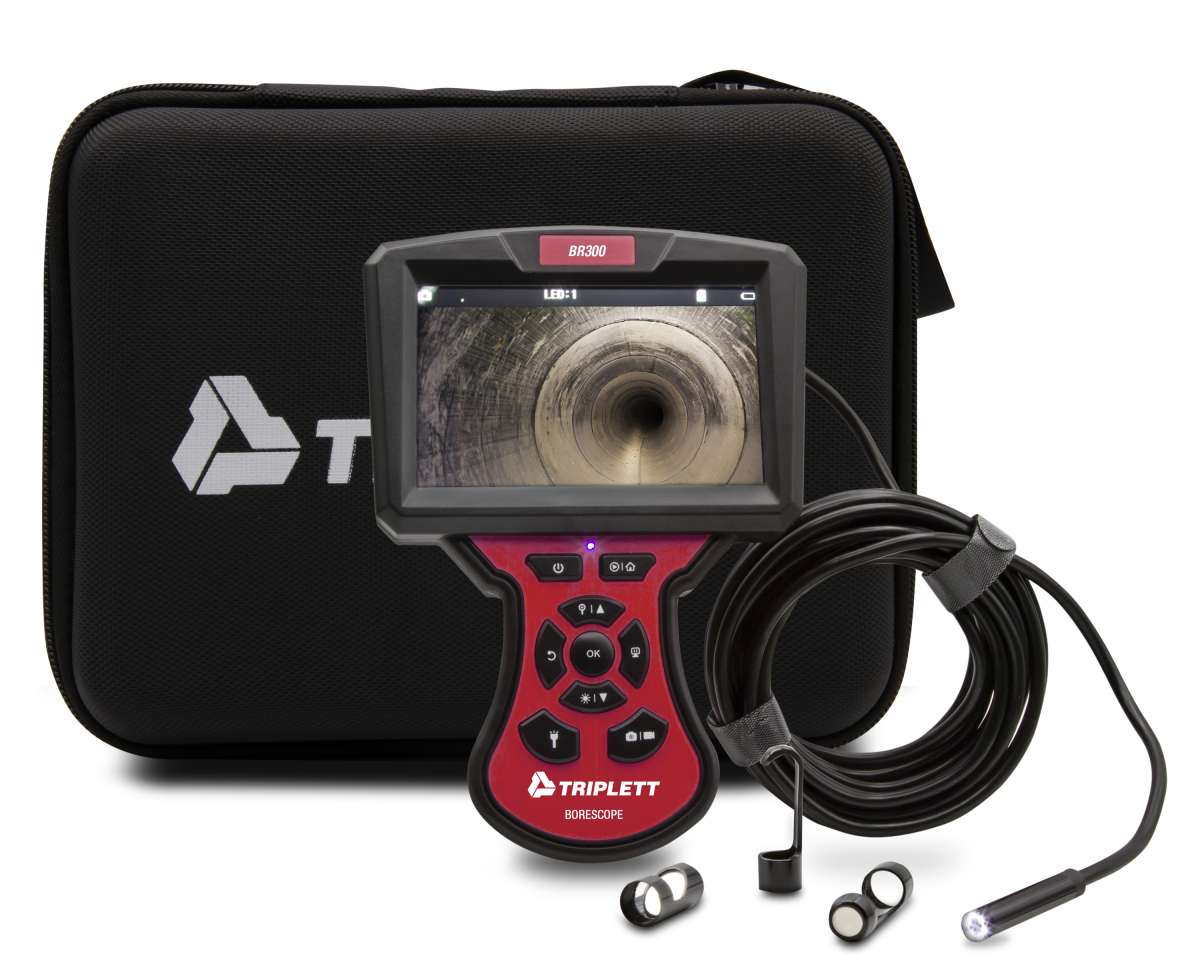

  • Includes 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, mirror)
Specifications
Camera Single (Forward View)
Diameter 5.5mm
Field of View 60°
Depth of View 1.6" (4cm)
Resolution 1920 x 1080
Display Unit
Display 5" Color (1920 x 1080)
Image Zoom 3X
Video Output Format NTSC or PAL
Storage 4G microSD Card included
(up to 64GB max)
Still Image Format JPEG (1920 x 1080)
Video Recording Format AVI (1920 x 1080)
Interface USB
Power 5V Li-Po Battery
Dimensions 8.5 x 4.5 x 1.5”
(216 x 114 x 38.1mm)
Weight 0.9lbs (0.4kg)
