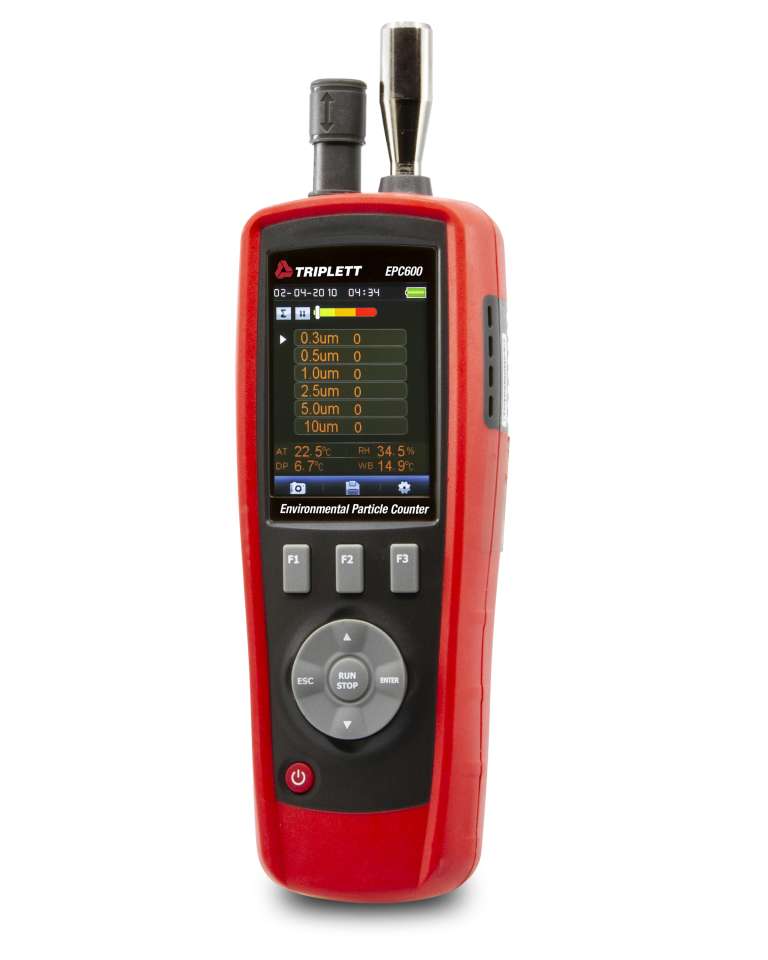

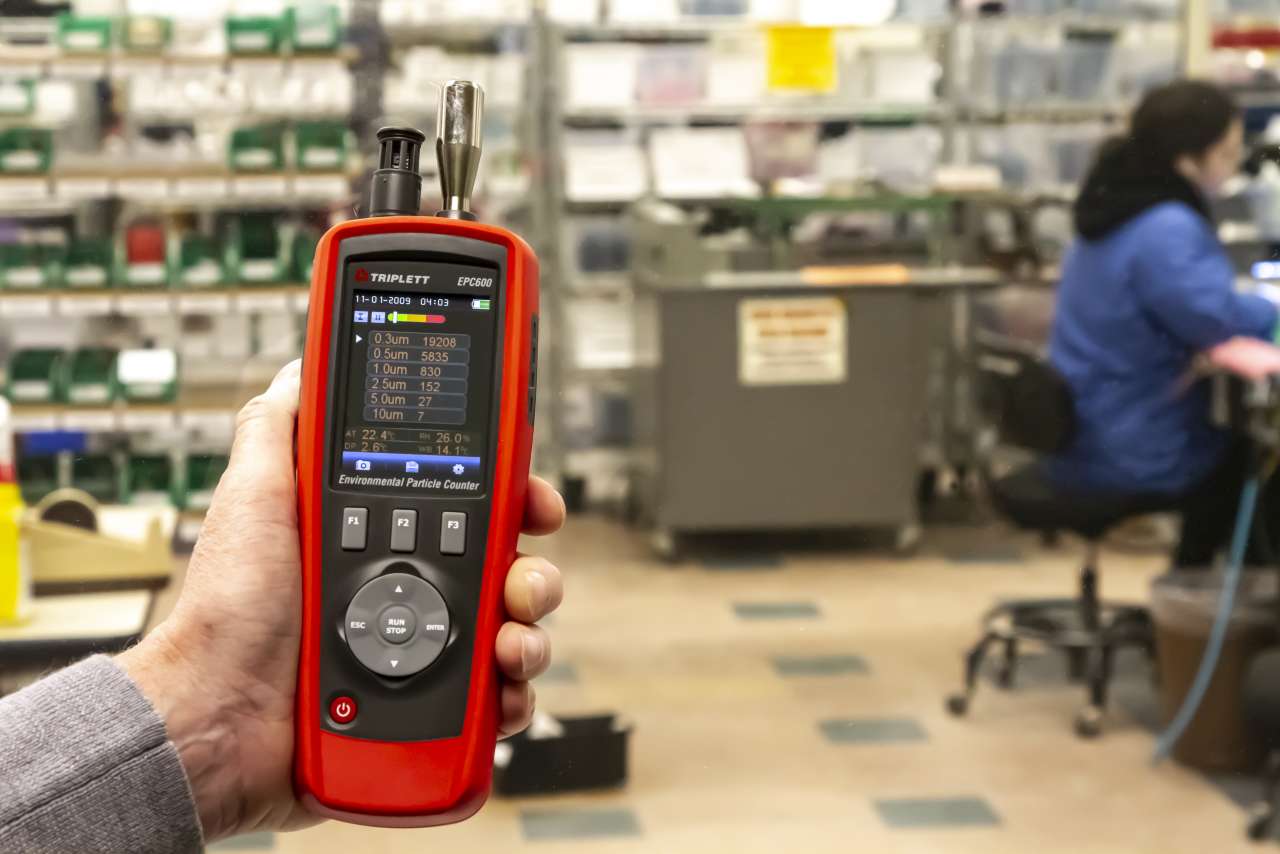

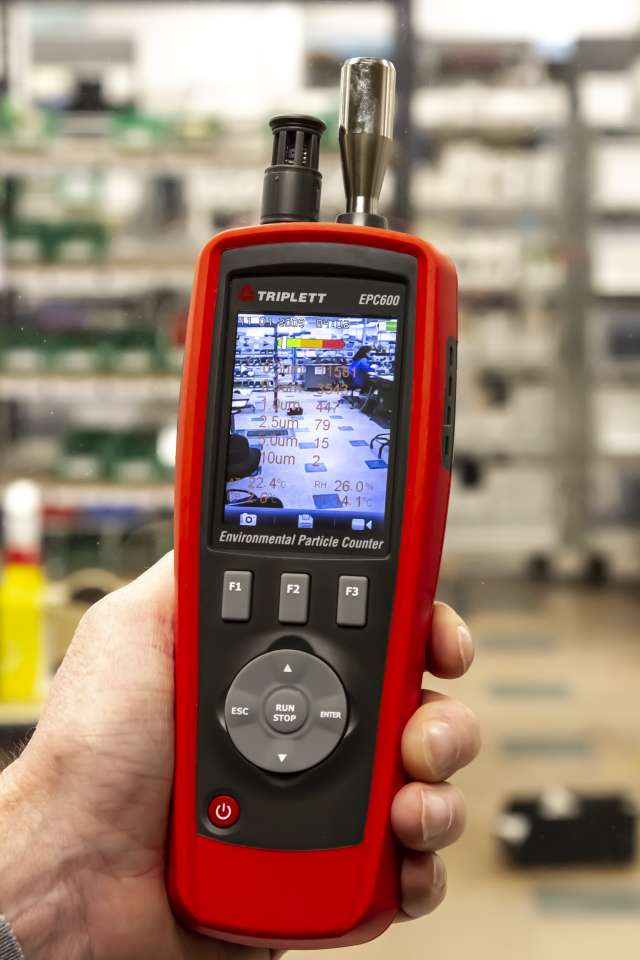

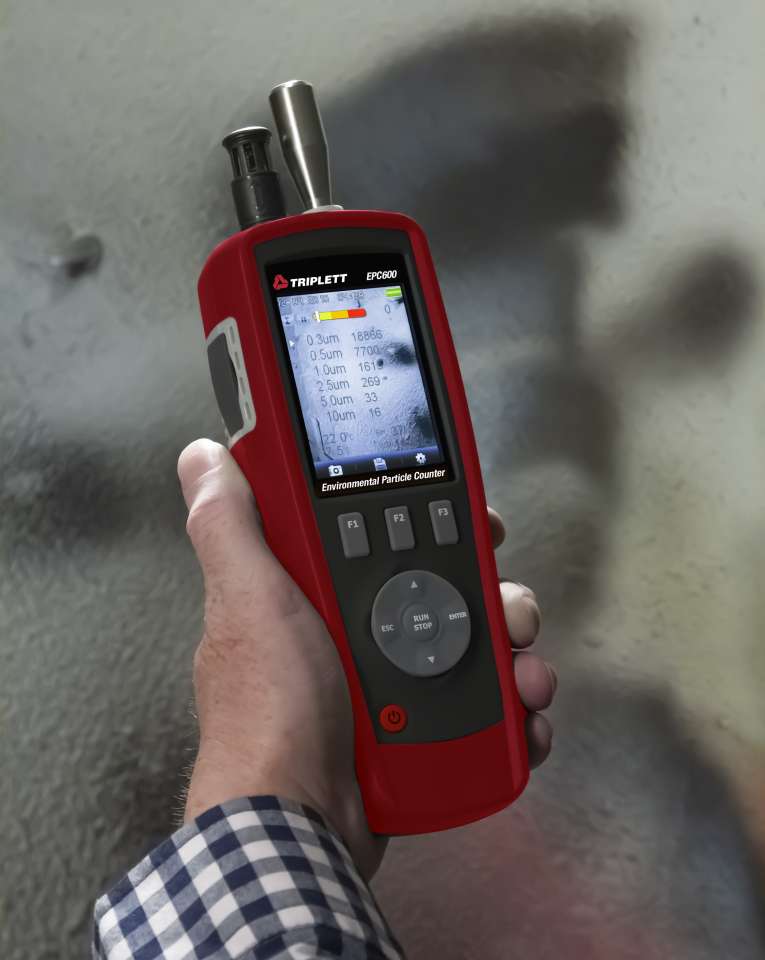

The Triplett Model EPC600 Environmental Particle Counter can simultaneously measure 6 channels of particle sizes down to 0.3µm and displays them on a 2.8” Color TFT display.
Additional measurements include Air Temperature, Humidity, Dew Point and Wet Bulb. The built-in camera (320 x 240) captures images (JPEG) and video (3GP) and can store up to 5000 records with date/time, counts, temperature, humidity, sample volume, alarms, and location label.
Records are stored in internal memory or on a microSD card (SD card not included; uses 8GB max). It features user-selectable sample time, count data, and programmable delay, Min/Max/Avg/Diff recording, plus readout in 5 languages (English, French, German, Spanish and Chinese). USB interface for connection to you PC. Includes 7.4V NiMH rechargeable battery, Universal AC adapter, zero filter, tripod, and USB cable. Includes NIST-traceable calibration certificate.
Features:
- Simultaneously measure and display 6 channels of particle sizes down to 0.3µm methane, propane, butane, ammonia, carbon monoxide and many others
- Measure Air Temperature, Humidity, Dew Point and Wet Bulb
- Built-in camera (320 x 240) captures images (JPEG) and video (3GP)
- 2.8” Color TFT display
- Store up to 5000 records with date/time, counts, temperature, humidity, sample volume, alarms, and location label
- Selectable sample time, count data, and programmable delay
- Internal memory plus microSD card slot (SD card not included; uses 8GB max)
- Min/Max/Avg/Dif recording
- 5 languages (English, French, German, Spanish and Chinese

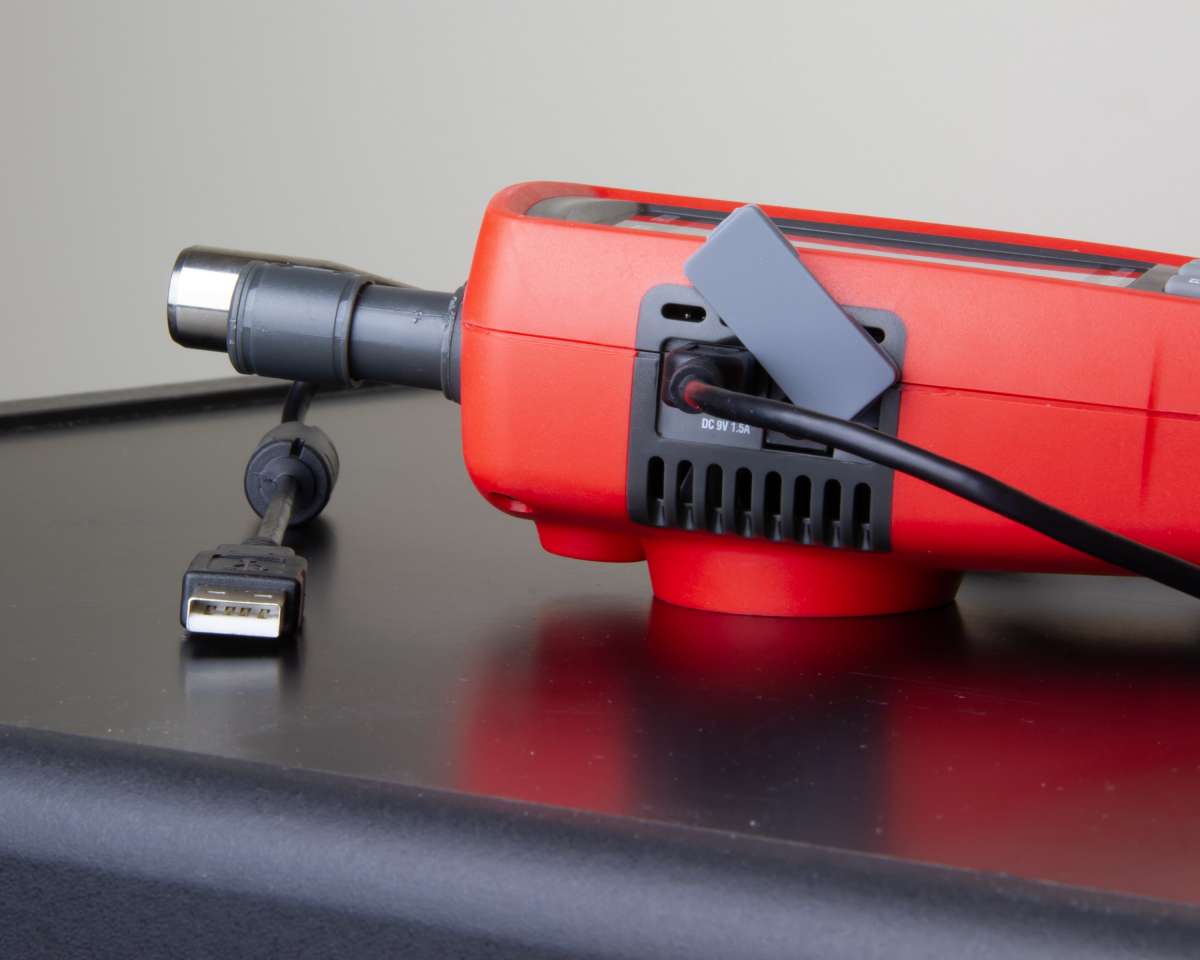

- USB interface
- Complete with NIST-traceable calibration certificate

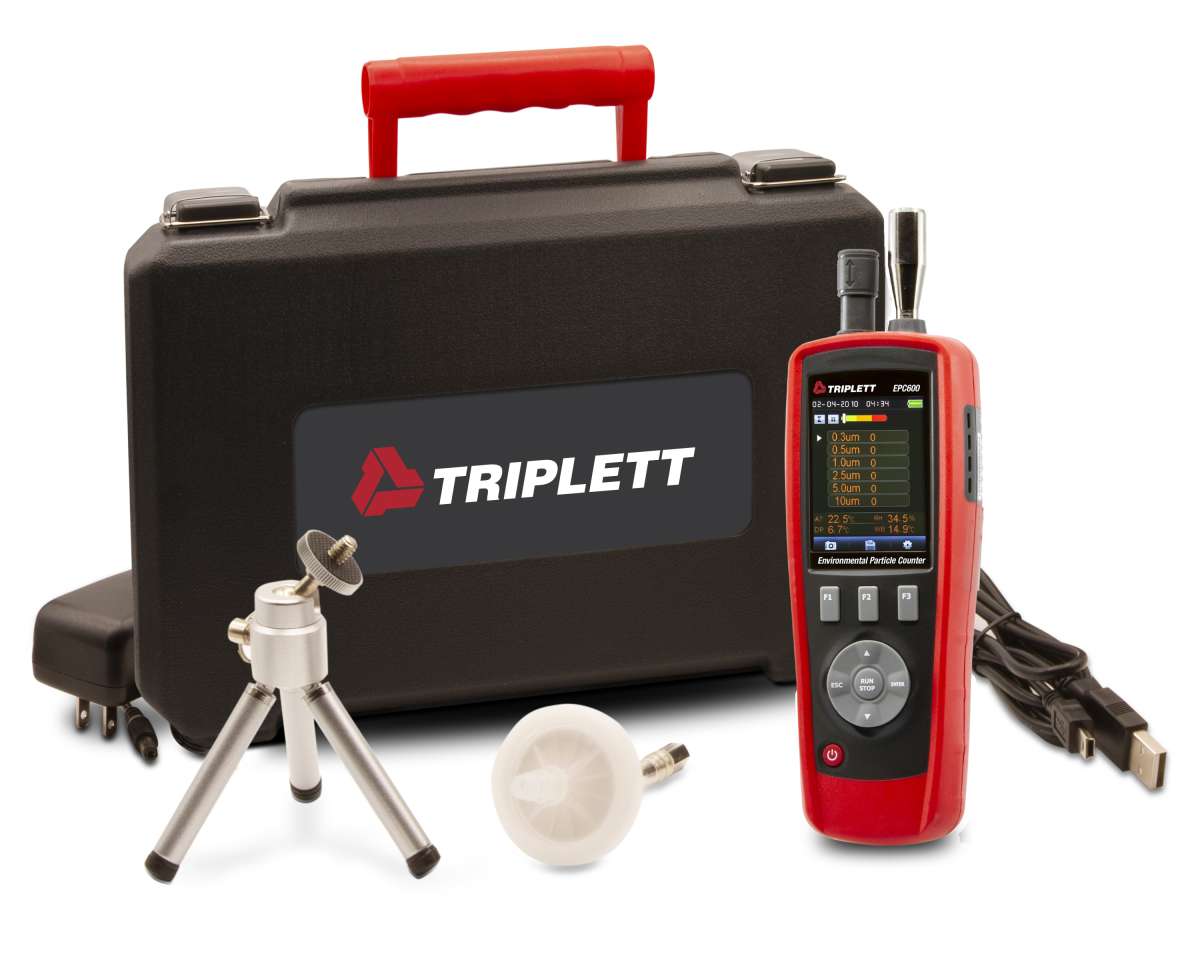

- Includes 7.4V NiMH rechargeable battery, Universal AC adapter, zero filter, tripod, and USB cable
| Specifications |
| Channels |
0.3, 0.5, 1.0, 2.5, 5.0, 10µm |
| Flow Rate |
0.1ft3 (2.83L/min) internal pump |
| Count Mode |
Cumulative, Differential, Concentration |
| Coincidence Loss |
5%, 2,000,000 particles per ft3 |
| Air Temperature Range |
32 to 122°F (0 to 50°C); ±1°F/0.5°C accuracy |
| Humidity range |
0 to 100%RH; ±3% accuracy |
| Dew Point |
32 to 122°F (0 to 50°C) |
| Wet Bulb |
32 to 122°F (0 to 50°C) |
| Built-in Camera |
Record images (JPEG) and Video (3GP) |
| Memory |
74MB internal; microSD card slot 8GB max (card not included) |
| PC Interface |
USB |
| Power |
Universal AC Adapter/Charger; 7.4V rechargeable battery |
| Dimensions |
9.4 x 3 x 2.2" (240 x 75 x 57mm) |
| Weight |
20.1oz (570g) |
