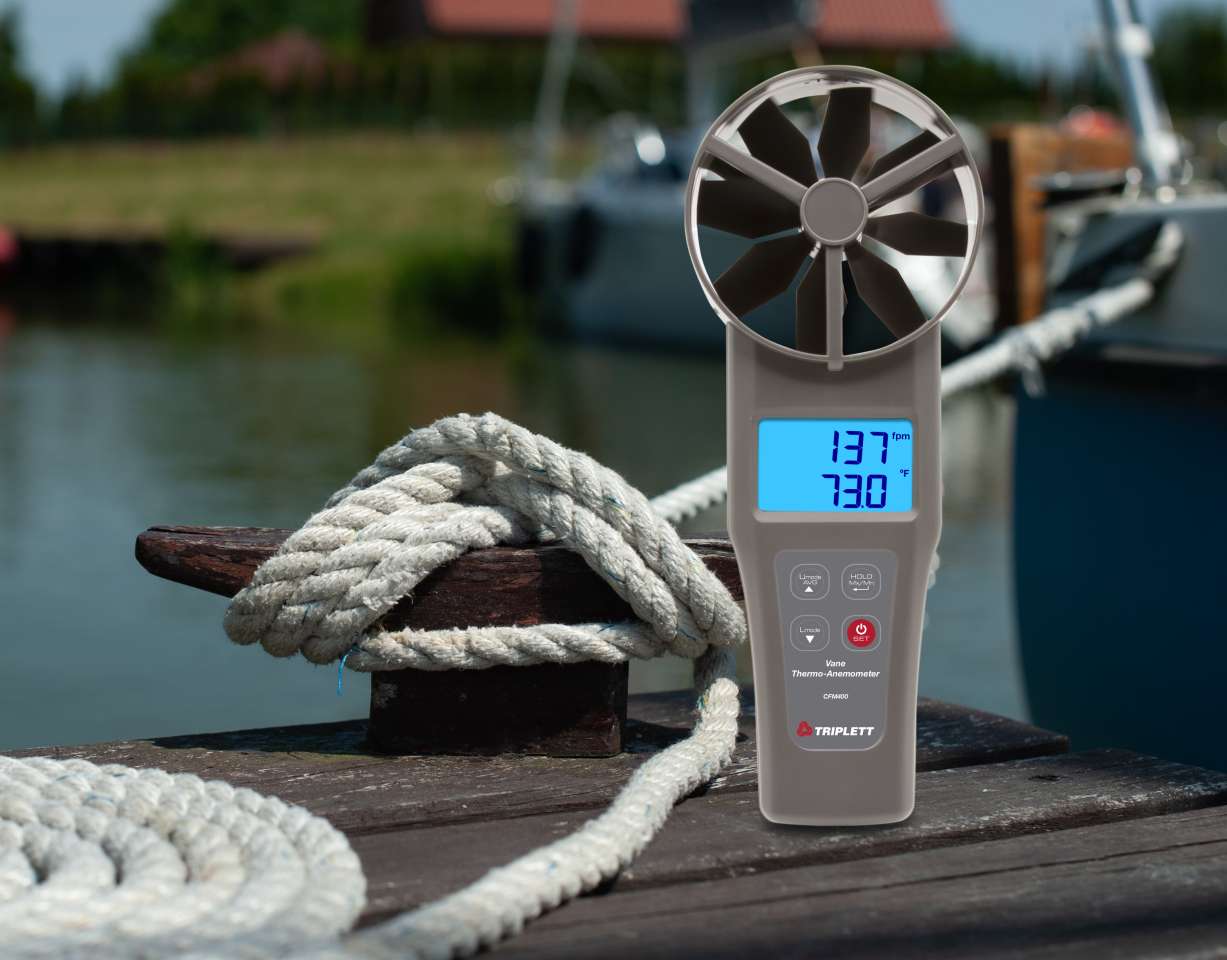

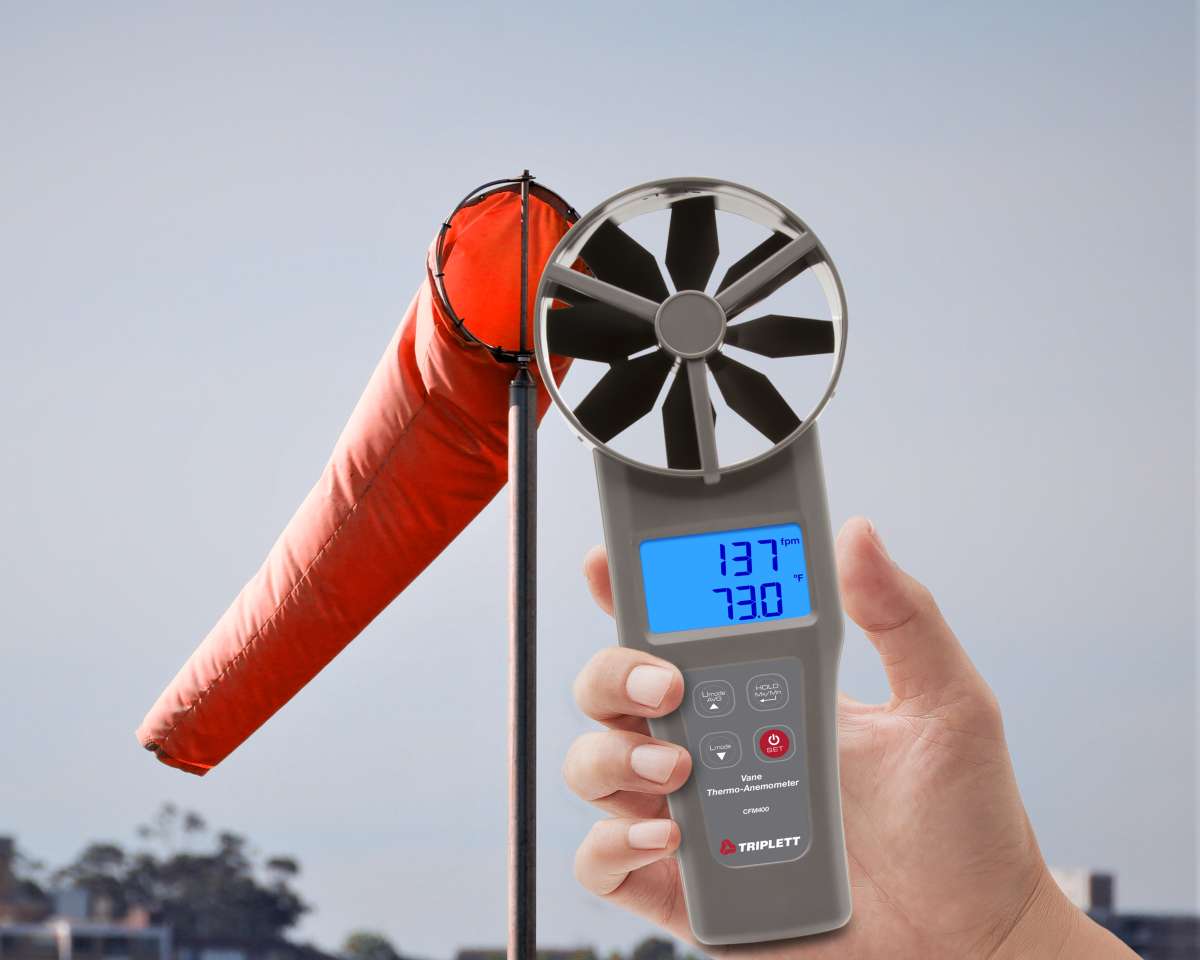

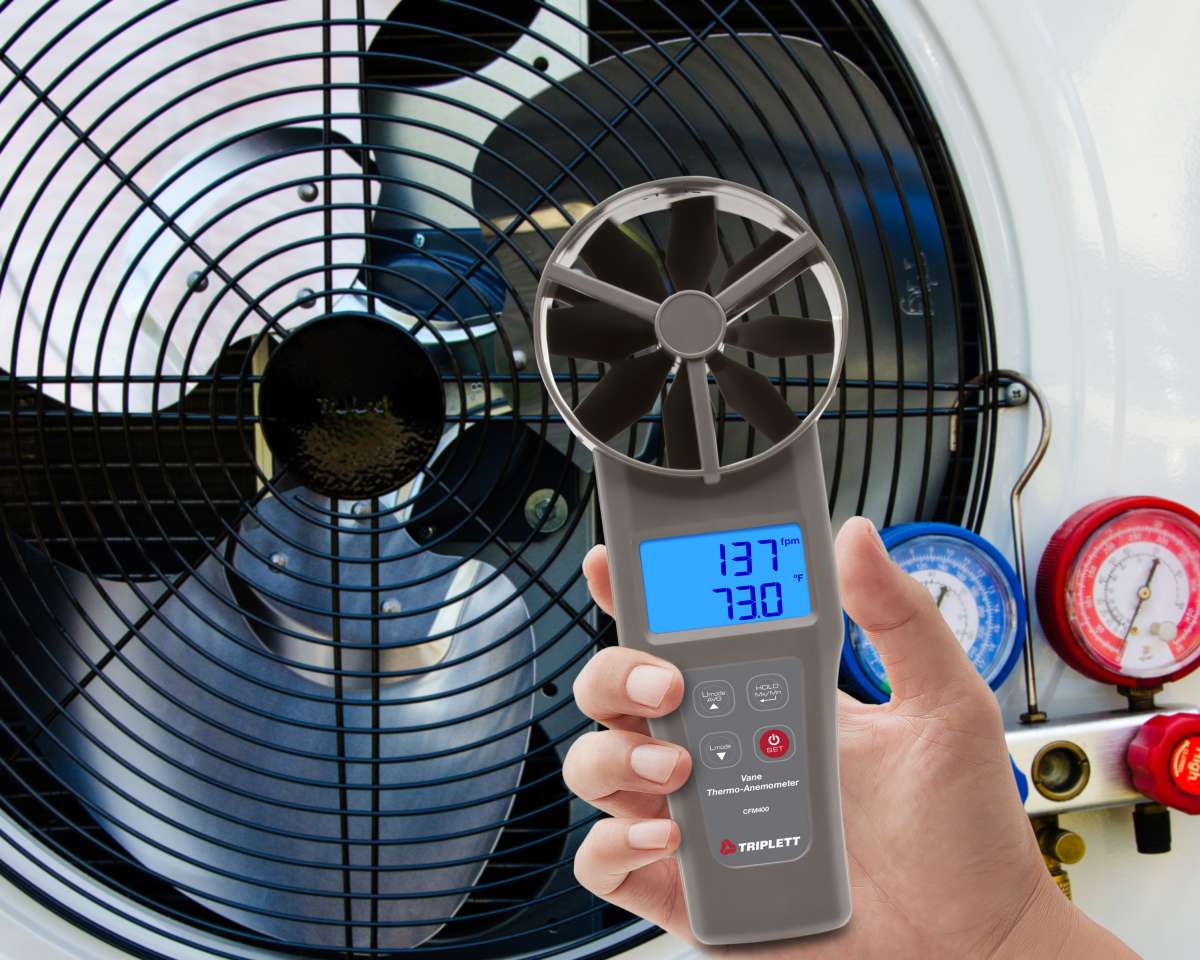

The Triplett Model CFM400 4" (100mm) Large Vane CFM/CMM Thermo-Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 99999 CFM/CMM, and Air Temperature 140°F/60°C) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. Measurements are displayed on a dual backlit easy-to-read LCD display. Min/Max recalls highest and lowest readings plus Multi-Point Average and Timed Average modes. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power off (with disable) function conserves battery life. Includes 4 AAA batteries, hard carrying case and Cert. of Traceability to NIST. 1 year warranty.
Features:
- Measures Air Velocity, Air Flow (volume) and Temperature
- Dual backlit easy-to-read LCD display
- Multi-Point Average and Timed Average modes
- Min/Max recalls highest and lowest readings
- Data Hold freezes the display
- Auto power off with disable

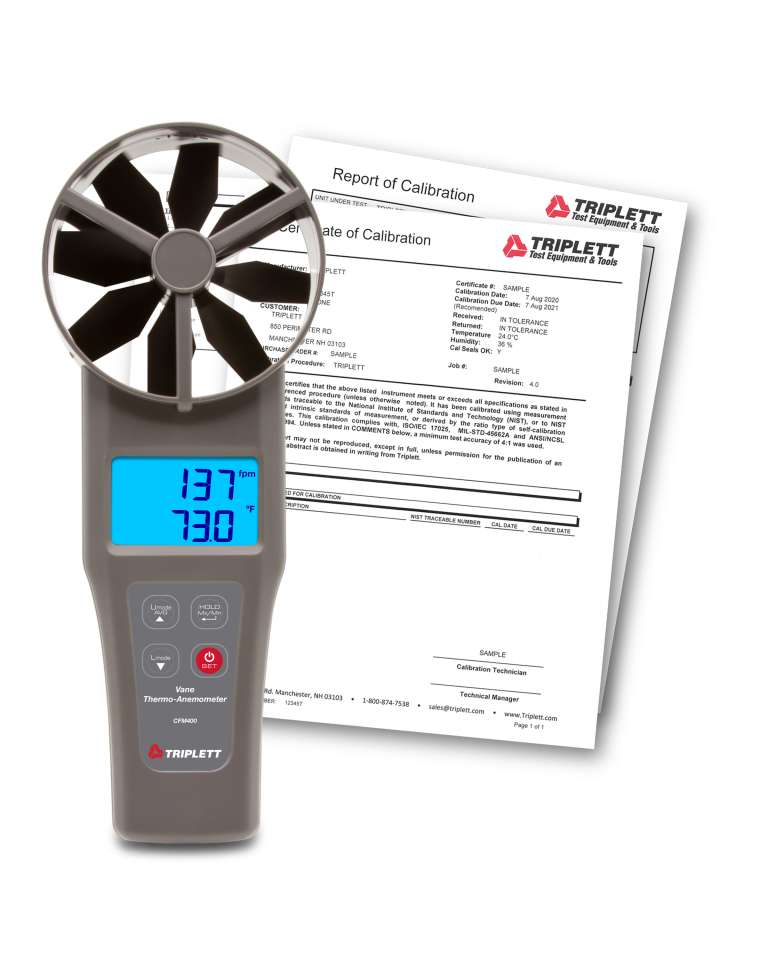

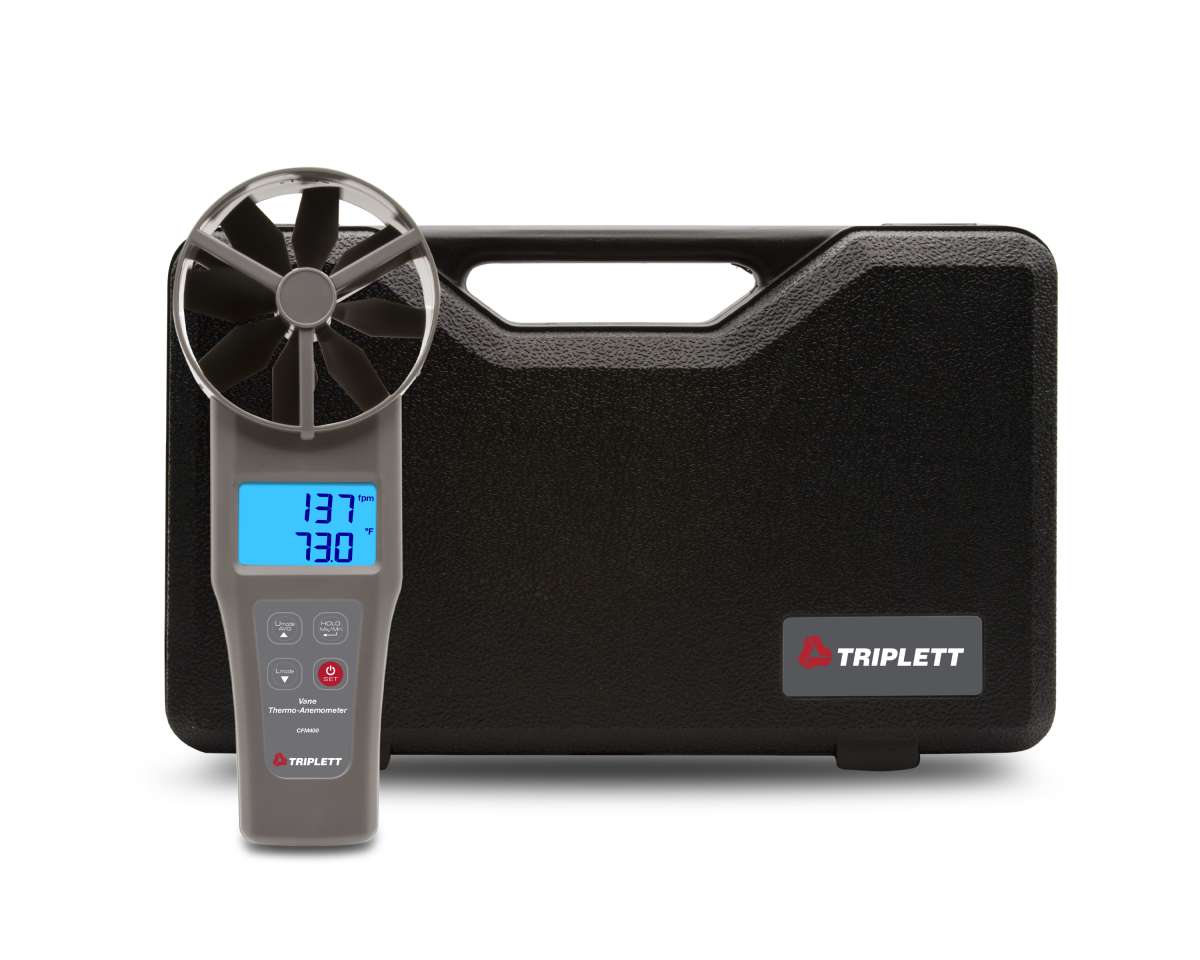

Includes: Includes 4 AAA batteries and hard carrying case and Certificate of Traceability to NIST
Battery Type: (4) AAA batteries
| Specifications |
|---|
| CFM400 |
| Air Velocity | Range (resolution) |
| 40 to 5900 ft/min (1ft/min) |
| 0.2 to 30.00m/s (0.01m/s) |
| Accuracy | ±1.5% |
| Air Flow | Range (resolution) |
| 0 to 99999CFM (0.1CFM) |
| 0 to 99999CMM (0.1CMM) |
| Air Temperature | -4 to 140°F/-20 to 60°C (0.1°F/°C) |
| Accuracy | ±1.1°F/0.6°C |
| Power | 4 x AAA batteries |
| Dimensions | 10.6 x 4.2 x 2" (269 x 106 x 51mm) |
| Weight | 1.6lbs (725g) |
Datasheet: https://www.files.triplett.com/datasheet/cfm400.pdf
User Manual: https://files.triplett.com/manual/cfm400.pdf
