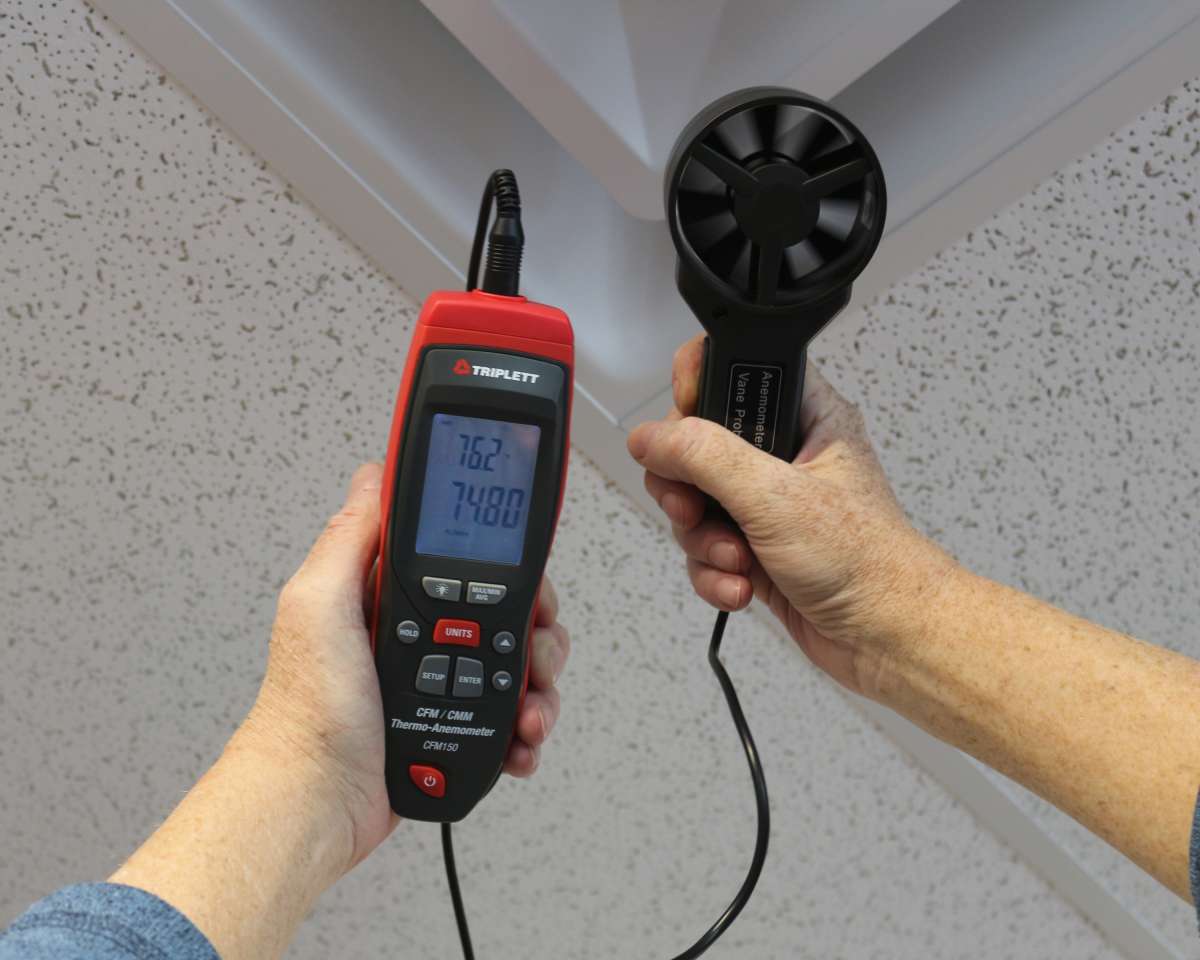

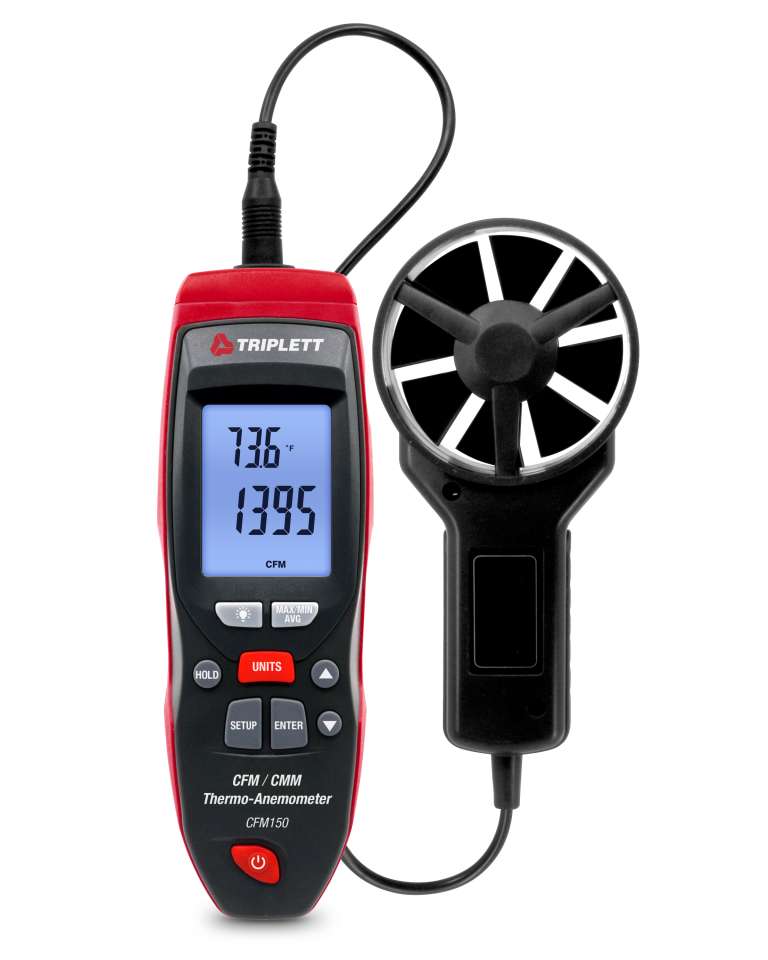

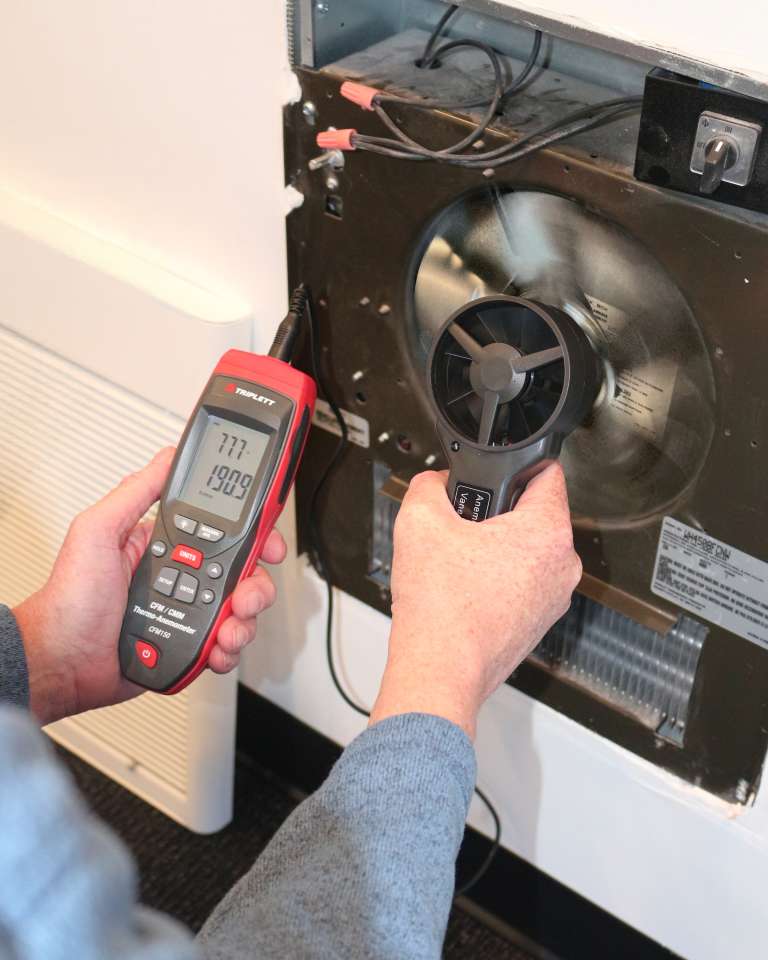

The Triplett Model CFM150 3" (76mm) Vane CFM/CMM Thermo-Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 999900 CFM/CMM, Air Temperature 140°F/60°C), and Humidity (0 to 100%) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. Measurements are displayed on a dual backlit easy-to-read LCD display. Min/Max/Avg recalls highest, lowest and average (20) readings. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power off function conserves battery life. Includes 3" (76mm) diameter vane with 4ft (121cm) cable, 9V battery and pouch case. 2 year warranty.
Features:
- Measures Air Velocity, Air Flow (volume), Temperature and Humidity
- Dual backlit easy-to-read LCD display
- Min/Max/Avg recalls highest, lowest, and average (20) readings
- Data Hold freezes the display
- Low Battery Indicator
- Auto power off

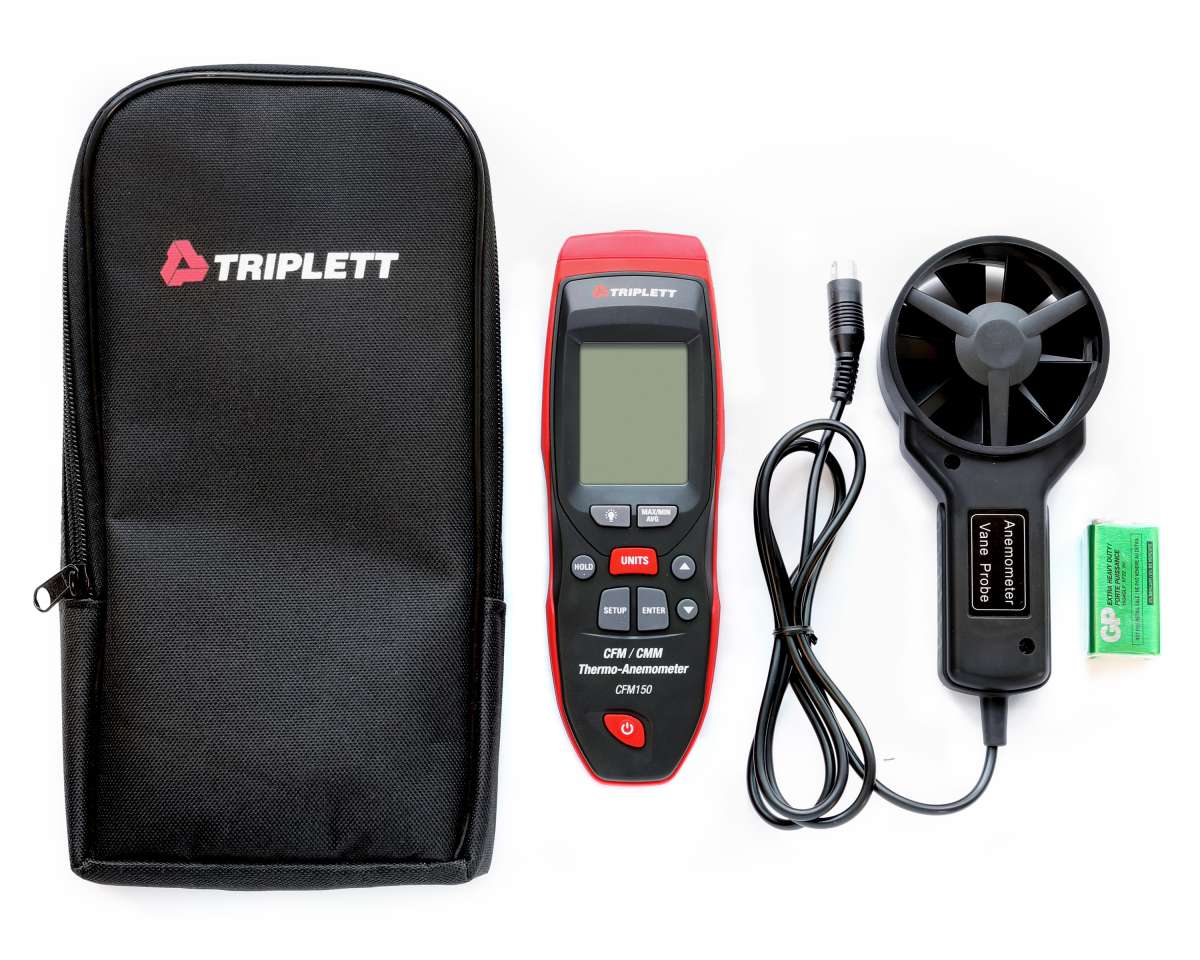

Includes: Includes 3" (76mm) diameter vane with 4ft (121cm) cable, 9V battery and pouch case
Battery Type: 9V battery
| Specifications |
|---|
| Air Velocity | Range (resolution) |
| 80 to 5900 ft/min (1ft/min) |
| 0.40 to 30.00m/s (0.01m/s) |
| 1.4 to 108.0km/h (0.1km/h) |
| 0.9 to 67.0mph (0.1mph) |
| 0.8 to 58.0 knots (0.1 knots) |
| Accuracy | ±3% |
| Air Flow | Range (resolution) |
| 0 to 999900CFM (0.001CFM) |
| 0 to 999900CMM (0.001CMM) |
| Air Temperature | 14 to 140°F/-10 to 60°C (0.1°F/°C) |
| Accuracy | ±4°F/2°C |
| Relative Humidity | 0 to 100% |
| Accuracy | ±3.5% |
| Power | 9V battery |
| Dimensions | 7.3 x 6 x 1.8" (185 x 150 x 45mm) |
| Weight | 12oz (333g) |
Datasheet: https://files.triplett.com/datasheet/CFM150_DS.pdf
User Manual: https://files.triplett.com/manual/CFM150_UM.pdf
