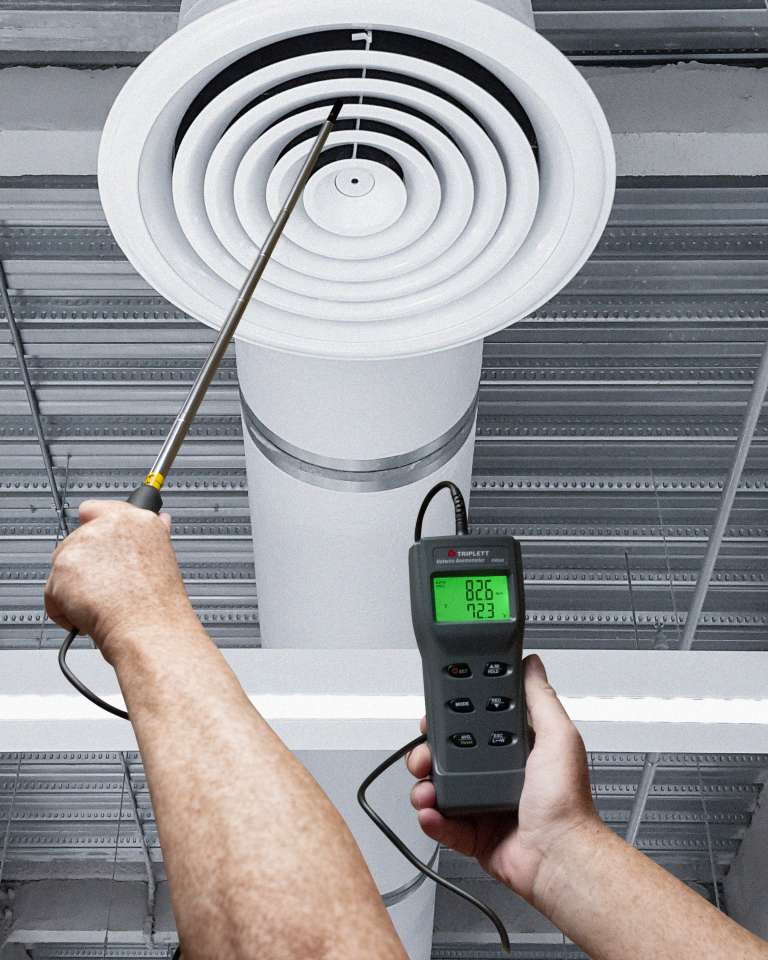

The Triplett AM500 Hotwire Anemometer uses a strong and precise airflow and temperature sensor to provide very accurate readings. The compact telecsoping probe head is ideal for ductwork. This micro-processor based design includes ATC (Automatic Temperature Compensation) and allows for accuracy on low flow (30ft/min) applications where traditional vane anemometers do not. It is a must have for any HVAC Engineer or Technician. Complete with telescoping probe with magnet,O-ring marker, hard carrying case, four 1.5V AAA batteries and Certificate of Traceability to N.I.S.T. 1-year warranty.
Features:
- Simultaneously measures and displays Air Flow (CFM/CMM) or Air Velocity plus Temperature
- Telescoping probe extends up to 3ft (0.9m) long; Probe Head Diameter: 0.3" (8mm)
- Depth and Direction Indications (O-Ring and Markers)
- Strong Magnet for mounting and hands free operation
- Displays measurement in 2 modes as an instantaneous value or up to 20 point average
- Display Modes include Normal; Min/Max; Time Average/Point Average
- Large 1.7" LCD display with Backlight
- Data Hold plus Auto Power Off with disable

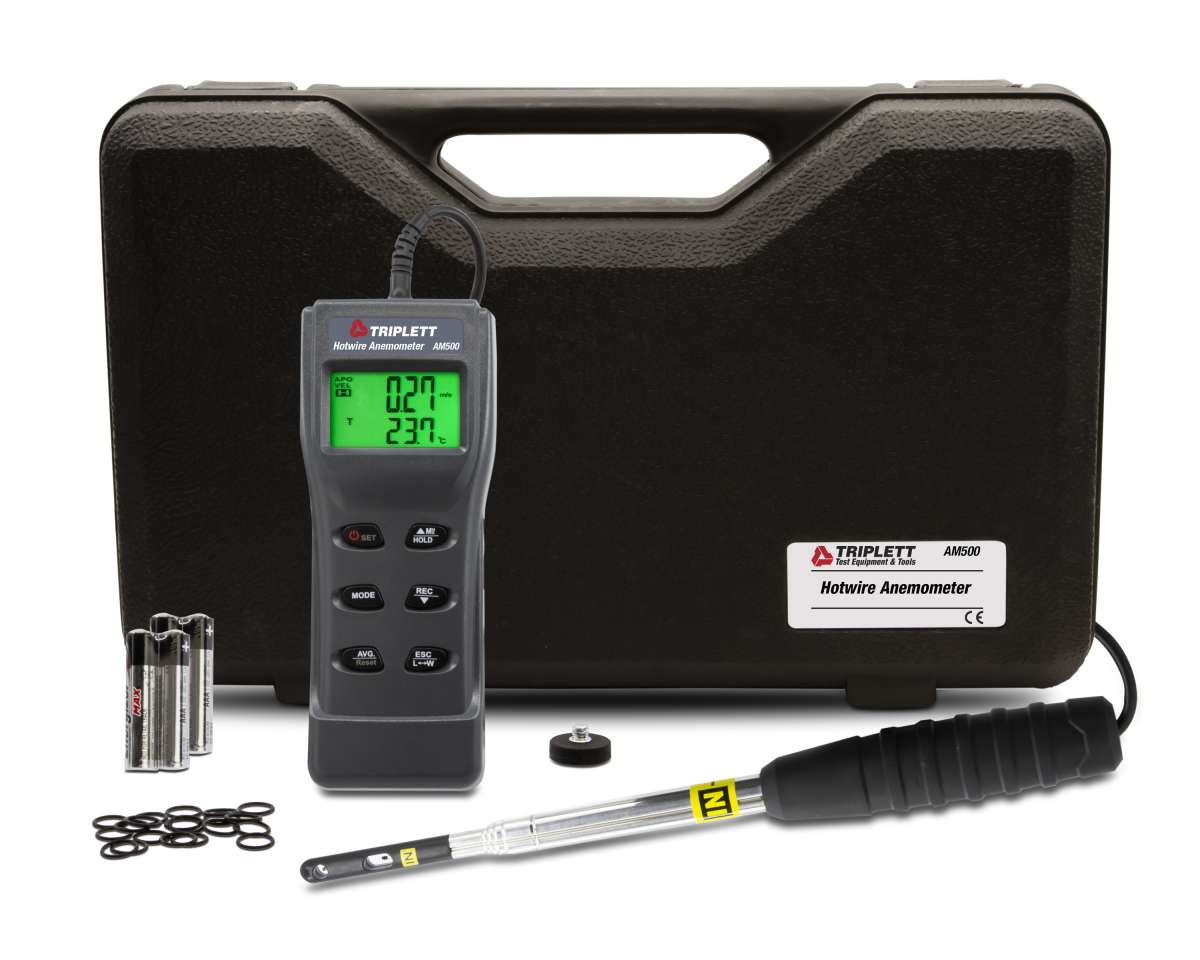

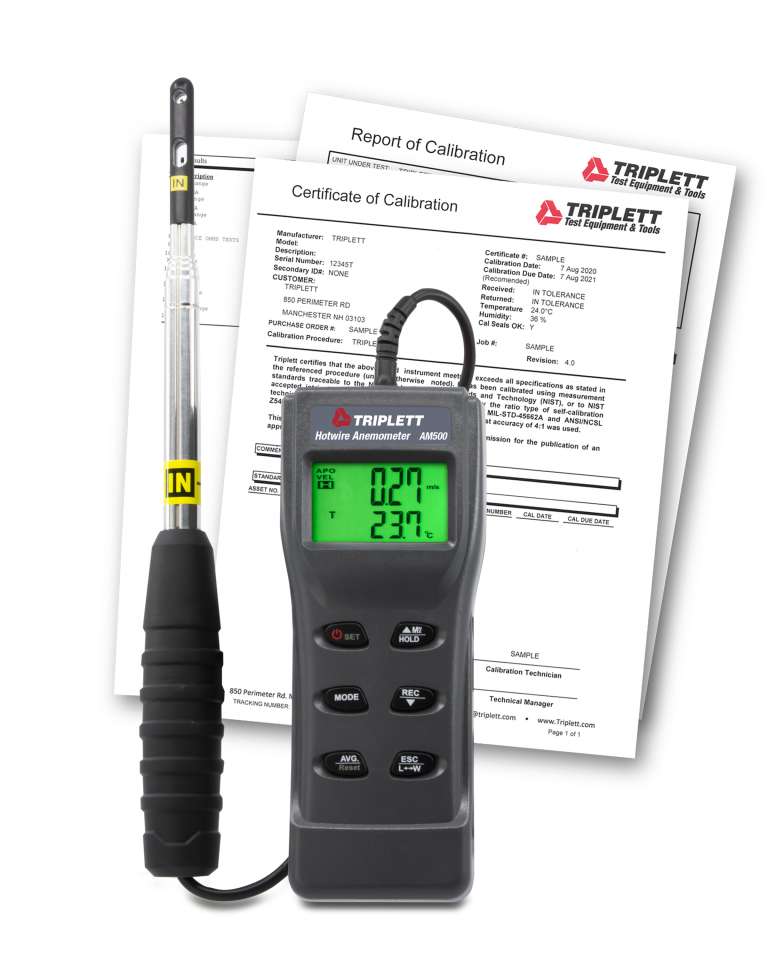

Includes: Includes telescoping probe with magnet,O-ring marker, hard carrying case and four 1.5V AAA batteries and Certificate of Traceability to NIST
Battery Type: (4) AAA batteries
| Specifications |
|---|
| AM500 |
| Air Velocity | Range (resolution) |
| ft/min | 30.0 to 3937ft/min (0.1ft/min) |
| m/s | 0.15 to 20.00m/s (0.01m/s) |
| Accuracy | ±5% |
| Air Volume | Range (resolution) |
| CFM / CMM | 0.1 to 99999CFM/CMM (0.1CFM/CMM) |
| CMH / I/s | 0.1 to 99999CMH/I/s (0.1CMH/I/s) |
| Air Temperature | 14.0 to 122.0°F (-10.0 to 50.0°C ) |
| Accuracy | ±1.8°F/1°C |
| Power | 4 x 1.5V AAA |
| Dimensions | 6.9 x 2.6 x 1.3" (175 x 70 x 33mm) |
| Weight | 11.7oz (331g) |
Datasheet: http://files.triplett.com/datasheet/am500.pdf
User Manual: http://files.triplett.com/manual/am500.pdf
