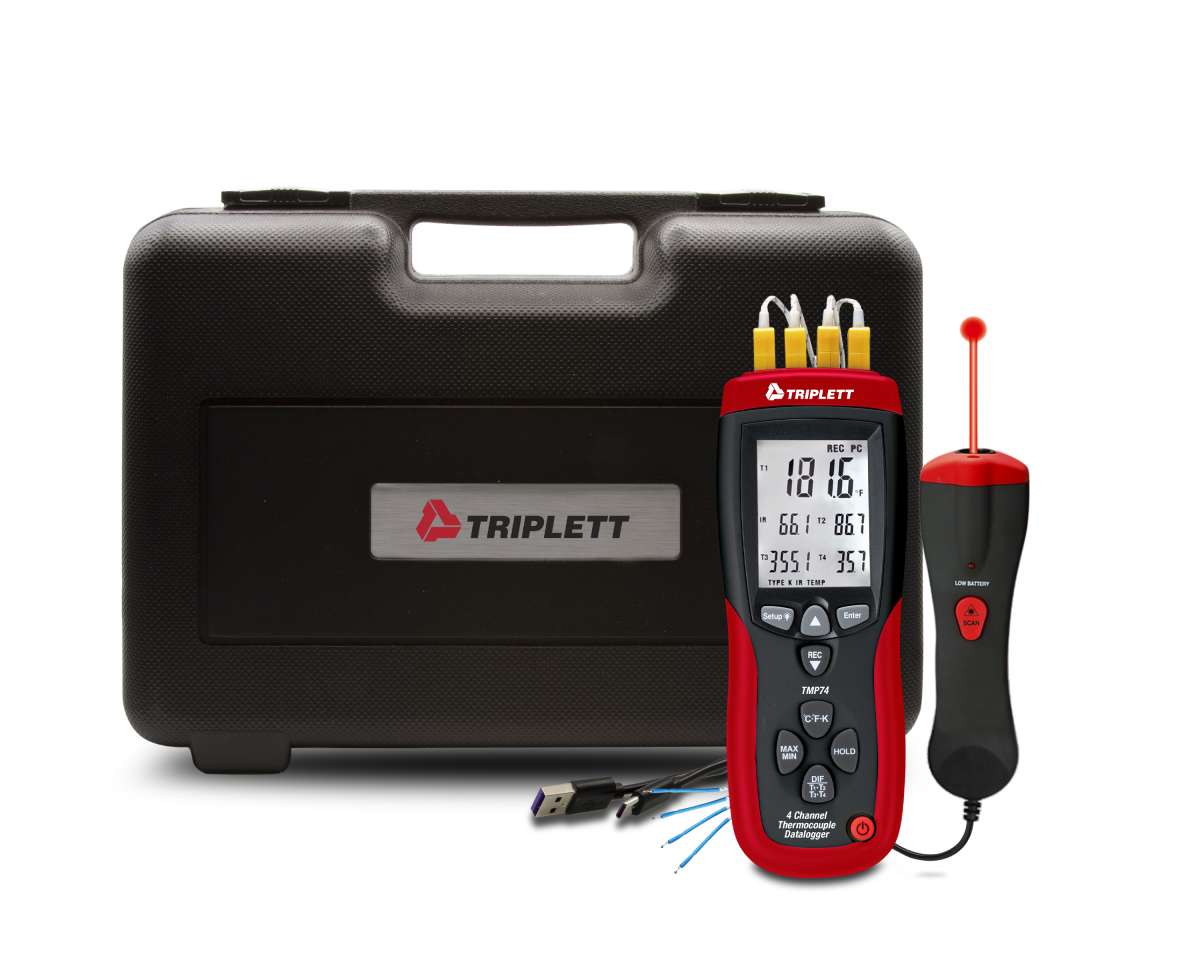

The Triplett TMP74-NIST 4 Channel Thermocouple Datalogger plus IR Thermometer is a professional device designed for technicians, engineers and inspectors who need the versatility of 4 temperature values simultaneously. With data logging, multiple values can be tracked and evaluated over time. Includes (4) Type K Thermocouples, IR Probe, 9V battery and a Certificate of Traceability to N.I.S.T. 2 year warranty.
Features:
- Displays 4 Type K thermocouples and 1 IR probe simultaneously
- Measures in °F, °C, or Kelvin (K) with 0.1° resolution for high precision
- Electronic offset compensation for probe error correction
- Differential measurement for thermal comparisons
- Records up to 18,000 data points per channel
- Large backlit display with multi-channel readings and MAX/MIN/AVG indicators
- Auto power-off (sleep mode) for extended battery life
- USB interface

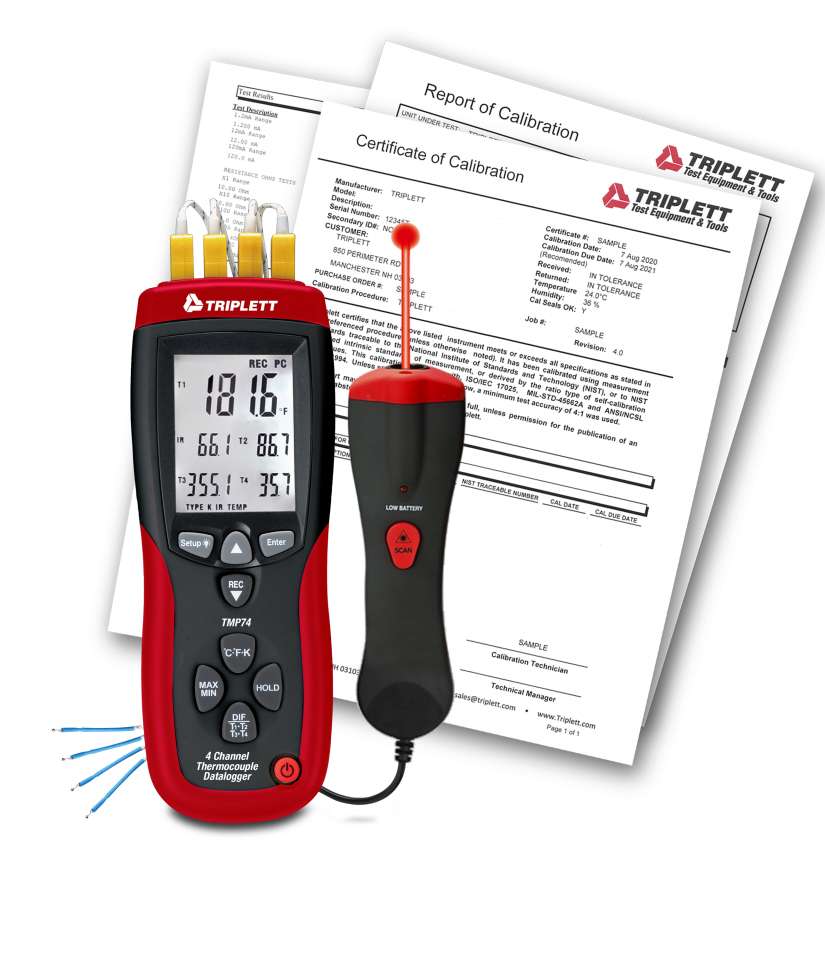

Includes: Includes (4) Type K Thermocouples, IR Probe, 9V battery, and a Certificate of Traceability to N.I.S.T.
Battery Type: 9V battery
| Specifications |
|---|
| TMP74 |
| Thermocouple Inputs (T1–T4) | -328°F to 2501°F (-200°C to 1372°C) |
| Accuracy | ±(0.15% + 1.0°F/°C) |
| Resolution | 0.1/1°F°C |
| IR Thermometer Range | -22°F to 1022°F (-30°C to 550°C) |
| Accuracy | ±(2.0% + 2.0°F/°C) |
| Resolution | 0.1/1°F°C |
| Differential (T1–T2, T3–T4) | Calculated |
| IR – Tx Differential | Calculated |
| Data Logging Memory | Up to 18,000 records per channel |
| Power | 9V Battery |
| Interface | USB |
| Dimensions | |
| Weight | |
