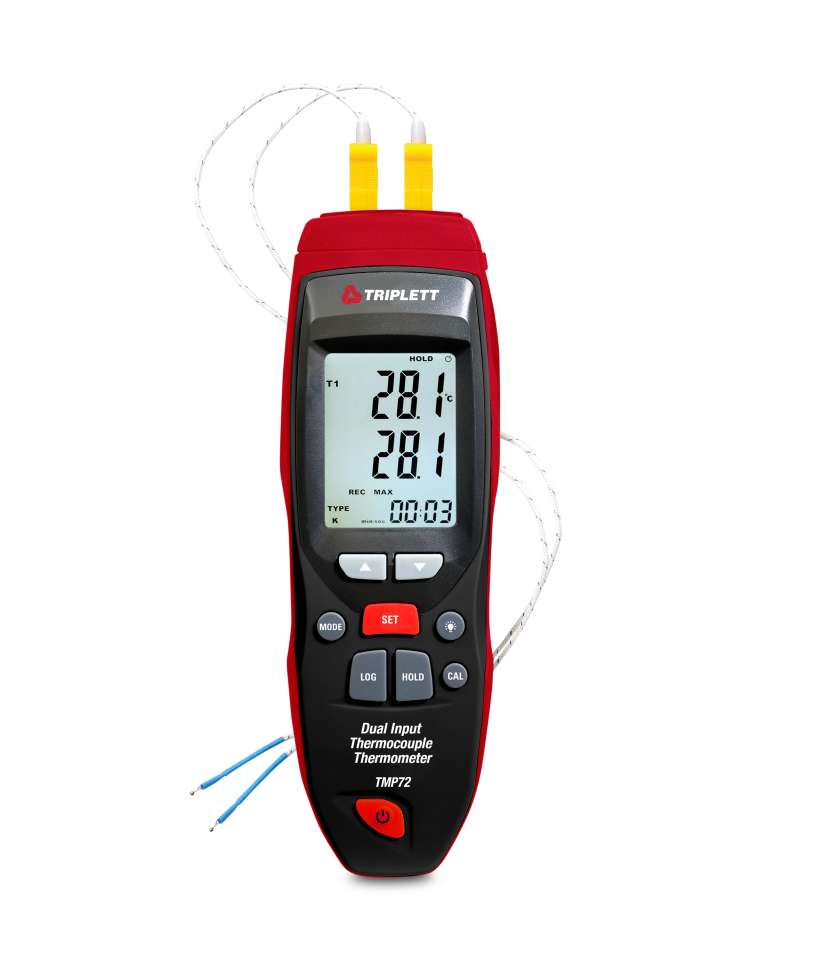

The Triplett TMP72 Dual-Input Thermocouple Thermometer is designed for Type K/J/T/E/S/R/N thermocouples. With dual input channels, fast response time, and a built-in data logger with USB interface, it is ideal for demanding temperature measurement tasks across various industries. A rugged holster ensures durability in field and laboratory environments. Includes Two type K thermocouples, PC software, USB cable, 9V battery, and carrying case. 2 year warranty.
Features:
- High-accuracy, microprocessor-based thermometer designed for 7 types of thermocouples
- Type J/K/T/E/S/R/N thermocouple inputs
- Dual input (T1-T2) for differential measurement
- Max/Min/Avg, Data Hold, and Hi/Lo Alarms
- LCD display with backlight
- Data Logging up to 16,000 readings
- Adjustable sample rate 1 second to 60 minutes
- USB interface
- Auto Power Off and Low Battery Indicator
- Optional Model with Certificate of Traceability to N.I.S.T.

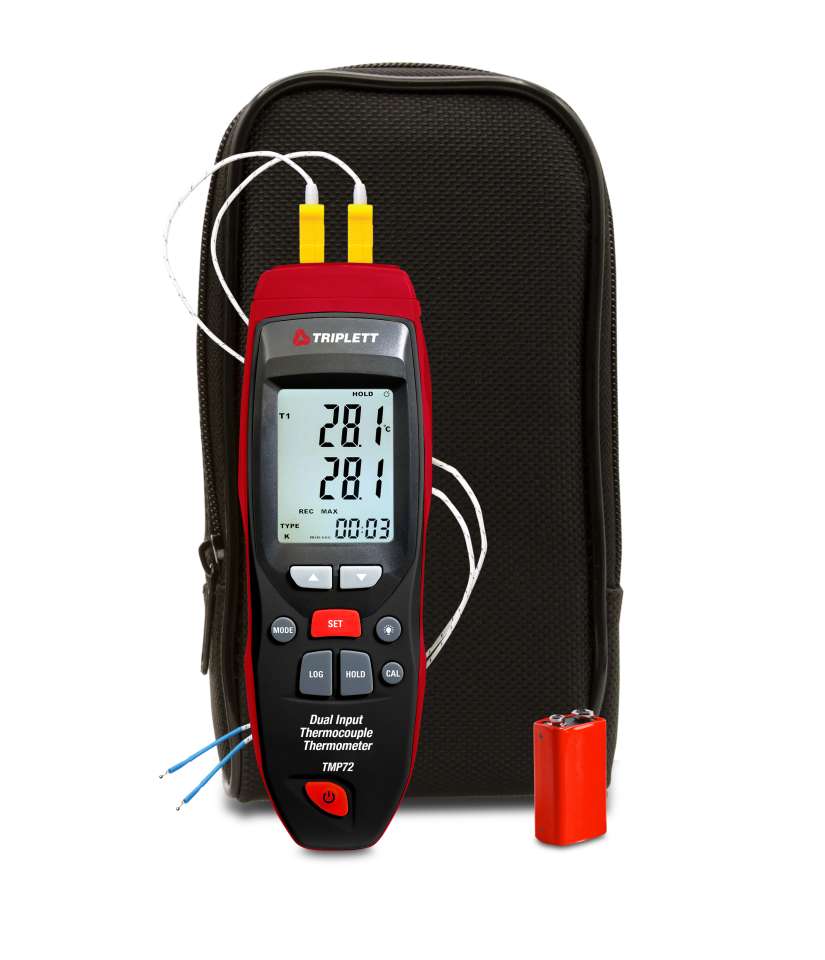

Includes: Includes Two type K thermocouples, PC software, USB cable, 9V battery, and carrying case
Battery Type: 9V battery
| Specifications |
|---|
| Temperature Range | Type J: -328°F to 1832°F (-200°C to 1000°C)
Type K: -418°F to 2501°F (-250°C to 1372°C)
Type T: -418 to 752°F (-250 to 400°C)
Type E: -328 to 1814°F (-200 to 990°C)
Type S: 32 to 3200°F (0 to 1760°C)
Type R: 32 to 3200°F (0 to 1760°C)
Type N: -328 to 2354°F (-200 to 1290°C) |
| Accuracy | Type J/K/T: ±1% + 1.8°F (1°C)
Type E/S/R/N: ±1% + 3.6°F (2°C) |
| Resolution | 0.1/1°F/°C |
| Response Time | < 300 ms |
| Display | Backlit LCD |
| Data Logger Memory | 16,000 readings |
| Sampling Rate | Adjustable 1 sec to 60 min |
| Interface | USB |
| Differential Temperature | Yes (T1-T2) |
| Alarms | Hi/Lo Audible Alarms |
| Power | 9V Battery |
| Dimensions | 7.3 x 2.6 x 1.8" (185 x 65 x 45 mm) |
| Weight | 8.7oz (248g) |
