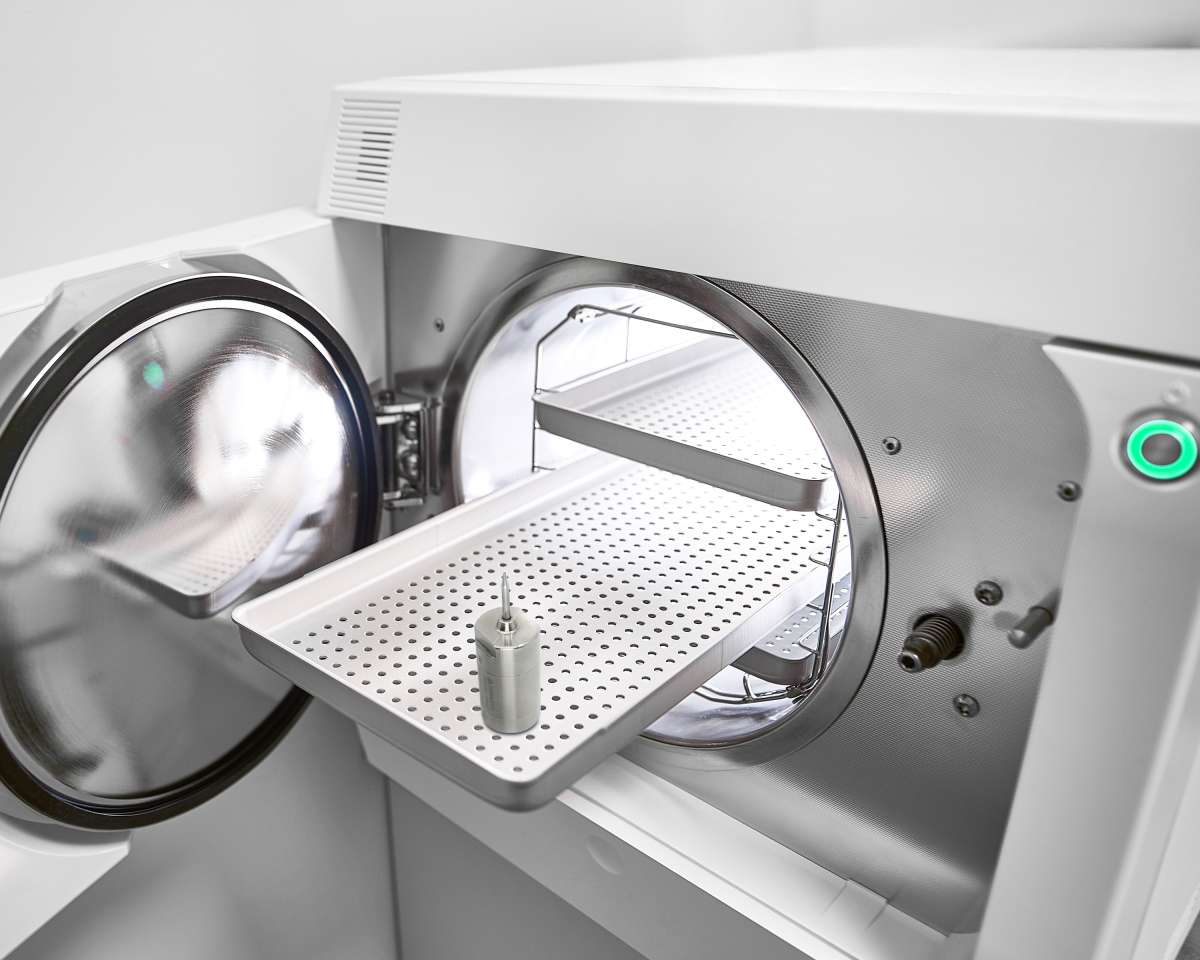

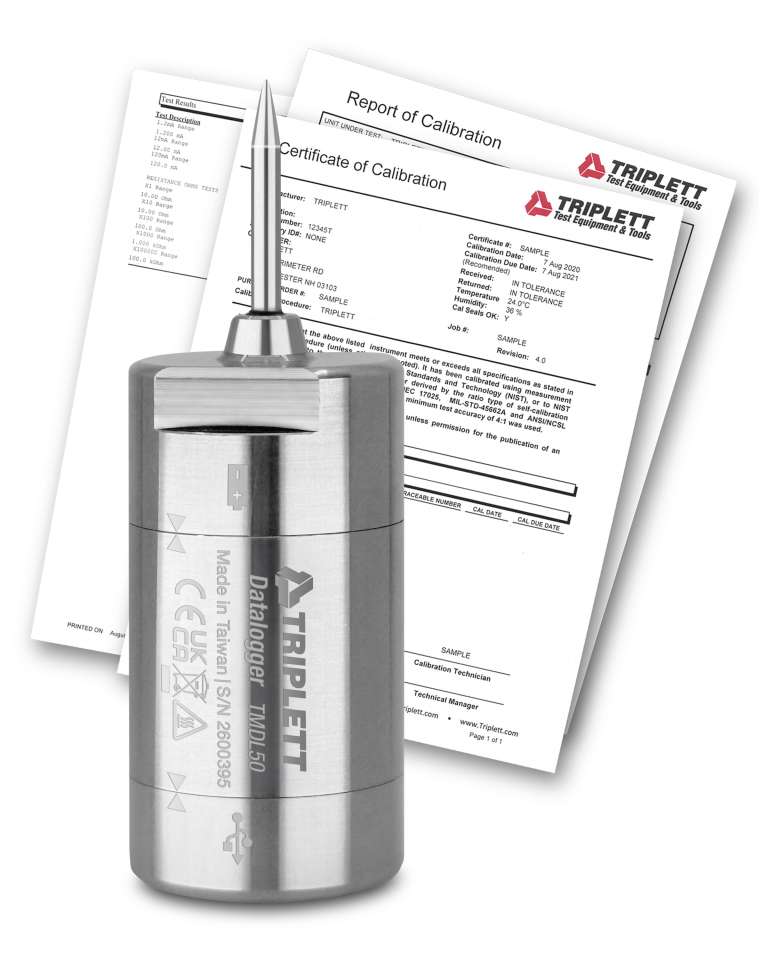

The Triplett TMDL50-NIST High Temperature Data Logger's reliable temperature monitoring is ideal for sterilization, pasteurization, autoclaves, and other high-heat applications, it offers precise data logging capabilities in a compact, rugged, and waterproof stainless steel enclosure. Includes 3.6V Lithium battery, USB cable, O Ring, cleaning cloth and a Certificate of Traceability to NIST. 2 year warranty.
Features:
- Designed for reliable temperature monitoring in extreme environments
- High Temperature operates up to 125°C continuously; short-term exposure up to 140°C
- Compact & Durable food-grade 316L stainless steel construction for harsh environments
- High Accuracy ±0.5°C from 0°C to 125°C
- Long battery life up to 18 months (user-replaceable)
- Stores up to 32,000 readings
- Adjustable sampling rate from 1 second to 10 hours
- Waterproof (IP68) for full submersion and steam sterilization

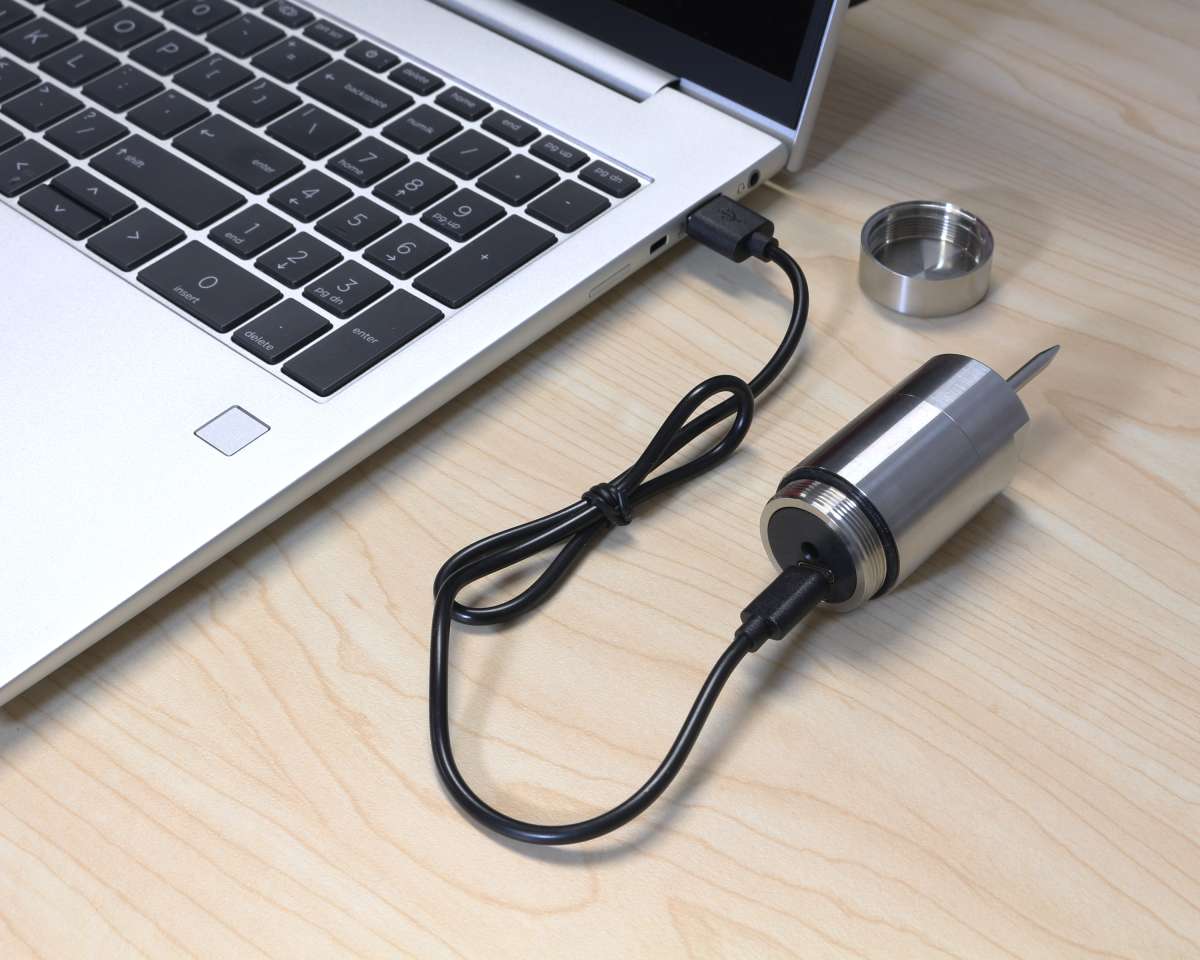

- USB Interface

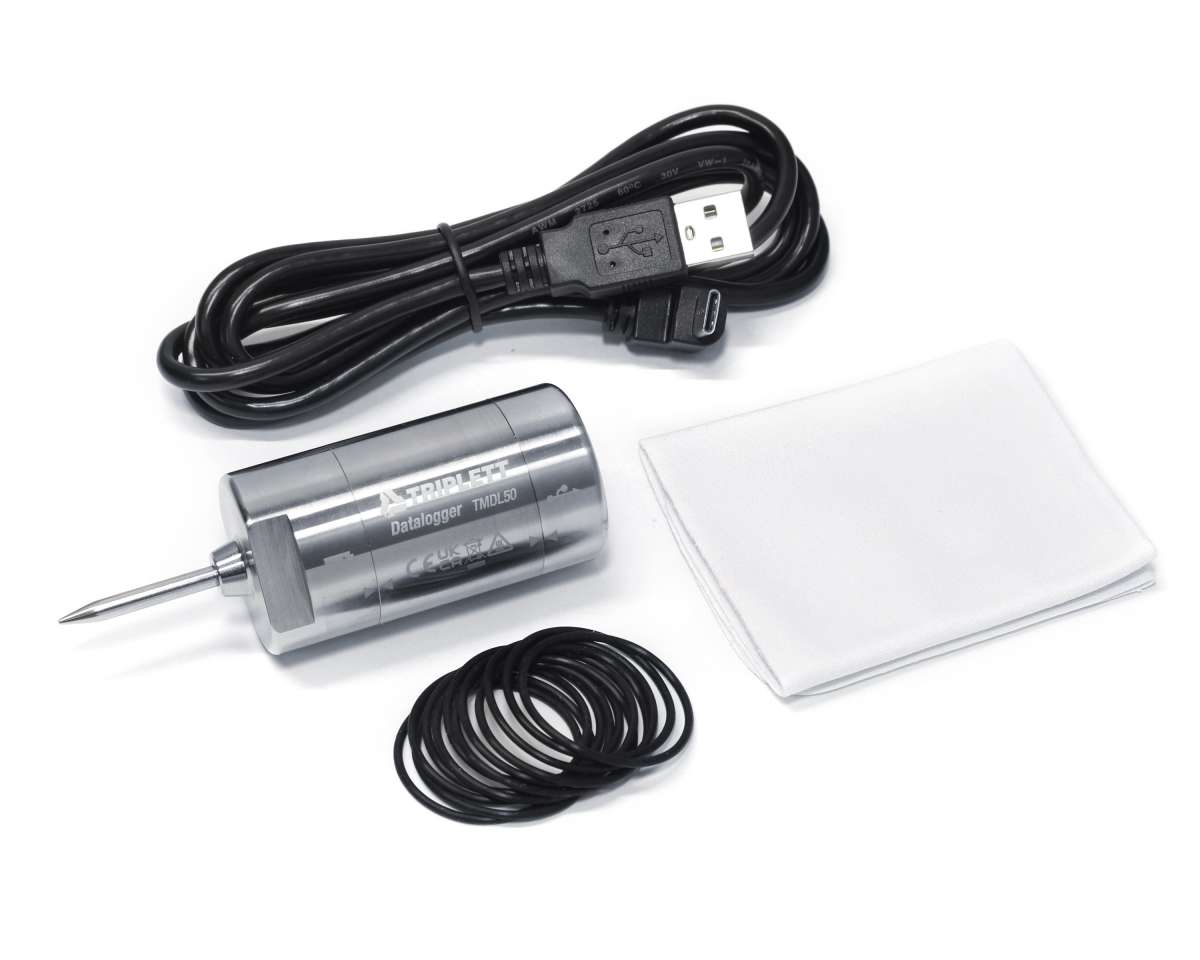

Includes: Includes 3.6V Lithium battery and USB cable, O Ring and cleaning cloth and a Certificate of Traceability to NIST
Battery Type: 3.6V Lithium battery
| Specifications |
|---|
| TMDL50 |
| Temperature Range | -40° to +284°F/-40° to +125°C (continuous)
up to 284°F/140°C (short-term) |
| Accuracy | ±0.5°C (0 to 257°F/125°C) |
| Resolution | 0.1°F/°C |
| Memory Capacity | 32,000 readings |
| Sampling Interval | 1 second to 10 hours (user programmable) |
| Start Mode | Immediate or delayed start |
| Stop Mode | Memory full or continuous recording |
| Material | 316L stainless steel |
| Battery Type | 3.6V lithium (user replaceable) |
| Battery Life | Up to 18 months |
| Protection Rating | IP68 |
| Software Compatibility | Windows® software for configuration and data analysis |
| Interface | USB with docking base |
| Dimensions | Approx. 0.7"/17mm (dia) × 1.9"/47mm (height) |
| Weight | Approx. 1.8oz/50 grams |
