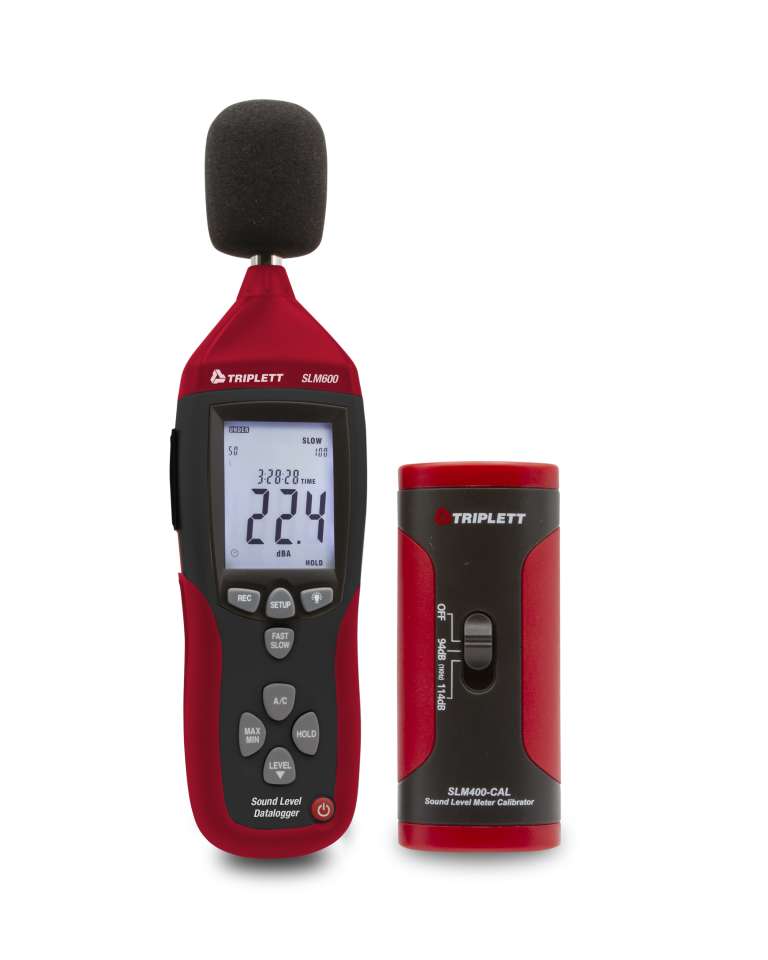

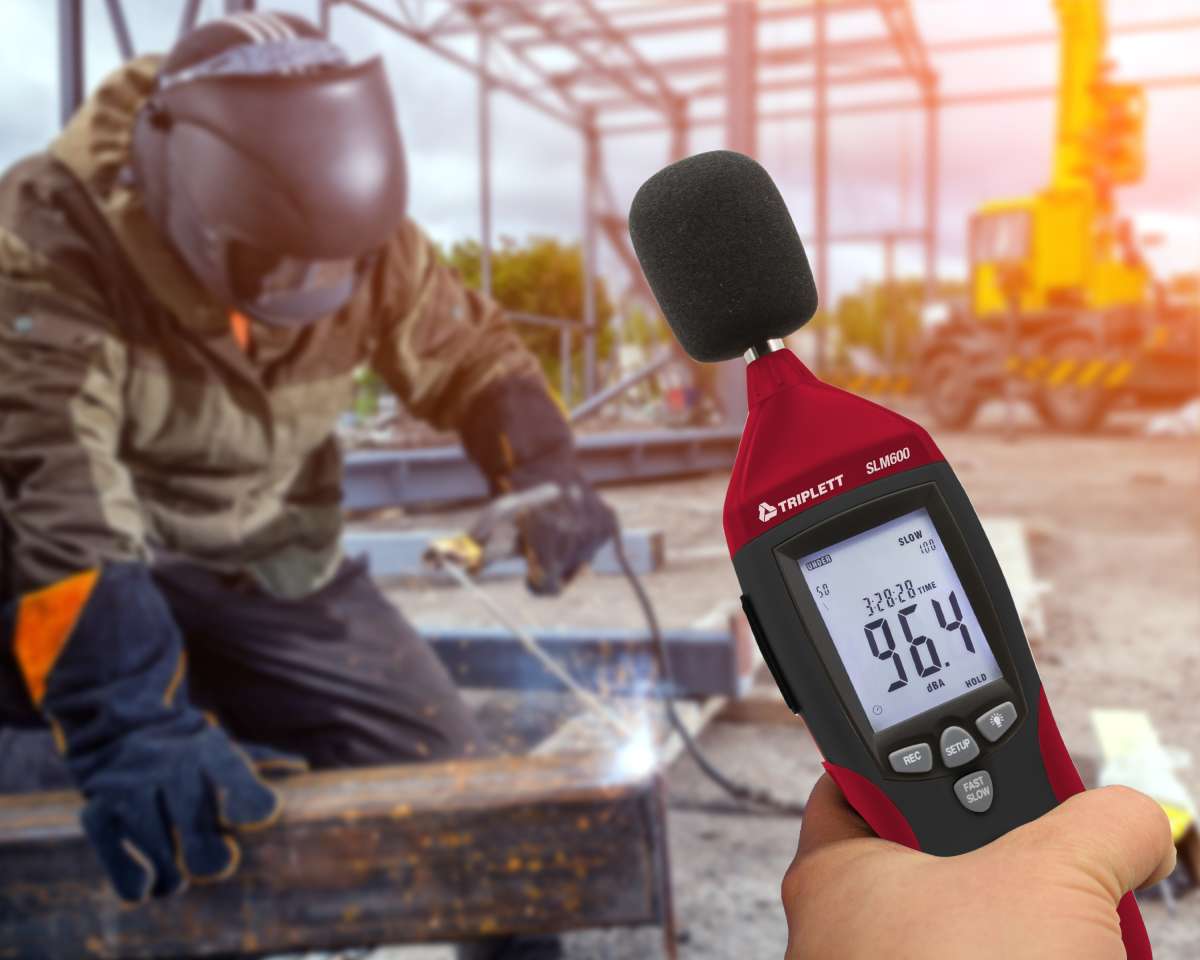

The Triplett SLM600-KIT Sound Level Meter/Datalogger with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. The Sound Level Meter meets IEC 61672-1 Class 2 with ±1.4dB accuracy. It can datalog up to 32,700 readings with user programmable sampling rate (1 to 59 seconds) and date/time stamp. It features a 30 to 130dB range (3 ranges) plus A and C weighting with selectable fast/slow response time. Additional features include: Analog AC/DC output, Data Hold, Min/Max, and Auto power off with disable. The calibrator fits 1/2" diameter microphones and has selectable 94dB and 114dB output with ±0.5dB accuracy. Calibrator output frequency is ±4%@1kHz. The kit includes Class 2 Sound Level Meter/Datalogger with wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with 9V battery. All stored in a hard, carrying case. 1 year warranty.
Features:
- Records up to 32,700 readings with user programmable sample rate
- Meets IEC 61672-1 Class 2 standards with ±1.4dB accuracy
- 30 to 130dB over 3 ranges with over/under range indication
- A and C weighting with selectable fast/slow response time
- Analog AC/DC outputs
- Real time clock
- Min/Max stores/recalls highest and lowest readings
- Sound Level Calibrator with selectable 94dB and 114dB output at 1kHz
- Fits ½” diameter microphones
- Output Frequency ±4%@1kHz with ±0.5dB accuracy

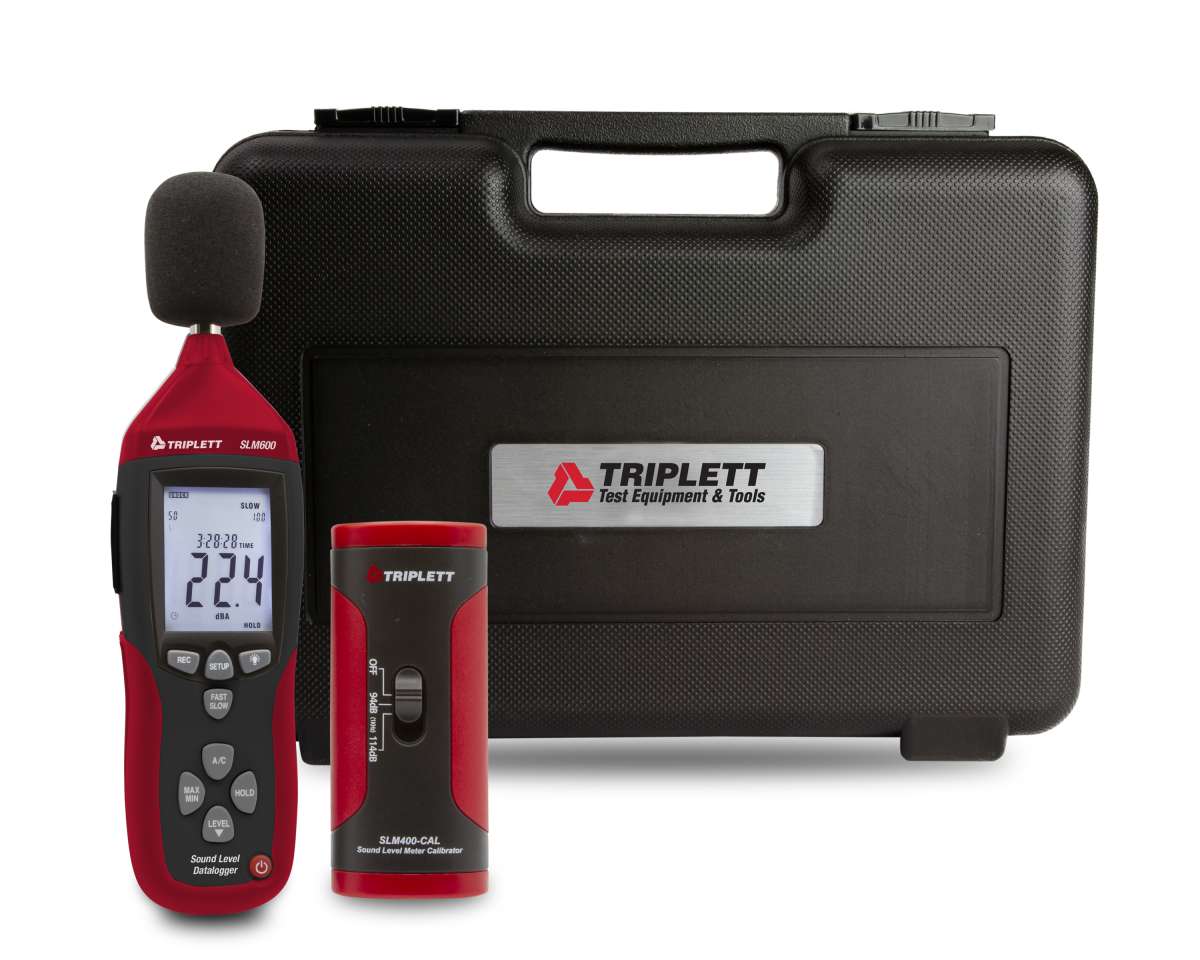

Includes: Includes Class 2 Sound Level Meter/Datalogger with wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with 9V battery
Battery Type: 9V battery
| Specifications |
|---|
| SLM600 |
| Measurement Ranges | Auto: 30 to 130dB;
Low: 30 to 80dB;
Medium: 50 to 100dB;
High: 80 to 130dB |
| Bandwidth | 31.5 to 8kHz |
| Resolution | 0.1dB |
| Accuracy | ±1.4dB |
| Standards | Meets IEC 61672-1 Class 2 |
| Frequency Weighting | A and C (selectable) |
| Response Time | Fast: 125ms / Slow: 1s |
| Analog Output | AC=1Vrms, DC=10mV/dB |
| Interface | USB |
| Memory | Datalogs up to 32,700 data points |
| Sample Rate | 1 to 59 seconds |
| Power | 9V Battery |
| Dimensions | 11 x 3 x 2" (278 x 76 x 50mm) |
| Weight | 12.3oz (350g) |
