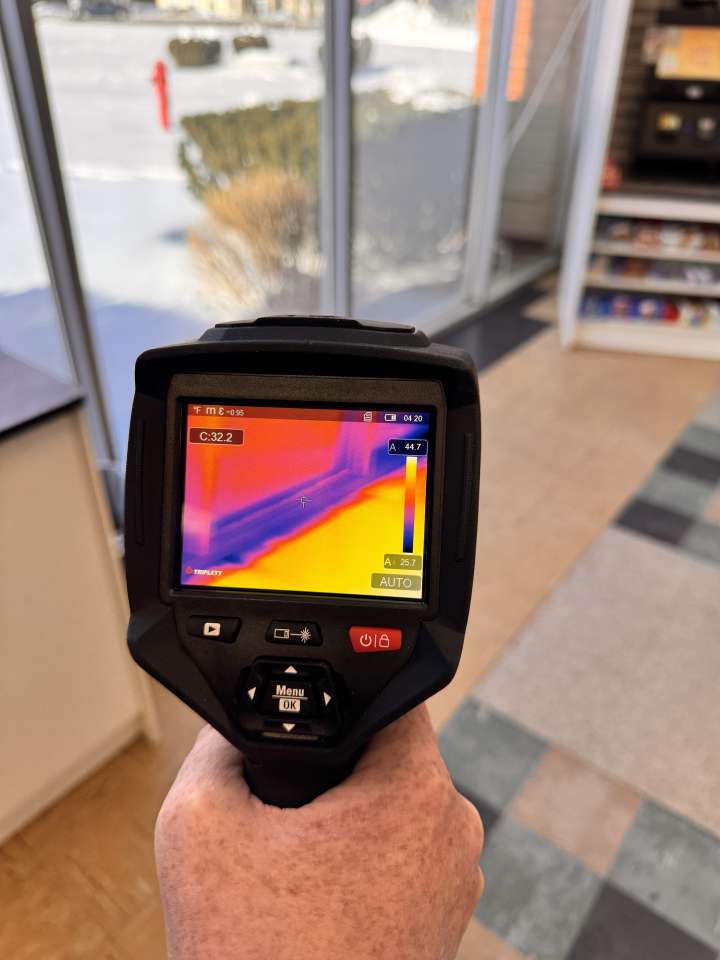

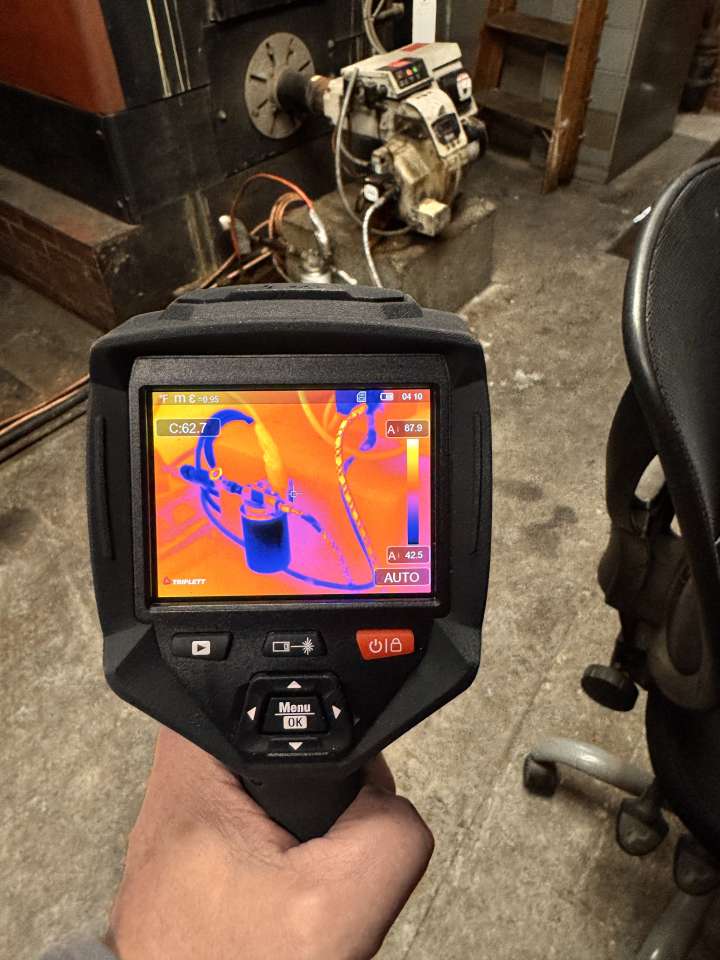

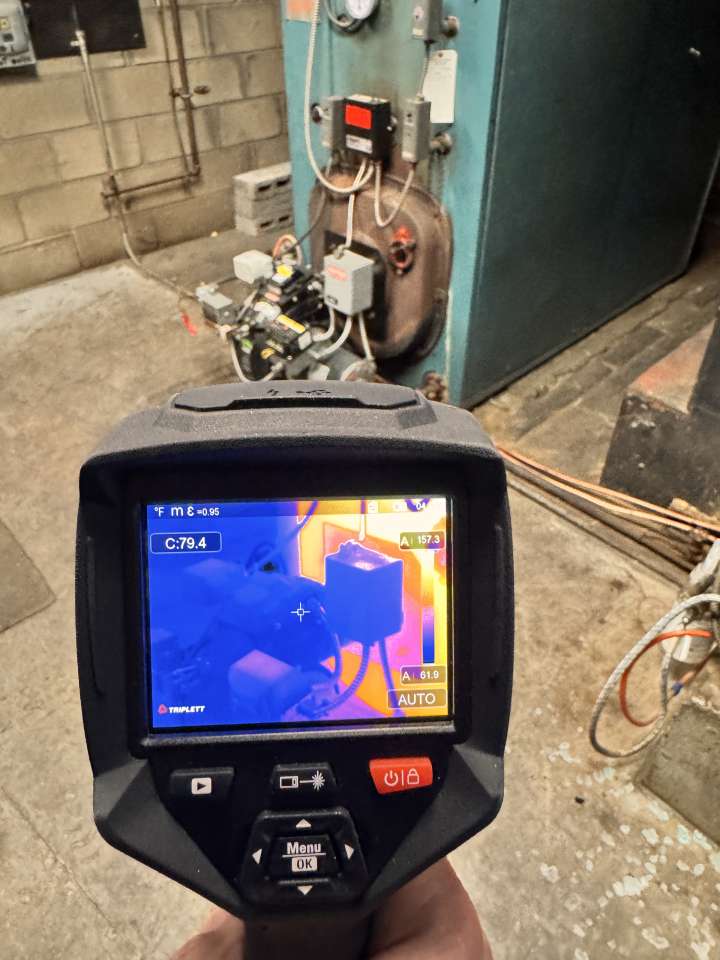

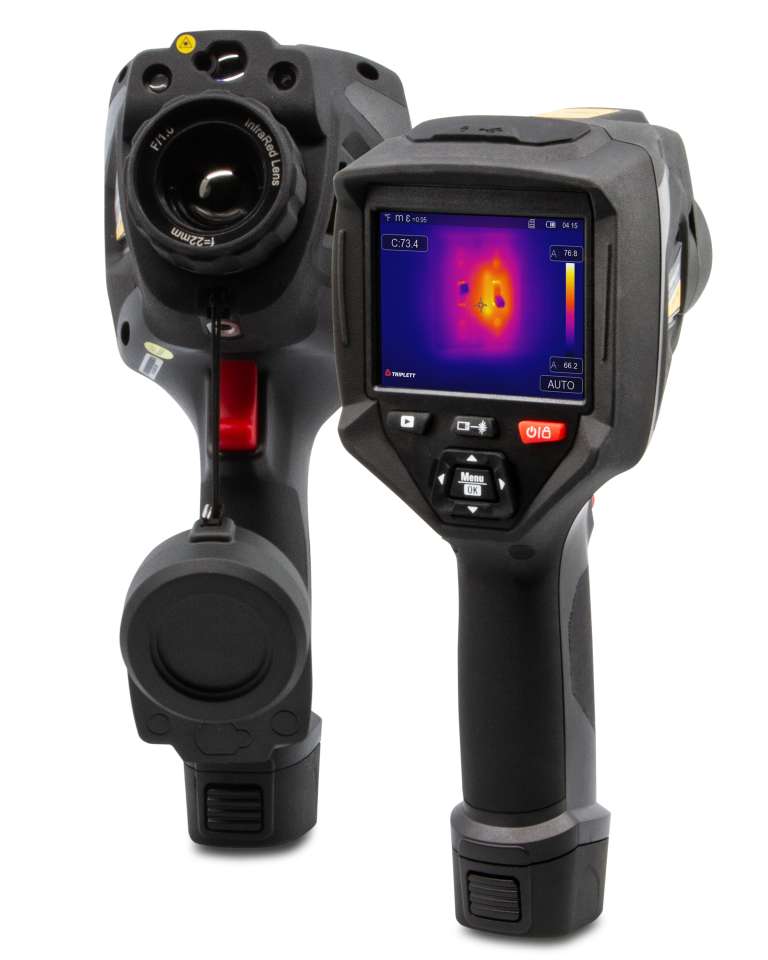

The Triplett Model IRTC950 Professional Thermal Imaging Camera can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots. The thermal imager has a built-in visible light camera (5MP) that allows you to select Infrared/Visible Light/Picture in Picture/Fusion display modes. Infrared mode has a 384 x 288 (110,592 pixels) thermal detector with ≤40mk Thermal Sensitivity (NETD) that displays center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers on a 3.5" (89mm) manual focus, touchscreen color display with 640 x 480 resolution. Additional features include Auto fusion calculates the mix ratio between IR and visible image automatically, voice (requires external microphone) and text image annotation, built-in laser distance meter (0.15 to 98ft/0.05 to 30m), HDMI output for connecting a monitor or video recording device, easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese), real time clock/calendar, and Auto power off with disable. Use the on-board picture gallery to view video (.mp4) and images (.jpg/.HRI) or transfer them to your PC via USB or WiFi (Android OS only). You can also live stream video to your PC. Includes rechargeable Lithium Ion battery, SD card, HDMI and USB cables, Software CD, and carrying case. 1-year warranty.
Features:
- Infrared/Visible Light/Picture in Picture/Fusion display modes
- 384 x 288 IR Resolution (110,592 pixels) with ≤40mk Thermal Sensitivity (NETD)
- Auto fusion calculates the mix ratio between IR and visible image automatically
- 3.5" (89mm) manual focus, touchscreen LCD with 640 x 480 resolution
- Center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers
- 1 to 32X continuous digital zoom
- Voice and text annotation (requires external microphone)
- Built-in laser distance meter
- USB interface or WiFi (Android OS only) for transferring video (mp4)/images (jpg/HIR) or live stream viewing on your PC
- HDMI output for connecting a monitor or video recording device

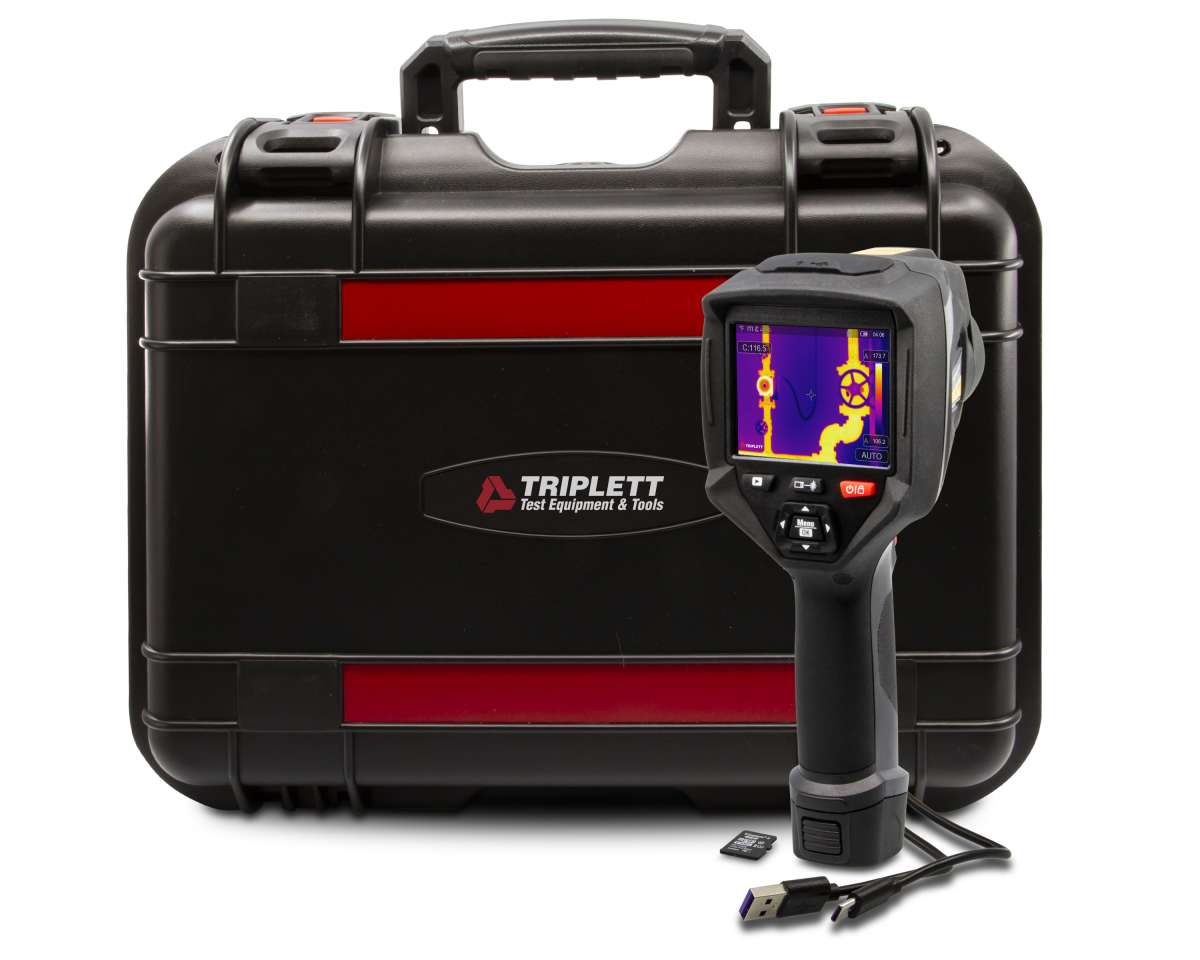

Includes: Includes rechargeable Lithium Ion battery, 120/240VAC adapter/charger with 4 plugs (US, UK, EU, AU), SD card, HDMI and USB cables, Software CD, and carrying case
Battery Type: Li-ion Battery, Lithium Metal Batteries
| Specifications |
| Temperature Range |
-4 to 1202°F (-20 to 650°C) |
| IR Resolution |
384 x 288 pixels (110,592) |
| Thermal Sensitivity/NETD |
≤40mk |
| Basic Accuracy |
±2% or ±2°C (3.6°F) |
| FOV |
17° x 12.7° |
| Minimum Focus Distance |
19.7" (0.5m) Manual Focus |
| Image Frequency |
25Hz |
| Spectral Response |
8-14µm |
| Emissivity |
Adjustable 0.01 to 1.0 |
| Visible Light Resolution |
5MP (2560 x 1920) |
| Image Display Mode |
Infrared/Visible Light/PIP/Fusion |
| Screen Size |
3.5" (89mm) Touchscreen |
| Display Resolution |
640 x 480 pixels |
| Color Display Palettes |
Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Video/Image Storage |
(Built-in 3.4G) MP4/JPG or HIR |
| Voice/Text Annotation |
Yes (requires external microphone) |
| Laser Distance Meter |
0.15 to 98ft (0.05 to 30m) |
| Image Gallery |
Yes |
| PC Interface |
USB, Wifi (Android OS only) |
| Power |
Rechargeable Lithium Ion |
| Dimensions |
10.2 x 4 x 4.7" (260 x 101 x 120mm) |
| Weight |
1.9lbs (846g) |
