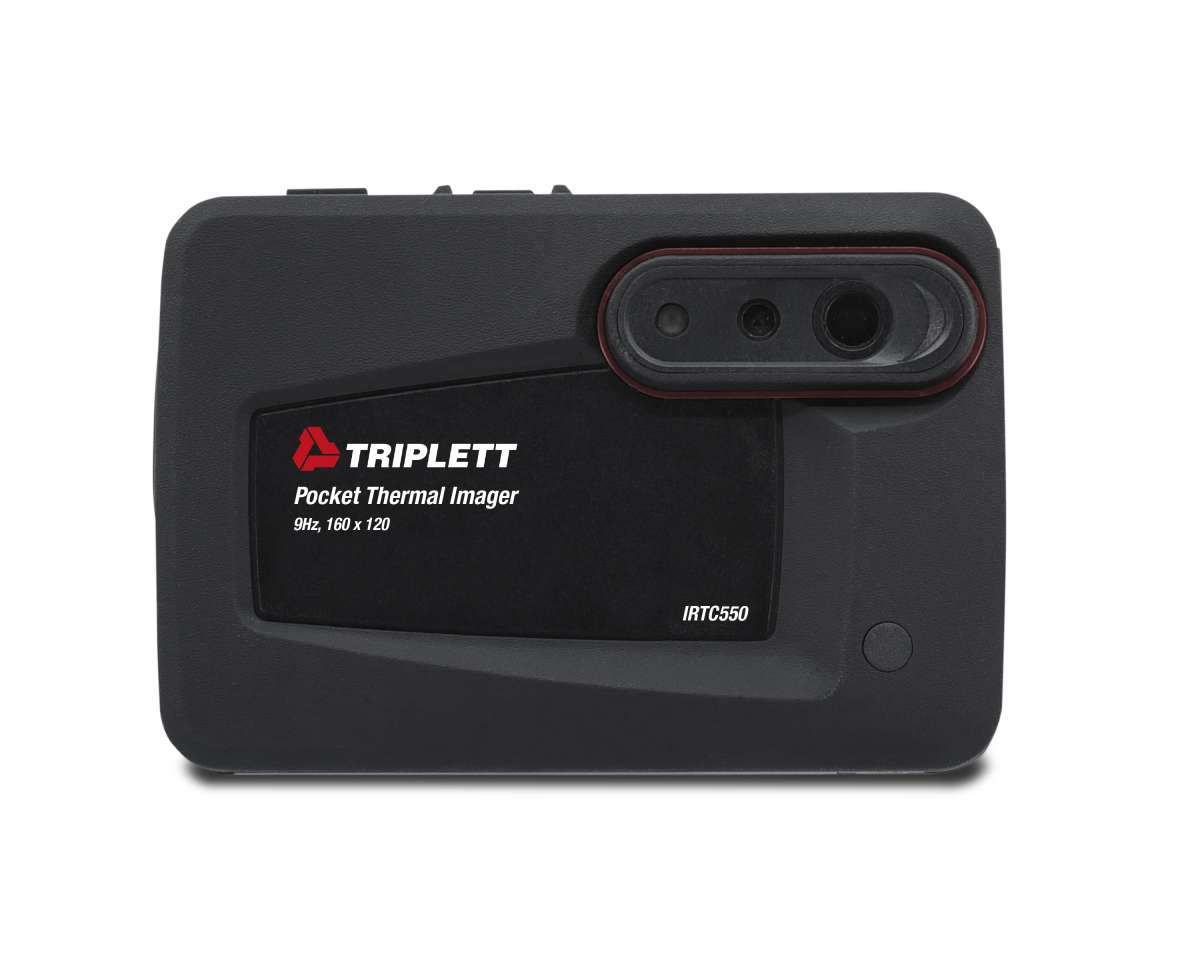

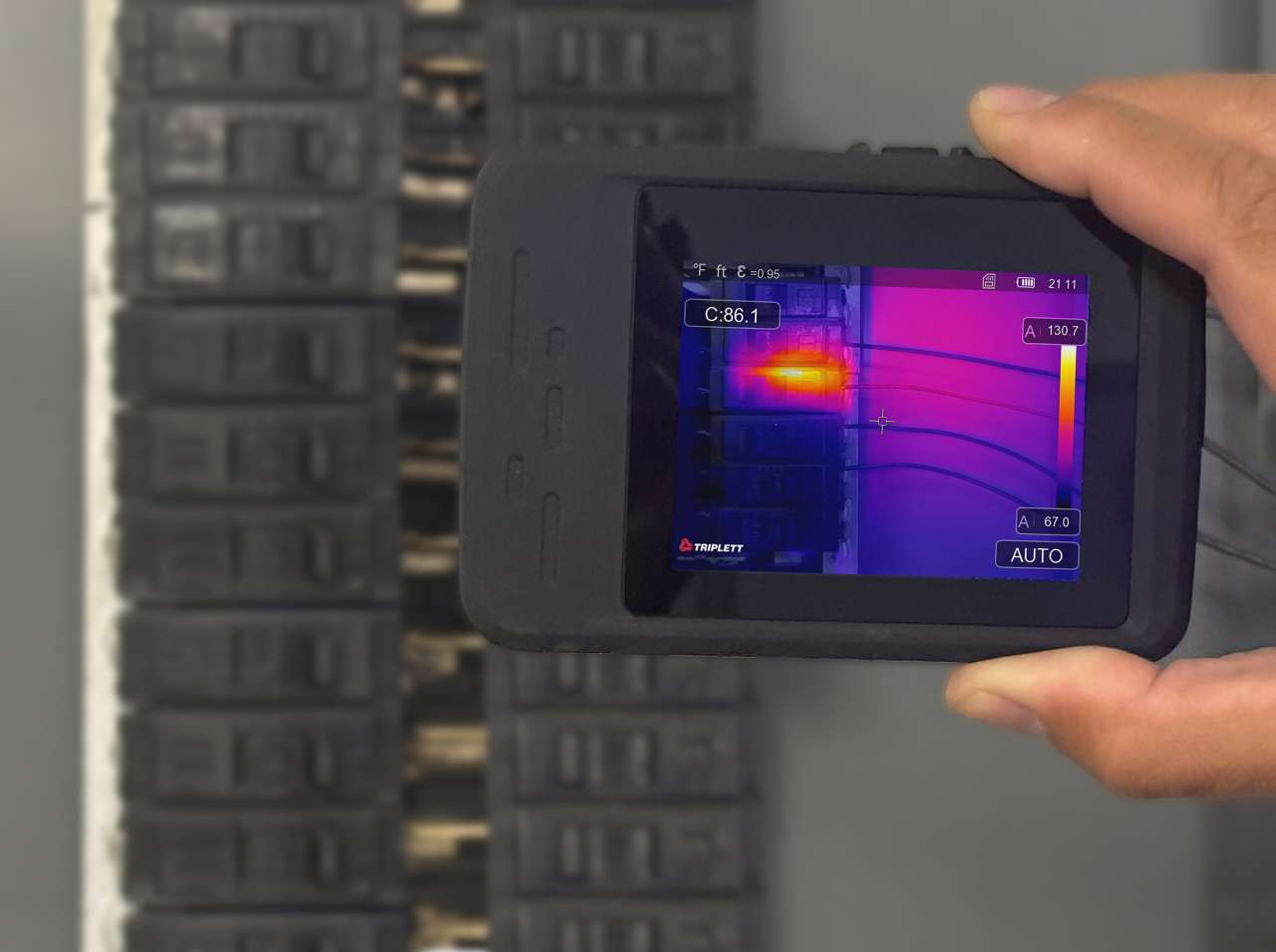

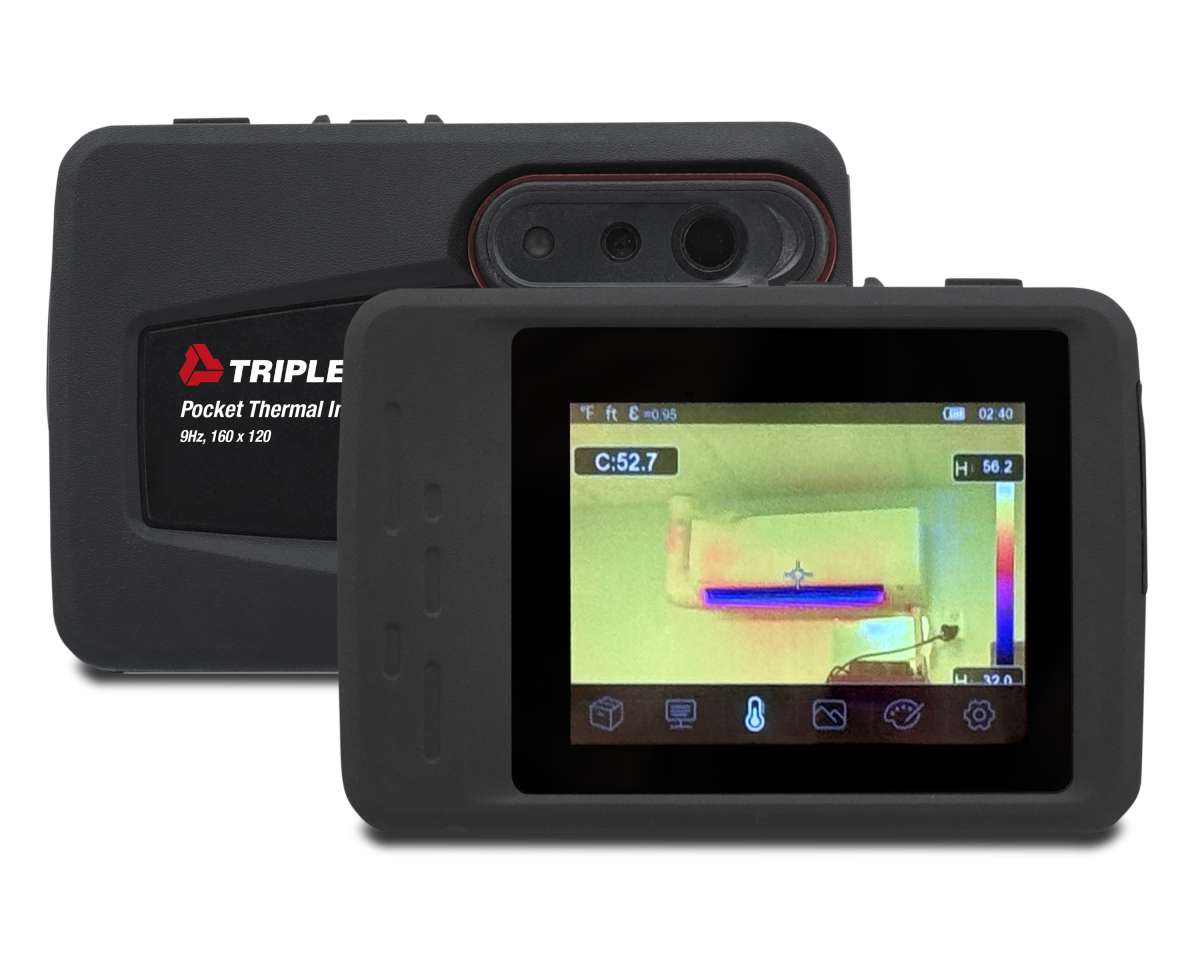

The Triplett Model IRTC550 Pocket Thermal Imaging Camera can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots. The thermal imager has a built-in visible light camera (2MP) that allows you to select Infrared/Visible Light/Picture in Picture/Fusion display modes. Infrared mode has a 160 x 120 (19,200 pixel) thermal detector with ≤40mk Thermal Sensitivity (NETD) that displays center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers on a 3.5" (89mm) focus-free, color touchscreen display with 640 x 480 resolution. Additional features include Auto fusion calculates the mix ratio between IR and visible image automatically, easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese), real time clock/calendar, and Auto power off with disable. Use the on-board picture gallery to view video (.mp4) and images (.jpg/.HRI) or transfer them to your PC via USB interface or WiFi (Android OS only). You can also live stream video to your PC. Includes rechargeable Lithium Ion battery, SD card, USB cable, and lanyard. 1-year warranty.
Features:
- Hot and cold temperature markers quickly indicate where potential issues are located
- Infrared/Visible Light/Picture in Picture/Fusion display modes
- 160 x 120 IR Resolution (19,200 pixels) with ≤40mk Thermal Sensitivity (NETD)
- Auto fusion calculates the mix ratio between IR and visible image automatically
- 3.5" (89mm) focus-free, color touchscreen display with 640 x 480 resolution
- Center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers
- 1 to 32X continuous digital zoom
- On-screen picture gallery for viewing videos and pictures

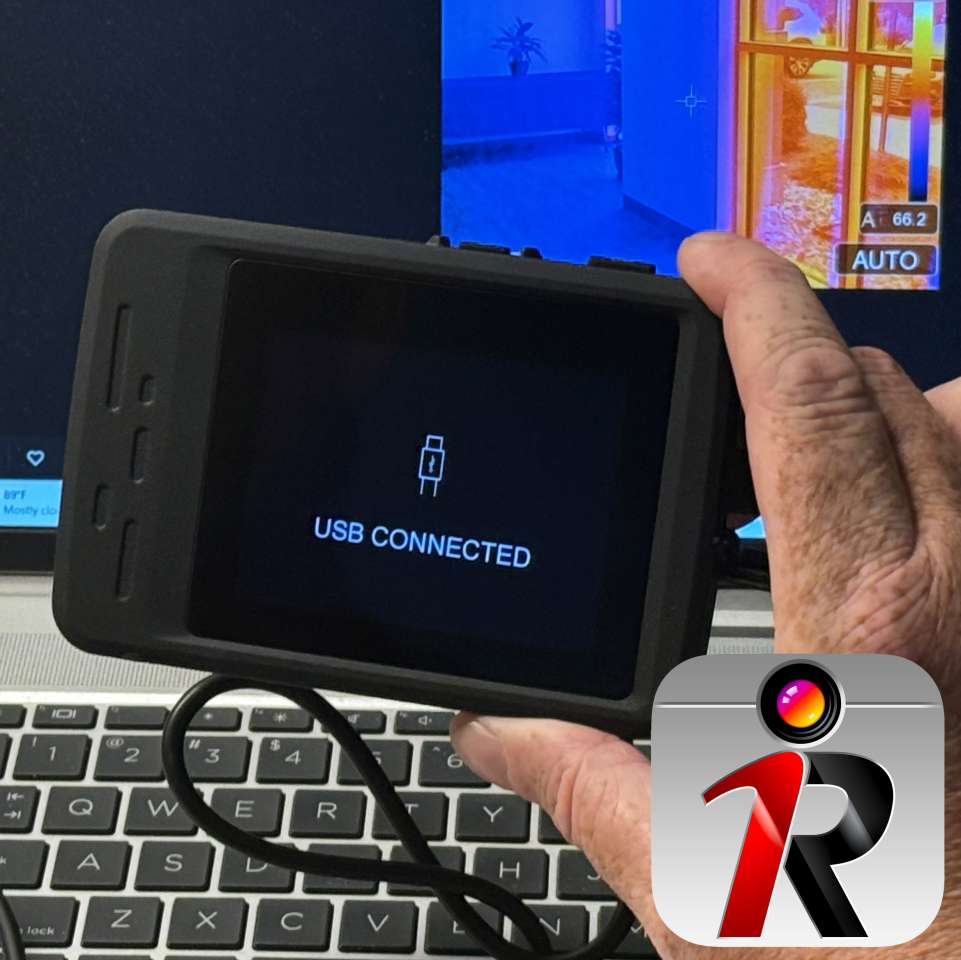

- USB interface or WiFi (Android OS only) for transferring video (mp4)/images (jpg/HIR) or live stream viewing on your PC
- Easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese)

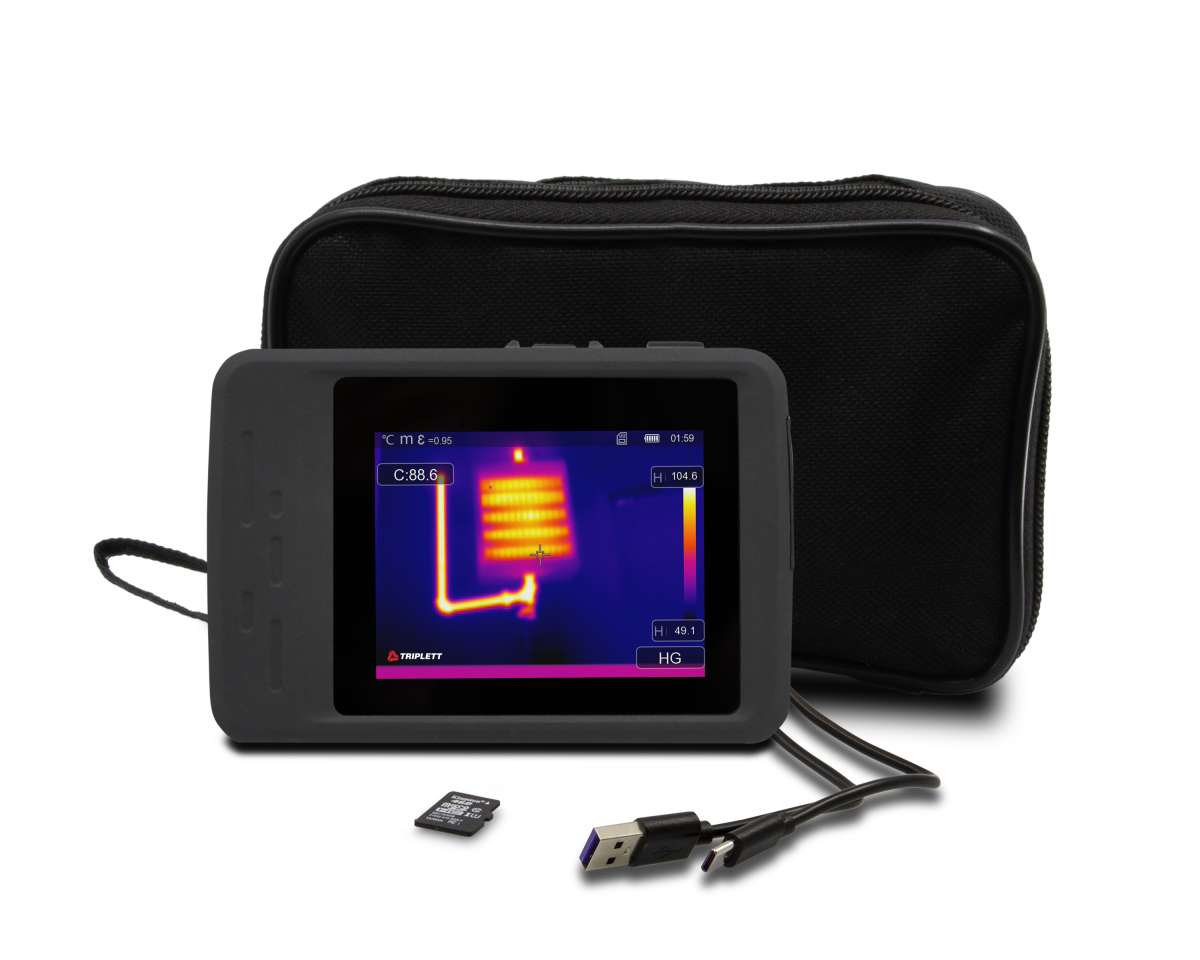

Includes: Includes rechargeable Lithium Ion battery, SD card, USB cable, and lanyard
Battery Type: Li-on battery
| Specifications |
| Temperature Range |
-4 to 1022°F (-20 to 550°C) |
| IR Resolution |
160 x 120 pixels (19,200) |
| Thermal Sensitivity/NETD |
≤40mk |
| Basic Accuracy |
±2% or ±2°C (3.6°F) |
| Response Time |
0.5ms |
| FOV |
42° x 32° |
| Minimum Focus Distance |
19.7" (0.5m) Focus-free |
| Image Frequency |
9Hz |
| Spectral Response |
8-14µm |
| Emissivity |
Adjustable 0.01 to 1.0 |
| Visible Light Resolution |
2MP (1600 x 1200) |
| Image Display Mode |
Infrared/Visible Light/PIP/Fusion |
| Screen Size |
3.5" (89mm) Color Touchscreen |
| Display Resolution |
640 x 480 pixels |
| Color Display Palettes |
Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Video/Image Storage |
(Built-in 3.4G) MP4/JPG or HIR |
| Image Gallery |
Yes |
| PC Interface |
USB/WiFI (Android OS only) |
| Power |
Rechargeable Lithium Ion |
| Dimensions |
5.2 x 3.4 x 1.0" (133 x 87 x 24mm) |
| Weight |
18oz (500g) |
