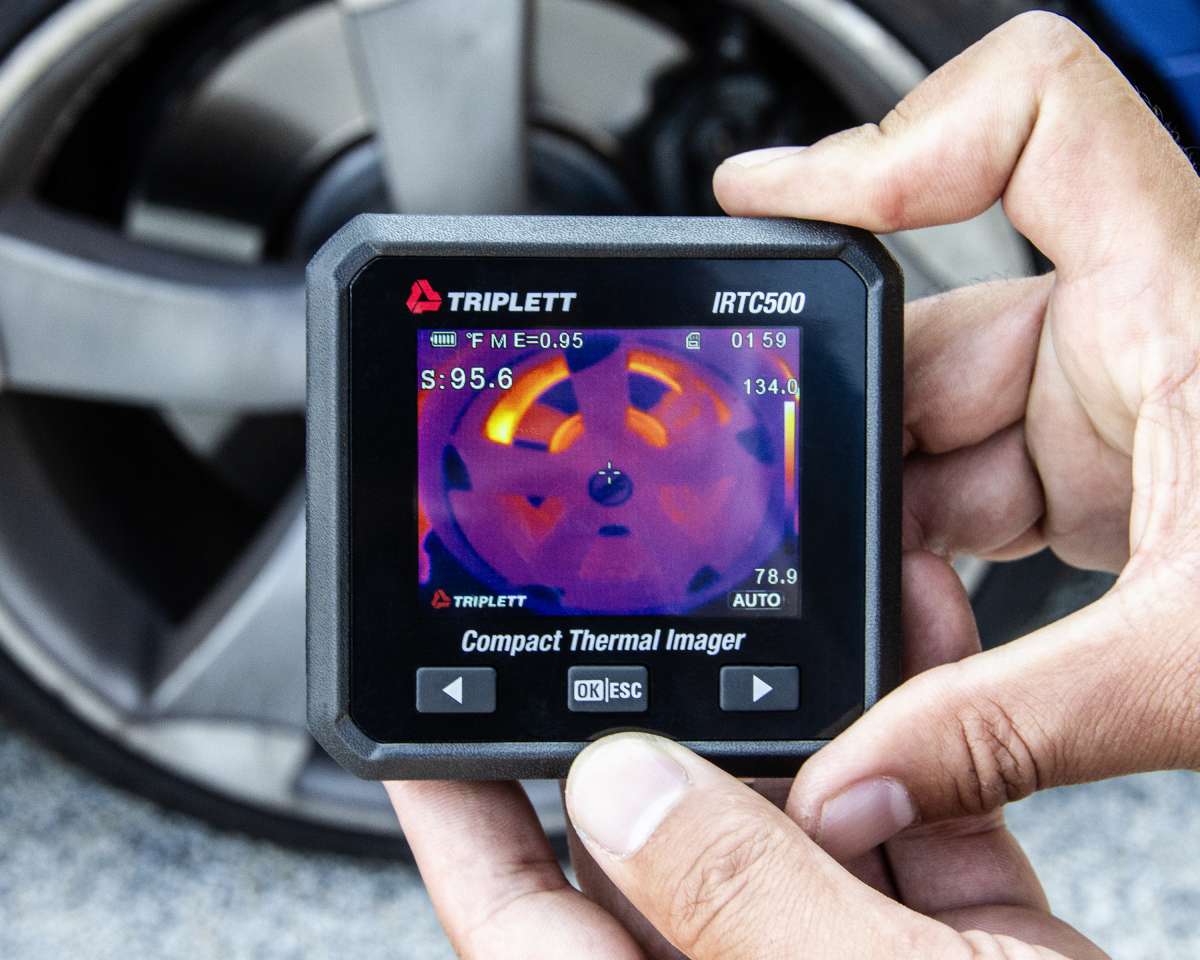

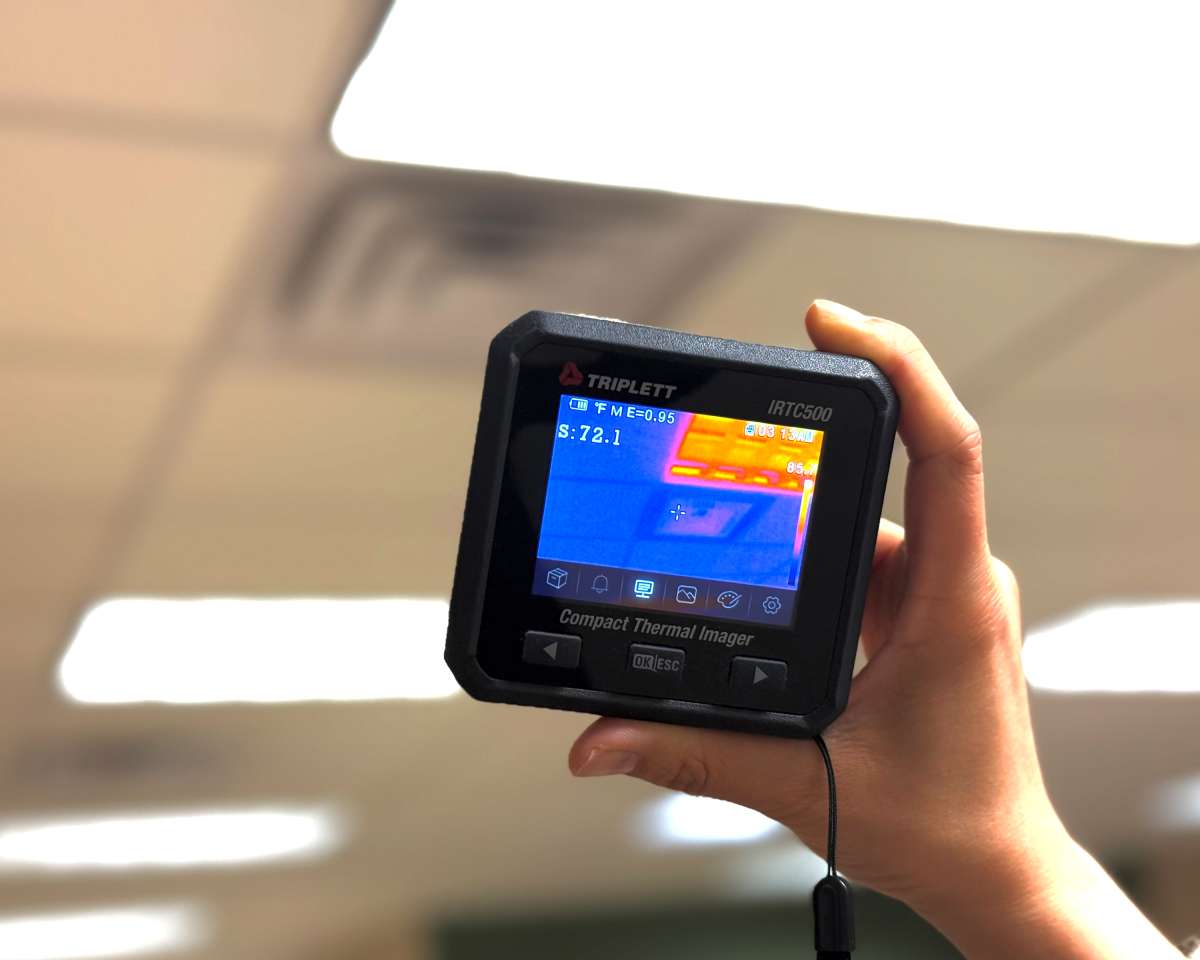

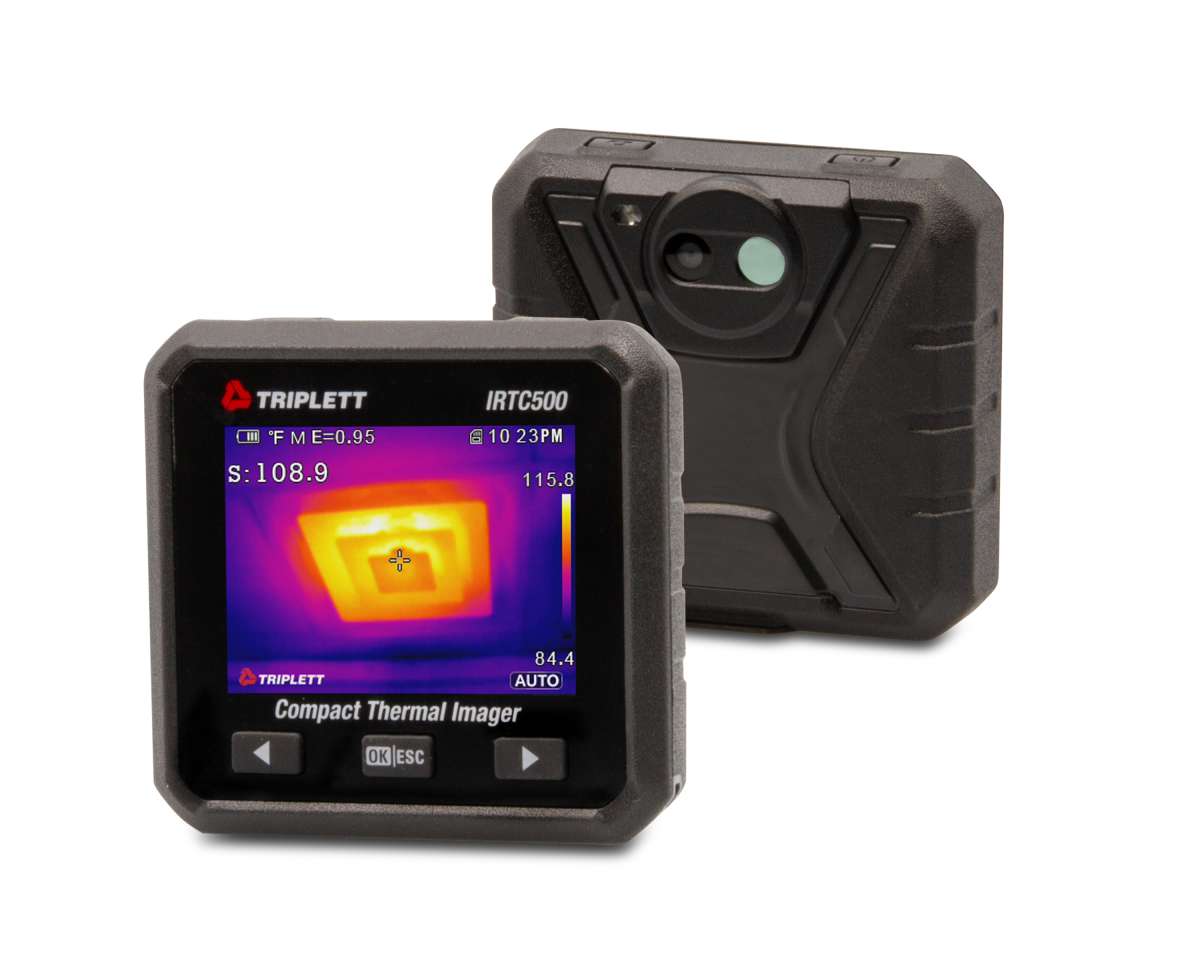

The Triplett Model IRTC500 Compact Thermal Imaging Camera can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots. The thermal imager has a built-in visible light camera (2MP) that allows you to select Infrared/Visible Light/Picture in Picture/Fusion display modes. Infrared mode has a 160 x 120 (19,200 pixel) thermal detector with ≤40mk Thermal Sensitivity (NETD) that displays center spot, 3 manual spots, and auto hot/cold temperature markers on a 2.8" (89mm) focus-free, color display with 320 x 240 resolution. Additional features include Auto fusion calculates the mix ratio between IR and visible image automatically, easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese), real time clock/calendar, and Auto power off with disable. Use the on-board picture gallery to view video (.mp4) and images (.jpg/.HRI) or transfer them to your PC via USB or WiFi (Android OS only) interface. You can also live stream video to your PC. Includes rechargeable Lithium Ion battery, SD card, and USB cable. 1-year warranty.
Features:
- Hot and cold temperature markers quickly indicate where potential issues are located
- Infrared/Visible Light/Picture in Picture/Fusion display modes
- 160 x 120 IR Resolution (19,200 pixels) with ≤40mk Thermal Sensitivity (NETD)
- Auto fusion calculates the mix ratio between IR and visible image automatically
- 2.8" (71mm) focus-free, color display with 320 x 240 resolution
- Center spot, 3 manual spots, and auto hot/cold temperature markers
- Easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese)
- On-screen picture gallery for viewing videos and pictures
- Automatic power shutdown (with disable) conserves battery life

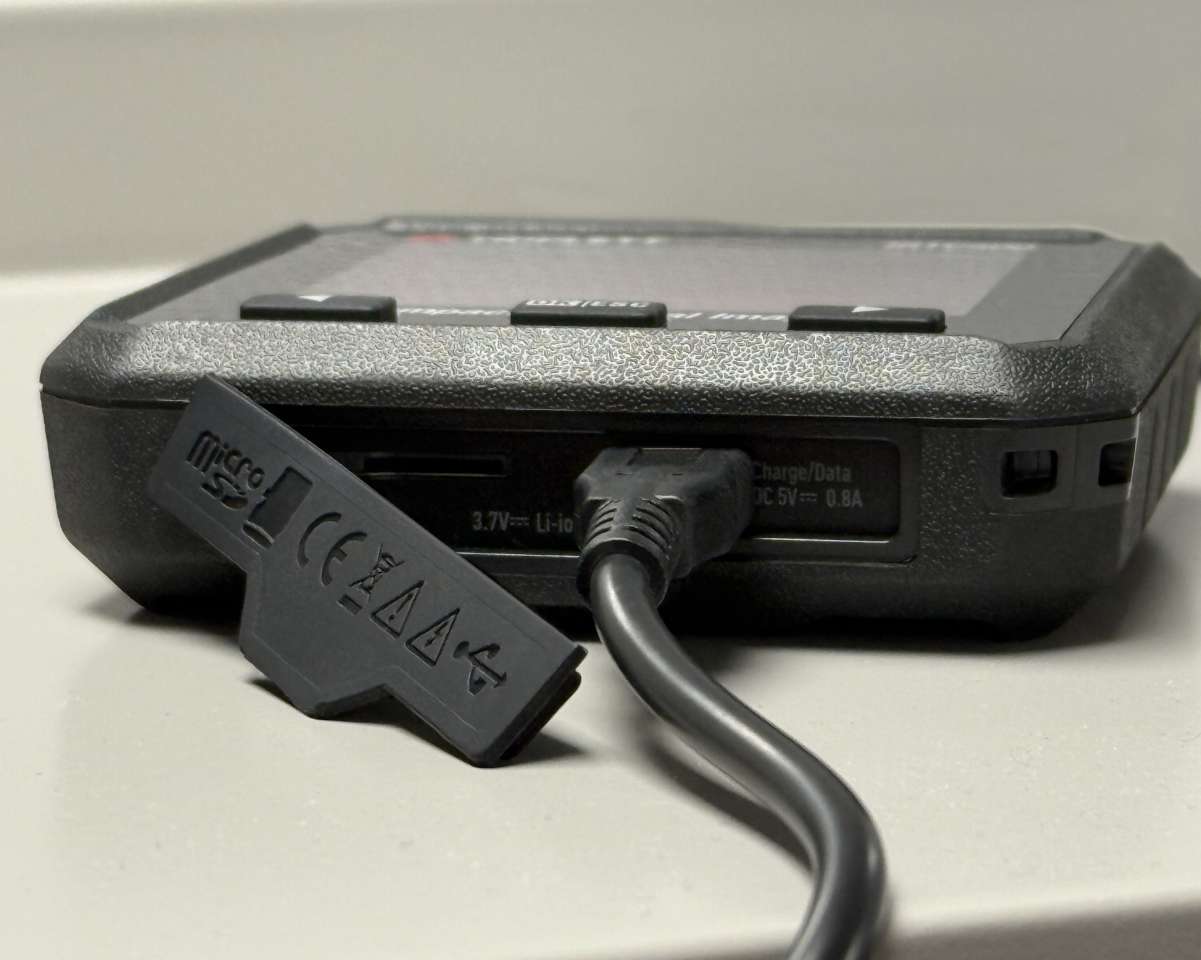

- USB interface or WiFi (Android OS only) for transferring video (mp4)/images (jpg/HIR) or live stream viewing on your PC

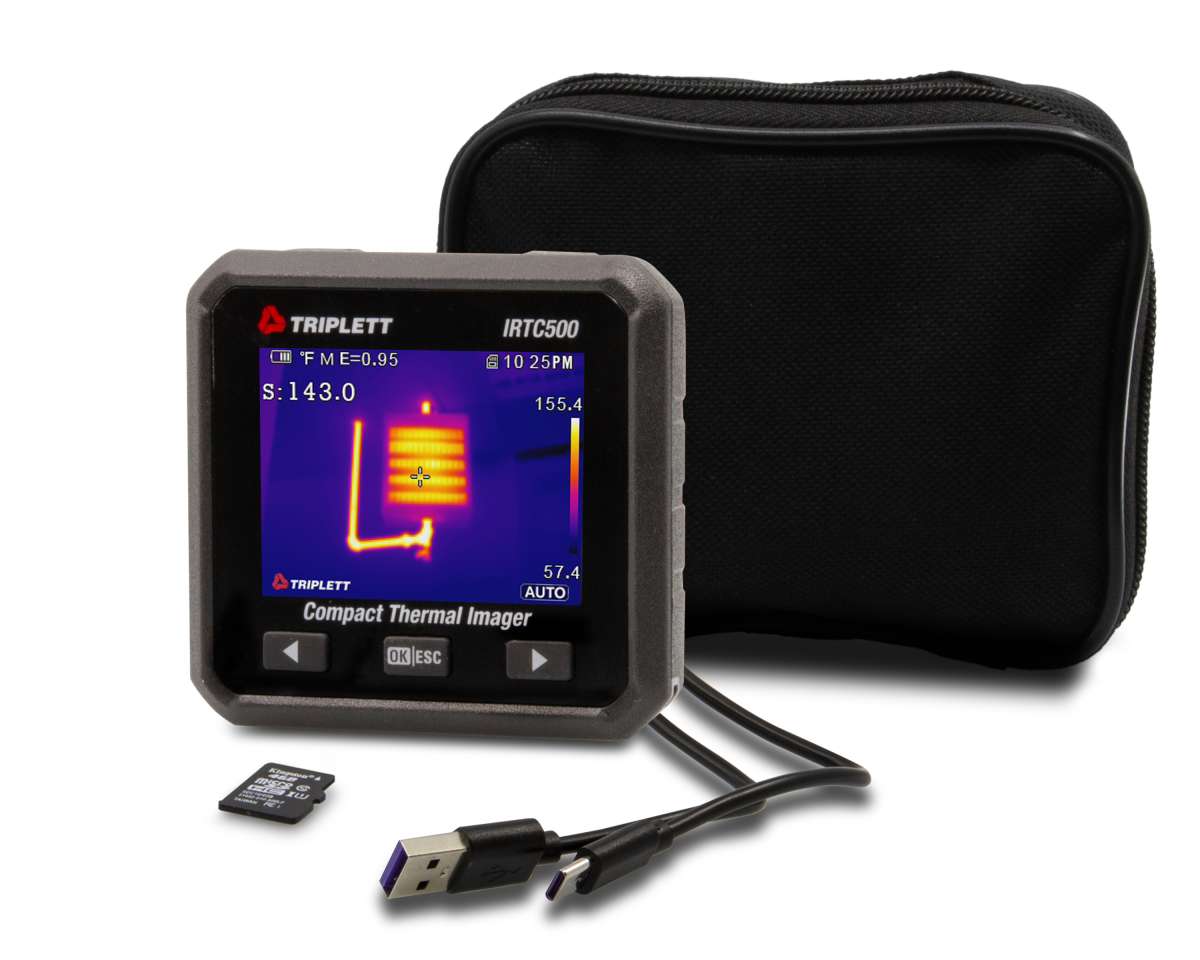

Includes: Includes rechargeable Lithium Ion battery, SD card, and USB cable
Battery Type: Li-on battery
| Specifications |
| Temperature Range |
-4 to 1022°F (-20 to 550°C) |
| IR Resolution |
160 x 120 pixels (19,200) |
| Thermal Sensitivity/NETD |
≤40mk |
| Basic Accuracy |
±2% or ±2°C (3.6°F) |
| FOV |
42° x 32° |
| Minimum Focus Distance |
19.7" (0.5m) Focus-free |
| Image Frequency |
9Hz |
| Spectral Response |
8-14µm |
| Emissivity |
Adjustable 0.01 to 1.0 |
| Visible Light Resolution |
2MP (1600 x 1200) |
| Image Display Mode |
Infrared/Visible Light/PIP/Fusion |
| Screen Size |
2.8" (89mm) LCD |
| Display Resolution |
320 x 240 pixels |
| Color Display Palettes |
Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Video/Image Storage |
(Built-in 3.4G) MP4/JPG or HIR |
| Image Gallery |
Yes |
| PC Interface |
USB/WiFI (Android OS only) |
| Power |
Rechargeable Lithium Ion |
| Dimensions |
3.5 x 3.4 x 1.0" (90 x 85.3 x 25mm) |
| Weight |
6.3oz (180g) |
