The Triplett MS500 Spherical-Type Pinless Moisture Meter’s pinless design provides non-destructive moisture detection in wood and building materials. From home inspection to flooring and drywall installation, the MS500 offers the convenience of pinless-high frequency measurement for fast and accurate results. Includes 9V Battery and hard canvas case. 2-year warranty.
Features:
- Non-Invasive moisture detection in wood and building materials
- Measures relative moisture content (0.0 to 100.0%) in wood and other building materials
- Non-Invasive pinless high-frequency measurement for fast results
- Adjustable alarm thresholds with visual and audible alerts
- MAX/MIN/HOLD saves the highest and lowest measurements
- White LED backlit LCD display
- Power Management-Auto power off and low battery indicator
- User Calibration
- (ZERO) function
- Tripod mountable for hands-free operation

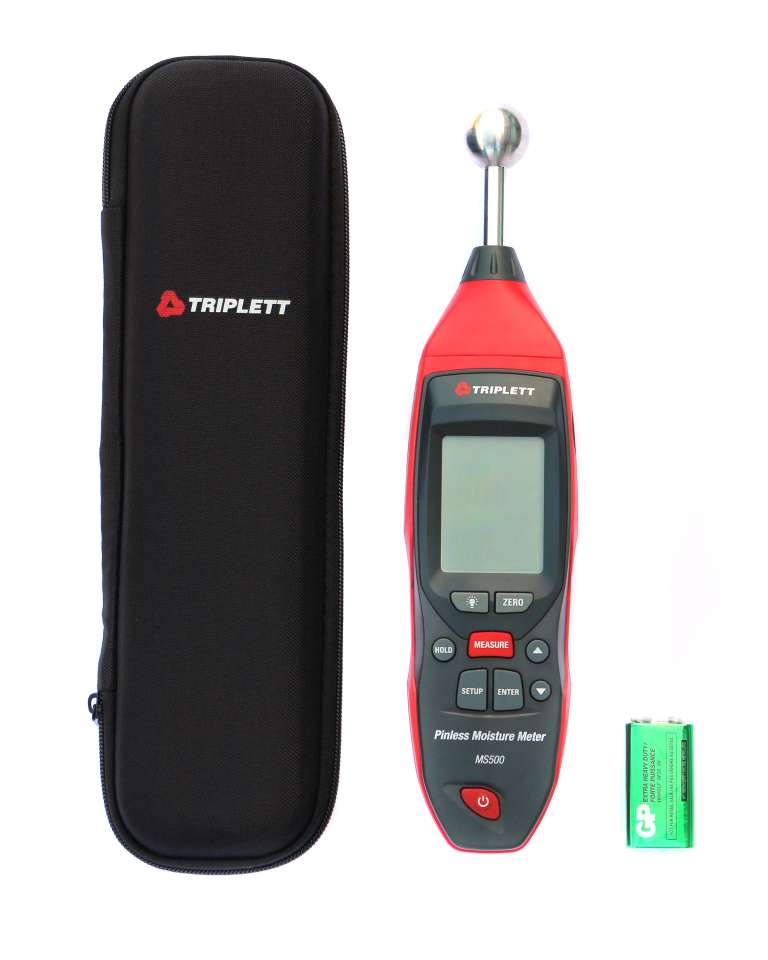

Includes: Includes 9V Battery and hard canvas case
Battery Type: 9V battery
| Specifications |
|---|
| Measuring Range | 0.0 to 100.0 % |
| Penetration Depth | 1.6"/40mm (non-invasive) |
| Resolution | 0.1 |
| Display | White backlit LCD |
| Alarm Thresholds | RISK: 0–50 (default: 30) WET: 50-100 (default: 60) |
| Functions | HOLD, MAX/MIN, ZERO, Alarm |
| Auto Power Off | Yes |
| Battery | 9V battery |
| Mounting | Tripod screw mount |
| Dimensions | 11 x 2.4 x 1.8” (275 x 60 x 45mm) |
| Weight | 0.65lb (295g) |
User Manual: https://files.triplett.com/manual/MS500_UM.pdf
