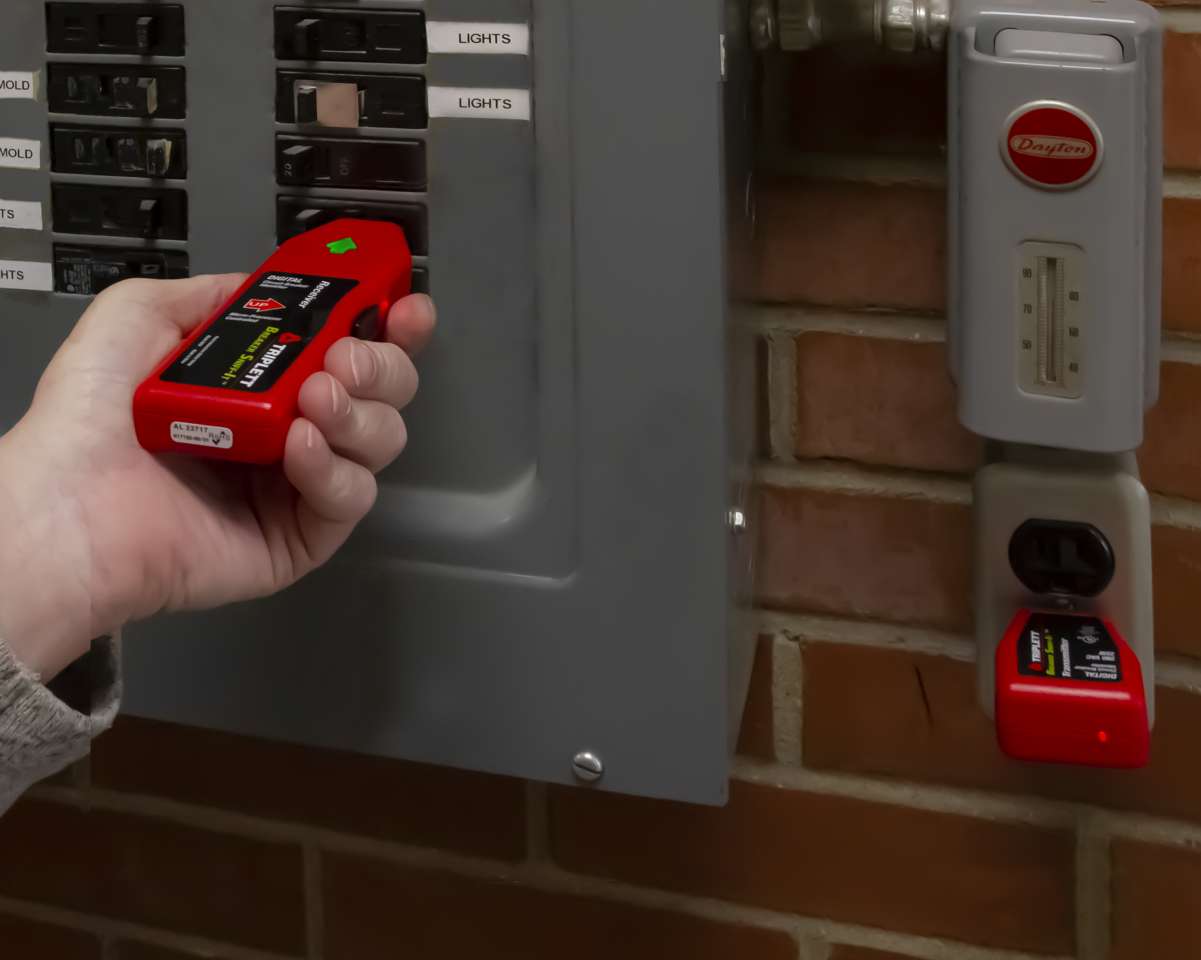

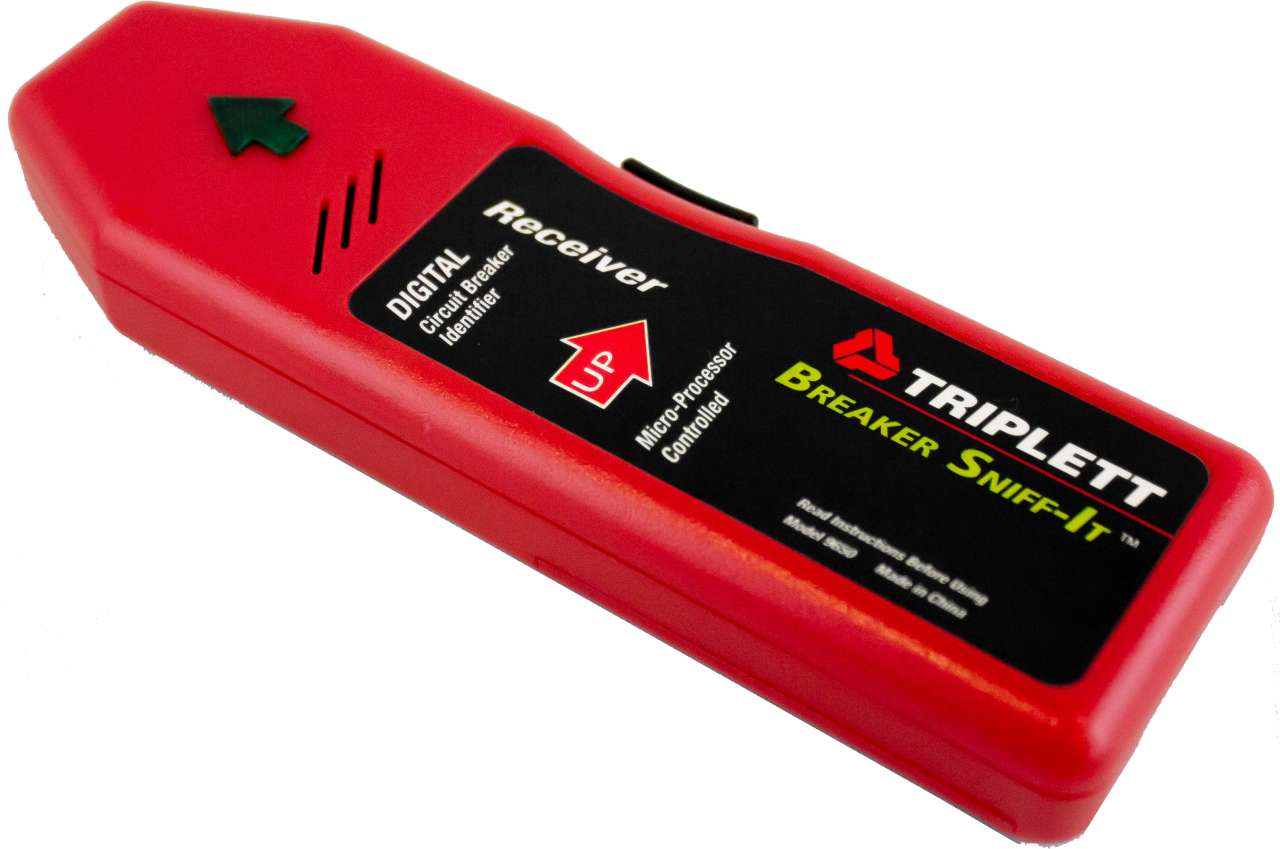

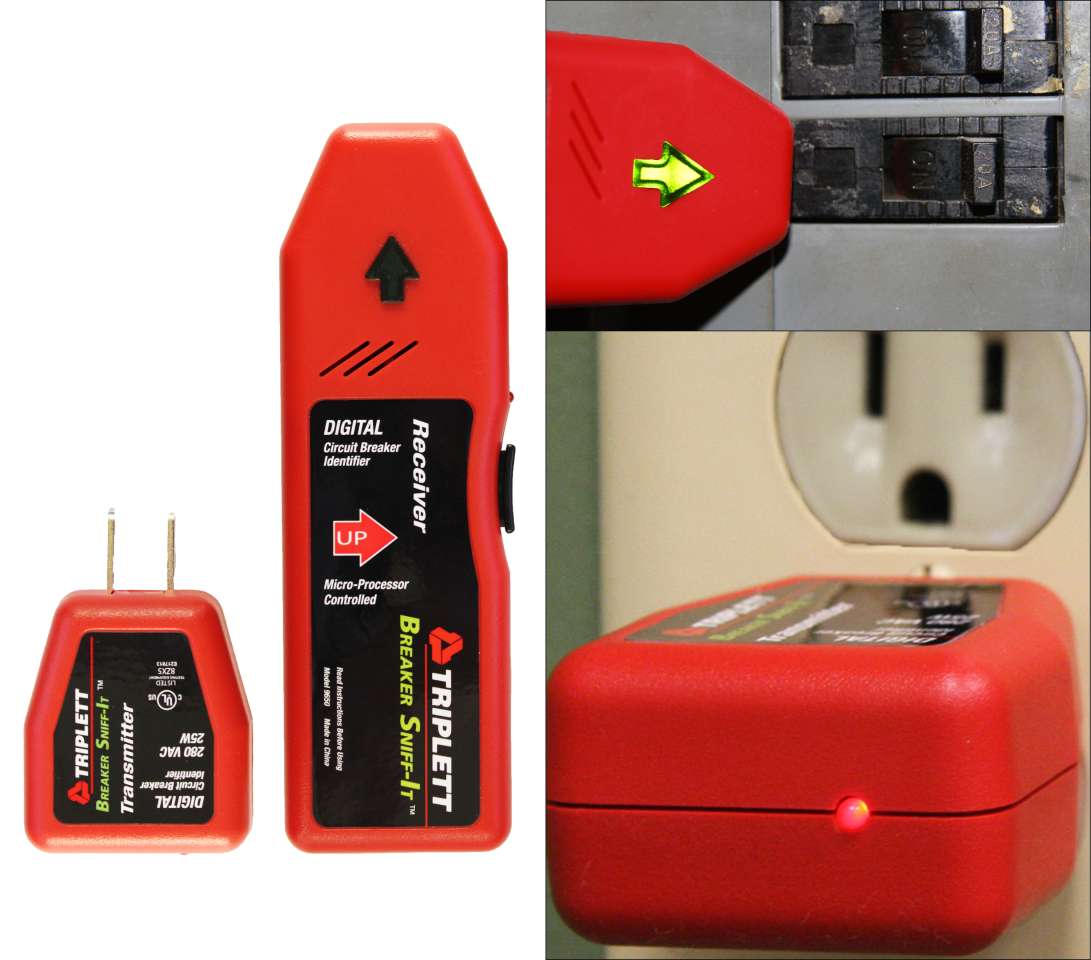

The Triplett 9650 Breaker Sniff-It™ is a microprocessor-based circuit breaker locator designed for high accuracy results. This simple to use product comes with a remote and main unit that work together to help locate breaker locations with visual and audible indication. Fully automatic with no adjustment necessary. The Breaker Sniff-it™ remote does not require a battery and is powered by the outlet, the main unit is powered by a 9 volt battery (not included) for long life and reliability. Limited Lifetime Warranty.
Features:
- Micro-Processor Controlled - Reduces False Readings
- Fully Automatic - No Adjustments Necessary
- 120/220 VAC Transmitter (250 VAC Max)
- Limited lifetime Warranty
Includes: Includes Transmitter & Receiver
| Specifications |
|---|
| AC Voltage | 3V, 10V, 30V, 100V, 300V, 1000V |
| DC Voltage | 1V, 3V, 10V, 30V, 100V, 300V, 1000V |
| DC Current | 0.1mA, 10mA, 100mA, 1000mA |
| Resistance | 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ |
| Decibels | -20 to +62dBm |
| Dimensions | 3.25 x 5.25 x 7.25" |
| Weight | 2.5 lbs. |
Datasheet: https://www.files.triplett.com/datasheet/9650.pdf
User Manual: https://www.files.triplett.com/manual/9650.pdf
