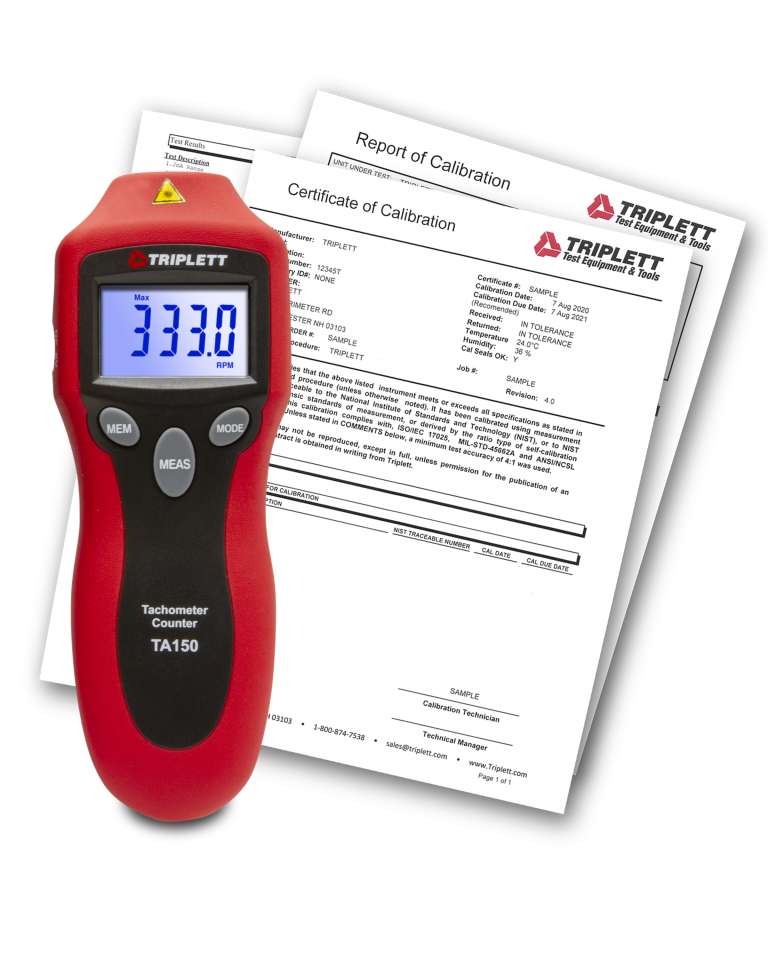

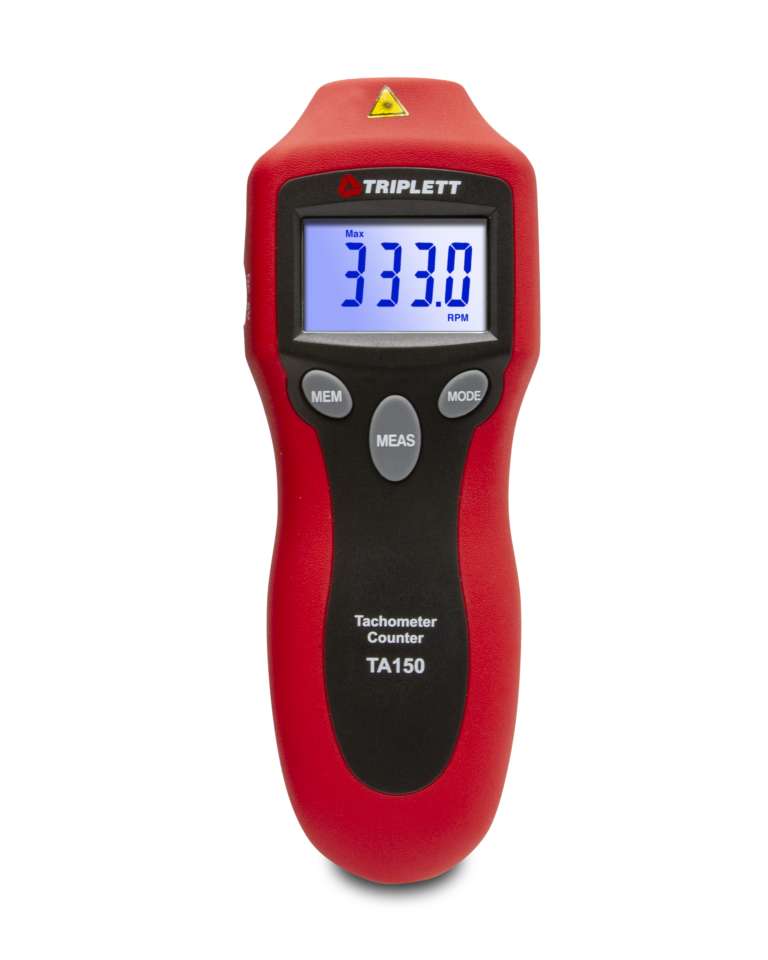

The Triplett TA150-NIST Tachometer provides fast and accurate non-contact RPM of rotating objects and count (REV) measurements. The laser pointer beam provides accurate long distance measurements for photo tachometer measurements with a 19.7” (500mm) maximum target distance. It features a quartz crystal timebase, fast 0.5 second sampling rate (over 120RPM) and a 5-digit backlit LCD display. Built-in memory recalls Min/Max/Last Value stored. Includes Certificate of Traceability to N.I.S.T., 23” (58.4cm) reflective tape, 9V battery and carrying case. 1-year warranty.
Features:

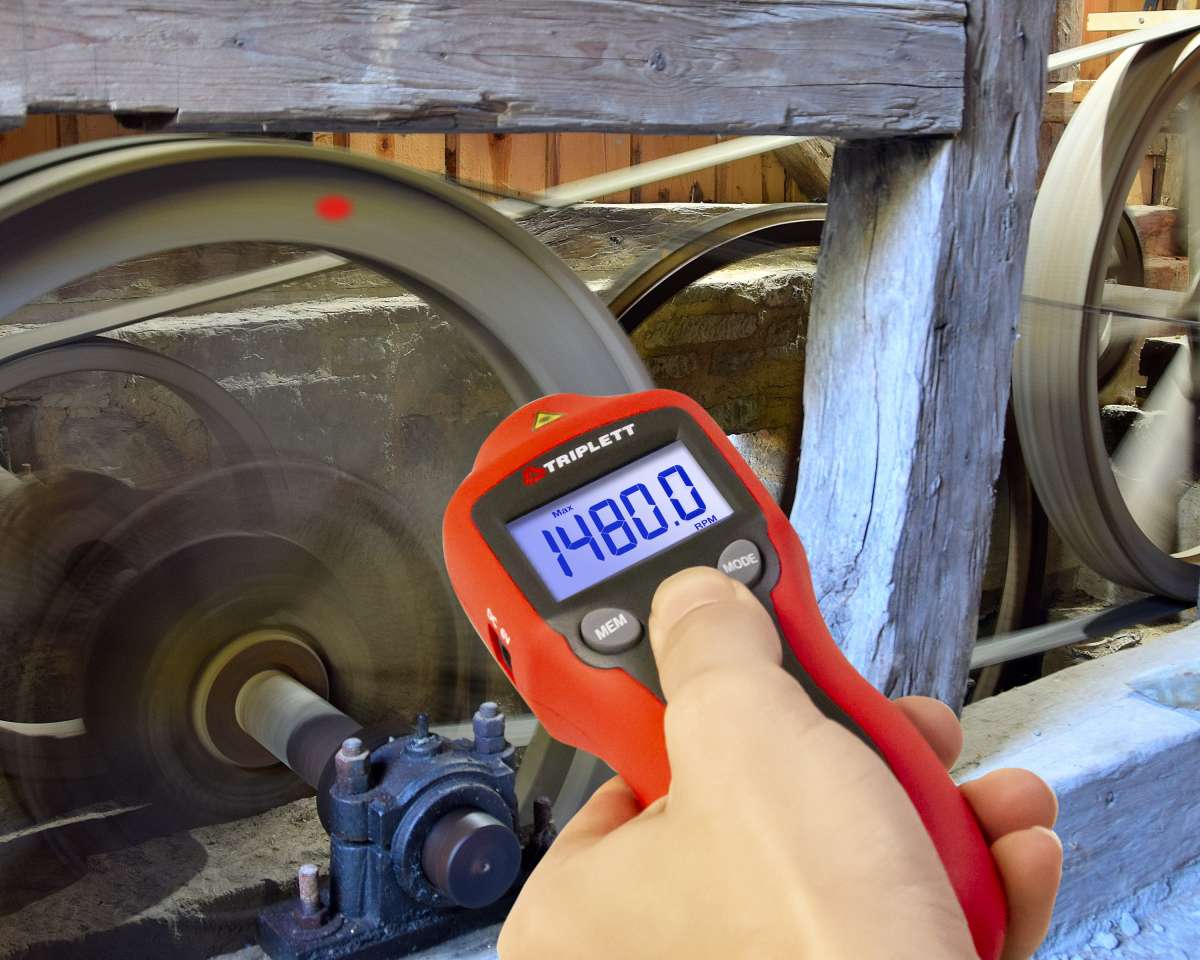

- Fast and accurate non-contact RPM measurement of rotating objects
- Two test modes: Rotational speed (RPM) and Count mode (REV)
- 19.7” (500mm) maximum target distance
- Quartz crystal timebase
- Fast 0.5 second sampling rate (over 120RPM)
- 5-digit backlit LCD display
- Memory recalls Min/Max/Last Value stored
- Includes 23” (58.4cm) reflective tape, 9V battery and carrying case
- 1-year warranty
Includes: Includes Certificate of Traceability to N.I.S.T., 23” (58.4cm) reflective tape, 9V battery and carrying case
Battery Type: 9V battery
| Specifications |
|---|
| TA150 |
| RPM Range | 2 to 99,999RPM |
| Count Range | 1 to 99,999 REV |
| Accuracy | ±0.05% |
| Resolution | 0.1RPM |
| Target Distance | 2 to 19.7” (50 to 500mm) |
| Power | 9V Battery |
| Dimensions | 6.3 x 2.3 x 1.5” (160 x 58 x 39mm) |
| Weight | 5.3oz (151g) |
