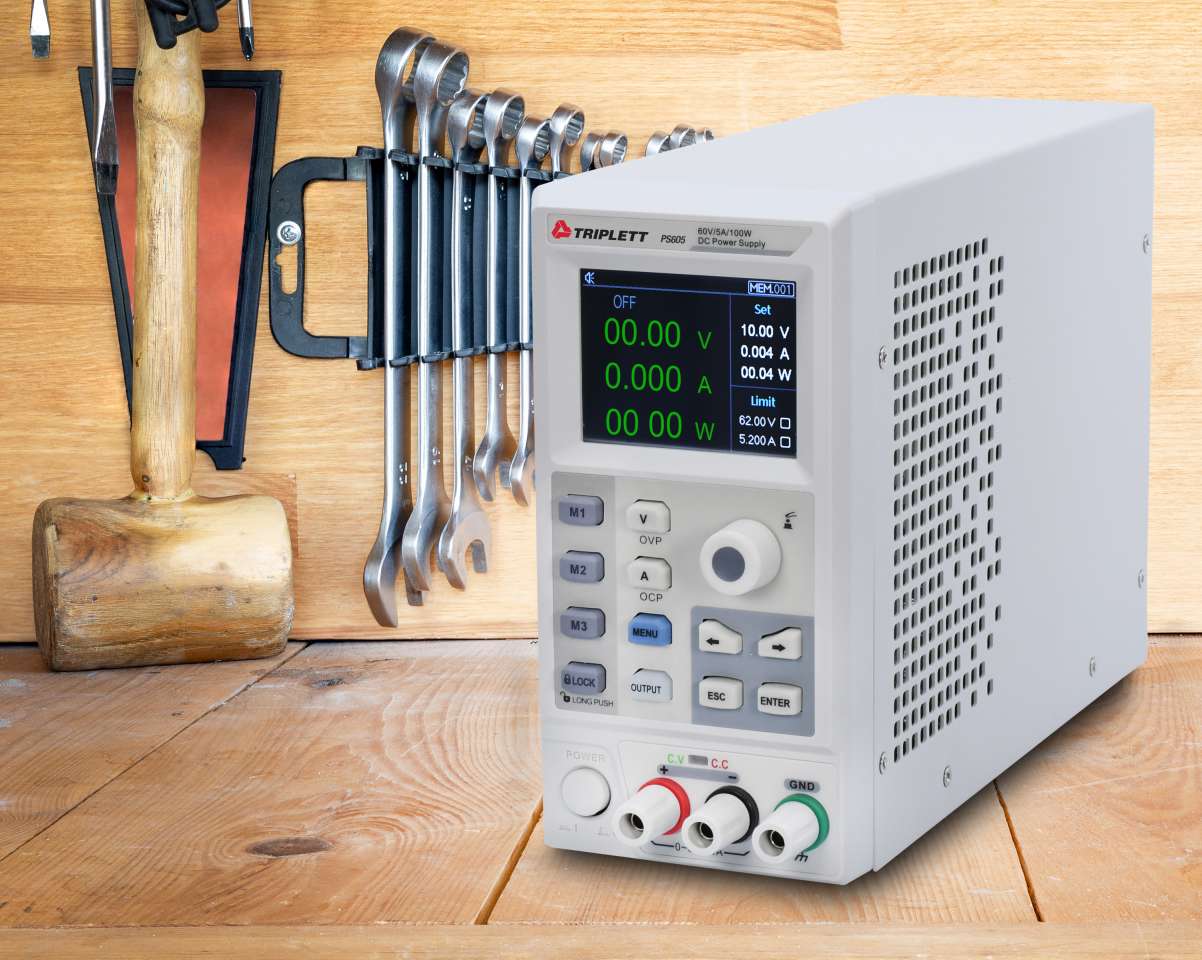

The Triplett Model PS605-NIST 60V/5A/100W Single Output DC Power Supply with Certificate of Traceability to N.I.S.T. can replace 3 common power supplies (60V × 1.66A/32V × 3A/20V × 5A) used in circuit board design, bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service, and hobbyists. Constant Voltage or Current operation with voltage and current limits adjusted according to available maximum power (100W). At maximum current (5A), voltage is limited to 20V; at maximum voltage (60V), current is limited to 1.66A. It features a high precision triple 4-Digit LCD color display for voltage, current, and watts (10mV/1mA/10mW) with adjustable brightness, keypad lock function, output on/off control, remote sense compensation, low ripple and noise, intelligent fan regulation, and overvoltage/current protection. 3 Memory Groups can store/recall 200 voltage/current settings each. Built-in RS-232 interface for remote control and SCPI protocol. Includes AC power cord and software and Certificate of Traceability to N.I.S.T.. 1 year warranty.
Features:
- 100W max output can replace 3 common power supplies (60V × 1.66A/32V × 3A/20V × 5A)
- Constant Voltage or Current operation
- Voltage and Current limits are adjusted according to available maximum power (100W)
- At maximum current (5A), voltage is limited to 20V; at maximum voltage (60V), current is limited to 1.66A
- High precision triple 4-Digit LCD color display for voltage, current, and watts (10mV/1mA/10mW) with adjustable brightness
- 3 Memory Groups can store/recall 200 voltage/current settings each
- Keypad lock function; Output on/off control; Remote sense compensation
- Low ripple and noise; Overvoltage/current protection; Intelligent fan regulation
- RS-232 interface for remote control and SCPI protocol

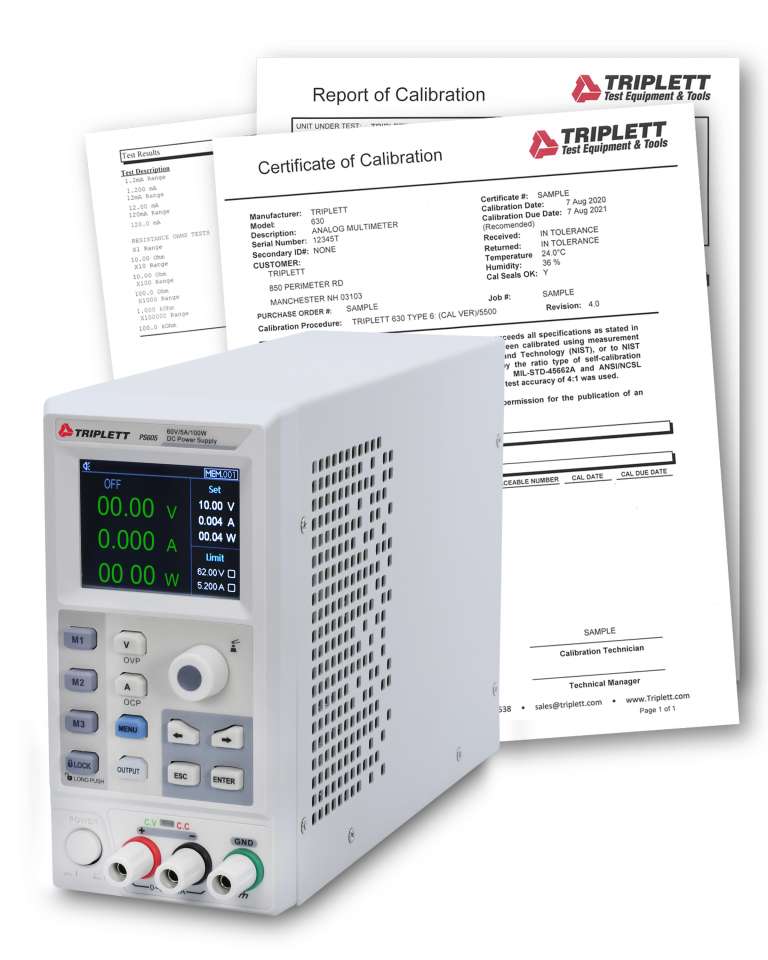

Includes: Includes AC power cord and software and Certificate of Traceability to N.I.S.T..
| Specifications |
|---|
| PS605 |
| DC Voltage | 0 to 60.00V |
| DC Current | 0 to 5.000A |
| Power (Watts) | 100W |
| Load Regulation Voltage | <0.01% + 3mV |
| Load Regulation Current | <0.01% + 3mA |
| Line Regulation Voltage | <0.01% + 3mV |
| Line Regulation Current | <0.01% + 3mA |
| Ripple and noise | <2mVrms, <5mArms |
| Display | 2.4" Color LCD, 4-Digit |
| Memory | 3 groups of 200 presets each |
| Power | 110/220VAC, 50-60Hz |
| Dimensions | 6.9 x 3.4 x 10" (174 x 87 x 255mm) |
| Weight | 5.5lbs (2.5kg) |
