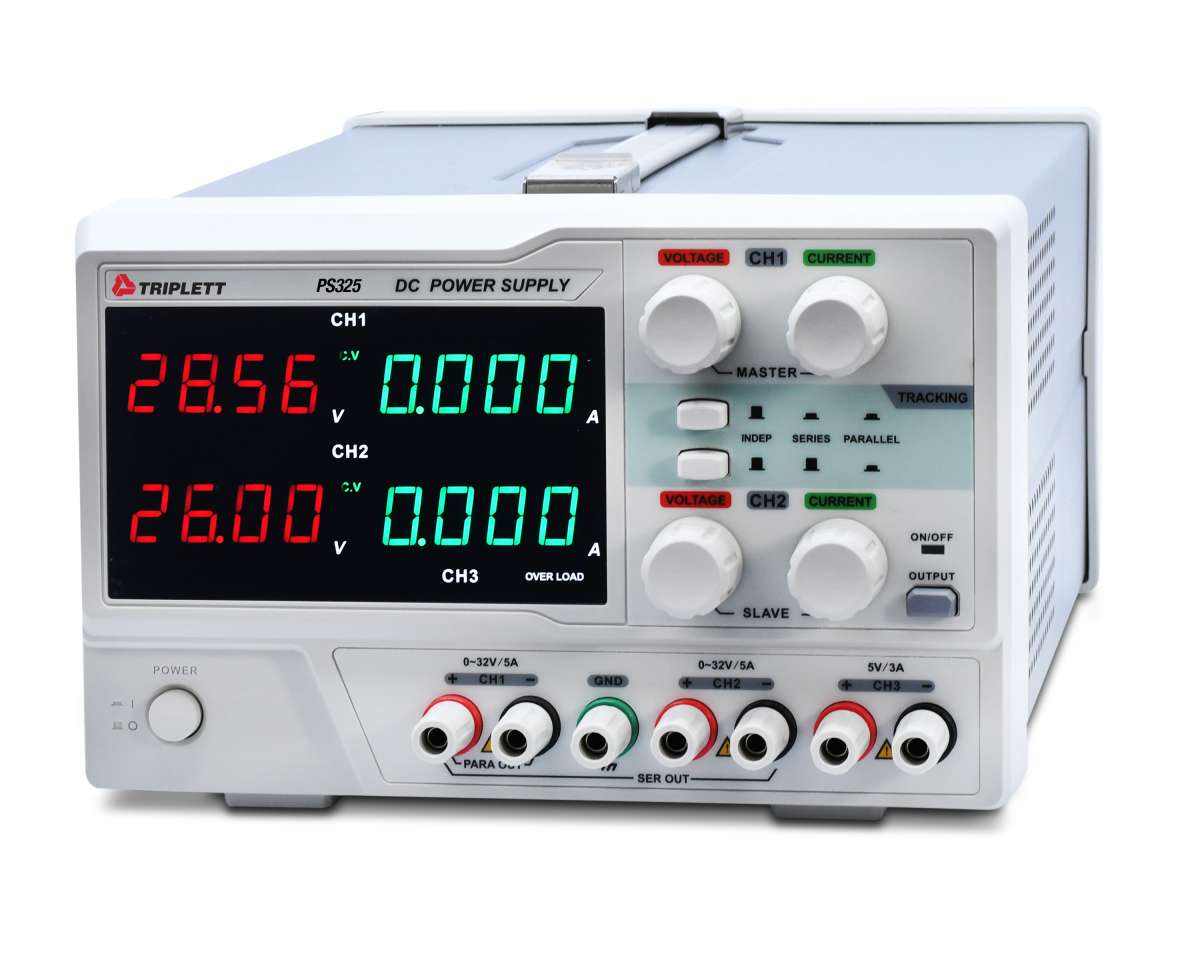

The Triplett Model PS325 Triple Channel Linear DC Power Supply provides two adjustable output channels (32V/5A) and one fixed output channel (5V/3A) with Constant Current or Constant Voltage operation. Channels can be operated independently or in series or parallel. Voltage and current Readings are viewed on 4 high precision LED displays with 10mV/1mA resolution. Additional features include: Low ripple and noise, output on/off control, temperature controlled cooling fan, overvoltage/current protection, and reverse polarity protection. Includes AC power cord. 1-year warranty.
Features:
- Adjustable dual channel and fixed single channel output
- Constant Voltage or Current operation
- High precision quad 4-Digit LED displays for voltage and current (10mV/1mA)
- Low ripple and noise
- Independent/parallel/series operation
- Output on/off control
- Temperature controlled cooling fan
- Overvoltage/current protection
- Reverse polarity protection
Includes: Includes AC power cord
| Specifications |
|---|
| Channel 1 & 2 Output Voltage | |
| Channel 1 & 2 Output Current | |
| Channel 3 Output Voltage | |
| Channel 3 Output Current | |
| Resolution | |
| Output Power | |
| Load Regulation | |
| Line Regulation | |
| Ripple and noise | |
| Display | |
| Power | |
| Dimensions | |
| Weight | |
