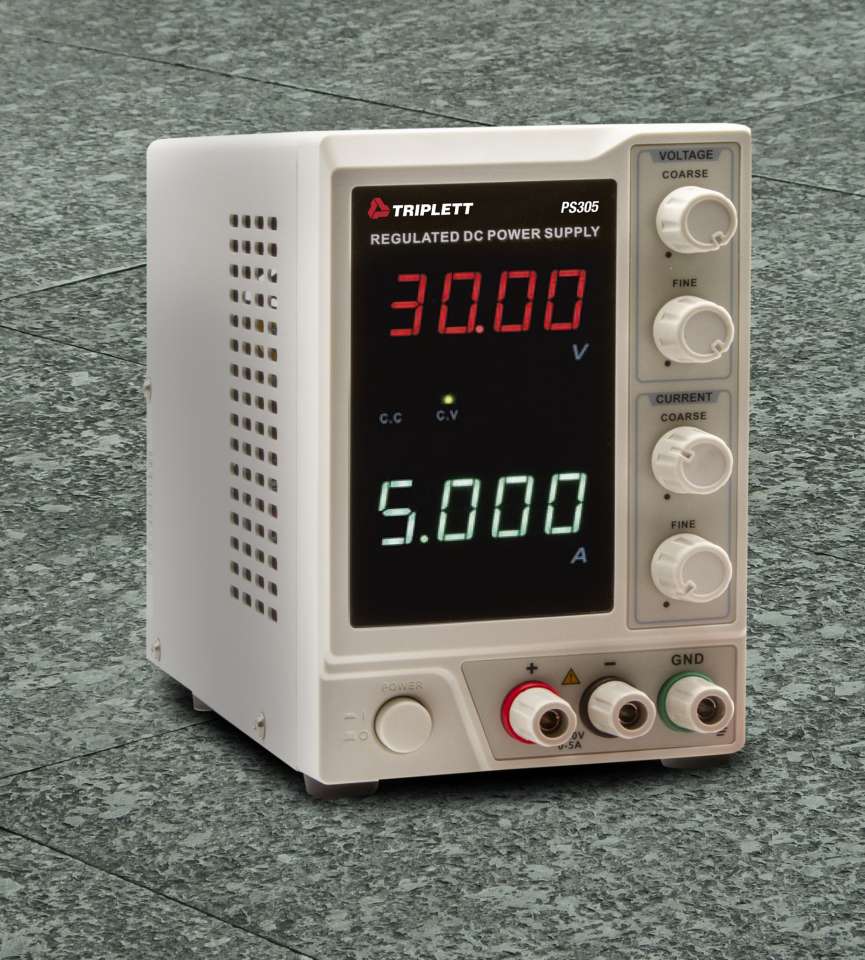

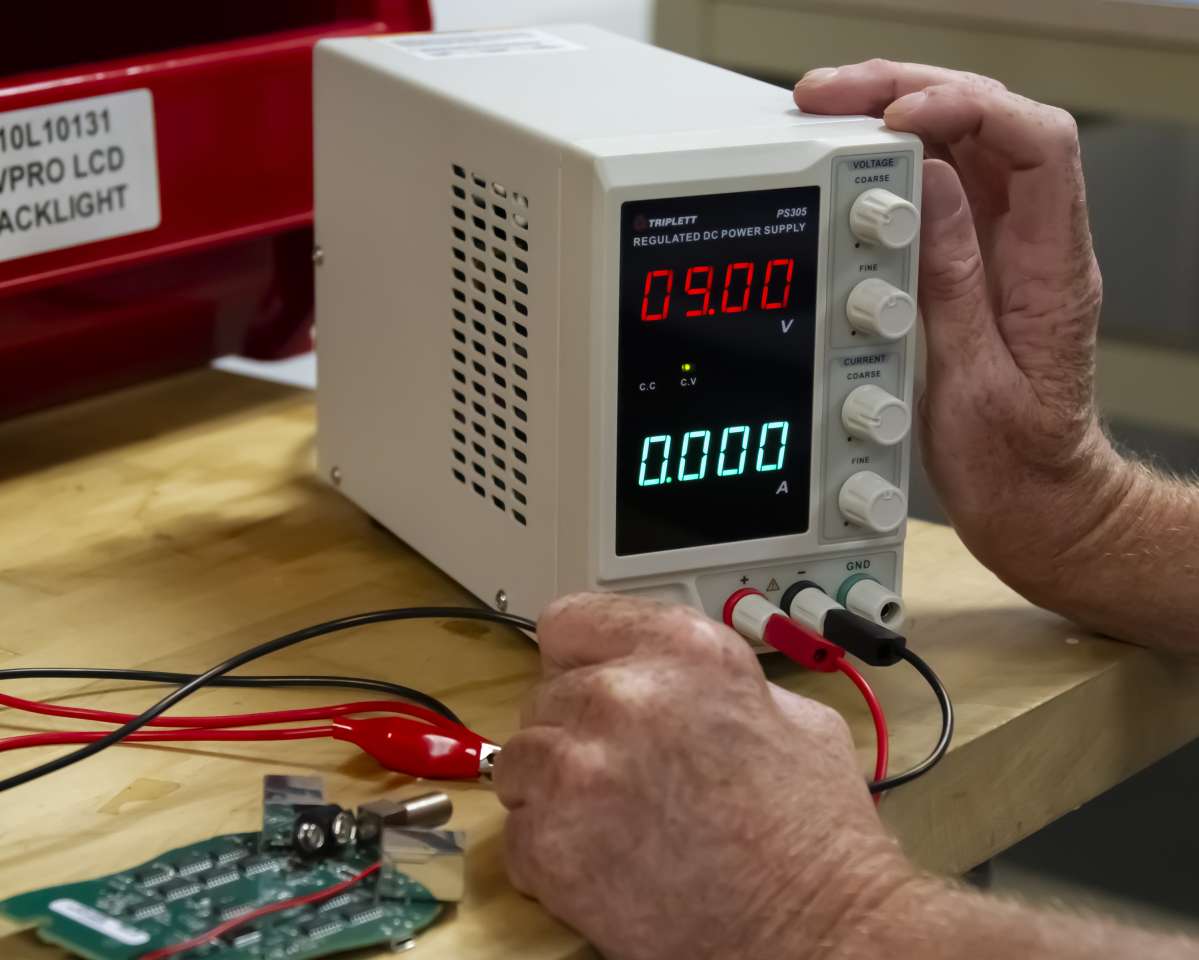

The Triplett Model PS305 Single Output DC Power Supply has a 30V/5A output and can be used for bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyists. It provides Constant Voltage or Current operation with fine and coarse adjustment for both. Readings are displayed on dual 4-Digit LED displays. It features low ripple and noise, reverse polarity protection, short circuit and overload protection, and fused temperature protection with automatic recovery Includes Certificate of Traceability to N.I.S.T., banana to alligator test leads and AC power cord. 1 year warranty.
Features:
- Constant Voltage or Current operation
- Dual 4-Digit LED displays for voltage and current
- Short circuit and overload protection
- Reverse polarity protection
- Low ripple and noise
- Fused temperature protection with automatic recovery

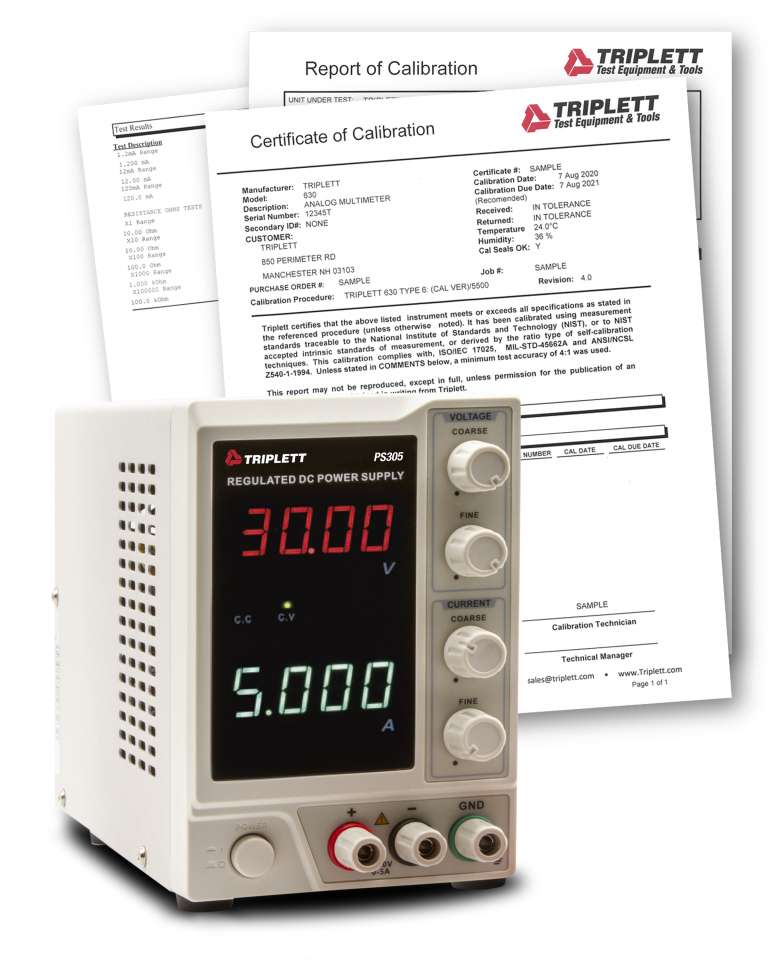

Includes: Includes Certificate of Traceability to N.I.S.T., banana to alligator test leads and AC power cord
| Specifications |
|---|
| PS305 |
| Output Voltage | 0 to 30.00V |
| Output Current | 0 to 5.000A |
| Output Power | 160W |
| Load Regulation | <0.01% + 5mV, <0.1% + 10mA |
| Line Regulation | <0.01% + 3mV, <0.1% + 3mA |
| Ripple and noise | ≤2mVrms, ≤3mArms |
| Display | Dual 4-Digit LED (voltage and current) |
| Power | 110 to 220VAC, 50/60Hz |
| Dimensions | 4.1 x 6.1 x 8.3" (105 x 155 x 210mm) |
| Weight | 8.8lbs (4kg) |
