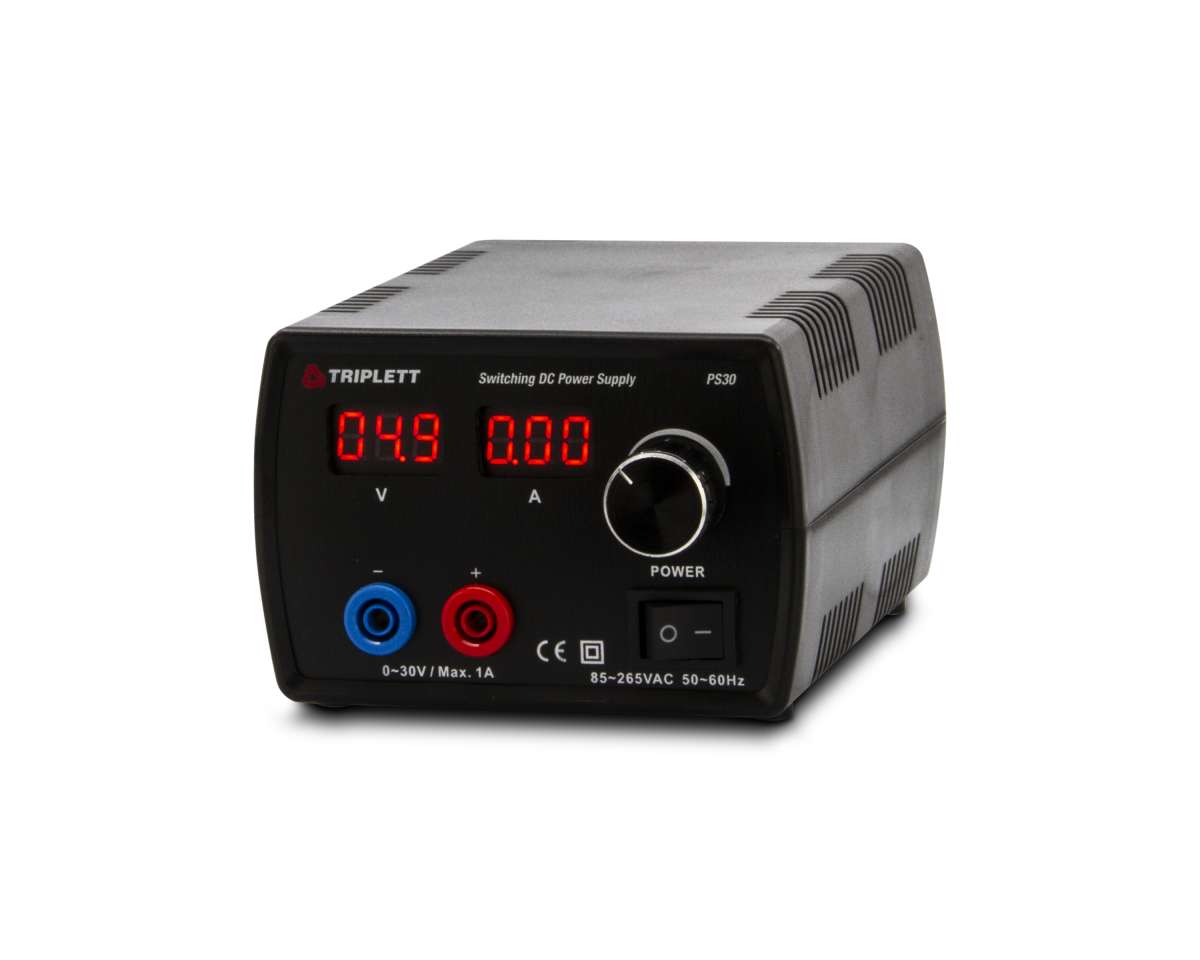

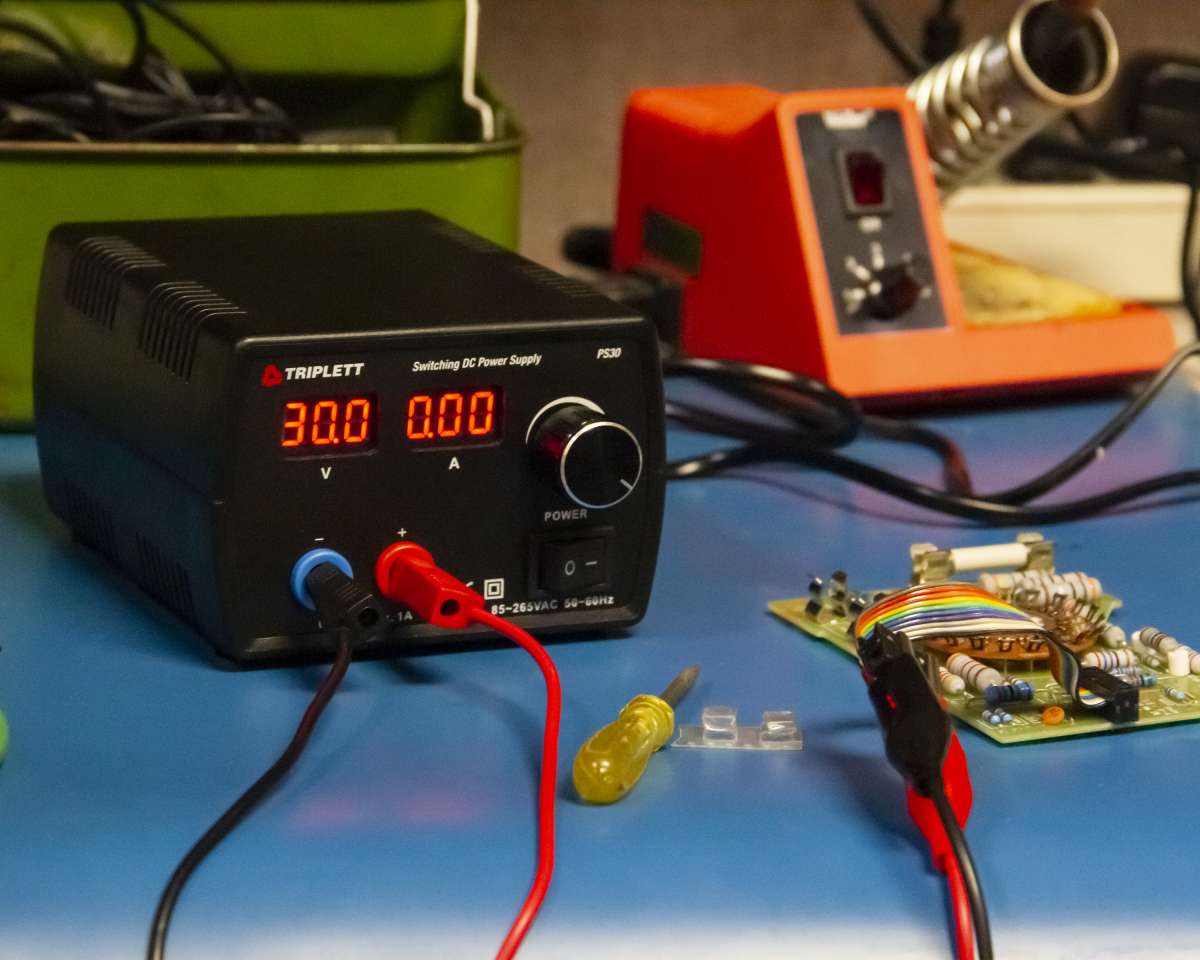

The Triplett Model PS30 Single Output, Low Power 30V Switching DC Power Supply has a 0 to 30V/1A output and can be used for testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyists. Readings are displayed on dual 3-Digit LCD displays with ± (0.5% + 2 digits) output accuracy. It features low ripple and noise and current overload protection. Includes AC power cord and (2) fuses. 1 year warranty.
Features:
- Adjustable 0 to 30V with 1A fixed output
- Dual 3-Digit LCD displays for voltage and current
- Output accuracy: ± (0.5% + 2 digits)
- Current overload protection
- Low ripple and noise
Includes: Includes AC power cord and (2) spare fuses
| Specifications |
|---|
| Output Voltage | 0 to 30.00V |
| Output Current | 1A |
| Output Power | 30W |
| Load Regulation | 100mV |
| Line Regulation | 15mV |
| Ripple and noise | 70mVrms |
| Display | Dual 3-Digit LCD (voltage and current) |
| Power | 85 to 265VAC, 50/60Hz |
| Dimensions | 4.3 x 3 x 5.5" (110 x 74 x 140mm) |
| Weight | 10.6oz (300g) |
