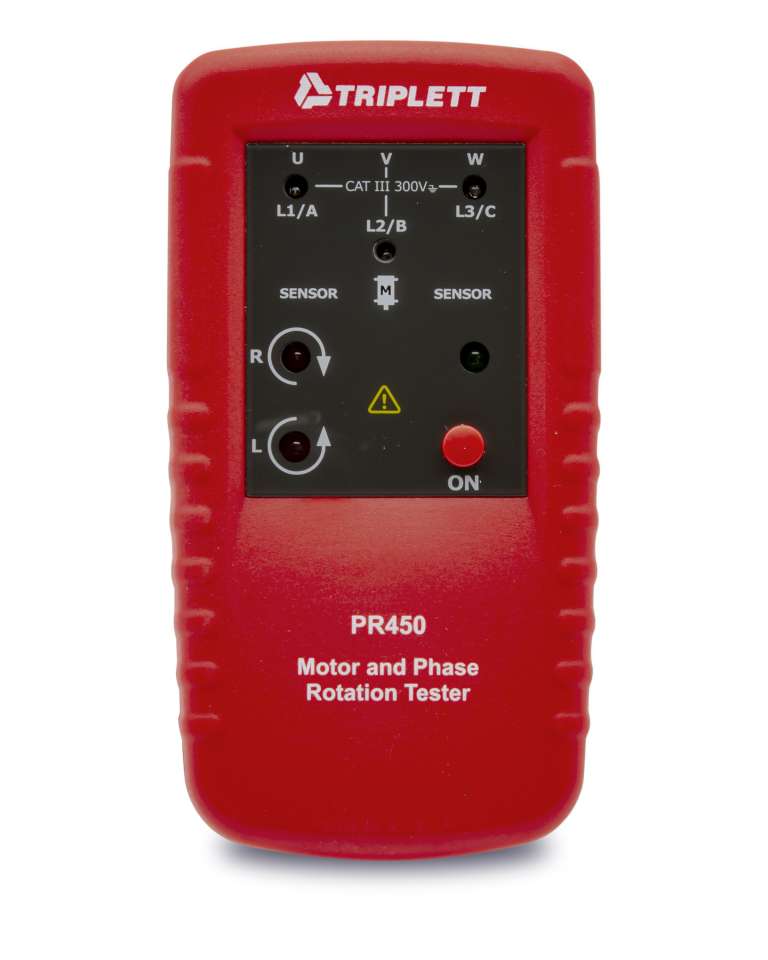

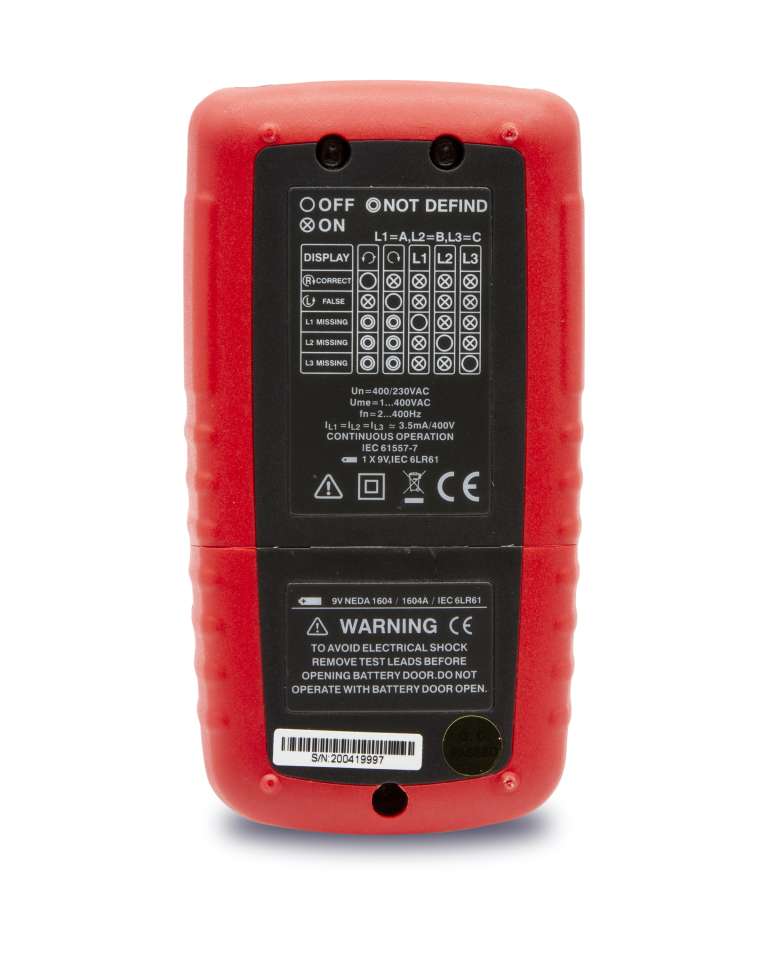

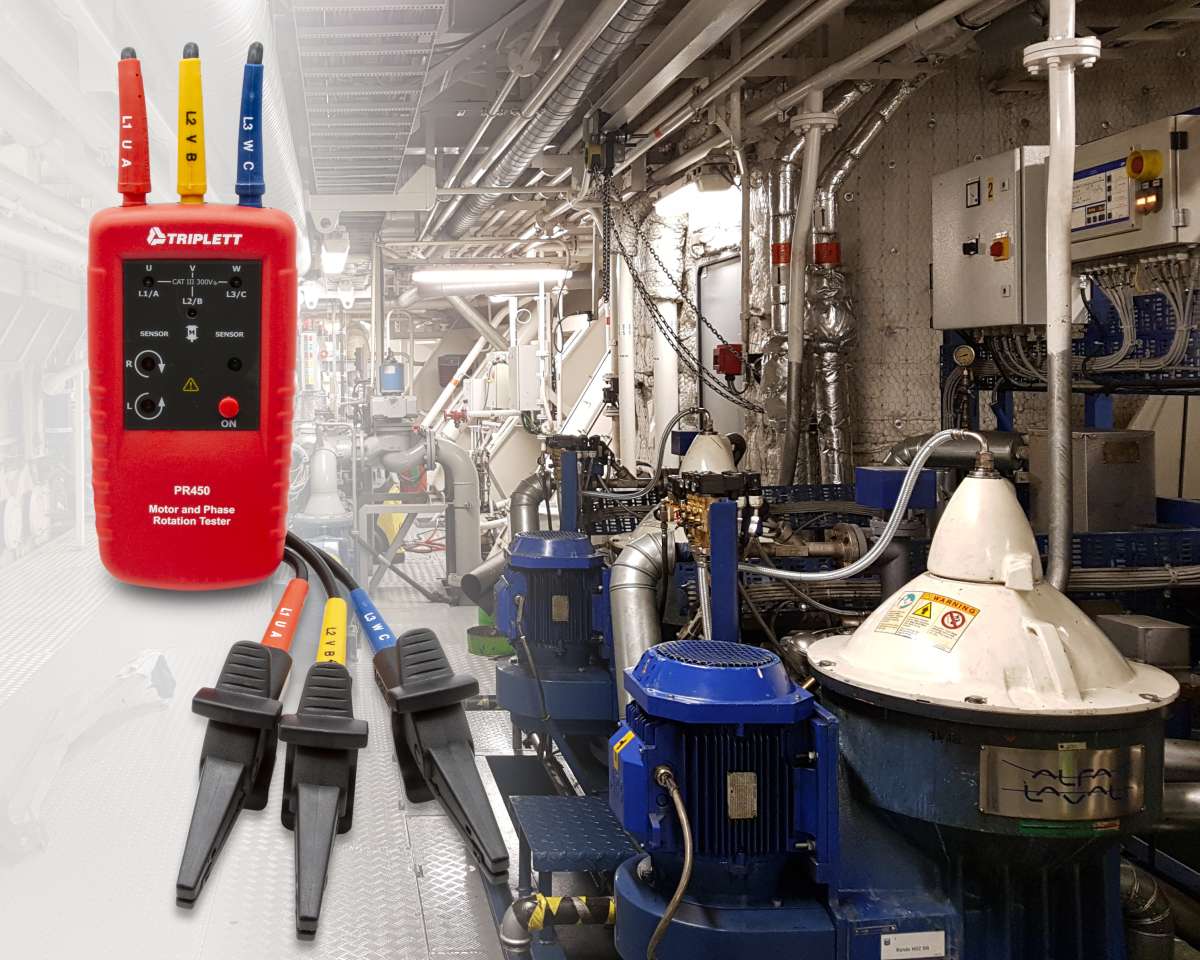

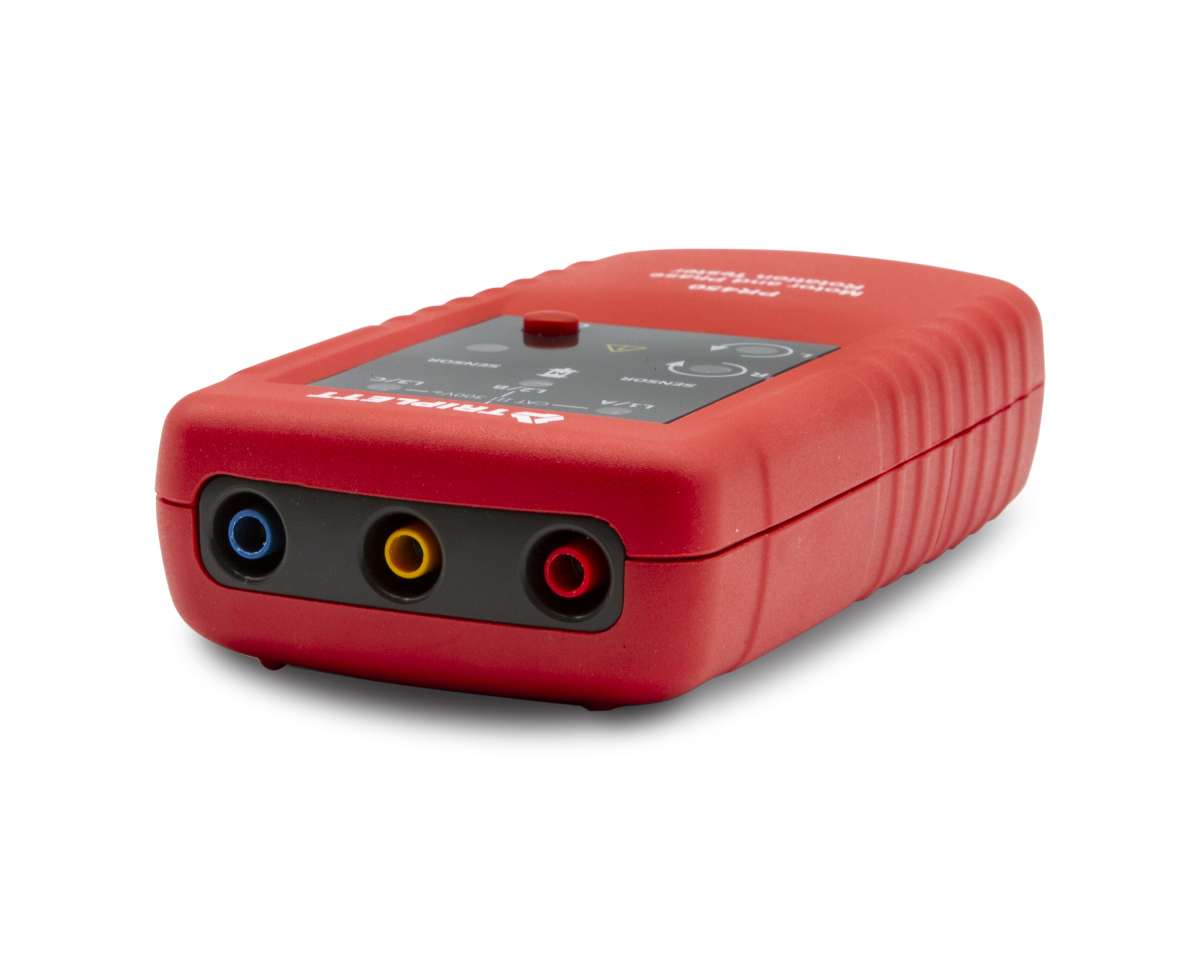

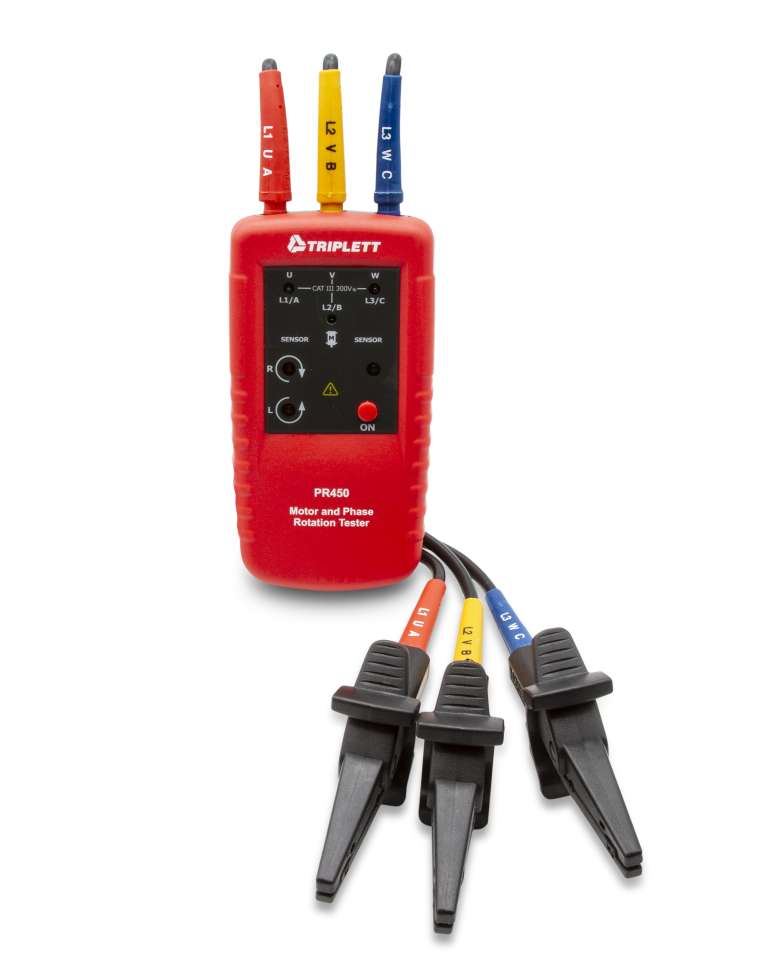

The Triplett PR450 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations and determines contact or non-contact motor-rotation direction. Color-coded test leads are provided for connecting to the system or motor under test. LEDs display phase direction/rotation (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips, carrying case, and 9V battery. CAT III-600V safety rating. 1-year warranty.
Features:
- Determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installation
- LEDs display phase/rotation direction (clockwise/counter-clockwise) and which phases are live
- Contact or non-contact motor rotation direction indication
- Includes test leads with large color-coded alligator clips, carrying case, and 9V battery
- CAT III 600V safety category
- 1-year warranty

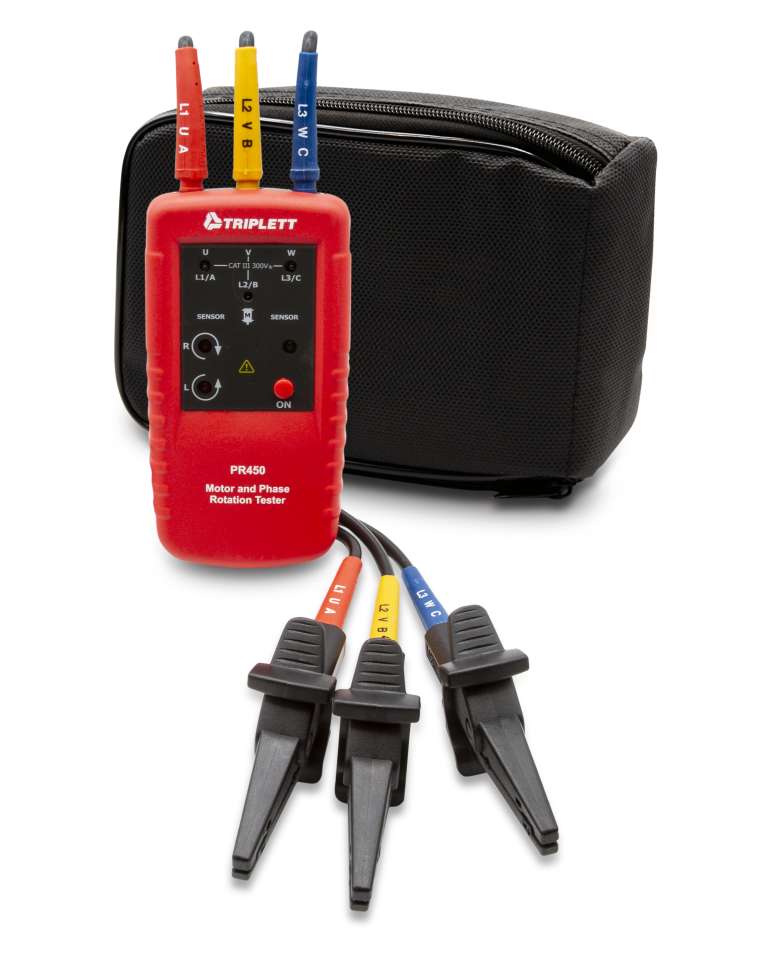

Includes: Includes Test leads with large color-coded alligator clips, carrying case, and 9V battery
Battery Type: 9V battery
| Specifications |
|---|
| PR450 | |
| 40 to 600VAC | |
| 2 to 400Hz | |
| Yes | |
| 9V battery | |
| CAT III 600V | |
| 5.1 x 2.7 x 1.3” (130 x 69 x 32mm) | |
| 4.6oz (130g) | |
