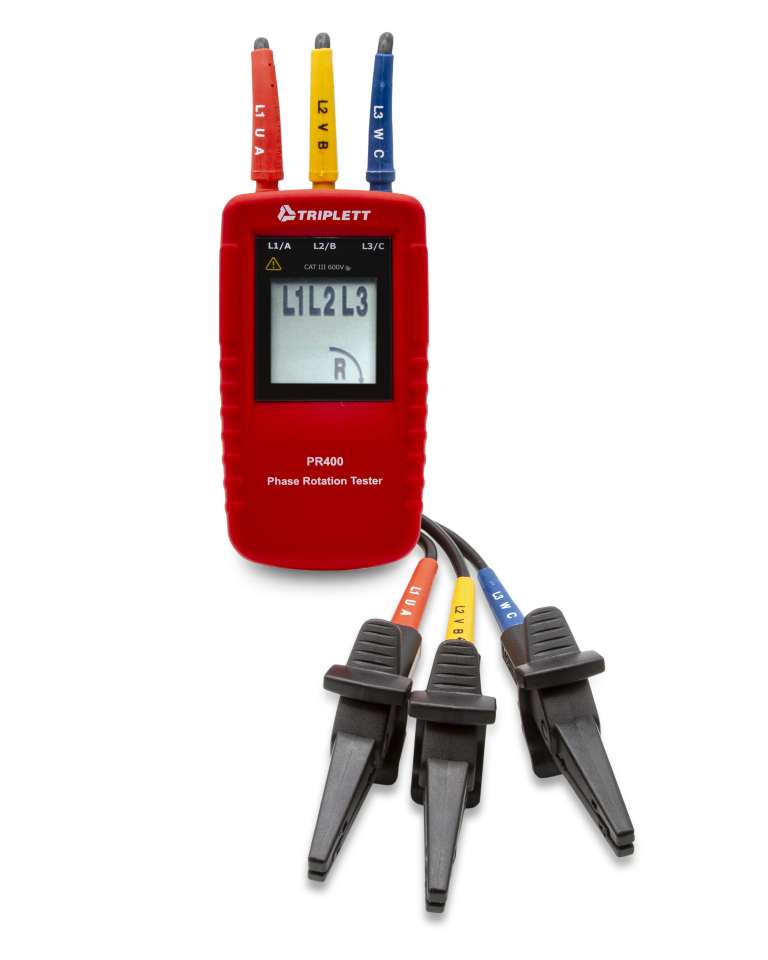

The Triplett PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. You can view results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips and carrying case. No battery is required. CAT III 600V safety category. 1-year warranty.
Features:
- Determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installation

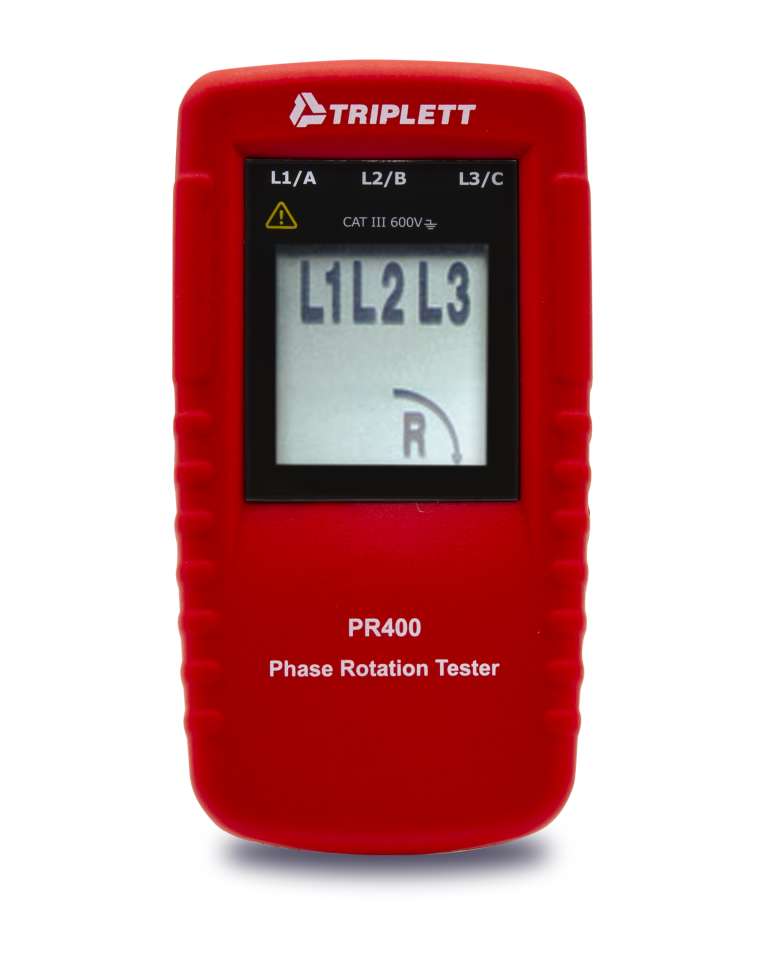

- View results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live
- No battery required
- CAT III 600V safety category
- Includes test leads with large color-coded alligator clips and carrying case
- 1-year warranty

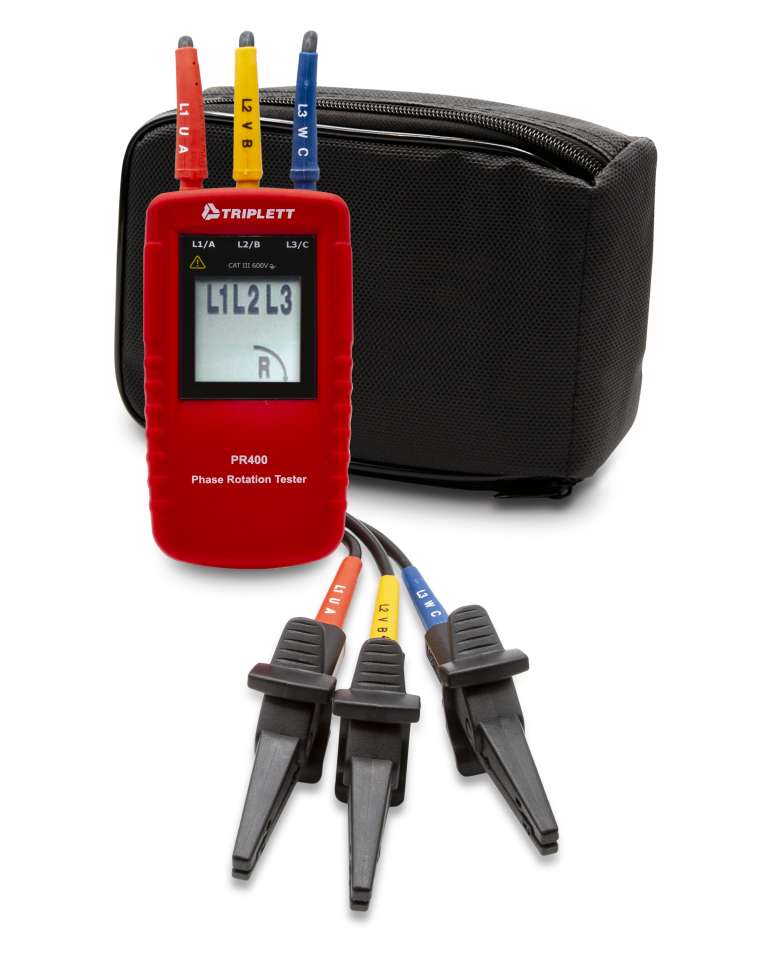

Includes: Includes Test leads with large color-coded alligator clips and carrying case
| Specifications |
|---|
| Voltage Range | 40 to 600VAC |
| Bandwidth | 15 to 400Hz |
| Safety Category | CAT III 600V |
| Dimensions | 5.1 x 2.7 x 1.3” (130 x 69 x 32mm) |
| Weight | 4.6oz (130g) |
