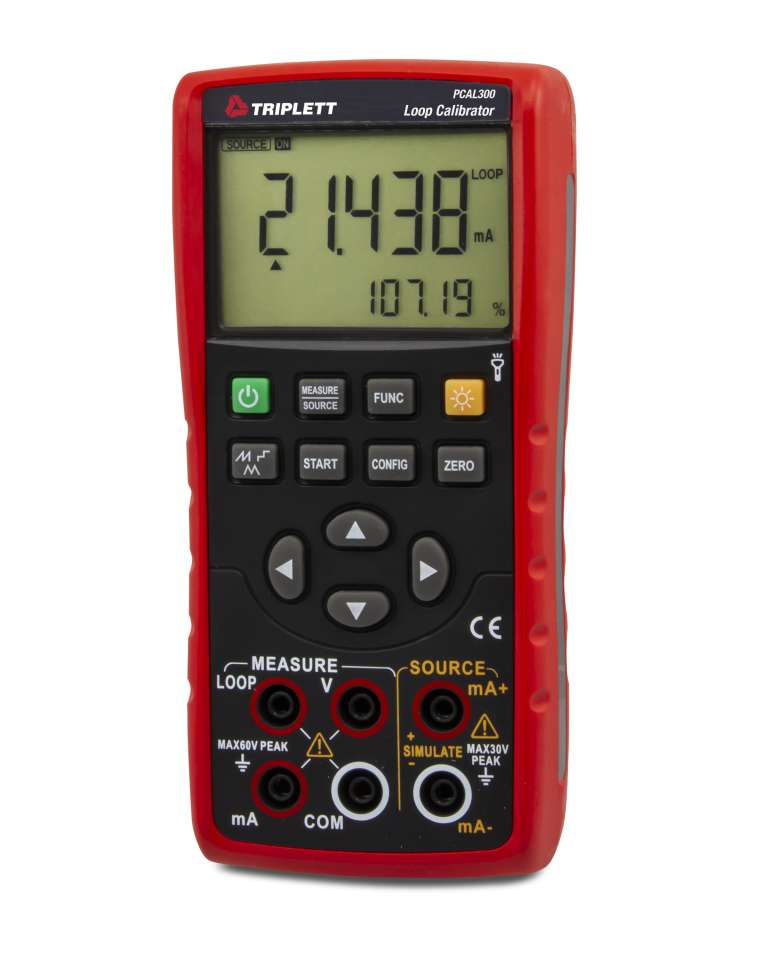

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration can easily measure DC voltage/current and source DC mA current with an accuracy of 0.02%. It can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door). 1-year warranty.
Features:
- Easily measure DC voltage/current and source DC mA current
- Source and measure accuracy up to 0.02%

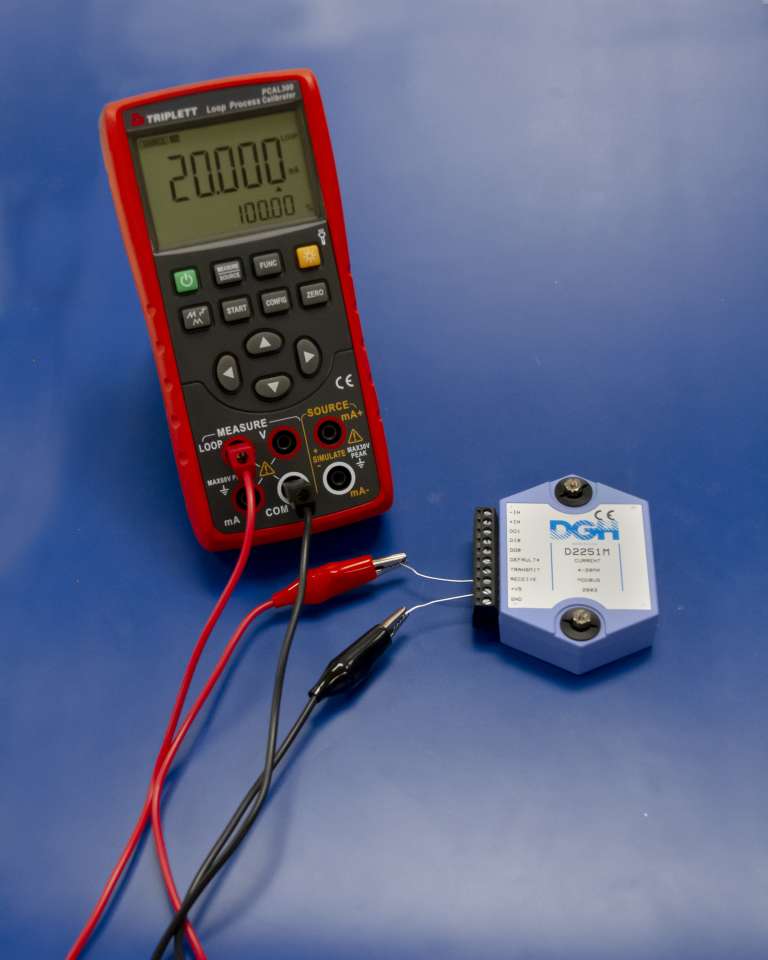

- Simultaneously provides 24V loop power to transmitter while conducting mA current measurement
- Adjustable 0-20mA/4-20mA span with % readout
- Automatic sawtooth or triangular output current step function
- Built-in Flashlight
- Auto power off

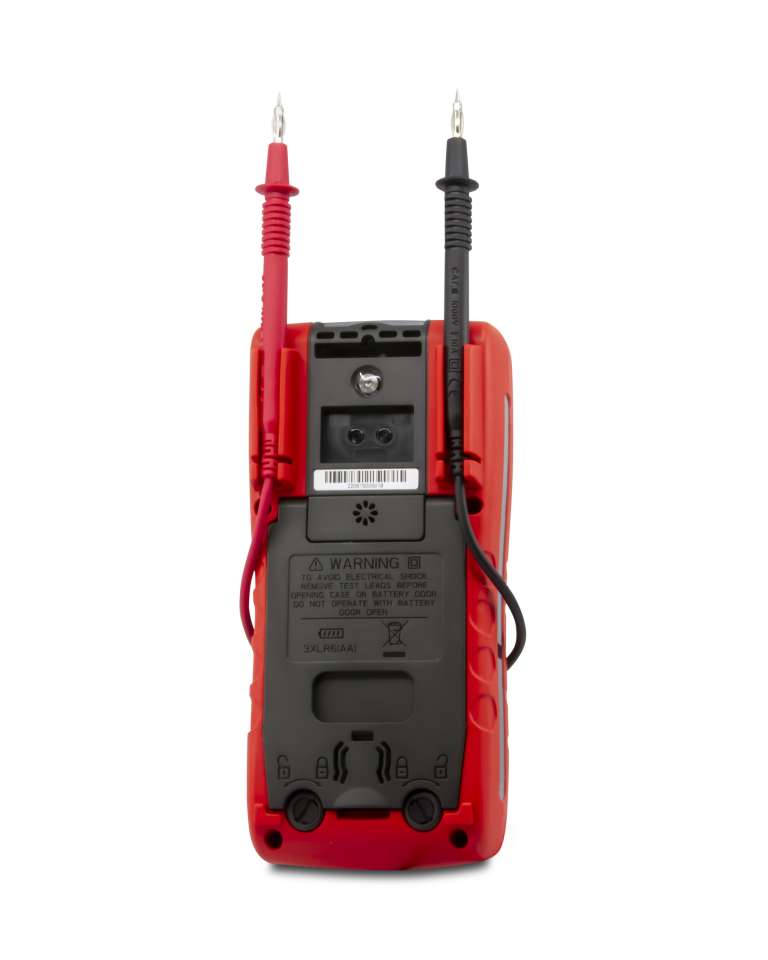

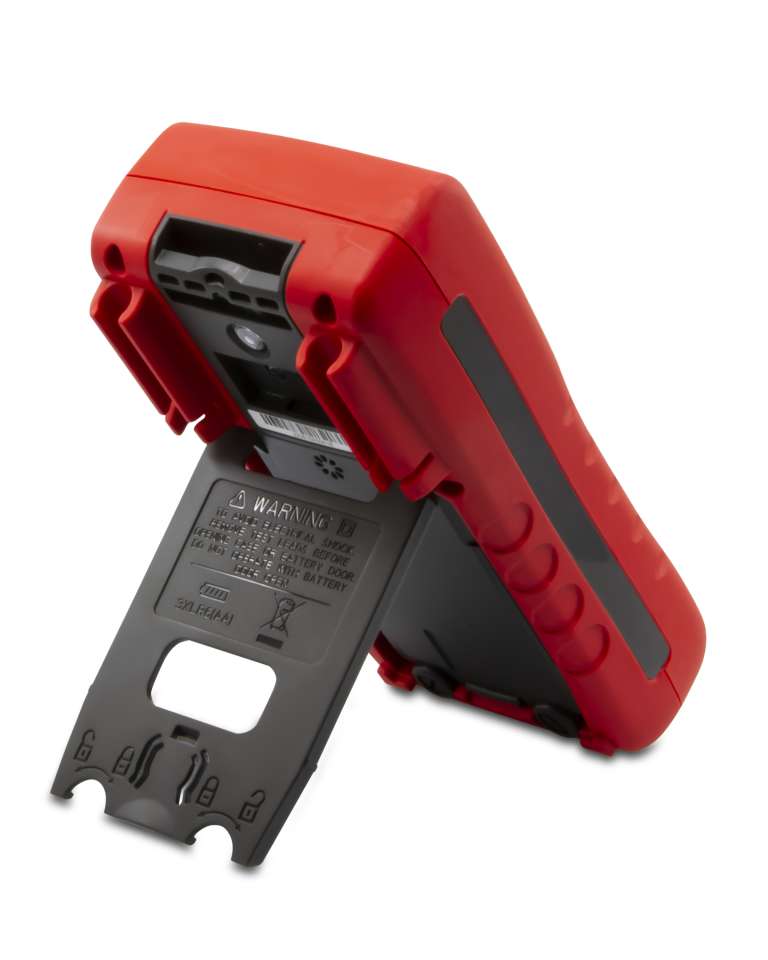

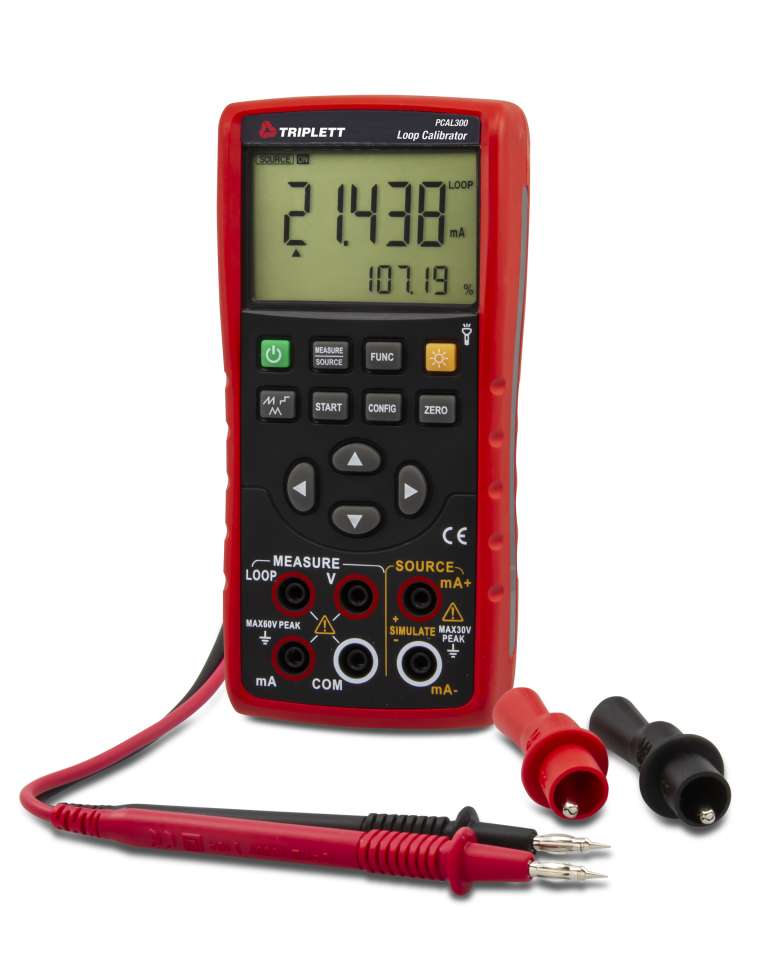

Includes: Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door).
Battery Type: (3) AA batteries
| Specifications |
|---|
| Measurement | Range (Resolution) |
| DC Voltage | 30V (0.001V) |
| DC Current | 30mA (0.001mA) |
| Source | Range (Resolution) |
| DC Current | 30mA (0.001mA) |
| Loop Power | 24V |
| Power | (3) AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51mm) |
| Weight | 1lbs (454g) |
