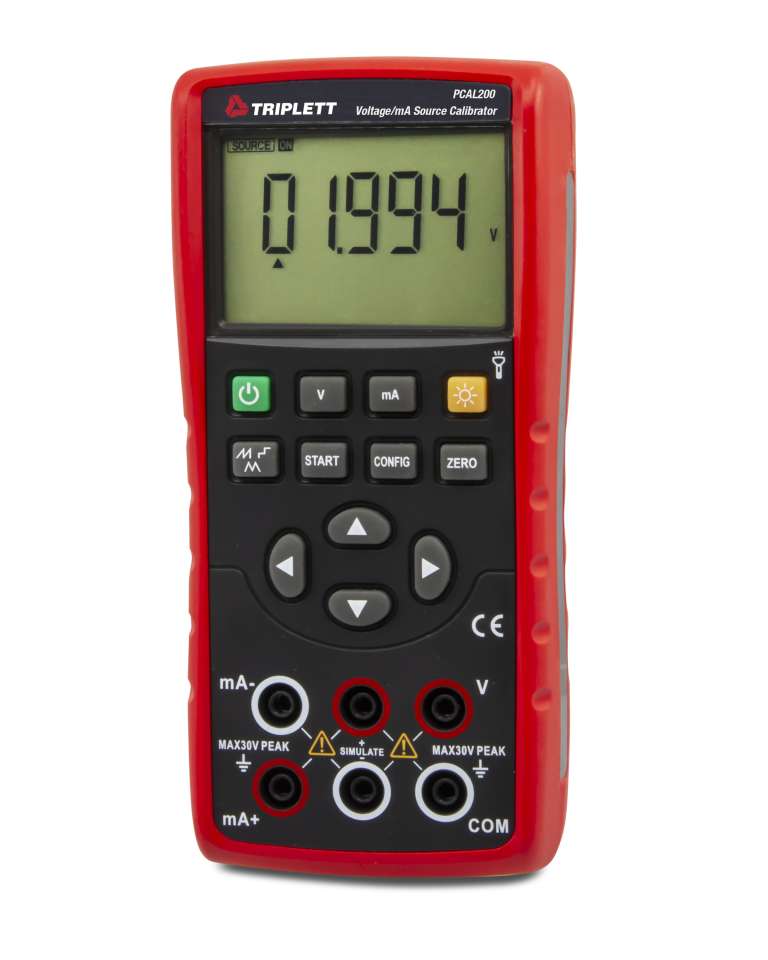

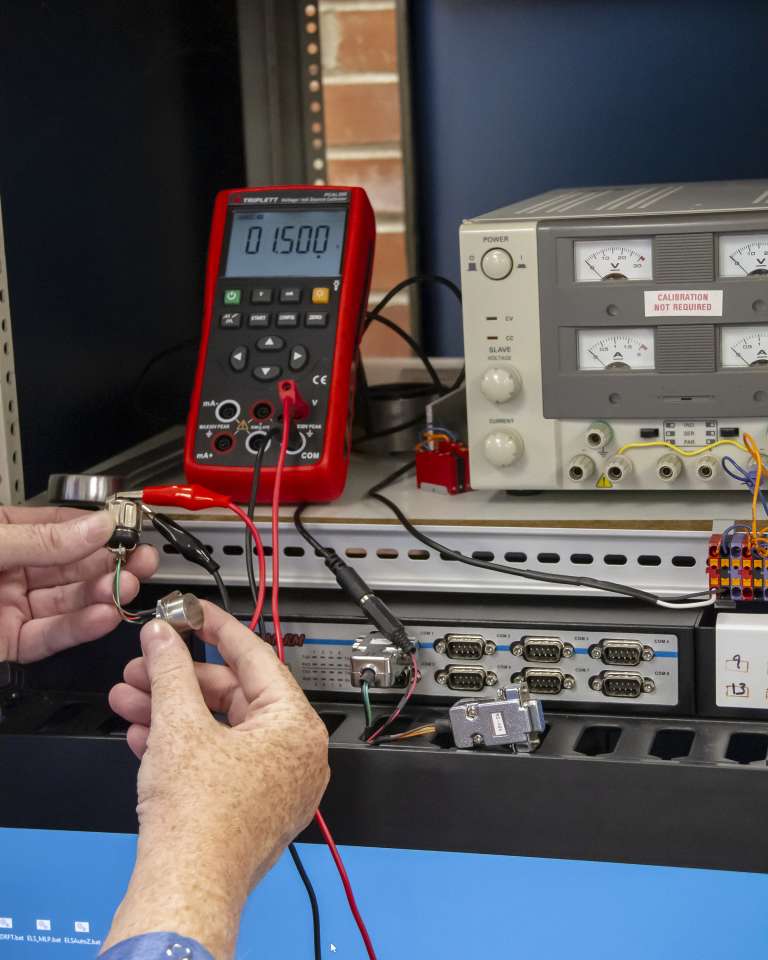

The Triplett Model PCAL200 DC Voltage and Current Source provides an adjustable 0-20mA/4-20mA span with % readout and a 0 to 10V DC voltage range with 0.05% accuracy that can be used for benchtop and field industrial process device testing and calibration. It features automatic sawtooth or triangular output current step function, on-screen low battery indication, auto power off, and a built-in flashlight. Includes test leads, (3) AA batteries, (2) spare fuses, and latch key (for opening battery door). 1-year warranty.
Features:
- Source accuracy up to 0.05%
- Adjustable 0-20mA/4-20mA span with % readout
- Automatic sawtooth or triangular output current step function
- 0 to 10V DC voltage range
- Built-in Flashlight
- Auto power off
- Low battery indication

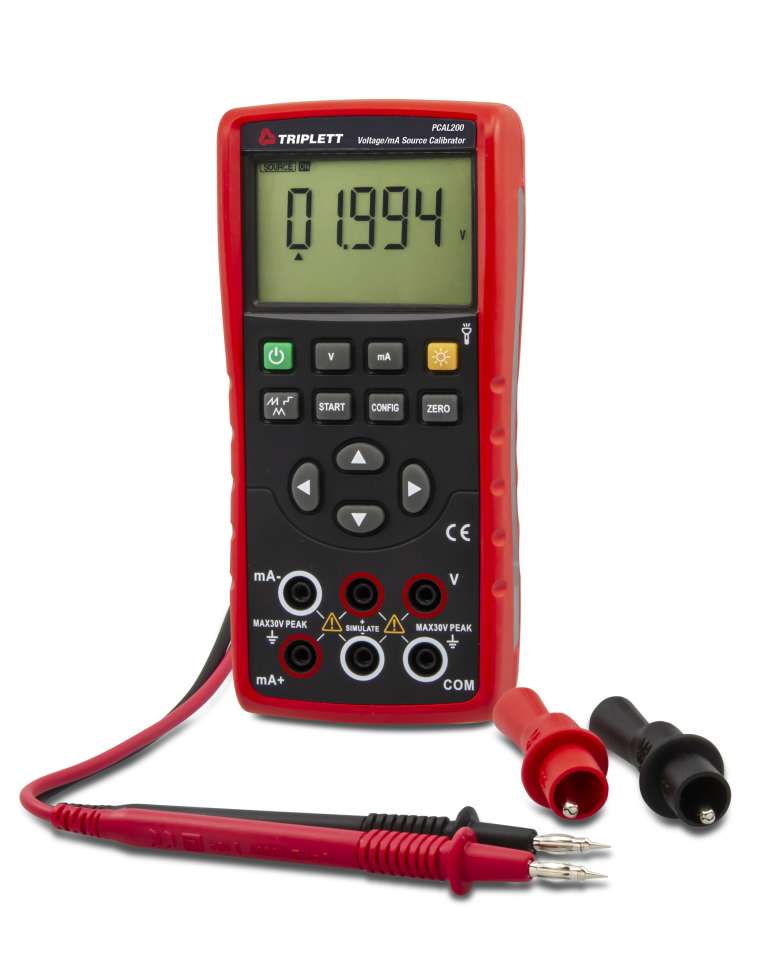

Includes: Includes test leads, (3) AA batteries, (2) spare fuses, and latch key (for opening battery door).
Battery Type: (3) AA batteries
| Specifications |
|---|
| Source | Range (Resolution) |
| DC Voltage | 10V (0.001V) |
| DC Current | 30mA (0.001mA) |
| Maximum Load | 1000Ω @ 20mA |
| Power | (3) AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51mm) |
| Weight | 1lbs (454g) |
