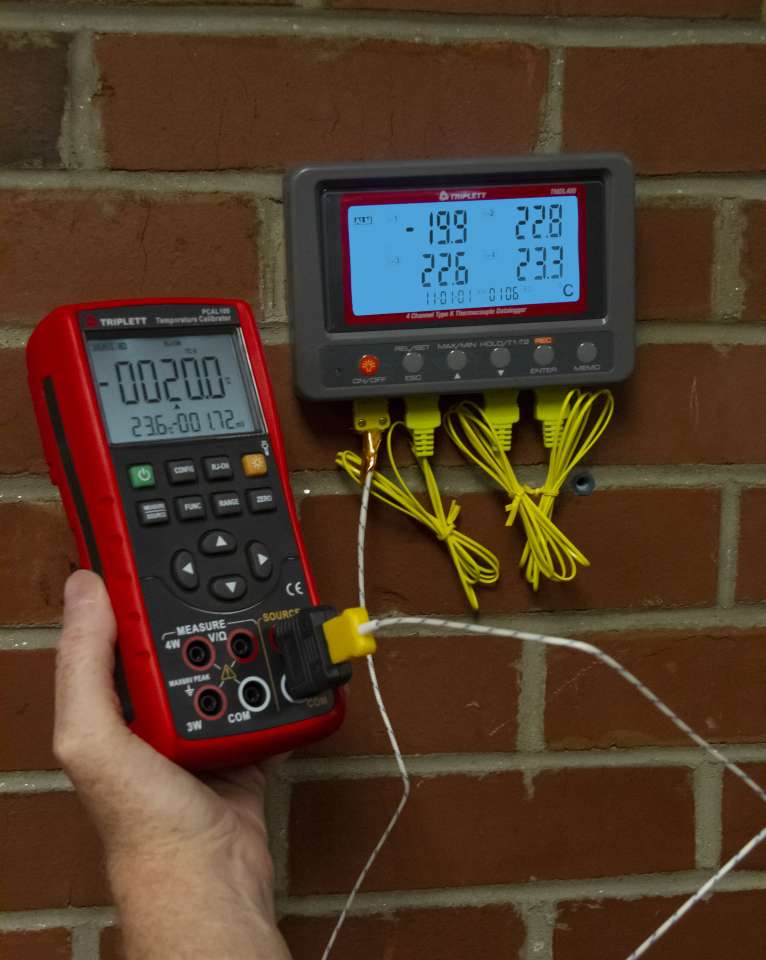

The Triplett PCAL100 Multifunction Process Calibrator combines voltage, resistance, and temperature process functions in one unit for a wide range of industrial applications. It features source and measure accuracy up to 0.05%, 2-, 3- and 4-wire resistance and thermal resistance (RTD) measurement and can measure and source 11 Thermocouple and 5 RTD types. Additional features include adjustable temperature compensation, built-in flashlight, and Auto power off to conserve battery life. Includes test leads, thermocouple adapter, (3) AA batteries, latch key (for opening battery door) and Certificate of Traceability to N.I.S.T.. 1-year warranty.
Features:
- Easily measure and source voltage, resistance, and temperature process parameters in one tool
- Source and measure accuracy up to 0.05%
- Measure and source 11 Thermocouple and 5 RTD types
- Adjustable temperature compensation
- 2, 3 and 4 wire resistance and thermal resistance (RTD) measurement
- Built-in flashlight
- Auto power off

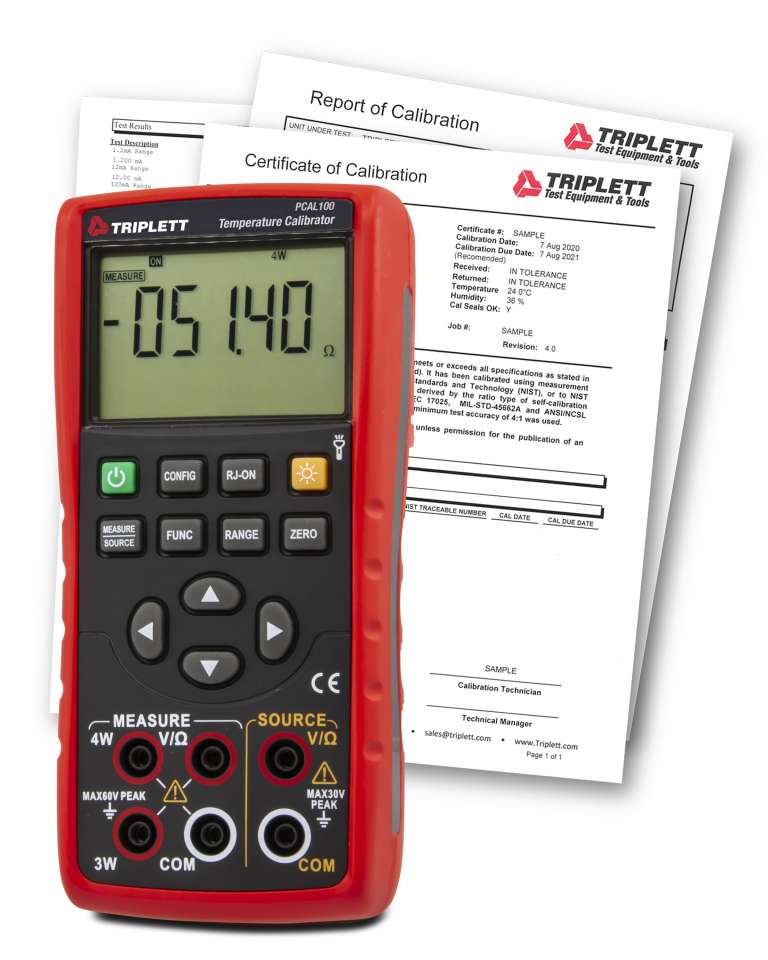

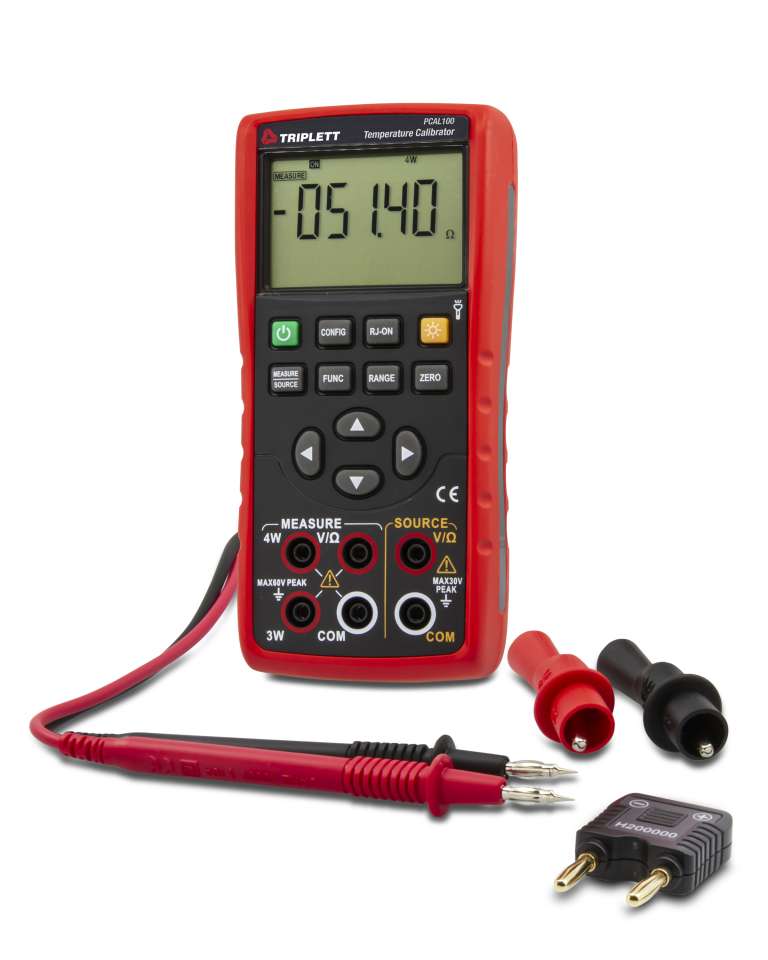

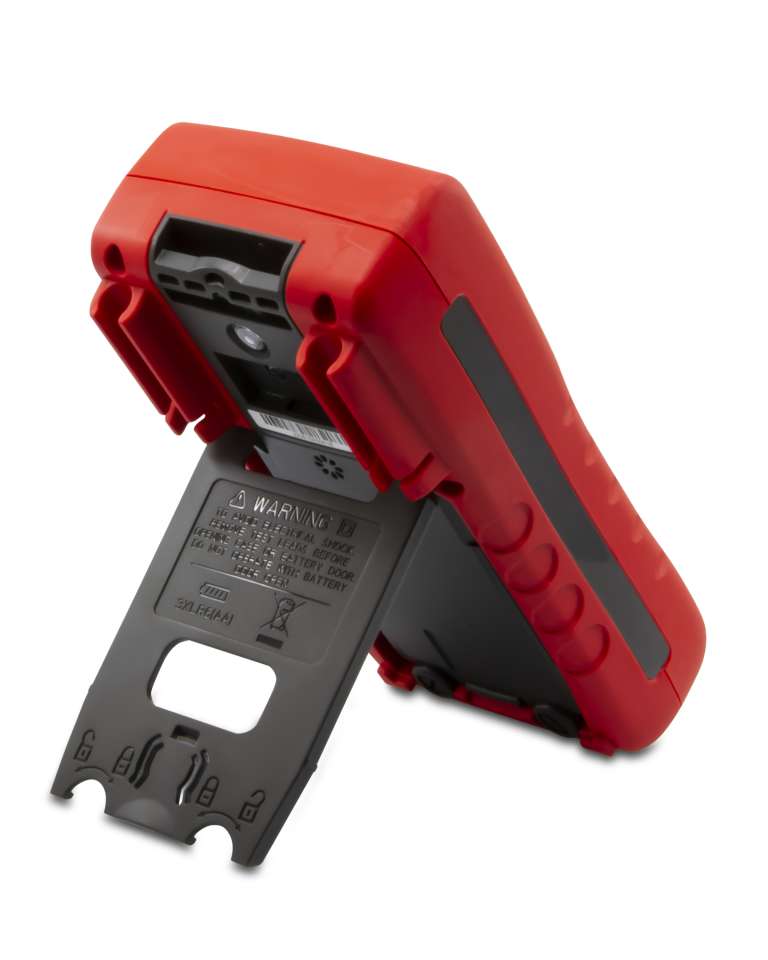

Includes: Includes test leads, thermocouple adapter, (3) AA batteries, and latch key (for opening battery door) and Certificate of Traceability to NIST
Battery Type: (3) AA batteries
| Specifications |
|---|
| PCAL100 |
| Measurement | Range (resolution) |
| Thermocouples | R,S,K,E,J,T,N,B,A,C,D |
| RTDs | Pt100-385/Pt200-385
Pt500-385/Pt1000-385/CU50 |
| DC Voltage | 100mV/1V/30V (0.01mV) |
| Resistance | 500Ω/5000Ω (0.01Ω) |
| Continuity | ≤50Ω (beeper) |
| Source | Range (resolution) |
| Thermocouples | R,S,K,E,J,T,N,B,A,C,D |
| RTDs | Pt100-385/Pt200-385
Pt500-385/Pt1000-385/CU50 |
| DC Voltage | 100mV/1V (0.01mV) |
| Resistance | 400Ω/4000Ω (0.1Ω ) |
| Power | (3) AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51mm) |
| Weight | 1lbs (454g) |
