The Triplett FG100 Digital Force Gauge is designed for tension (pull) and compression (push) testing in research, production, quality control, and field applications. It incorporates a strain gauge load cell sensor for high accuracy (±0.5%) with a measurement range of 110lbs/50kg/500 Newtons. Features include a 3-digit backlit LCD, peak hold for capturing the maximum force during measurement, zero function for resetting the display, and user settable upper and lower testing limits. Auto power off (with disable) conserves battery life. Includes rechargeable 3.7V Lithium battery, 100-240VAC 50/60Hz adapter, extension rod, 5 tips (hook, flat, cone, (2) chisel). 2-year warranty.
Features:
- Designed for tension (pull) and compression (push) testing applications
- Strain gauge load cell sensor for high accuracy
- 110lbs, 50kg, 500 Newtons measurement range with ±0.5% accuracy
- 3-digit backlit LCD
- Peak hold captures the maximum force during measurement
- Zero key for resetting the display
- User settable upper and lower testing limits
- Auto power off with disable

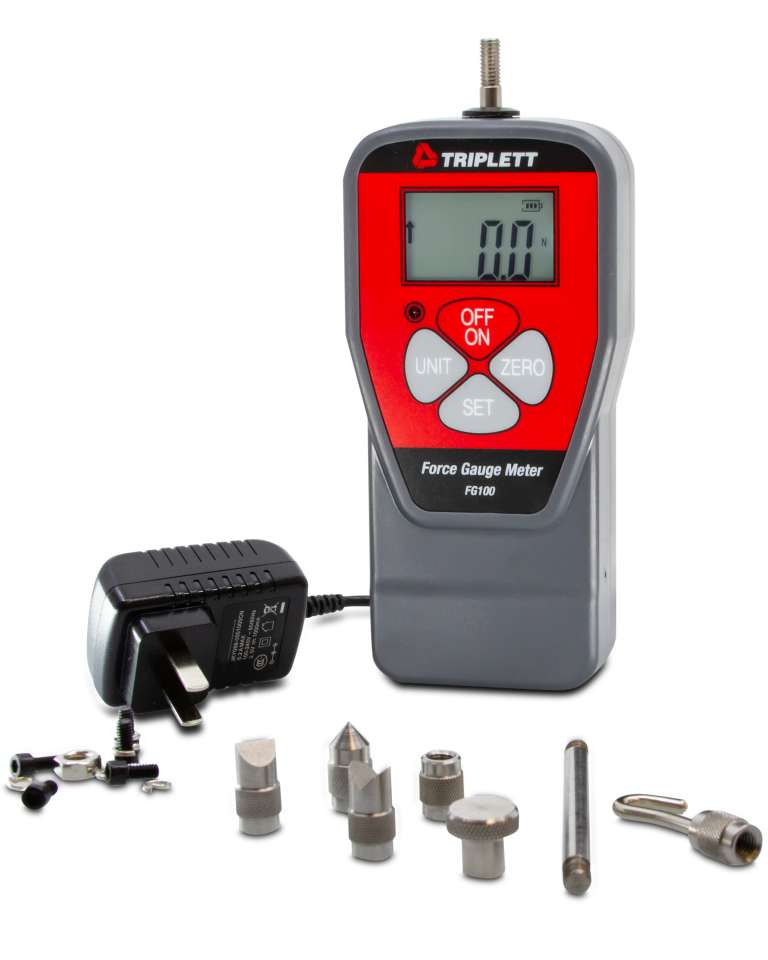

Includes: Includes rechargeable 3.7V Lithium battery, 100-240VAC 50/60Hz adapter, extension rod, 5 tips (hook, flat, cone, (2) chisel)
Battery Type: 3.7V Lithium battery
| Specifications |
|---|
| Range | 110lbs, 50kg, 500N |
| Accuracy | ±0.5% |
| Resolution | 0.01lbs, 0.01kg, 0.1N |
| Overload Capacity | 110lbs, 50kg, 500N |
| Display | 3-digit backlit LCD |
| Update Rate | 10Hz |
| Transducer Type | Strain gauge |
| Power | Rechargeable 3.7V Lithium
100-240VAC 50/60Hz adapter |
| Dimensions | 6.3 x 2.9 x 1.3" 160 x 72.5 x 33mm) |
| Weight | 19.8oz (560g) |
