The Triplett EG480-NIST can measure 2- and 3-wire Earth Ground Resistance (in 3 ranges) and Earth Voltage (200V), plus multimeter functions AC/DC Voltage and Resistance (200kΩ). Additional features include: Dual LCD display with backlight, Data Hold, Auto power off, and a low battery indicator. CAT III 1000V safety category. Includes Certificate of Traceability to N.I.S.T., test leads, (2) auxiliary earth rods, (6) AA batteries, and carrying case. 1-year warranty.
Features:
- 2- and 3-wire earth ground resistance measurement

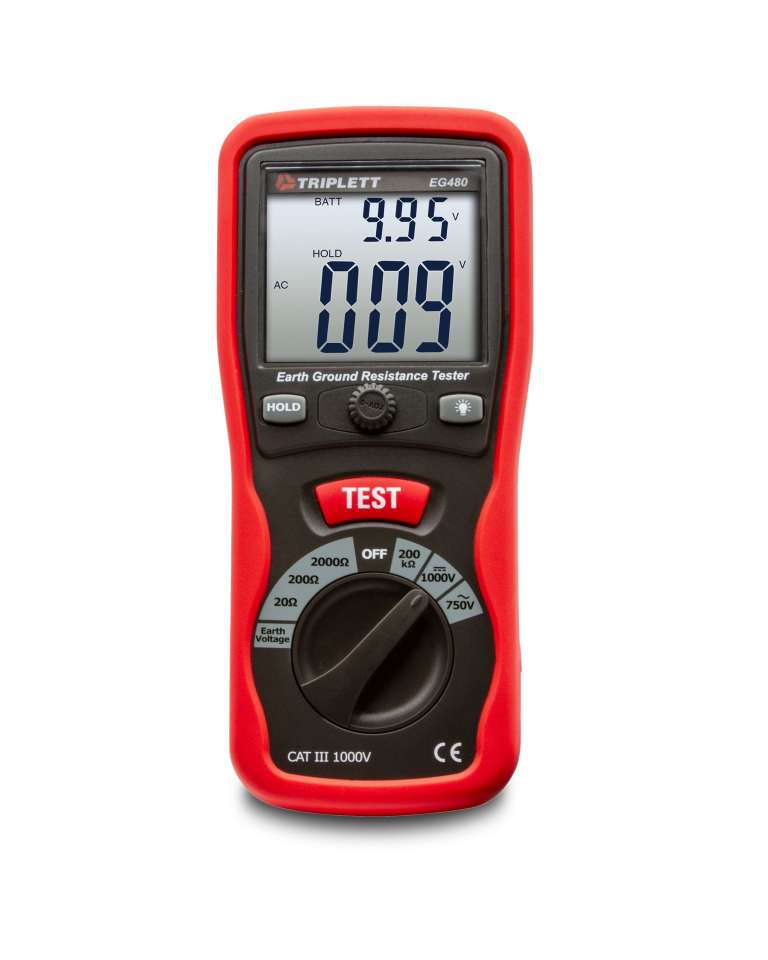

- Dual LCD display with backlight
- Multimeter functions: AC/DC Voltage and Resistance
- Data Hold freezes reading on the display
- Auto power off and low battery indicator
- CAT III 1000V safety category

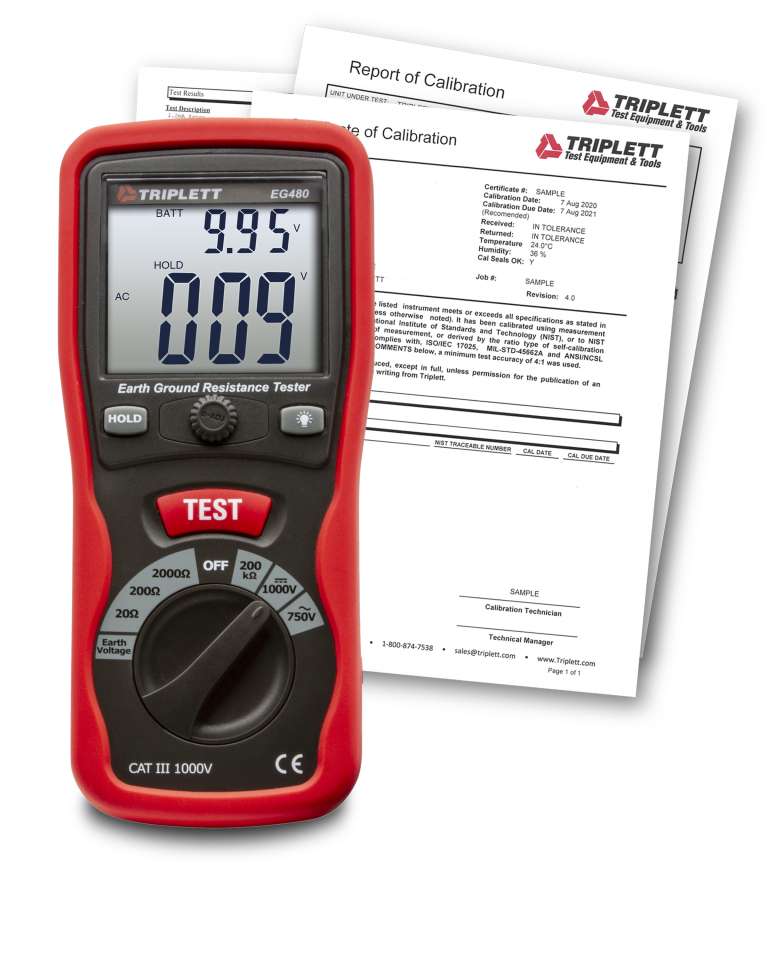

- Includes Certificate of Traceability to NIST, test leads, (2) auxiliary earth rods, (6) AA batteries, and carrying case
- 1-year warranty

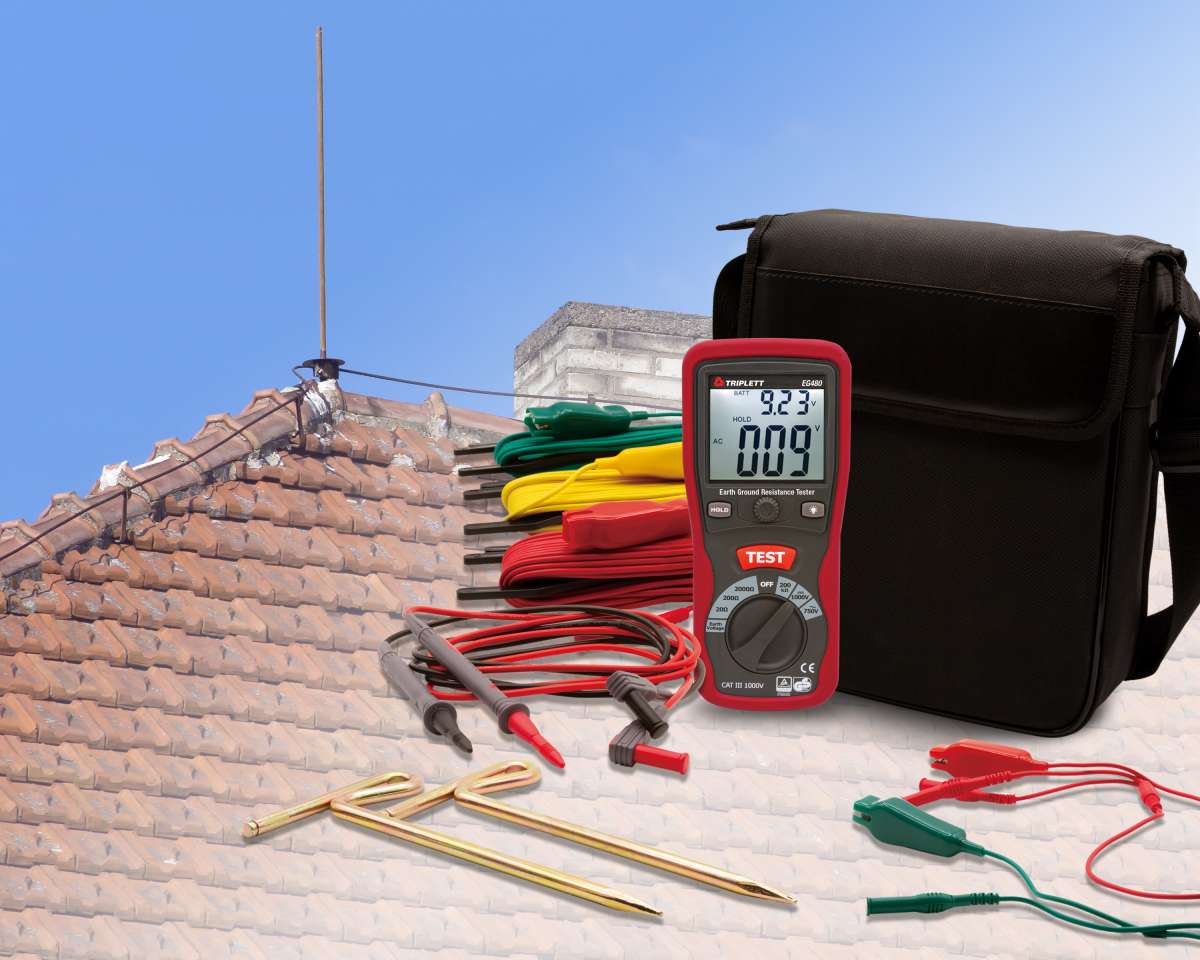

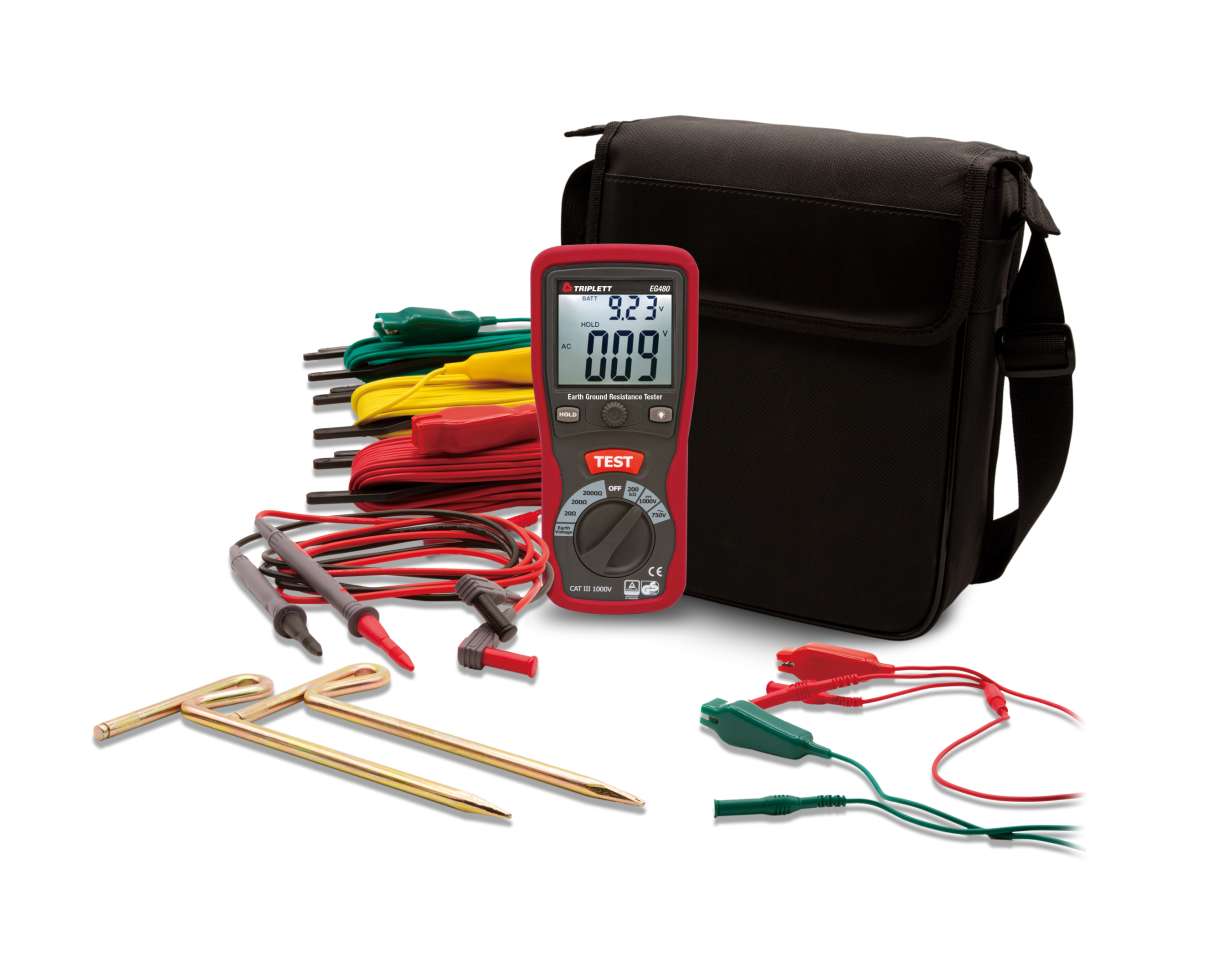

Includes: Includes Certificate of Traceability to N.I.S.T., Test leads, (2) auxiliary earth rods, (6) AA batteries, and carrying case
Battery Type: (6) AA batteries
| Specifications |
|---|
| EG480 |
| Earth Resistance | 20Ω,200Ω, 2000Ω |
| Accuracy | ±2% |
| Resolution | 0.01Ω |
| Earth Voltage | 200V |
| AC/DC Voltage | 750ACV/1000VDC |
| Resistance | 200kΩ |
| Continuity | <40Ω |
| Power | (6) AA batteries |
| Safety Category | CAT III 1000V |
| Dimensions | 7.8 x 3.62 x 2” (200 x 92 x 50mm) |
| Weight | 24.7oz (700g) |
