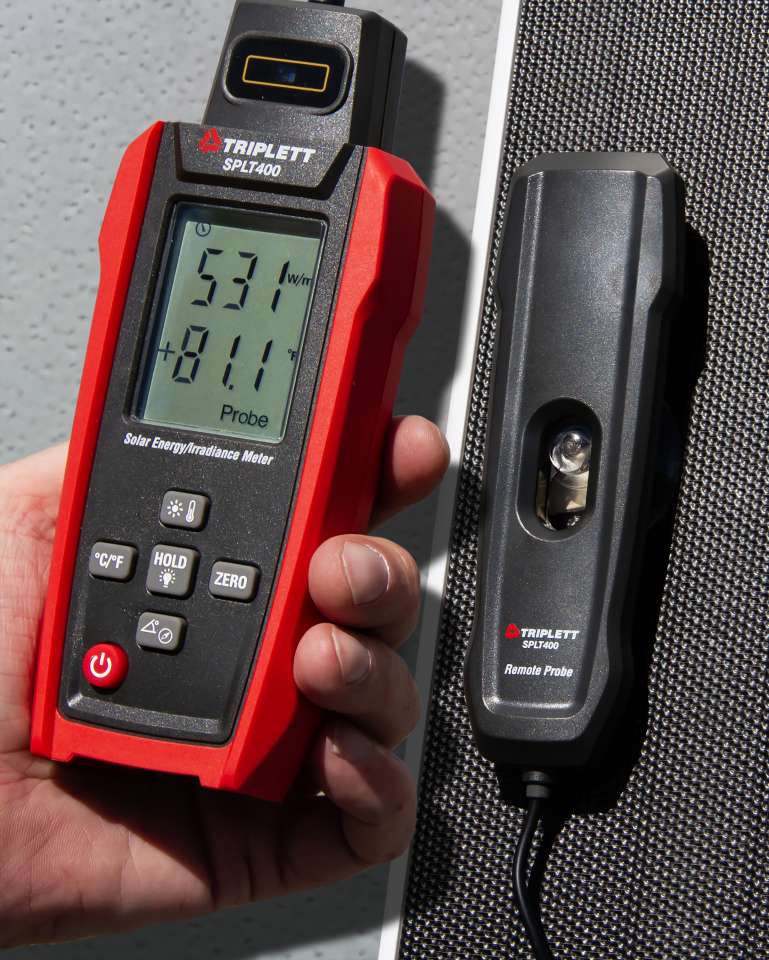

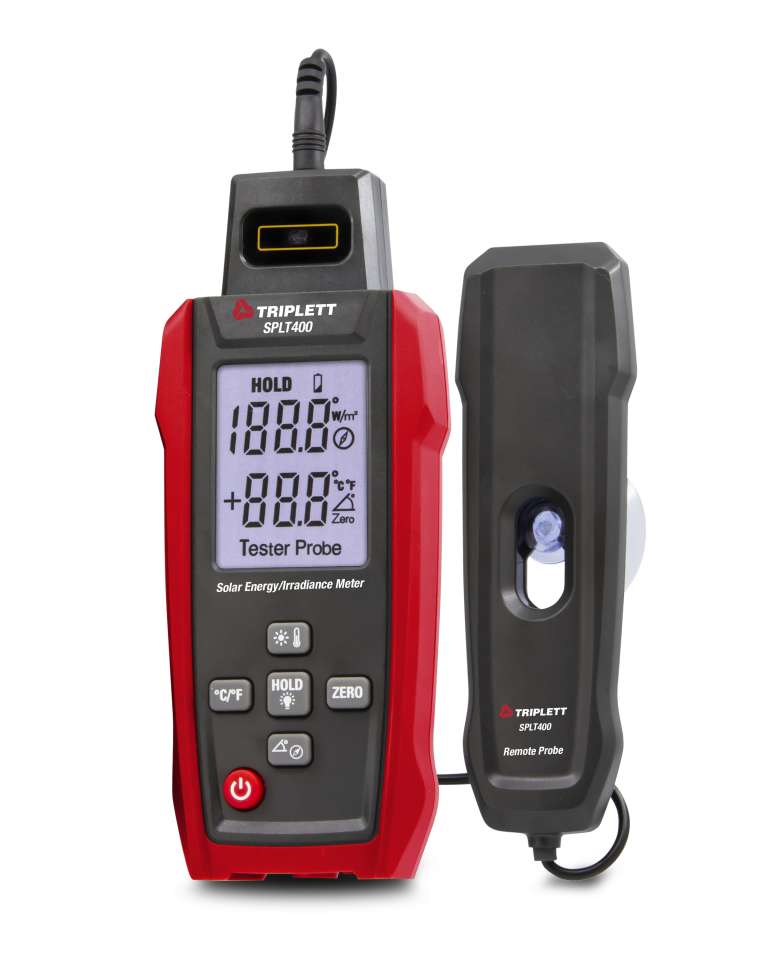

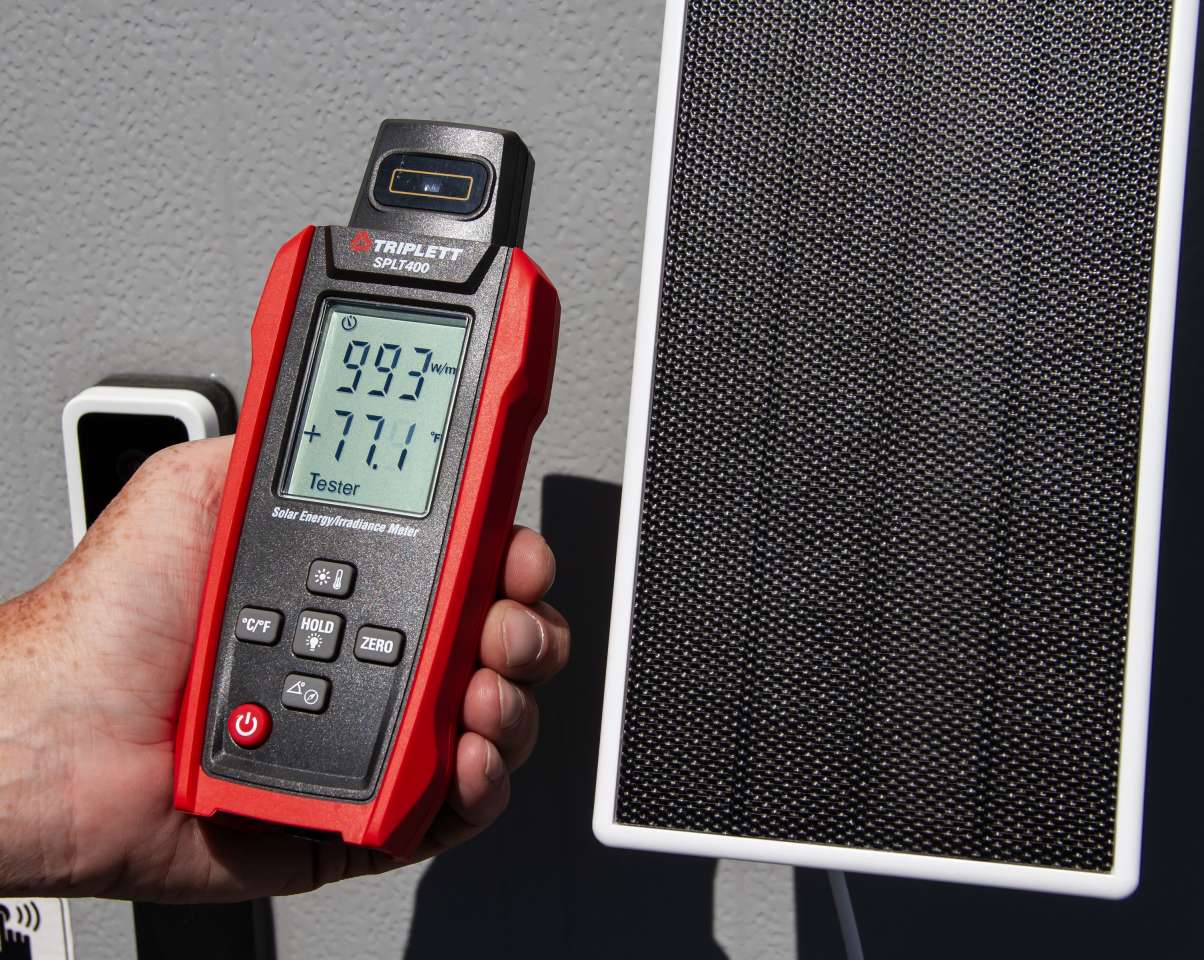

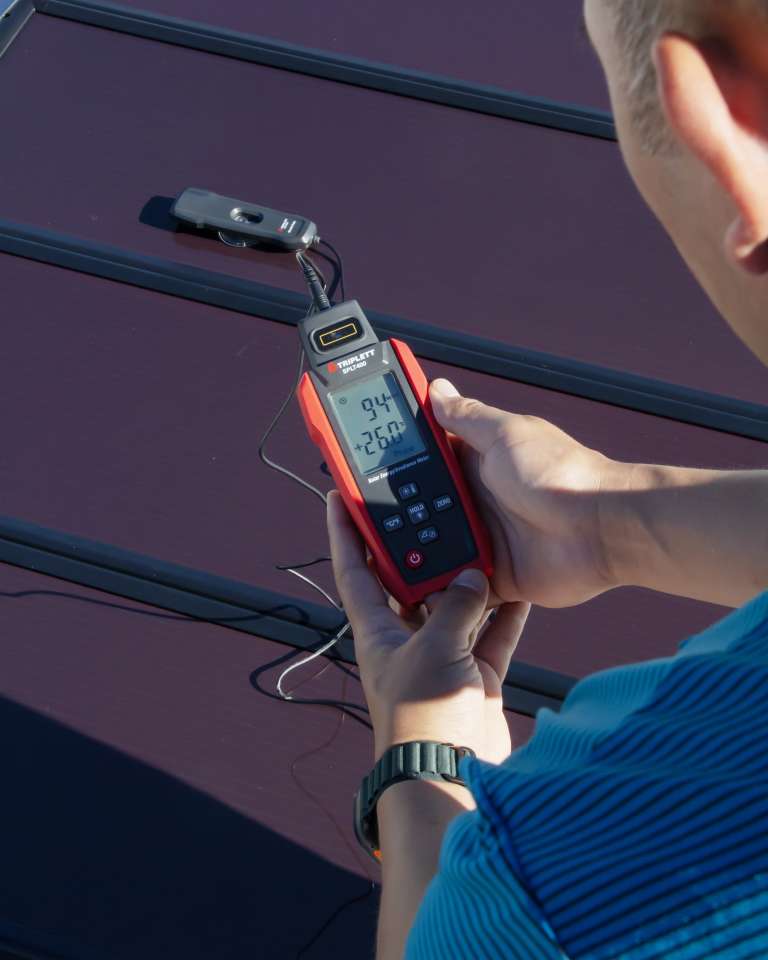

The Triplett Model SPLT400 Solar Irradiance Meter can be used for solar panel installation to help you determine where solar panels should be installed (irradiance, temperature, inclination, direction) for maximum efficiency. Other applications include agriculture, meteorology, optical and physics laboratories, and high performance window manufacturing for automotive and building industries. It measures irradianance (W/m2) with a 300ms sampling rate utilizing a cosine corrected silicon photodiode sensor. It also provides Tilt (Inclination) measurement from -90° to 90°, compass function for direction, and switchable temperature measurement (°F/°C). It can simultaneously display irradiance and temperature or tilt angle and compass. Data Hold freezes the display for easy viewing. Includes sensor with 6.6ft (2m) sensor cable, (4) AA batteries and carrying case. 2-year warranty.
Features:
- Determine where solar panels should be installed (irradiance, temperature, inclination, direction) for maximum efficiency
- Simultaneously display irradiance and temperature or tilt angle and compass
- W/m2 readout
- 300ms sampling time
- Cosine corrected silicon photodiode sensor
- Tilt measurement range from -90° to 90°
- Compass azimuth function
- Switchable temperature measurement (°F/°C)
- Data Hold freezes the display for easy viewing
- Low battery indicator

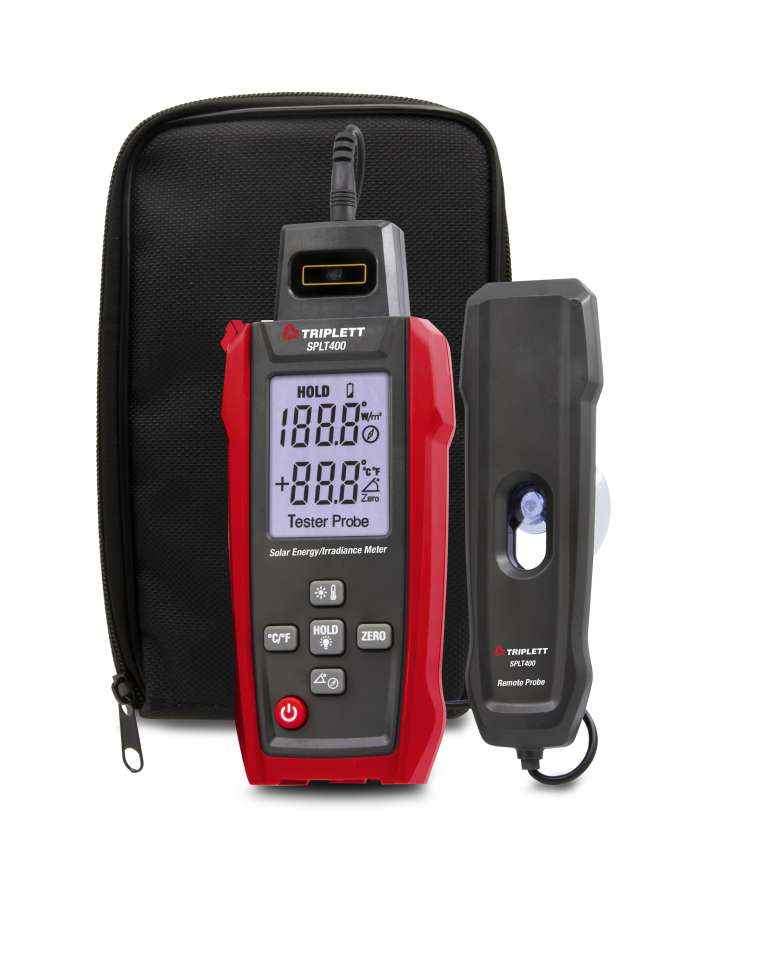

Includes: Includes sensor with 6.6ft (2m) sensor cable, (4) AA batteries and carrying case
Battery Type: (4) AA batteries
| Specifications |
|---|
| Range | 1400W/m2 |
| Resolution | 1W/m2 |
| Accuracy | ±5% |
| Spectral Response | 320 to 1100nm |
| Sampling Time | approx. 300ms |
| Temperature | -22 to 212°F (-30 to 100°C) |
| Resolution | 0.2°F/0.1°C |
| Accuracy | ±2°F/1°C |
| Inclination | -90° to 90° |
| Resolution | 0.1° |
| Accuracy | ±1.5° (32 to 122°F/0 to 50°C) |
| Compass | 0 to 360° |
| Resolution | 1° |
| Accuracy | ±7° |
| Power | (4) AA batteries |
| Dimensions | 6.9 x 2.8 x 1.8" (175 x 70 x 45mm) |
| Weight | 10oz (286g) |
