Triplett ADL20-NIST 4 to 20mA DC Current USB Datalogger with Certificate of Traceability to NIST

The Triplett Model ADL20 4 to 20mA DC Current USB Datalogger with Certificate of Traceability to NIST is a versatile tool, purpose-built for monitoring single channel 4-20mA current loops. Frequently used in various process control applications. With the capacity to record up to 31,320 DC current readings and a user-adjustable sampling rate ranging from 1 second to 24 hours, it offers comprehensive data logging. It comes equipped with visual high/low alarms that notify you when predefined settings are breached. Additional features like the built-in multifunction 2000 count LCD display, 2 LED status indicators, and a USB interface for seamless data transfer make this datalogger a top-notch choice. It includes a 3.6V Lithium battery, test leads with alligator clips, a protective cap, Certificate of traceability to NIST, and software.

Features:

• Multifunction LCD Display: Built-in 2000 count LCD display provides clear, easy-to-read data.
• Extensive Data Recording: Can record up to 31,320 DC Current readings, ensuring comprehensive monitoring.
• Adjustable Sampling Rate: Offers a user-adjustable sampling rate from 1 second to 24 hours, allowing for customizable data collection.
• Visual Alarms: High/Low alarms with visual alerts notify when predefined settings are exceeded, ensuring prompt attention.

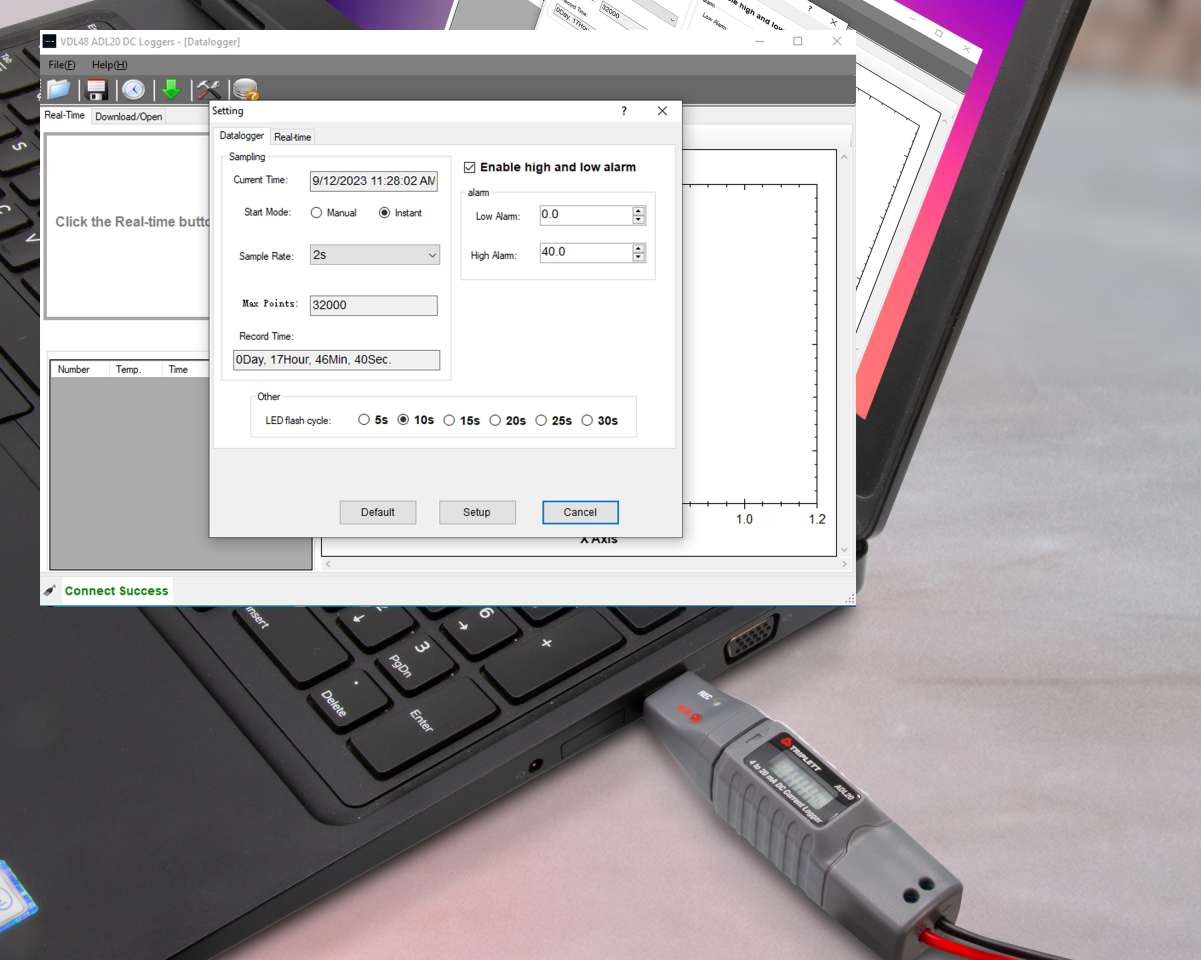

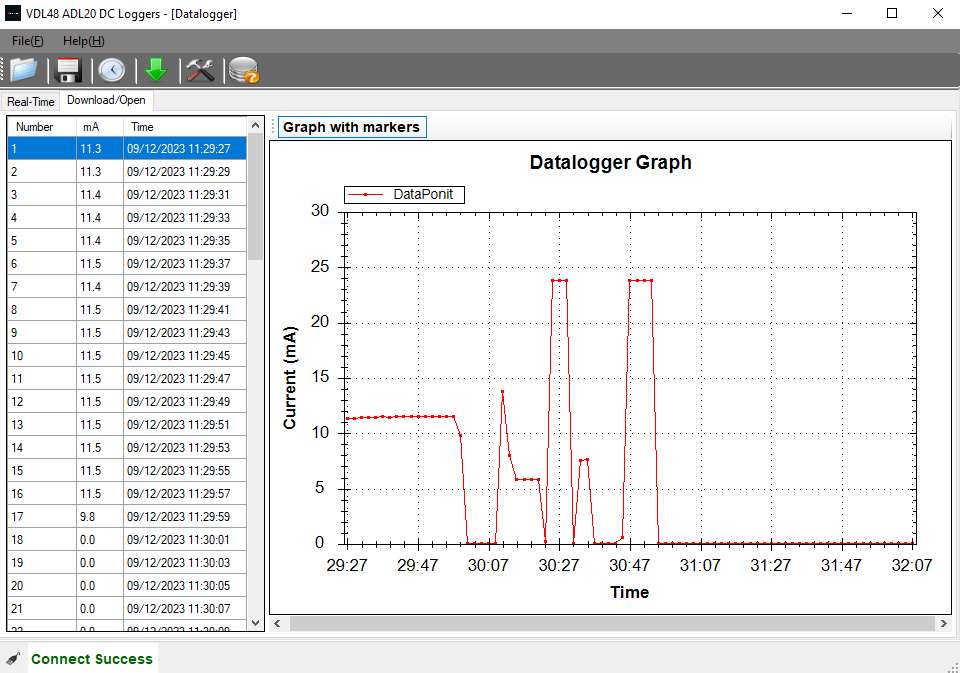

• Data Transfer via USB: Features a USB interface for easy transfer of recorded data in PDF or CSV format to your PC, facilitating smooth data management.

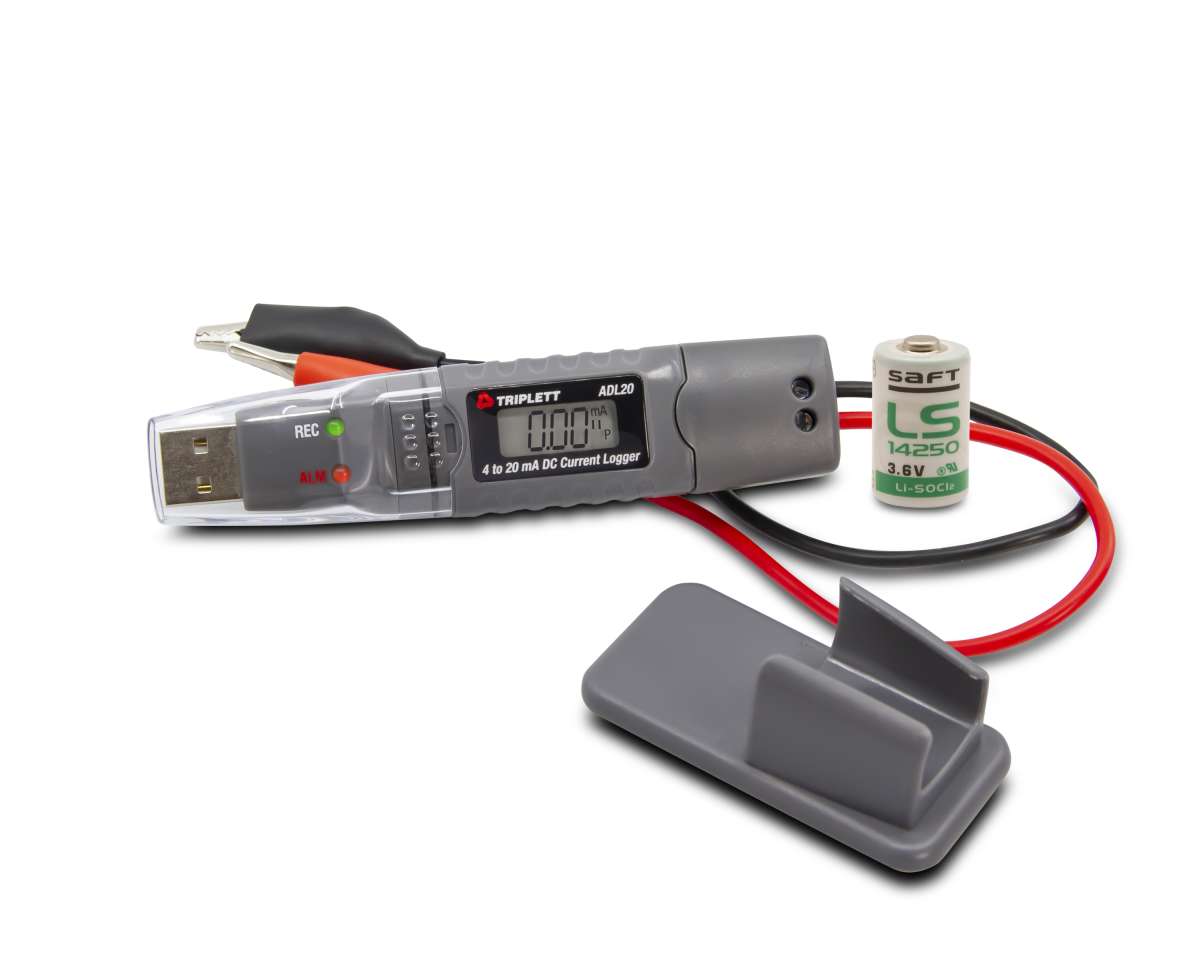

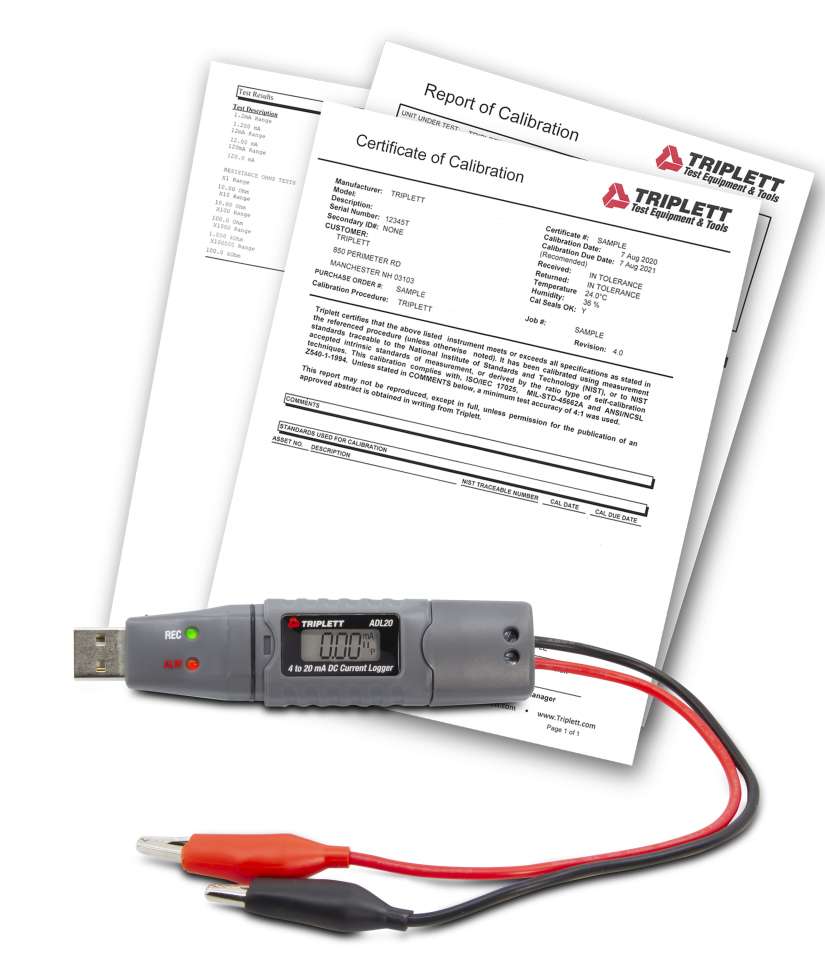

Includes: Includes 3.6V Lithium battery, test leads with alligator clips, protective cap, and software and Certificate of Traceability to NIST

Battery Type: 3.6V Lithium battery

Warranty: 2yrs

Datasheet: http://files.triplett.com/datasheet/adl20.pdf
User Manual: http://files.triplett.com/manual/adl20.pdf
