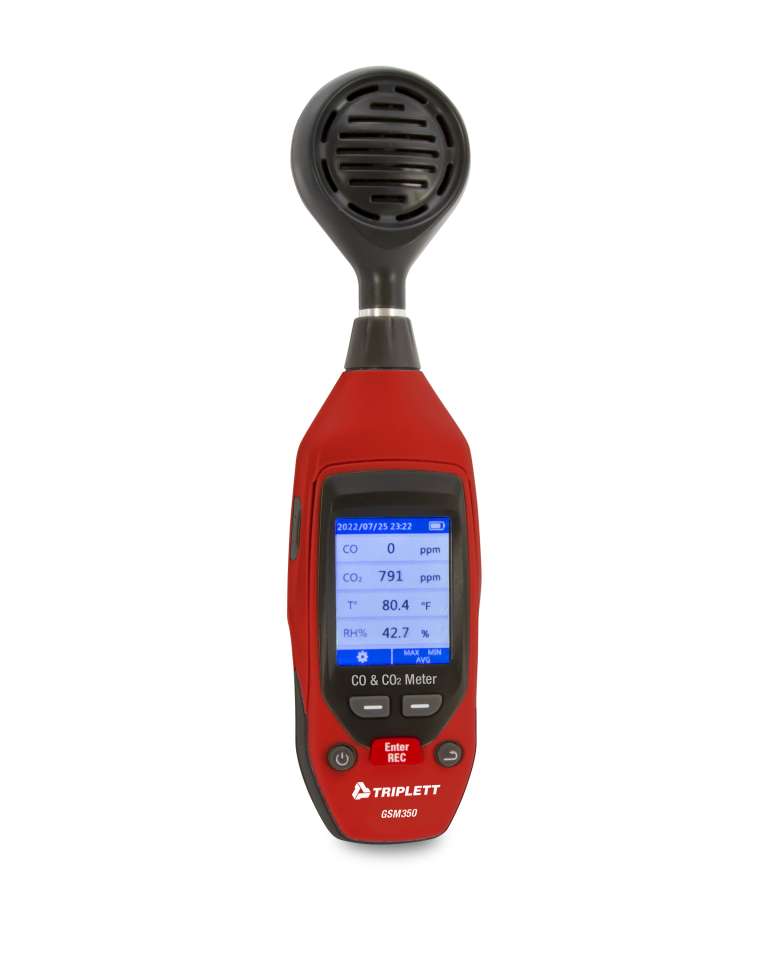

The Triplett Model GSM350 Carbon Monoxide/Carbon Dioxide IAQ Datalogger simultaneously displays CO, CO2, Temperature, and Humidity on its large color display with 4 brightness levels. It can be used to measure air quality in office buildings, schools, exhibition halls, shopping malls, meeting rooms, fitness centers, restaurants and other public places. It has a user settable datalogging duration period of 1 hour, 24 hours, or 7 days with a sampling rate of 1 minute, 15 minutes, or 1 hour. Captured readings can be viewed in a Histogram on the display or you can transfer historical data to your PC in Excel (CSV) format via USB. Additional features include audible CO and CO2 alarms with user adjustable settings, real time clock, Min/Max/Average to record the highest, lowest and average readings, Data Hold freezes the reading on the display, and Auto power off with disable to conserve battery life. °F/°C selectable. Includes a 3.7V rechargeable lithium battery, and USB cable for charging and data transfer. 1 year warranty.
Features:
- Simultaneously displays CO, CO2, Temperature, and Humidity
- Datalogging duration of 1 hour, 24 hours, or 7 days
- Sampling Rate of 1 minute, 15 minutes, or 1 hour
- Histogram display for viewing captured readings
- Transfer historical data to your PC in Excel (CSV) format via USB
- Large color LCD display with 4 brightness levels
- User-adjustable CO and CO2 alarm settings
- Real time clock
- Min/Max/Average and Data Hold
- °F/°C selectable
Includes: Includes 3.7V rechargeable lithium battery, USB Power Adaptor (5V/1A) and USB cable for charging and data transfer
Battery Type: 3.7V Lithium battery
| Specifications |
|---|
| Carbon Monoxide (CO) | 0 to 1000ppm |
| Accuracy | ±5% FS |
| Carbon Dioxide (CO2) | 400 to 9999ppm |
| Accuracy | ±5% ± 50ppm |
| Air Temperature | 32 to 122°F (0 to 50°C) |
| Accuracy | ±4.0°F/2°C |
| Relative Humidity | 0 to 100%RH |
| Accuracy | ±3.5%RH (20 to 80%RH) |
| Resolution | 1ppm; 0.1°F/°C; 0.1%RH |
| Datalogging | 1 hour, 24 hours, or 7 days |
| Sampling Rate | 1 minute, 15 minutes, or 1 hour |
| Power | 3.7V Lithium Battery w/AC Charger |
| Dimensions | 8.5 x 2.1 x 1.3" (215 x 54 x 34mm) |
| Weight | 5.6oz (159g) |
