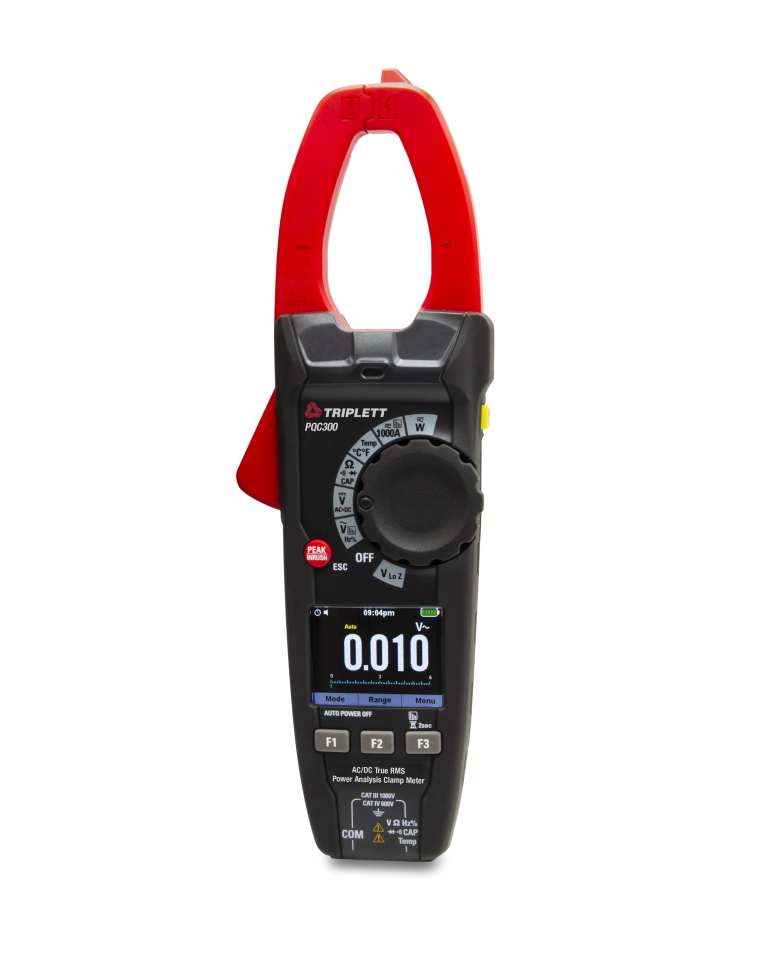

The Triplett Model PQC300 Single Phase True RMS Power Quality Clamp Meter is a comprehensive tool for monitoring power quality. It measures Active/Apparent/Reactive Power, Energy, Harmonics, THD, Power Factor, and more, offering a complete power quality analysis. Its clamp-on feature with a 1.26" (33mm) clamp jaw allows for AC and DC current measurement up to 1000A without interrupting the circuit or causing damage. The True RMS feature ensures better accuracy when measuring non-sinusoidal or noisy waveforms. Besides, it offers extensive measurement capabilities, including AC/DC Voltage, AC + DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode Test, and Continuity. The meter's 6000 count graphical RGB LCD enables clear reading of measurements, and its inrush current function captures the instantaneous surge when power equipment is turned on. With memory for 12,000 readings, Min/Max function, a built-in flashlight, and an auto power-off feature, the PQC300 is a robust and reliable tool for power quality monitoring. The package includes Test Leads, a Type K Thermocouple Bead Probe, 3 AAA batteries, a carrying case, and comes with a 1-year warranty for peace of mind.
Features:
- Comprehensive Power Quality Analysis: Measures Active/Apparent/Reactive Power, Energy, Harmonics, THD, Power Factor, and more.
- True RMS: Ensures accurate measurements for non-sinusoidal or noisy waveforms.

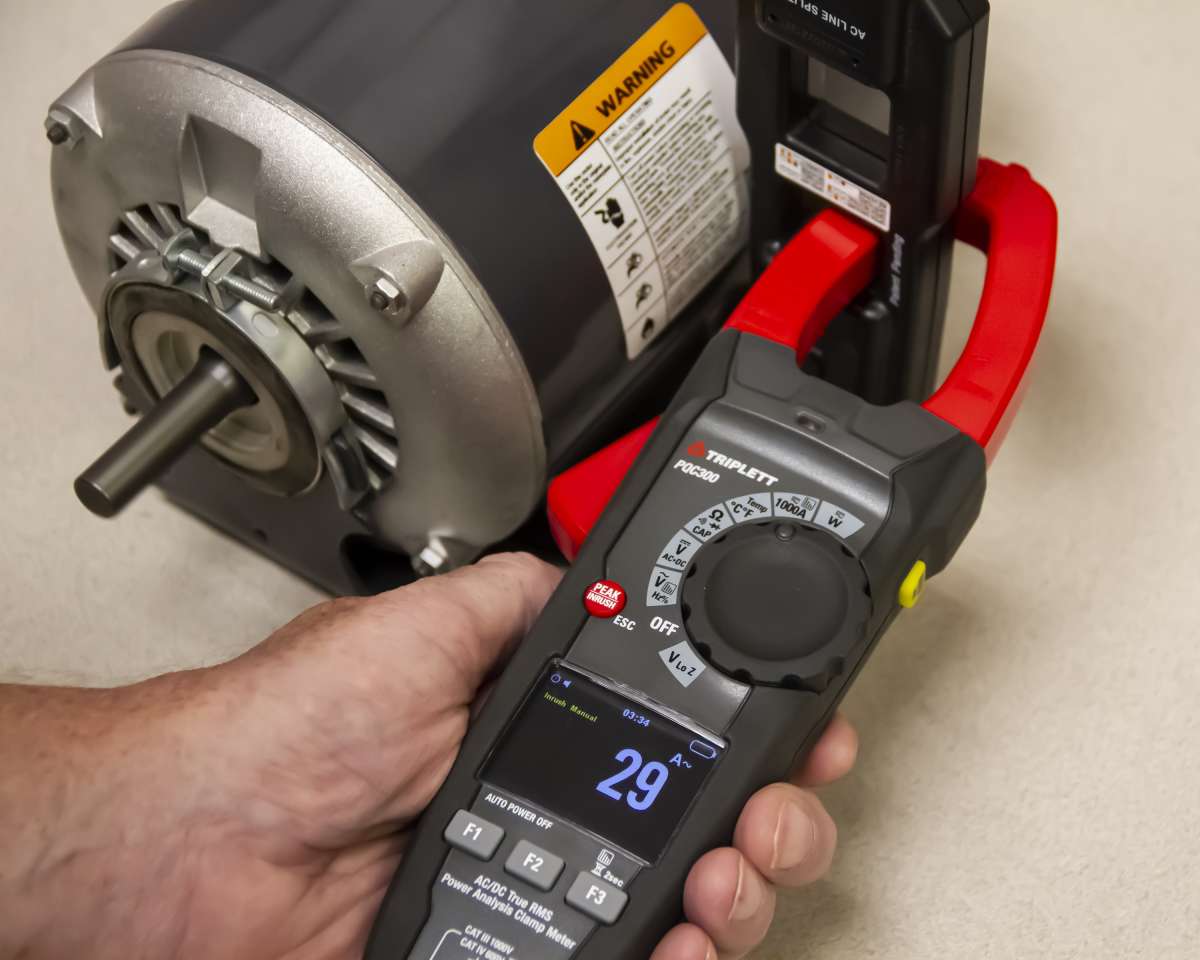

- Non-Intrusive Current Measurement: 1000A TRMS AC/DC current measurement without interrupting the circuit.

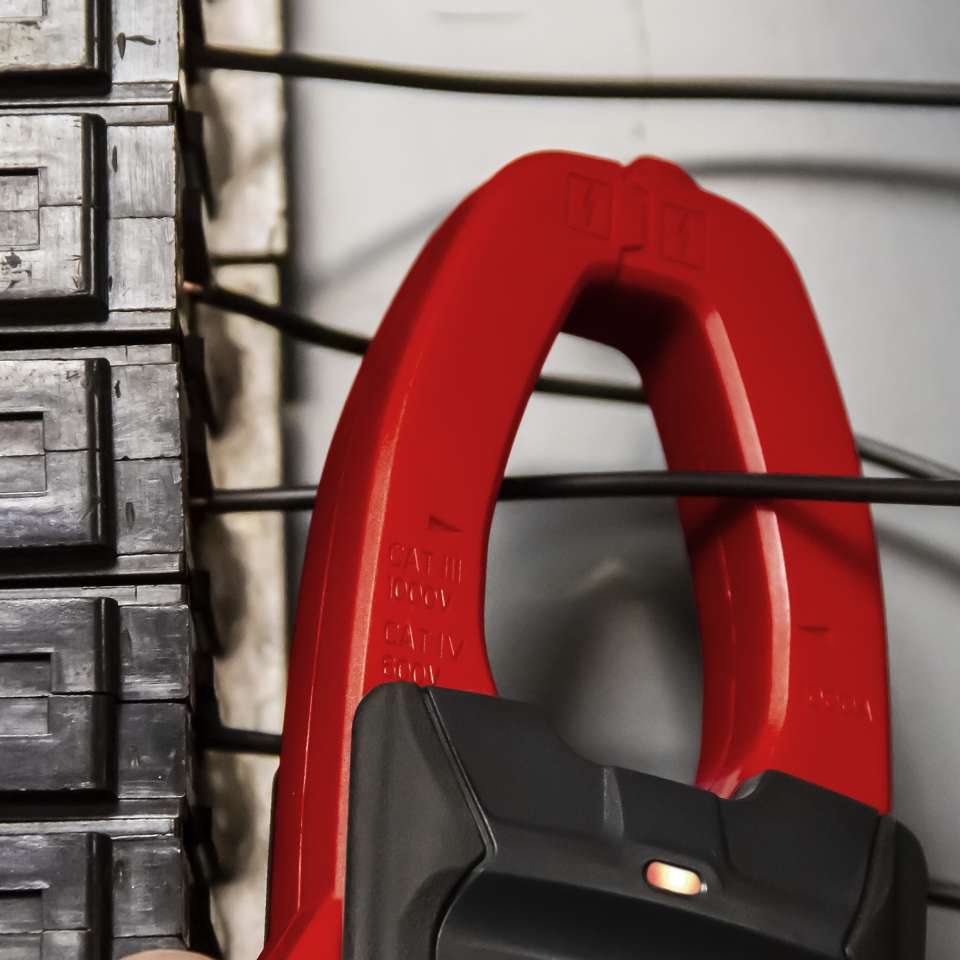

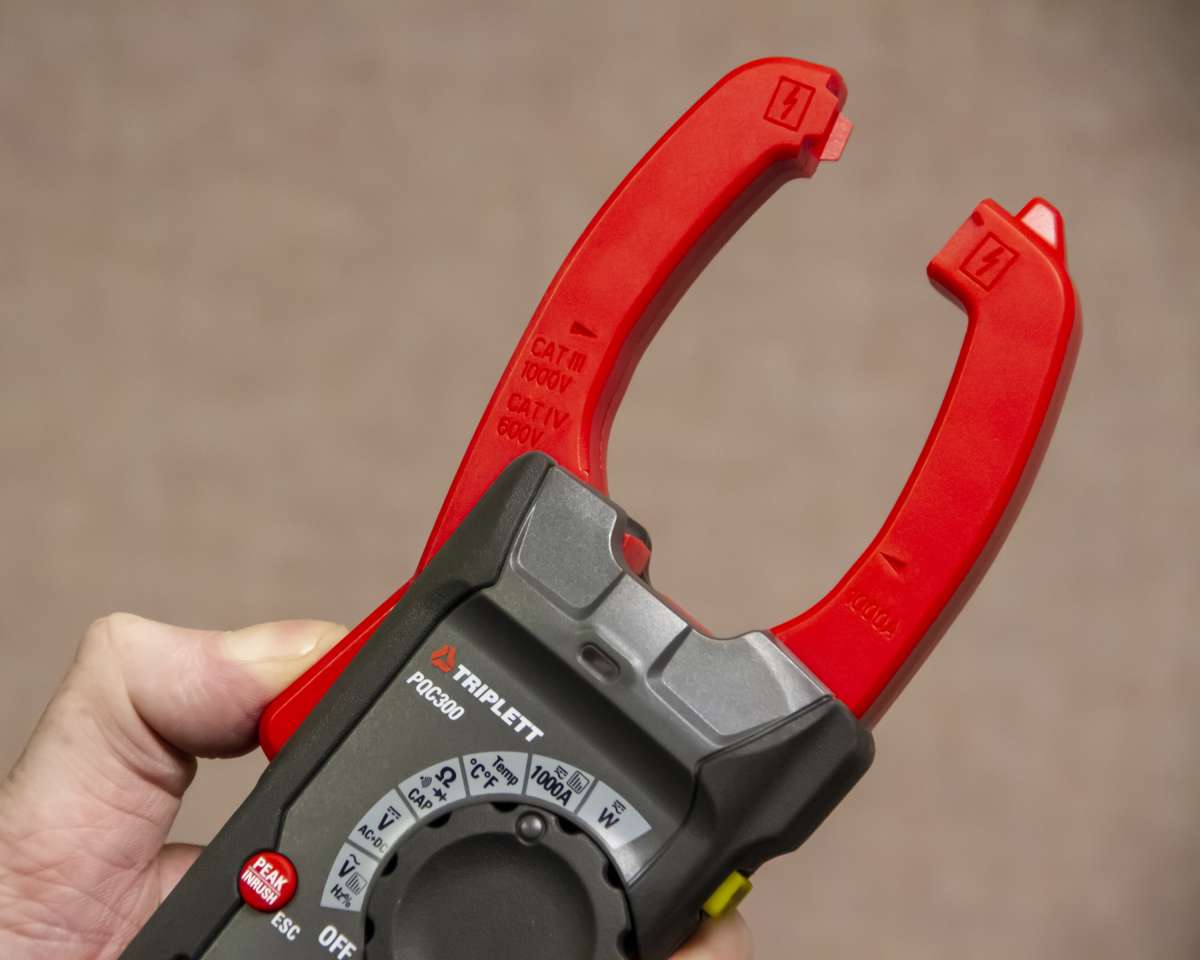

- Generous Clamp Jaw Size: Features a 1.26" (33mm) clamp jaw for easy access.
- Inrush Current Function: Captures the instantaneous surge current when power equipment is turned on.
- Detailed Display: 6000 count graphical RGB LCD for clear reading of measurements.
- Low Impedance Mode (LoZ): Helps identify ghost voltages.
- Data Storage: Stores up to 12,000 readings.
- Safety Rating: CAT IV-600V safety category.

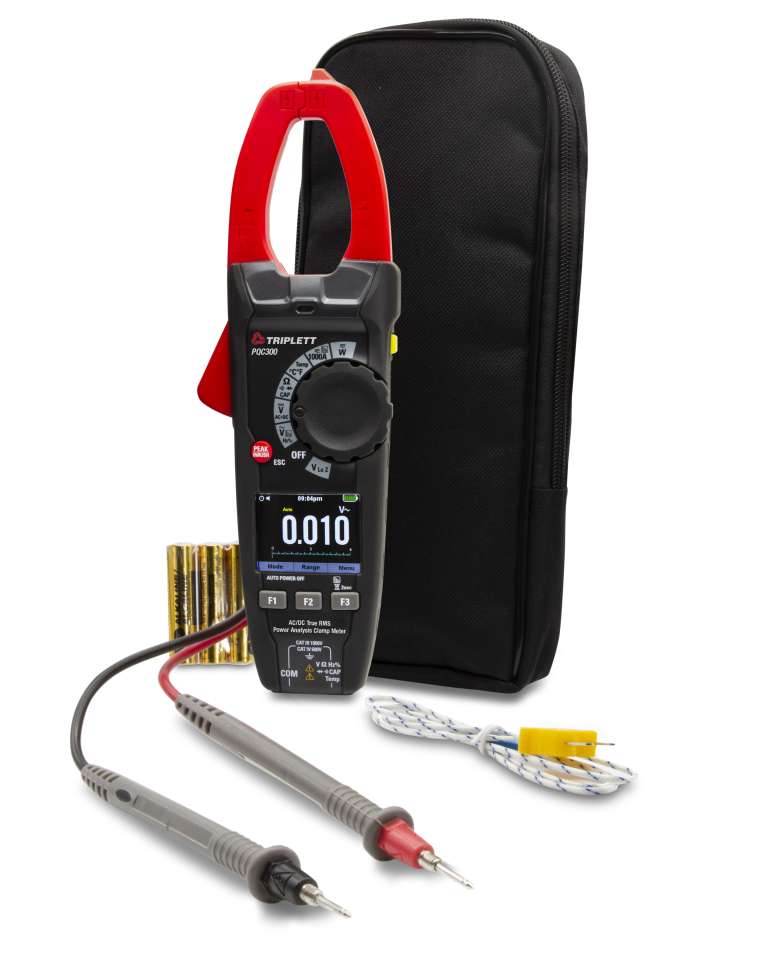

Includes: Includes Test Leads, Type K Thermocouple Bead Probe, 3 AAA batteries, and carrying case
Battery Type: (3) AAA batteries
| Specifications |
|---|
| True RMS | · |
| Display | 6000 count RGB LCD |
| AC Current | 1000A |
| ACA Accuracy | ±2.8% |
| DC Current | 1000A |
| Active Power | 999.9kW (±3% + 5d) |
| Apparent Power | 999.9kVA (±3% + 5d) |
| Reactive Power | 999.9kVAR (±3% + 5d) |
| Power Factor | 0.20 to 1.00 (±3°) |
| Harmonics | 1 to 25 (±5% + 20d) |
| Active Power Energy | 99.9kWh (±3% + 5d) |
| Apparent Power Energy | 99.9kVAh (±3% + 5d) |
| Reactive Power Energy | 99.9kVARh (±3% + 5d) |
| AC/DC Voltage | 1000V |
| Resistance | 60MΩ |
| Temperature | -40 to 1800°F (-40 to 1000°C) |
| Capacitance | 6mF |
| Frequency | 10kHz |
| Duty Cycle | 10.0 to 90.0% |
| Continuity | <50Ω |
| Lo Z Mode | Yes |
| NCV Detector | >90V |
| Peak Capture | >1ms |
| Inrush Current | 100ms |
| Memory | 12,000 readings |
| Power | (3) AAA batteries |
| Safety Category | CAT IV-600V |
| Dimensions | 9.4 x 3.1 x 2" (239 x 80 x 49mm) |
| Weight | 112.3oz (350g) |
