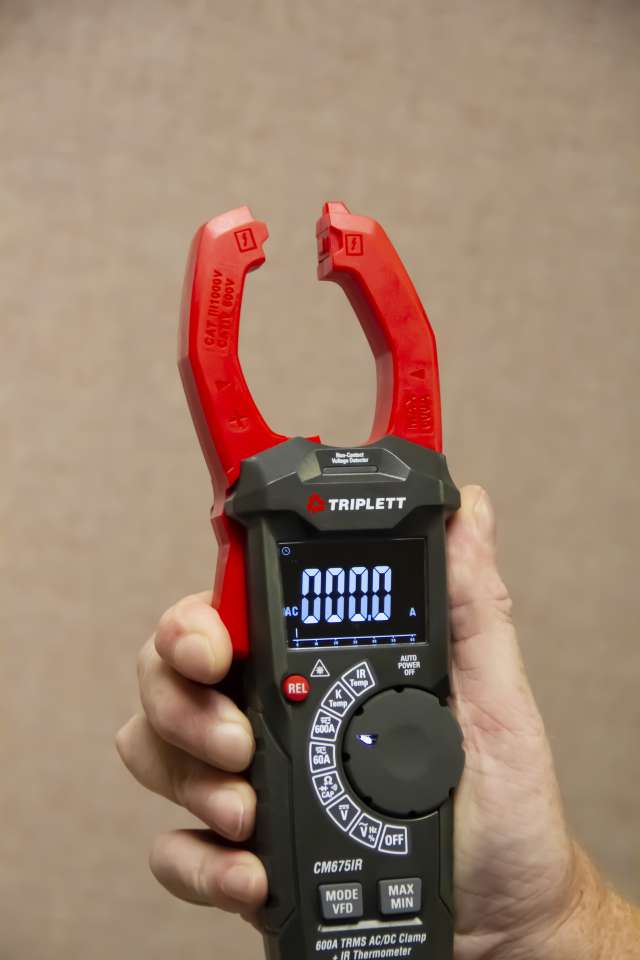

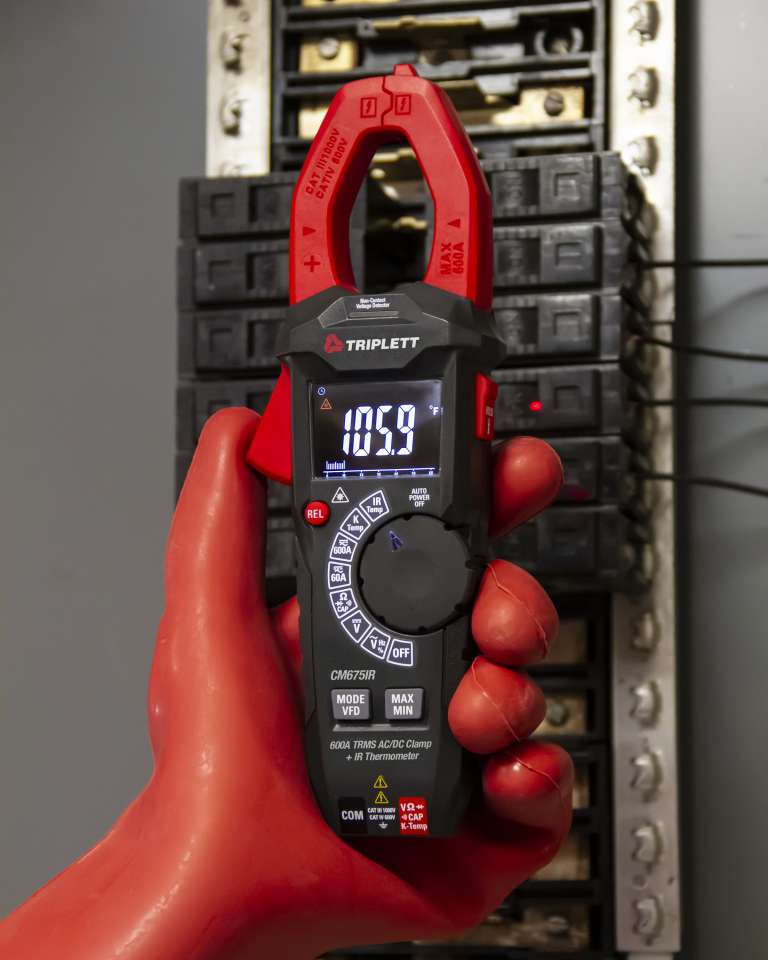

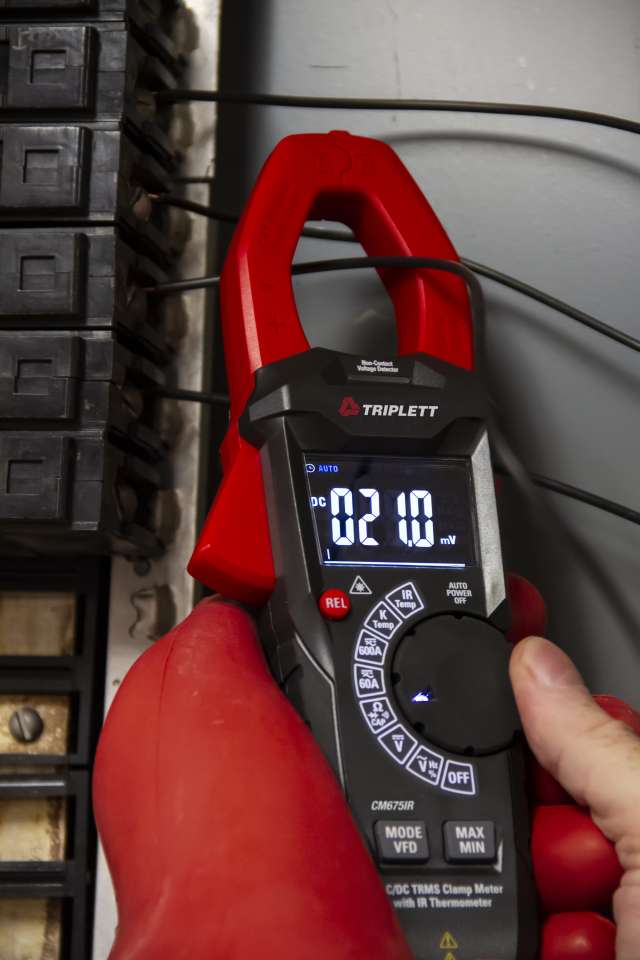

The Triplett Model CM675IR-NIST True RMS Clamp Meter with Infrared Thermometer is an innovative tool for safe and efficient electrical measurements. Able to measure AC and DC currents up to 600A non-intrusively by clamping around the conductor, it saves time and maintains circuit integrity. This model stands out with its 4:1 Infrared Thermometer, which enables instant non-contact surface temperature measurements, with a built-in laser for quick target area identification. It provides a comprehensive range of readings including Resistance, Capacitance, Frequency, Type K Temperature, Diode Test, and Continuity, displayed on the 6000 count color EBTN display, and a 60-segment analog bargraph for trend analysis. Other features include a VFD low pass filter, NCV Detector with LED, Relative Mode, Min/Max capture, Data Hold, and Auto power off function. Adhering to the CAT IV-600V safety standard, this device comes with a Limited Certificate of Traceability to NIST (without IR function), Test Leads, a Type K Thermocouple Bead Probe, (3) AAA batteries, and a carrying case, along with a 1-year warranty.
Features:
- Non-Contact Temperature Measurement: Instantly measures the surface temperature of objects without making contact.
- Target Identification: The built-in laser assists in quickly identifying the target area.
- EBTN Display: The 6000 count color EBTN display provides clear readings at maximum angles.
- Analog Bargraph: Features a 60-segment analog bargraph for trend visualization.

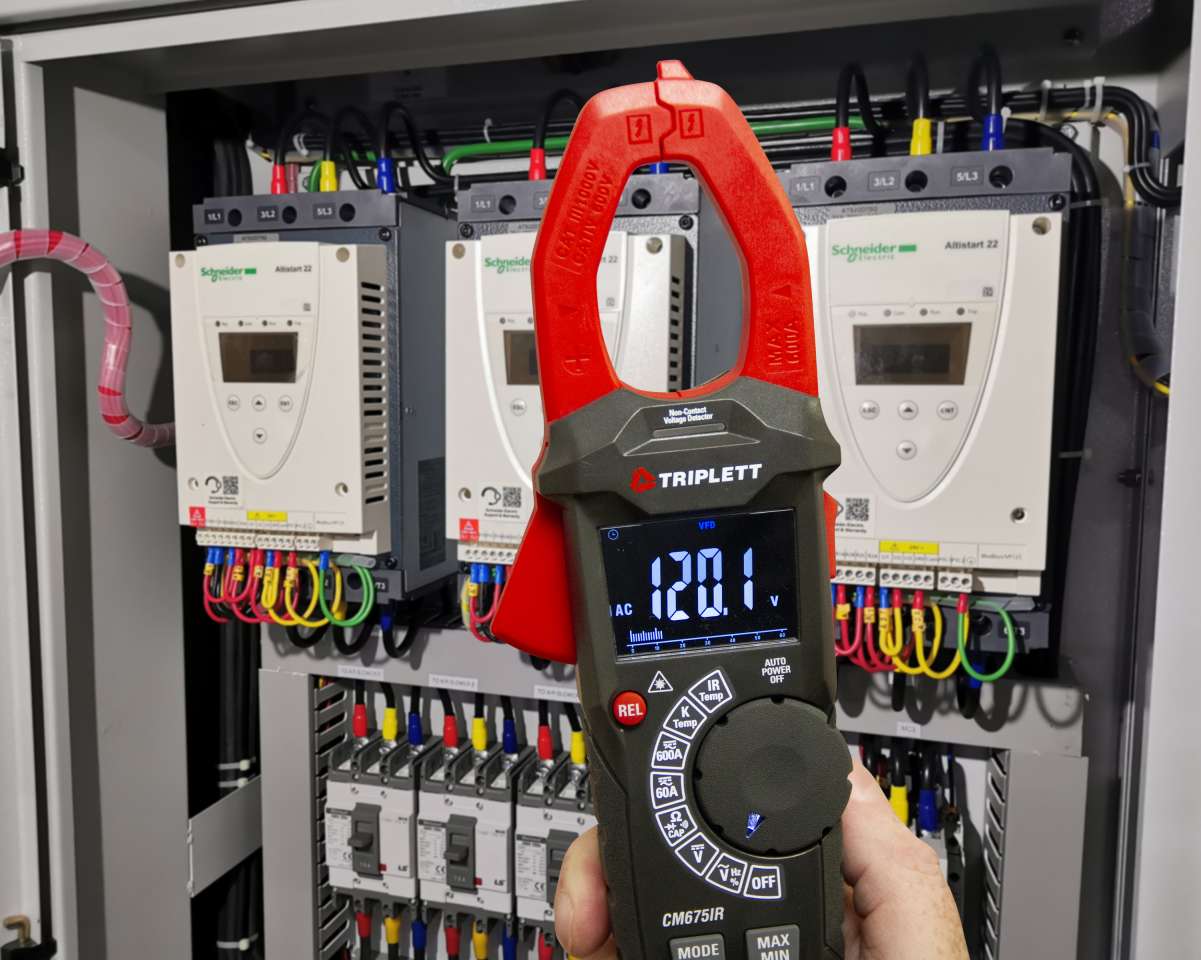

- VFD Low Pass Filter: Helps in eliminating frequency and harmonic interference during the measurement of variable frequency drives.
- Built-in Flashlight: Assists in illuminating dark areas for better visibility.
- Versatile Functionality: Offers Min/Max captures, Data Hold, and Auto power-off functions.
- Safety Standards: Certified with a CAT IV-600V safety category.

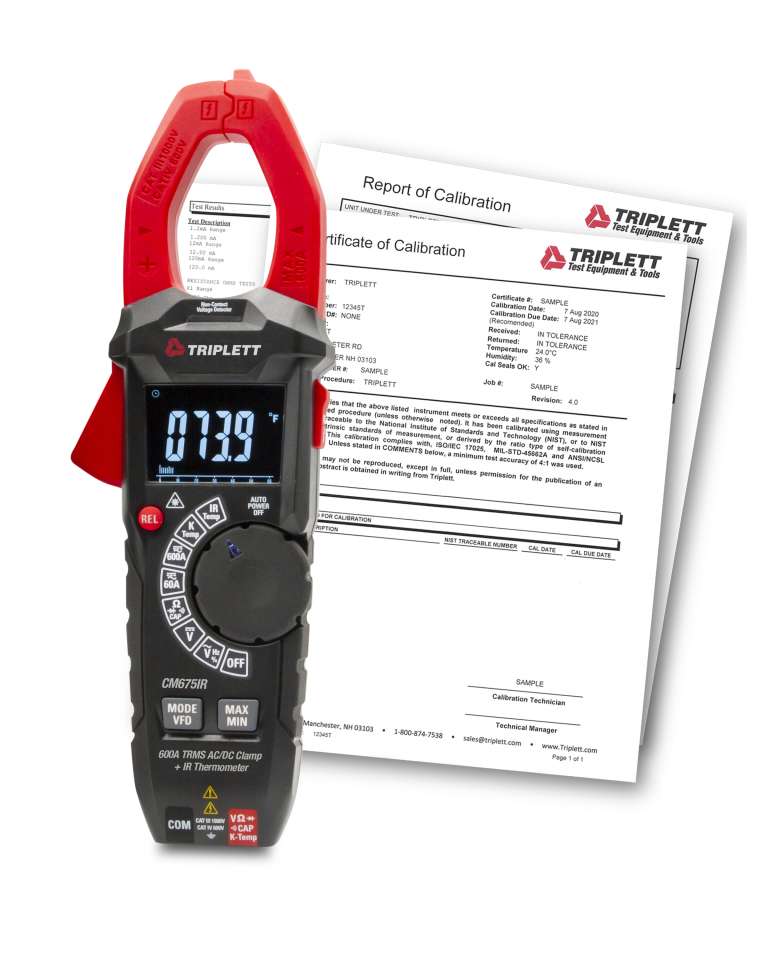

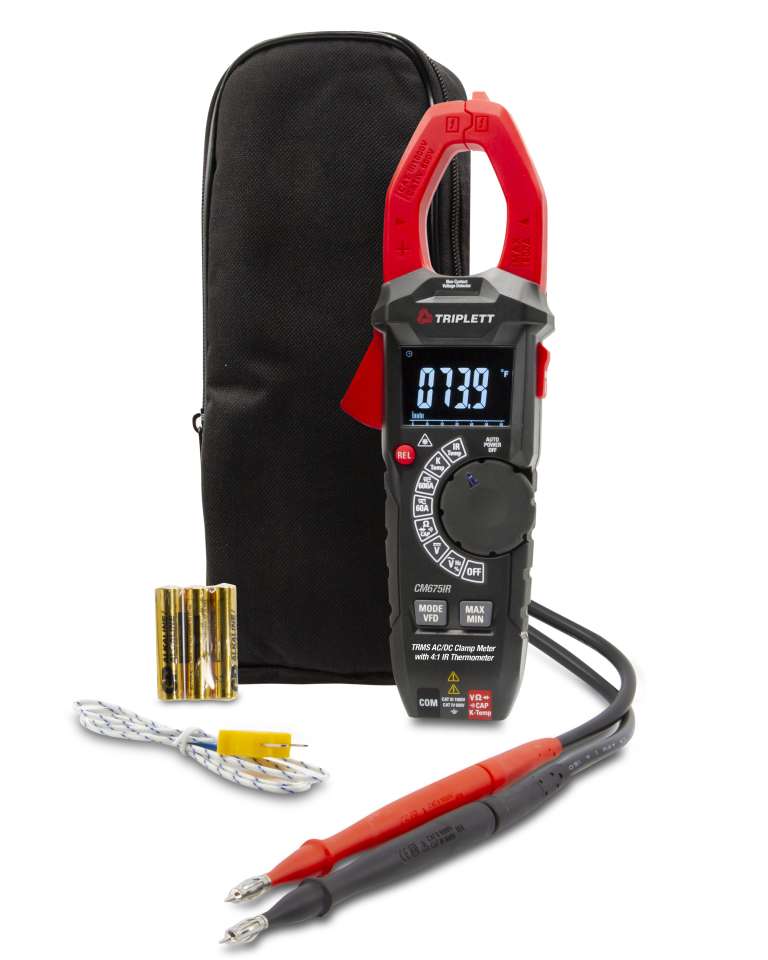

Includes: Includes a limited Certificate of Traceability to NIST (without IR function), Test Leads, Type K Thermocouple Bead Probe, (3) AAA batteries, and carrying case
Battery Type: (3) AAA batteries
| Specifications |
|---|
| CM675IR |
| True RMS | · |
| Color EBTN Display | 6000 count with 60-segment analog bargraph |
| AC/DC Current | 600A |
| ACA Accuracy | ±1.5% |
| AC/DC Voltage | 1000V |
| Resistance | 60MΩ |
| Type K Temperature | -4 to 1800°F (-20 to 1000°C) |
| Infrared Temperature | -22 to 662°F (-30 to 350°C) |
| Distance to Target Ratio | 4:1 |
| Capacitance | 99.99mF |
| Frequency | 10kHz |
| Duty Cycle | 20.0 to 80.0% |
| Continuity | <50Ω |
| NCV Detector | >90V |
| Jaw Size | 1.3" (33mm) |
| Power | (3) AAA batteries |
| Safety Category | CAT IV-600V |
| Dimensions | 9.4 x 1.7 x 2.6" (239 x 44 x 66mm) |
| Weight | 11.2oz (318g) |
