Triplett CM650-NIST CM650 600A True RMS AC/DC Clamp Meter w/Cert of Traceability to N.I.S.T.

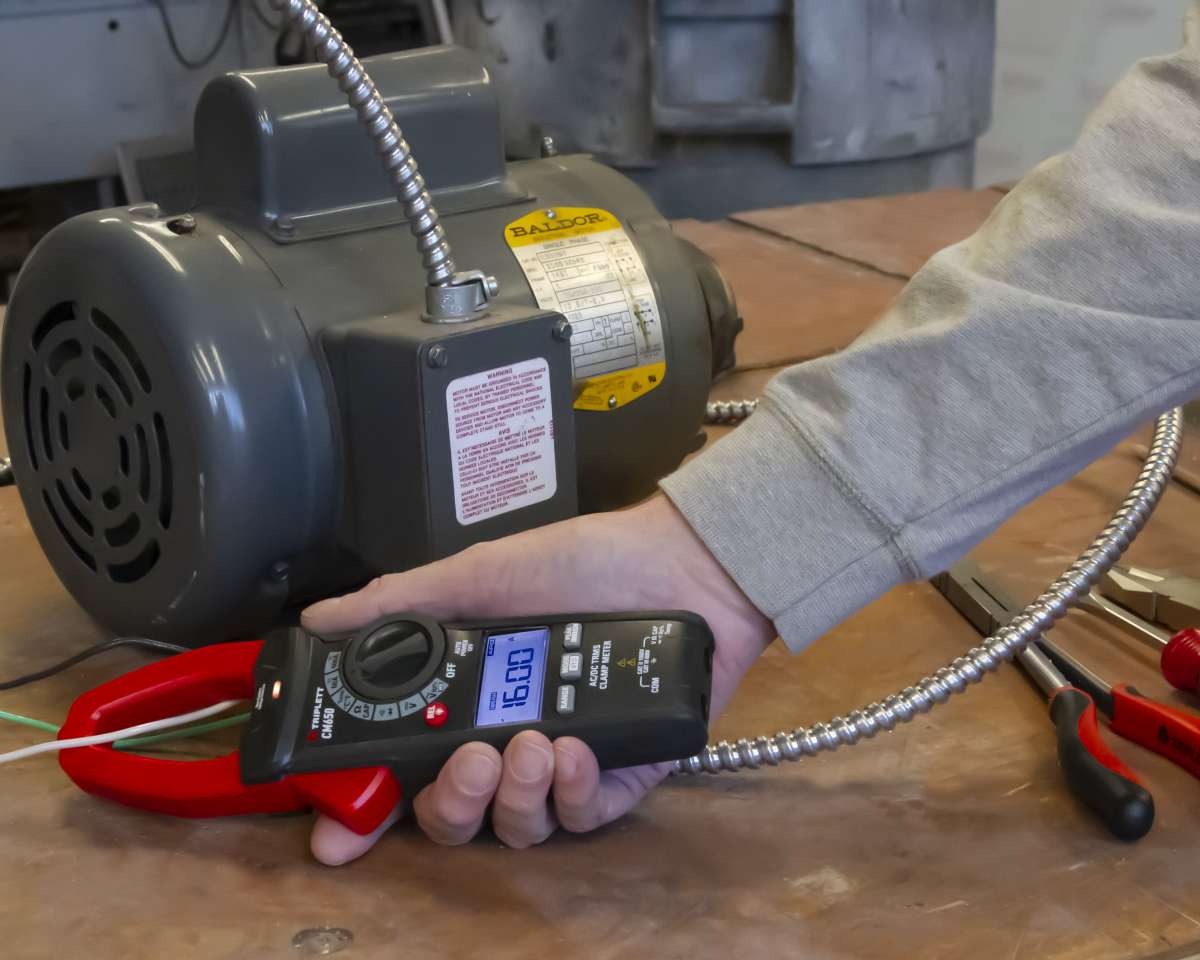

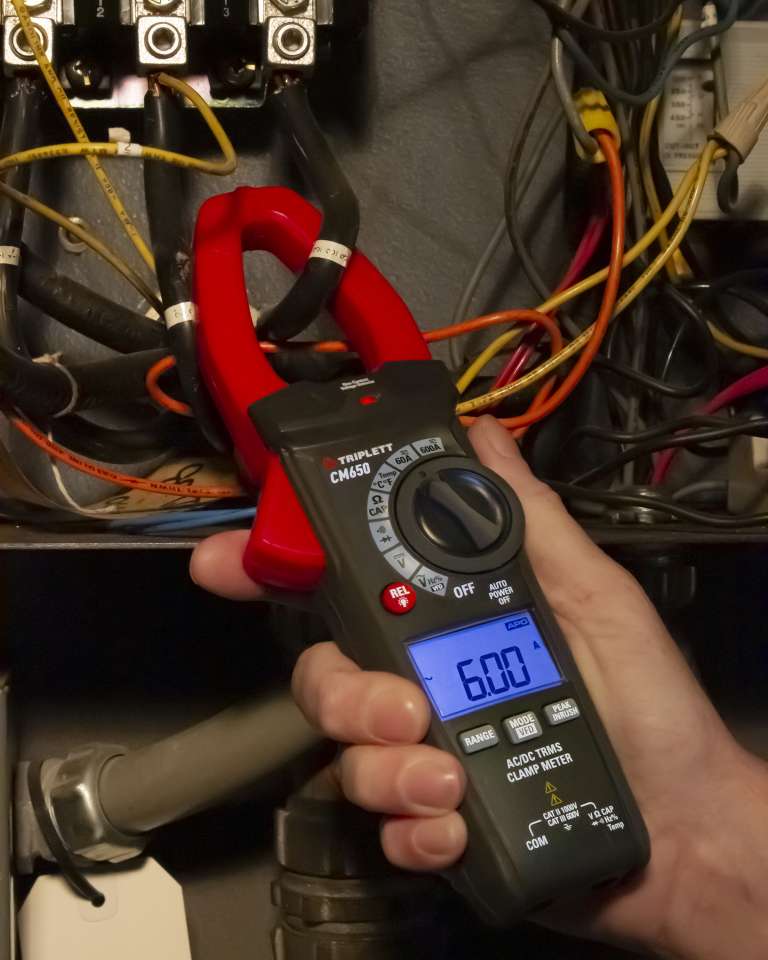

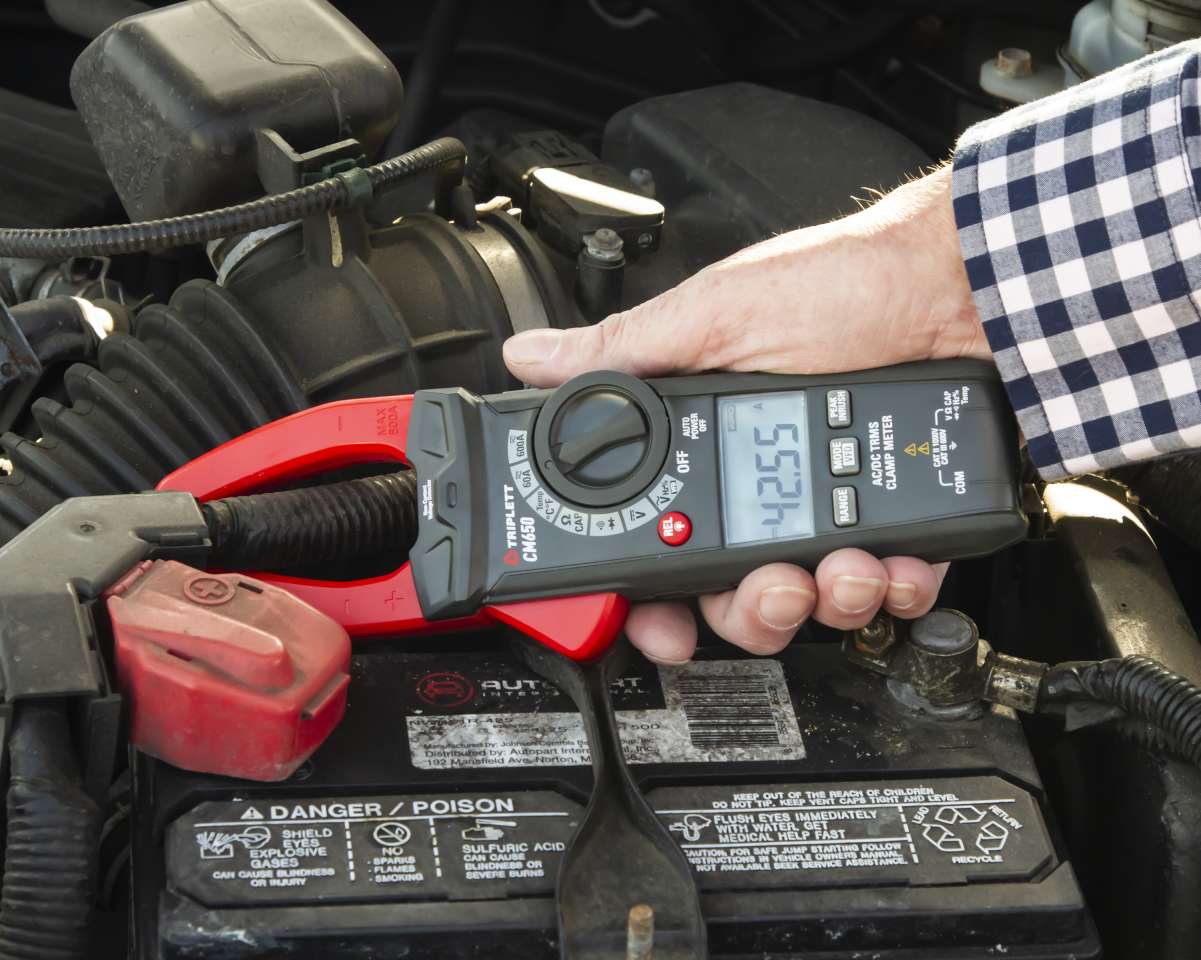

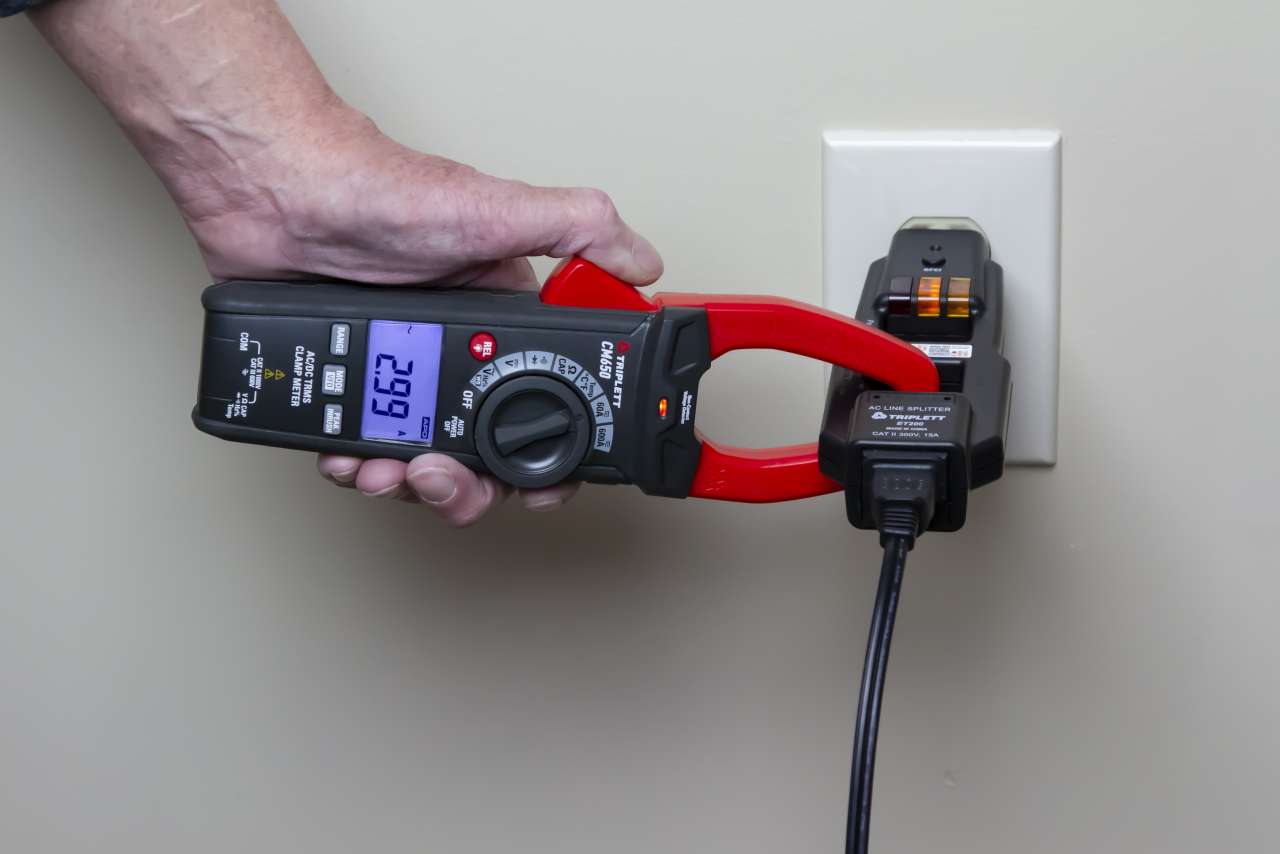

The Triplett Model CM650 True RMS Clampmeter can measure AC and DC current up to 600A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT III-600V safety category. Includes Certificate of Traceability to N.I.S.T., 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.

Features:

• True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
• Captures the instantaneous surge (inrush) current when power equipment is turned on
• 1.3" (33mm) clamp jaw opening
• Built-in Non-Contact Voltage Detector with LED
• Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
• Peak voltage measurement with Min/Max
• Data Hold freezes the display
• Relative Mode for making comparisons to a stored reference value and DC Zero
• Auto power off with disable
• Built-in Flashlight

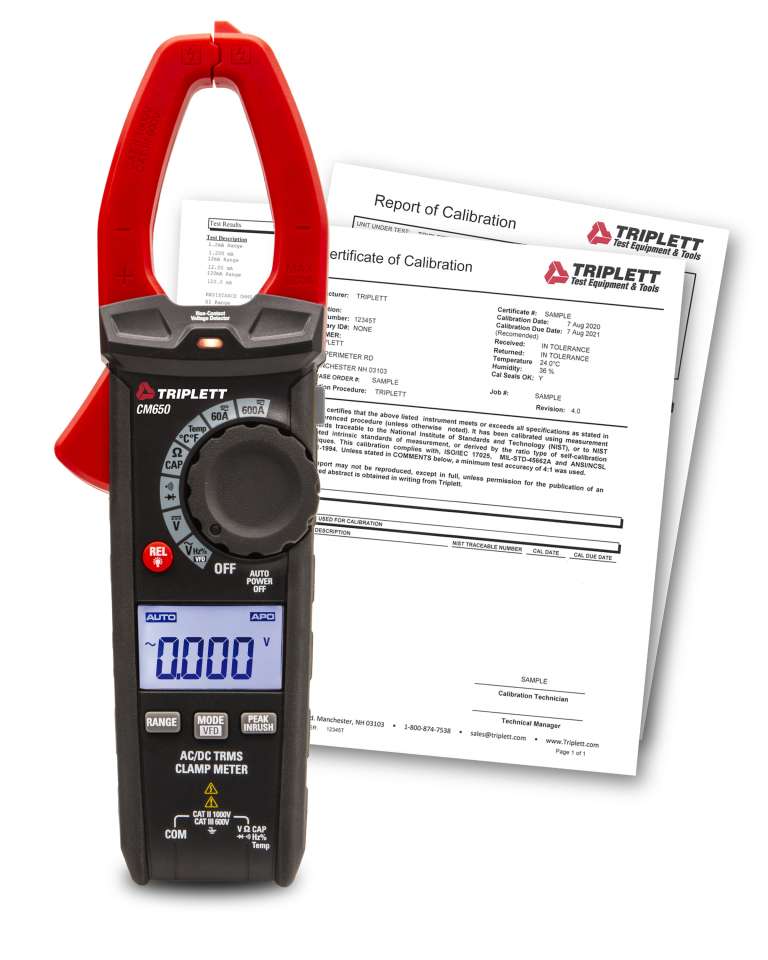

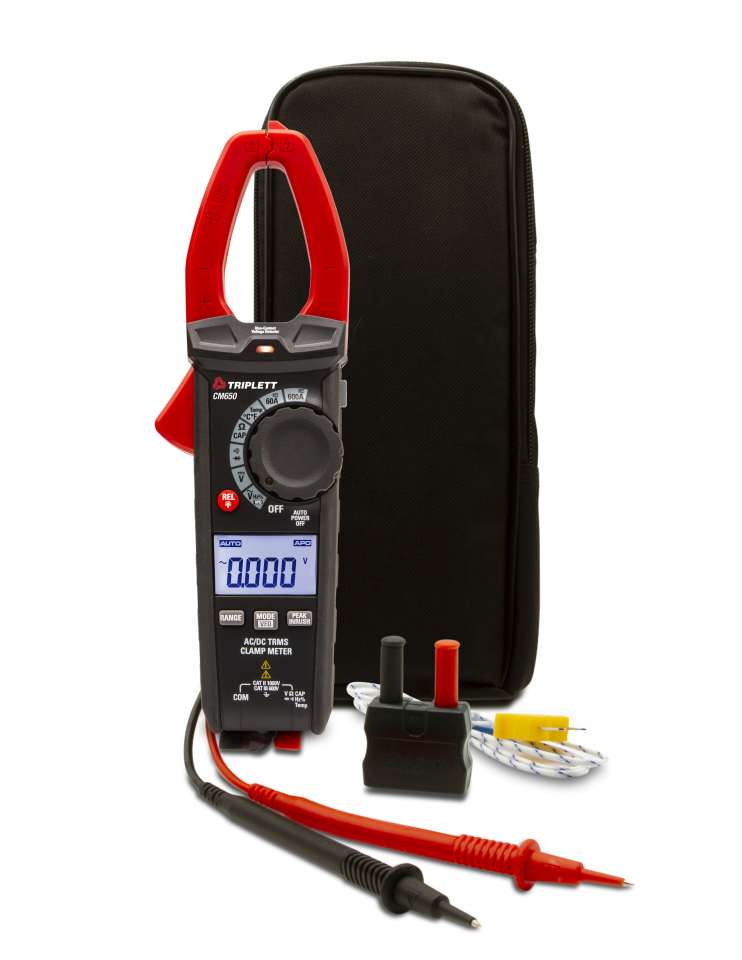

Includes: Includes Certificate of Traceability to N.I.S.T., test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

Battery Type: (3) AAA batteries
