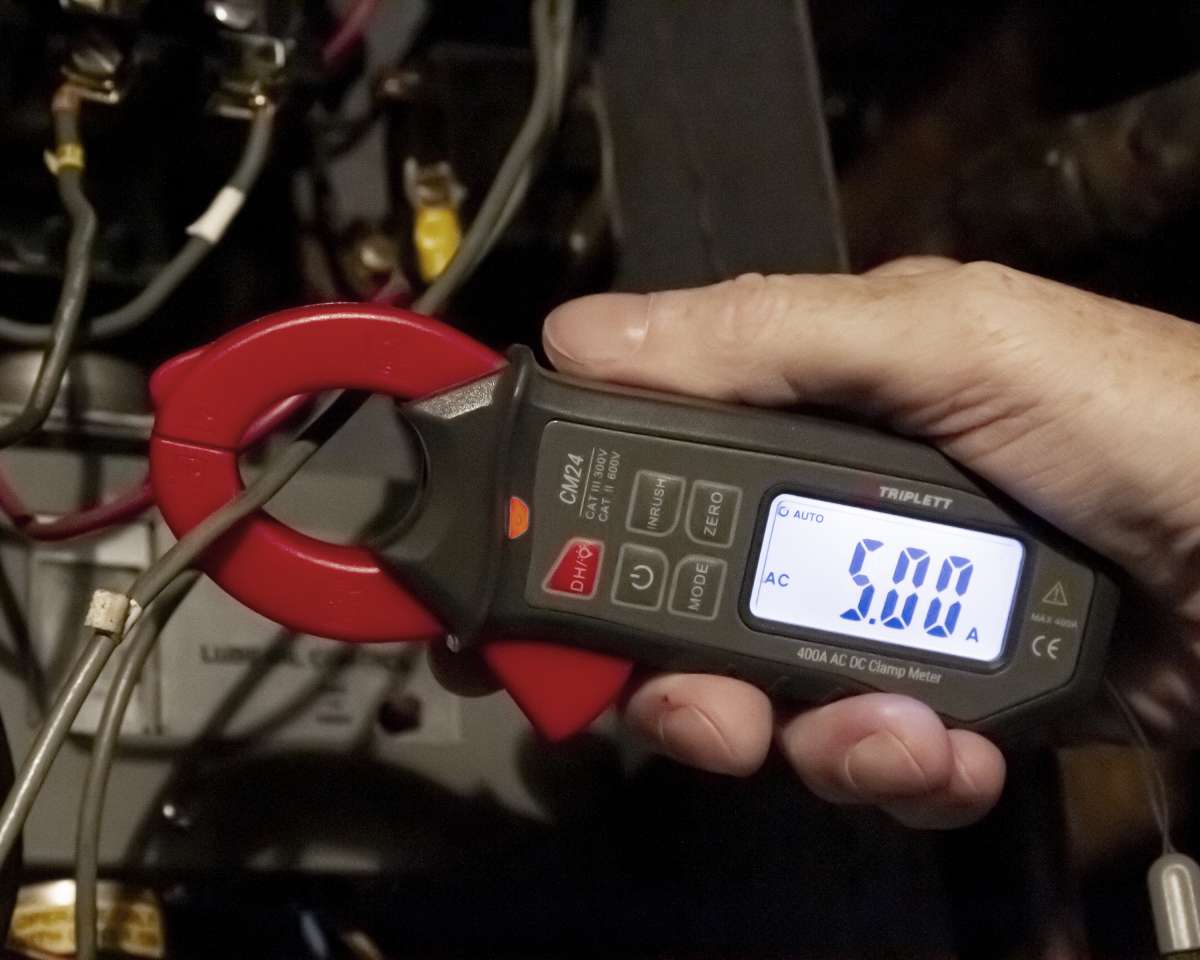

The Triplett Model CM24 True RMS Mini Clampmeter can measure AC and DC current to up 400A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Additional features include: a built-in NCV detector with LED, DC zero function, overrange indication, and Auto power off. Data Hold freezes the display for easy viewing. CAT III-300V safety category. Includes Certificate of Traceability to N.I.S.T., 2 AAA batteries and carrying case. 1-year warranty.
Features:
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- 0.8" (21mm) jaw opening, Built-in NCV detector with LED
- 4000 count backlit LCD
- DC zero function
- Data Hold Freezes the display
- Overrange indication
- Auto power off
- CAT III-300V

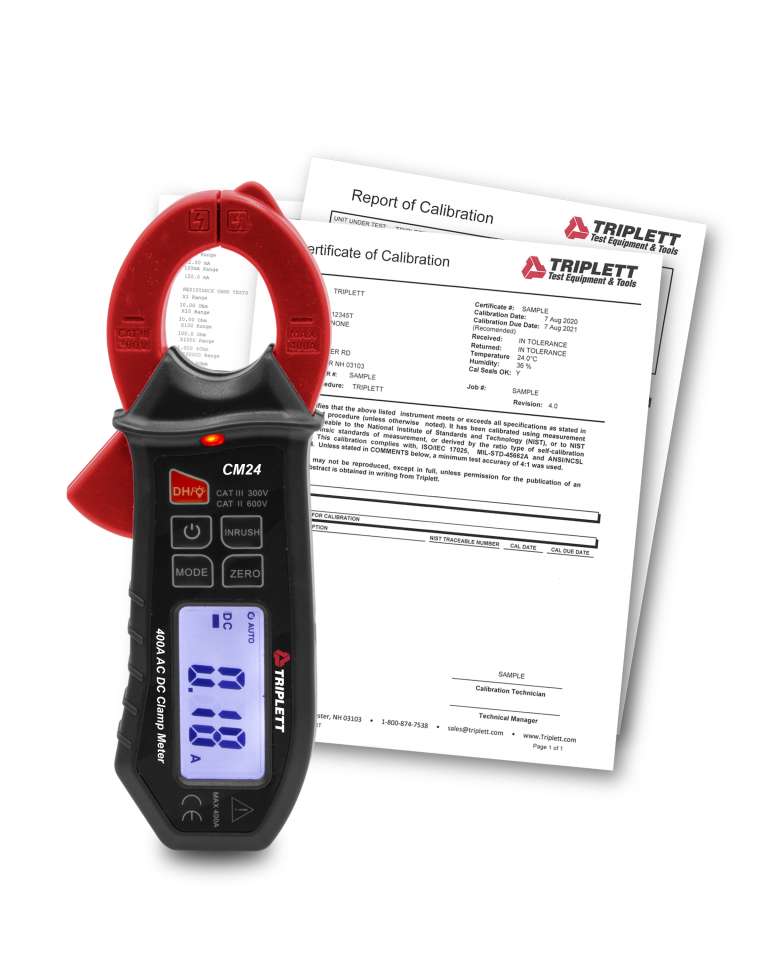

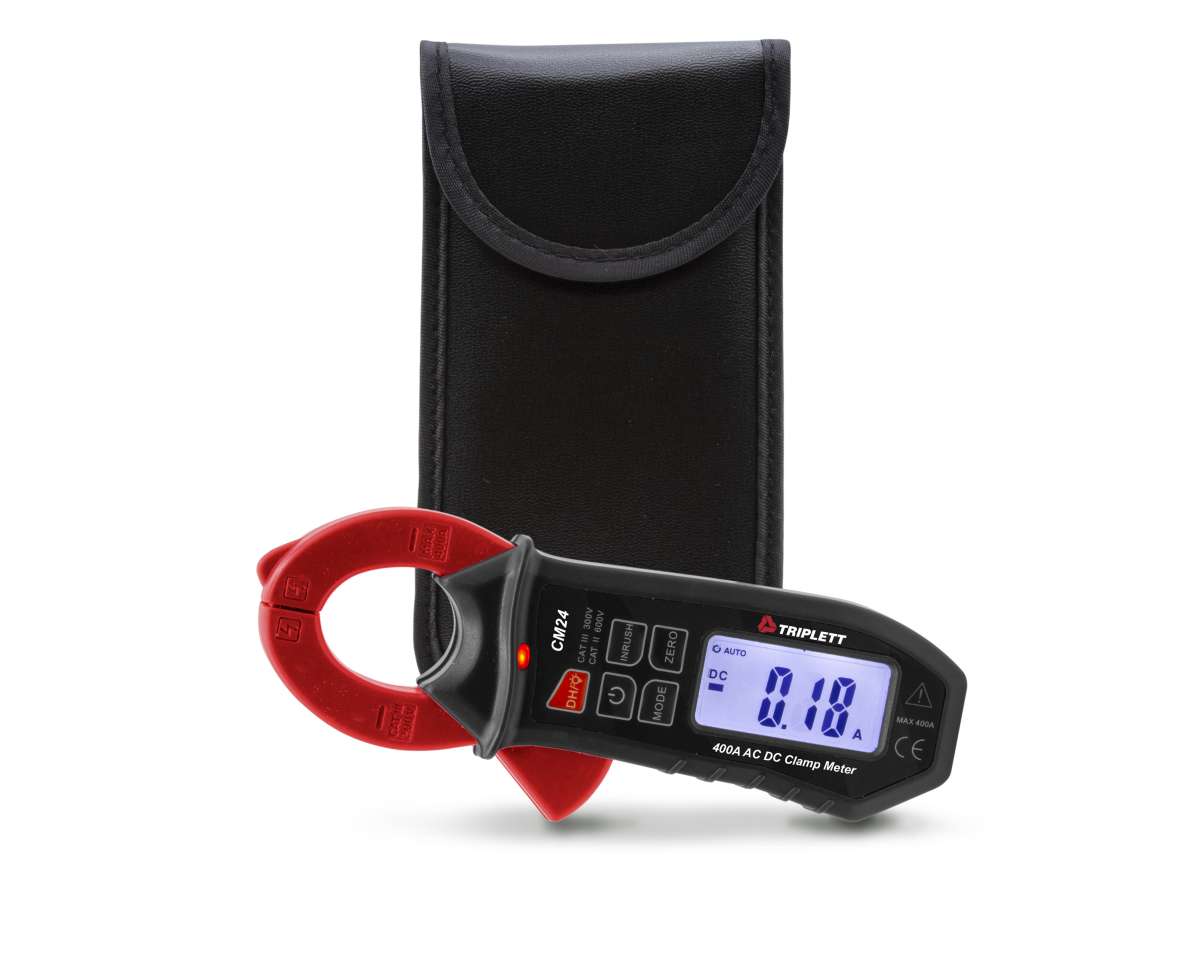

Includes: Includes Certificate of Traceability to N.I.S.T., 2 AAA batteries and carrying case
Battery Type: (2) AAA batteries
| Specifications |
|---|
| CM24 |
| AC Current
50-60HZ | 40.00A ±(2.5% + 10d)
400.0A ±(2.8% + 8d) |
| AC Current
50-400HZ(sine wave only) | 40.00A ±(2.5% + 10d)
400.0A ±(2.8% + 8d) |
| DC Current | 40.00A ±(2.5% + 10d)
400.0A ±(2.8% + 8d) |
| NCV Detector Range | 0 to 600VAC |
| Power | (2) AAA batteries |
| Safety Category | CAT III-300V |
| Dimensions | 6 x 2.4 x 1.1” (152 x 60 x 28mm) |
| Weight | 4.7oz (134g) |
