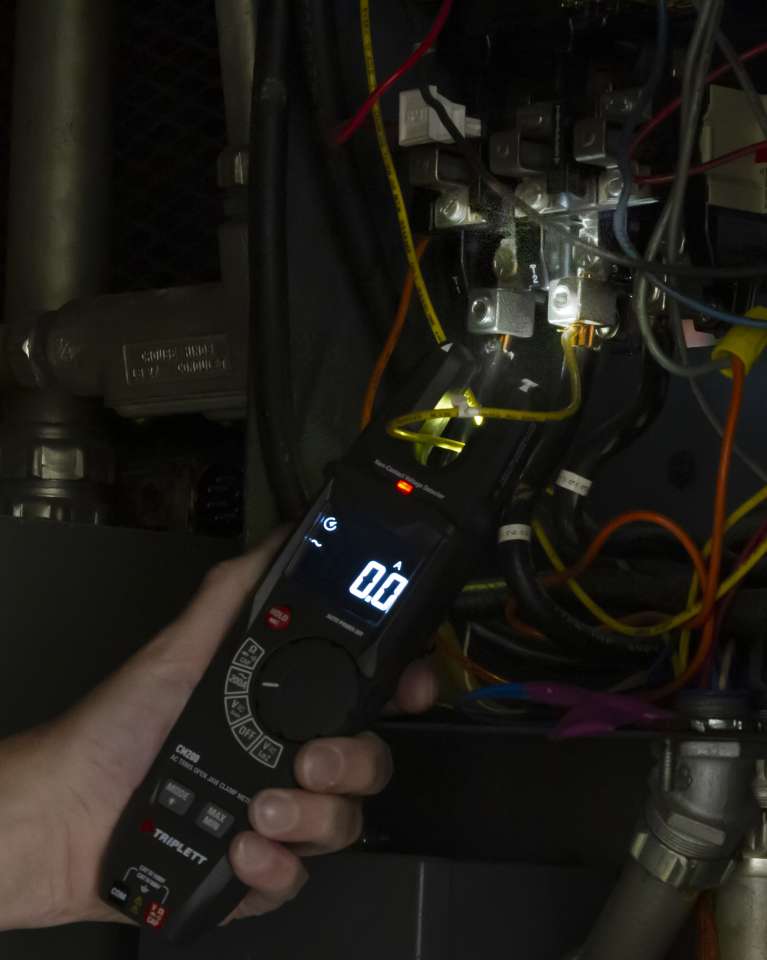

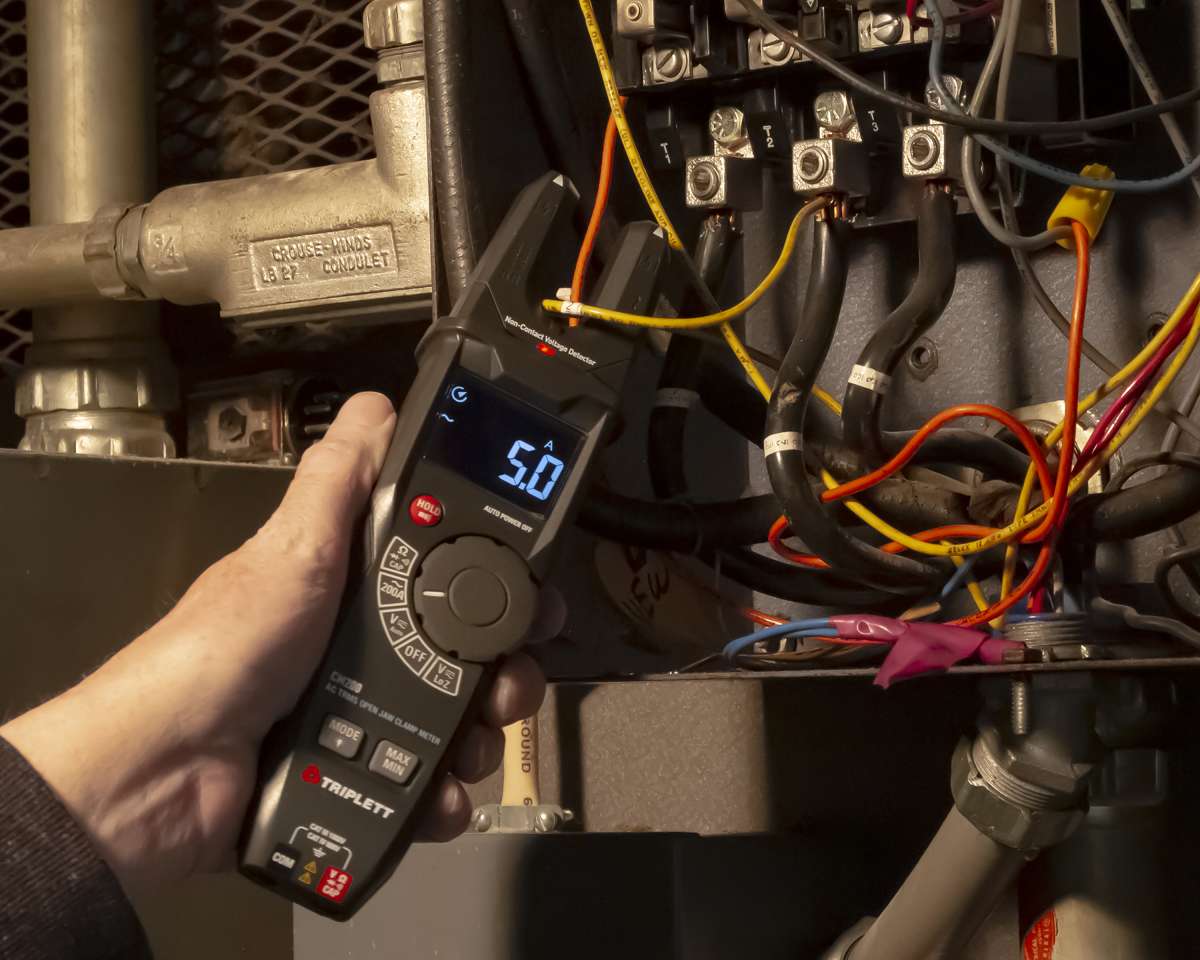

The Triplett Model CM200 True RMS Open Jaw Clamp Meter can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Diode Test, and Continuity. Measurements can read on the 6000 count, reverse polarity LCD. Features include: a built-n NCV Detector with LED, LoZ (impedance) mode for identifying ghost voltages, Min/Max for recording the highest and lowest readings, Auto power off with disable, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. Includes Certificate of Traceability to N.I.S.T., 2 AA batteries, test leads, and carrying case. 1-year warranty.
Features:
- Open jaw design fits into tight spaces where a standard clamp can't close
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- 0.6" (16mm) clamp jaw
- Built-in Non-Contact Voltage Detector with LED
- LoZ (impedance) mode for identifying ghost voltages
- Data Hold freezes the display
- Auto power off with disable
- Built-in Flashlight
- 1 year warranty

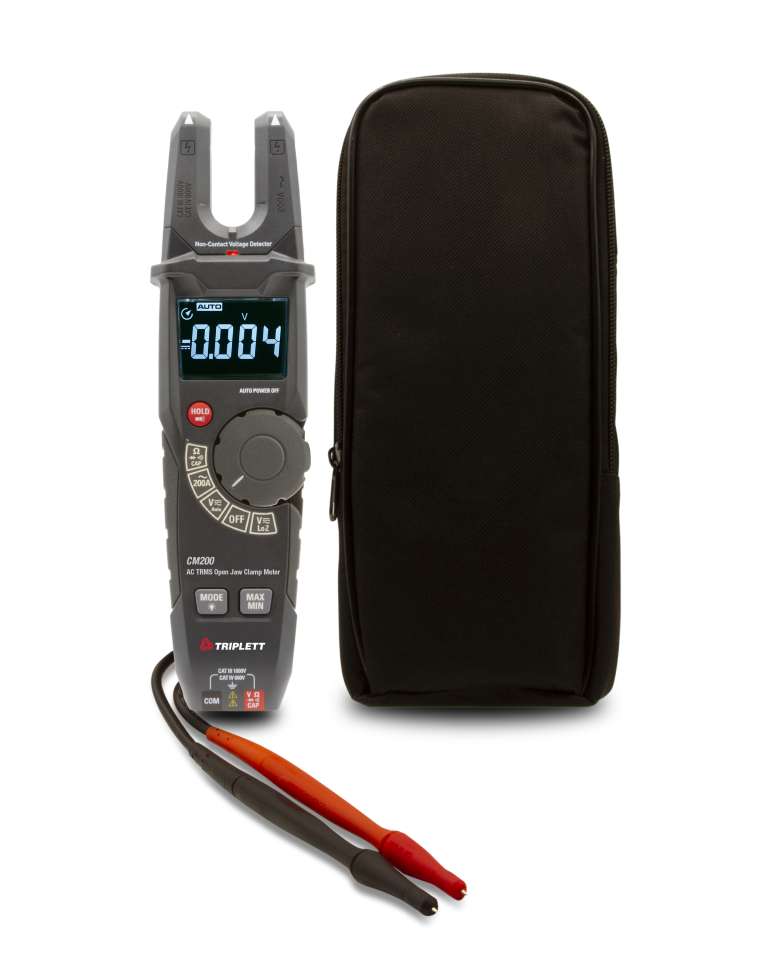

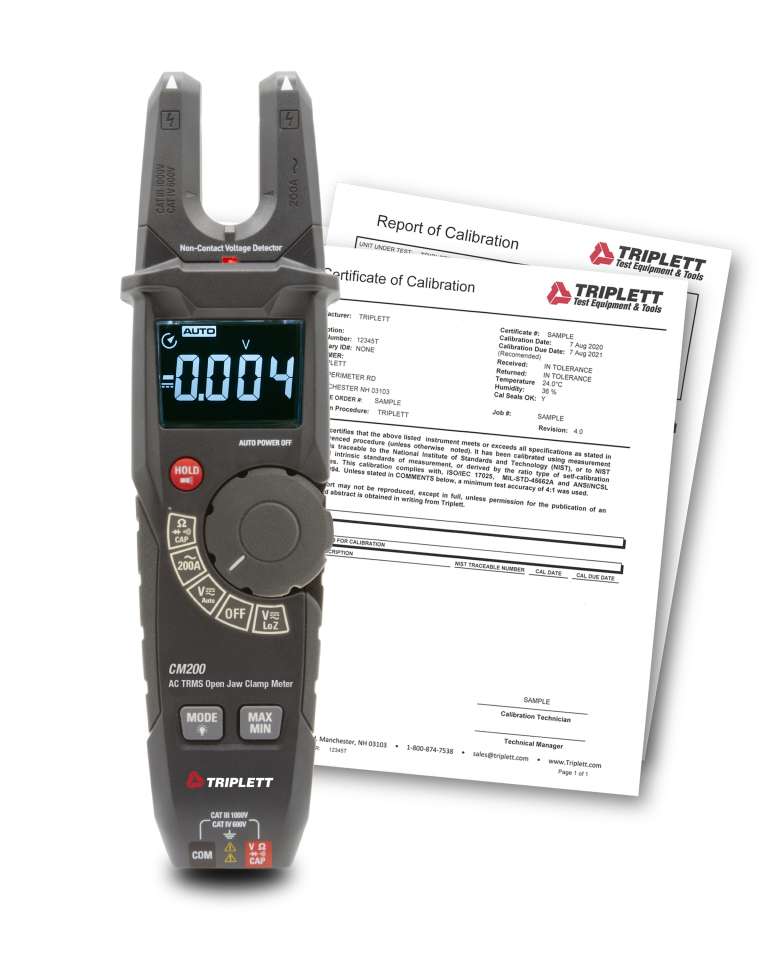

Includes: Includes Certificate of Traceability to N.I.S.T., Test Leads, 2 AA batteries, and
Battery Type: (2) AA batteries
| Specifications |
|---|
| CM200 |
| True RMS | · |
| Display counts | 6000 count |
| AC Current | 200A |
| ACA Accuracy | ±3% |
| DC Current | — |
| AC/DC Voltage | 1000V |
| Resistance | 60MΩ |
| Capacitance | 4mF |
| Continuity | <50Ω |
| LoZ (Low Impedance) | Yes |
| NCV Detector | Yes |
| Safety Category | CAT IV-600V |
| Dimensions | 9.1 x 2.5 x 1.7" (230 x 64 x 43.3mm) |
| Weight | 7.8oz (220.6g) |
