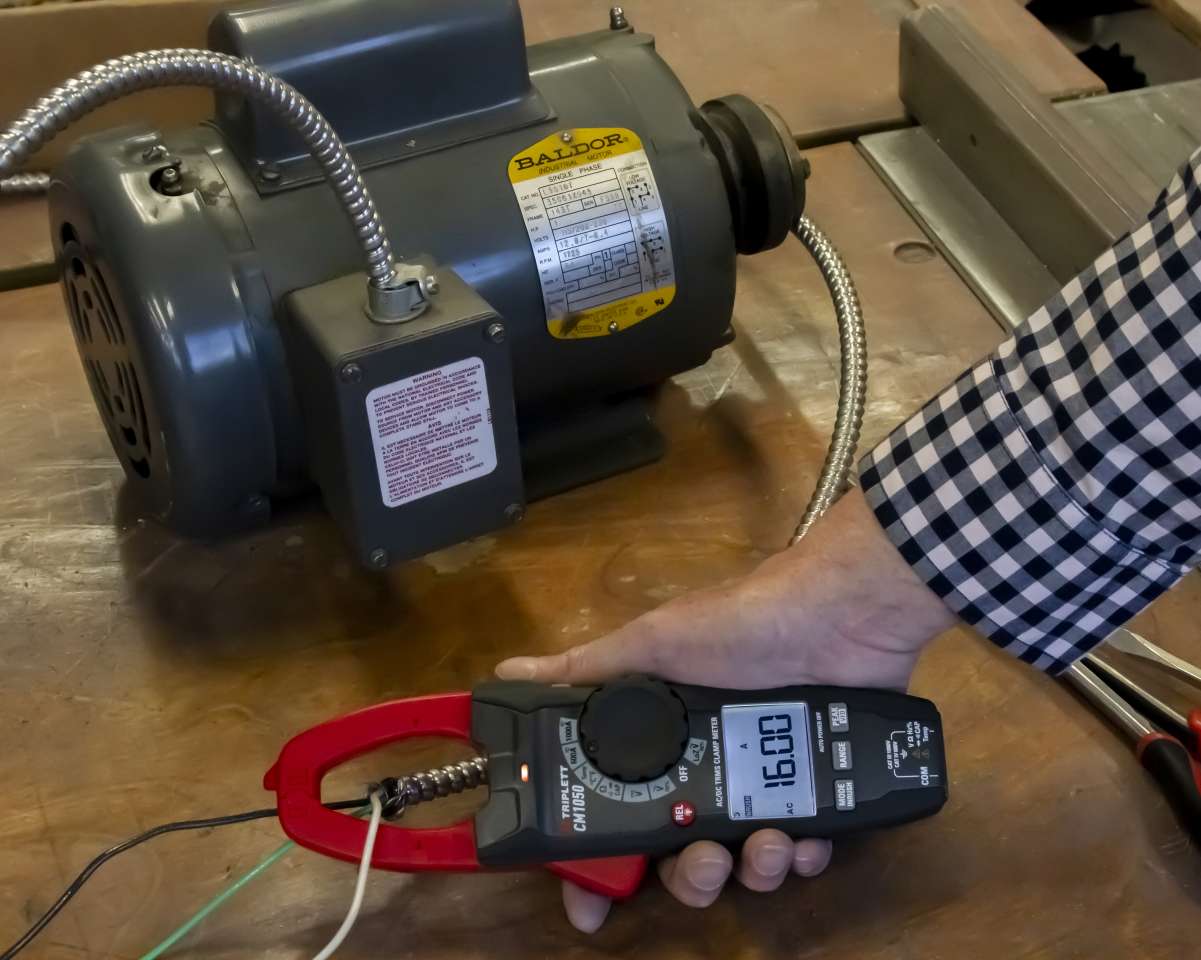

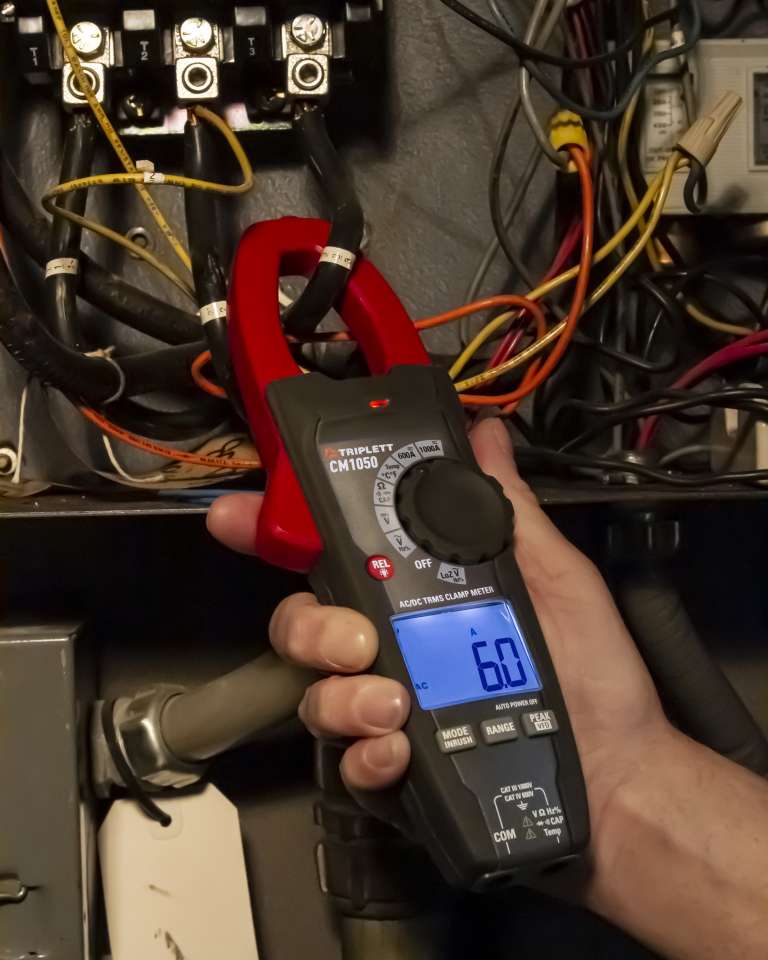

The Triplett Model CM1050 True RMS Clampmeter can measure AC and DC current up to 1000A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 6000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. cETLus listed. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.
Features:
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- 1.4" (36mm) clamp jaw opening
- Built-in Non-Contact Voltage Detector with LED
- Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
- Lo Z (impedance) mode for identifying ghost voltages
- Peak voltage measurement with Min/Max
- Data Hold freezes the display and Relative Mode for making comparisons to a stored reference value and DC Zero
- Auto power off with disable and Built-in Flashlight
- cETLus listed

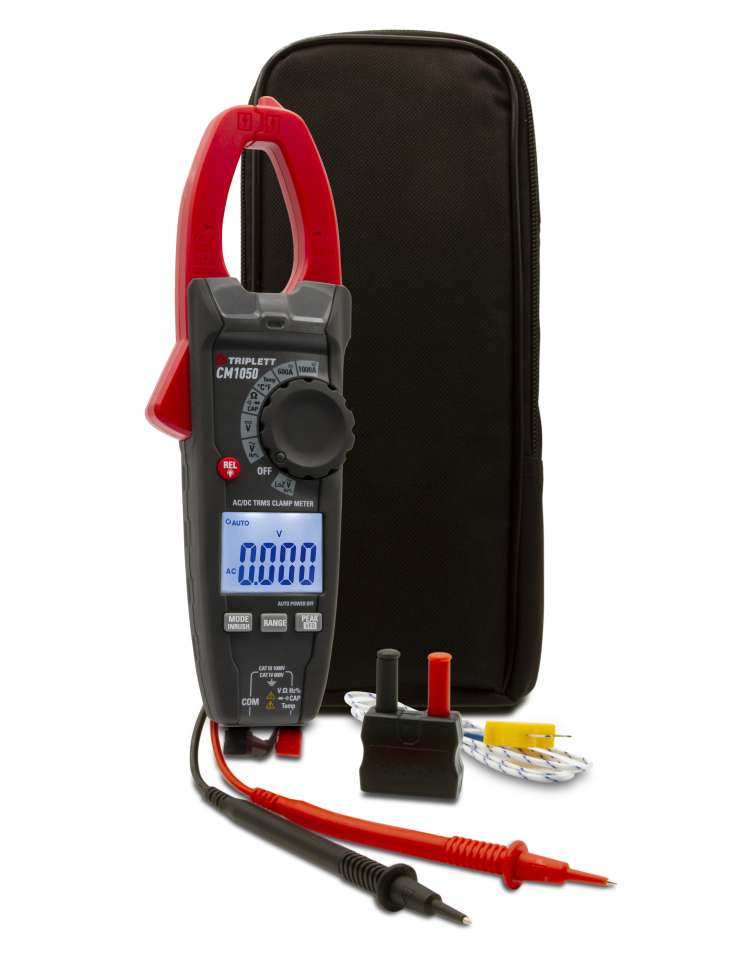

Includes: Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
Battery Type: (3) AAA batteries
| Specifications |
|---|
| CM1000 |
| True RMS | · |
| Display counts | 6000 count |
| AC Current | 1000A |
| ACA Accuracy | ±2.8% |
| DC Current | — |
| AC/DC Voltage | 1000V |
| Resistance | 60MΩ |
| Temperature | -4 to 1832°F (-20 to 1000°C) |
| Capacitance | 100mF |
| Frequency | 100kHz |
| Duty Cycle | 10.0 to 90.0% |
| Continuity | <50Ω |
| Lo Pass Filter (LPF) | Yes |
| LoZ Mode | Yes |
| NCV Detector | >90V |
| Inrush Current | 100ms |
| Safety Category | CAT IV-600V |
| Dimensions | 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2mm) |
| Weight | 11.3oz (320g) |
Datasheet: https://www.files.triplett.com/datasheet/cm1050.pdf
User Manual: https://www.files.triplett.com/manual/cm1050.pdf
