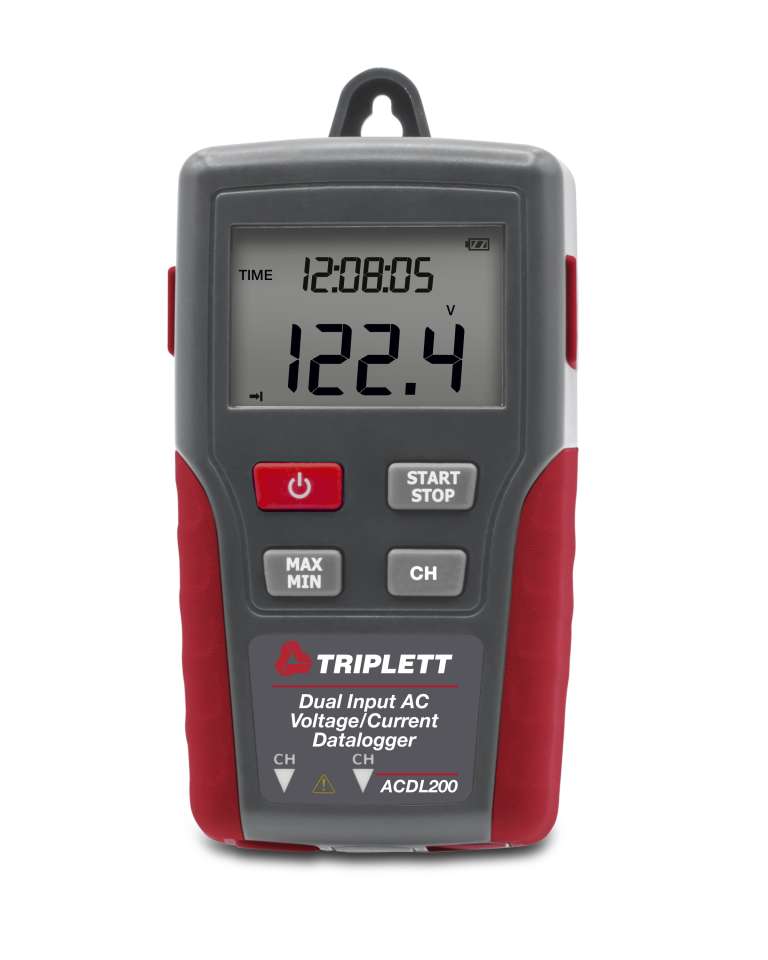

The Triplett Model ACDL200 Dual Input True RMS AC Voltage(600V) /Current (200A) Datalogger can datalog up to 131,000 measurements (dual input) or 256,000 measurements (single input) and provides dual channel recording of TRMS Voltage/Voltage or Current/Current or Voltage/Current using a 1 second to 24 hour selectable sampling rate. Features include a multifunction LCD display, real time clock, and Min/Max recalls highest and lowest readings. Includes 2 sets of Test Leads, 2 Current Clamps, (4) AAA batteries, AC Adapter, and USB cable. 1 year warranty.
Features:
- Datalog up to 256,000 measurements (single input) or 131,000 measurements (dual input)
- Dual channel recording of TRMS Voltage/Voltage or Current/Current or Voltage/Current
- 1 second to 24 hour selectable sampling rate
- Jaw size 0.5" (12.7mm)
- Multifunction LCD display
- Real time clock
- Min/Max recalls highest and lowest readings
- Low battery indicator

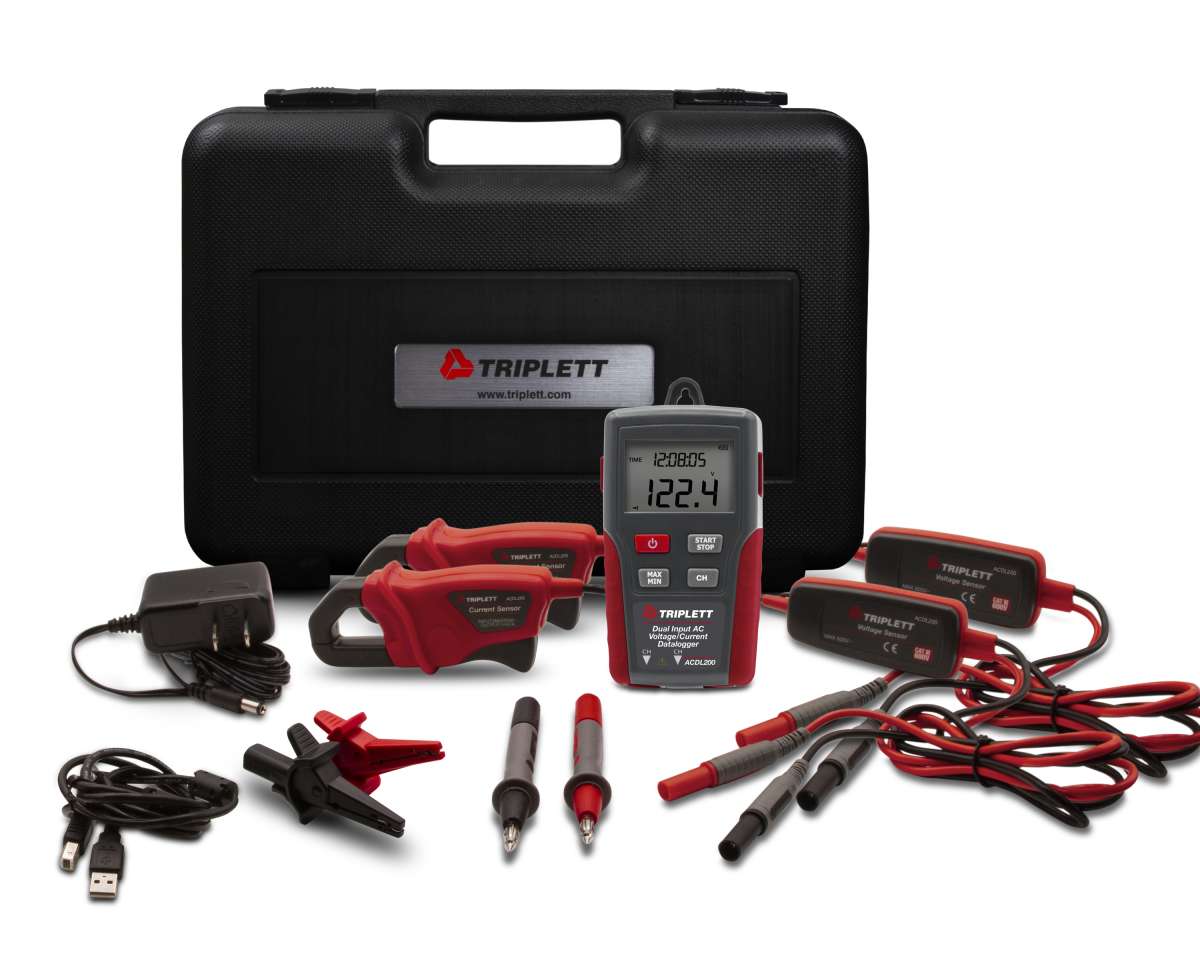

Includes: Includes 2 sets of Test Leads, 2 Current Clamps, (4) AAA batteries, AC Adapter, and USB cable
Battery Type: (4) AAA batteries
| Specifications |
|---|
| Channels | Two, TRMS AC Voltage/Voltage or
TRMS AC Current/Current or
TRMS AC Voltage/Current |
| AC Voltage Range (40-1kHz) | 10 to 600.0V |
| Accuracy | ±2%±1V |
| AC Current Range (50/60Hz) | 10 to 200.0A |
| Accuracy | ±2%±1A |
| Datalogger | 256,000 single channel or 131,000 dual channel |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 4 AAA batteries or AC Adapter |
| Safety Category | CAT III-600V |
| Dimensions | 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) |
| Weight | 8.7oz (248g) |
Datasheet: https://www.files.triplett.com/datasheet/acdl200.pdf
User Manual: https://files.triplett.com/manual/acdl200.pdf
