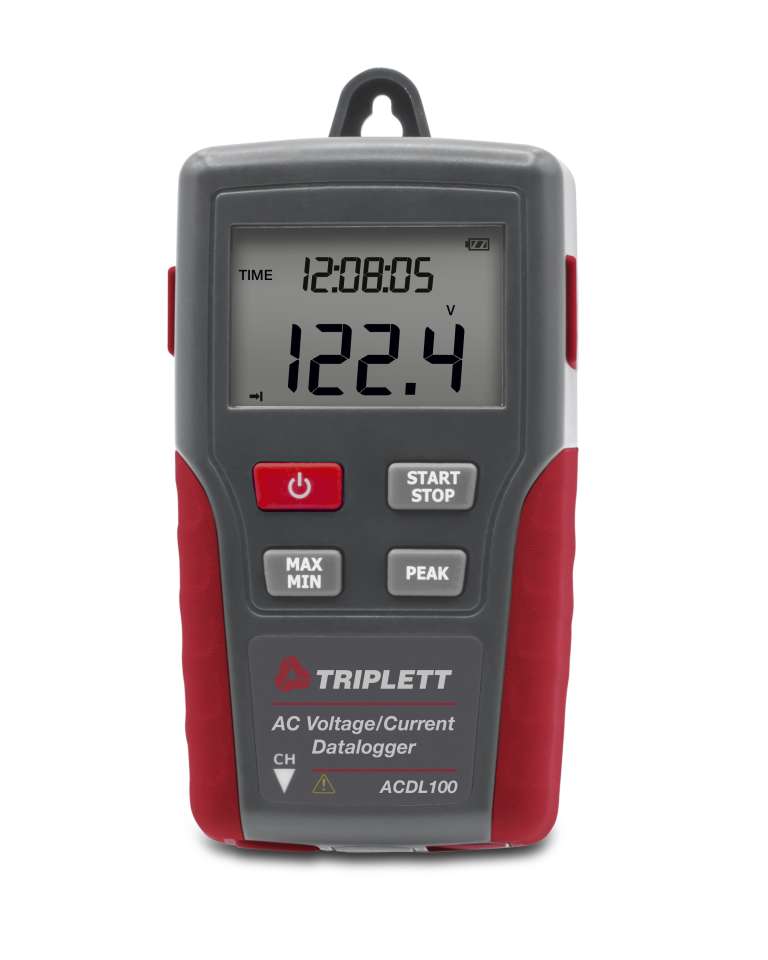

The Triplett Model ACDL100 True RMS AC Voltage/Current Datalogger can datalog up to 100,000 measurements and provides single channel recording of TRMS AC Voltage (600V) or Current (200A) using a 1 second to 24 hour selectable sampling rate. Features include a multifunction LCD display, real time clock, Min/Max recalls highest and lowest readings, and Peak Hold displays average peak measurement. Includes Test Leads, Current Clamp with 0.5" (12.7mm) jaw size, (4) AAA batteries, AC Adapter, and USB cable. 1 year warranty.
Features:
- Datalog up to 100,000 measurements
- Single channel recording of TRMS AC Voltage (600V) or Current (200A)
- 1 second to 24 hour selectable sampling rate
- Jaw size 0.5" (12.7mm)
- Multifunction LCD display
- Real time clock
- Min/Max recalls highest and lowest readings
- Peak Hold displays average peak measurement
- Low battery indicator

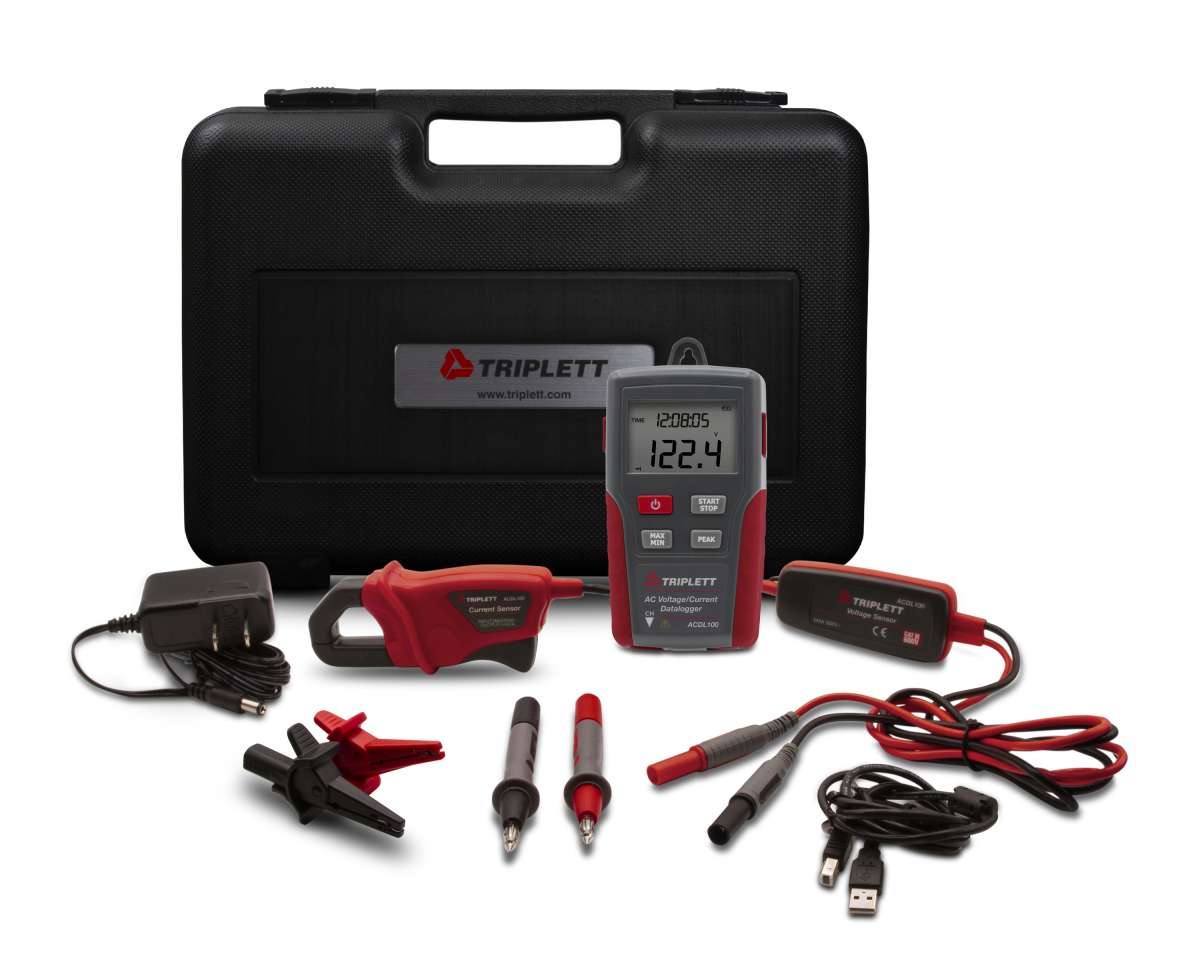

Includes: Includes Test Leads, Current Clamp, (4) AAA batteries, AC Adapter, and USB cable
Battery Type: (4) AAA batteries
| Specifications |
|---|
| Channels | Single, TRMS AC Voltage or Current |
| AC Voltage Range (40-1kHz) | 10 to 600.0V |
| Accuracy | ±1.5%±1V |
| AC Current Range (50/60Hz) | 10 to 200.0A |
| Accuracy | ±2%±1A |
| Datalogger | 100,000 points |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 4 AAA batteries or AC Adapter |
| Safety Category | CAT III-600V |
| Dimensions | 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) |
| Weight | 8.7oz (248g) |
Datasheet: https://www.files.triplett.com/datasheet/acdl100.pdf
User Manual: https://files.triplett.com/manual/acdl100.pdf
