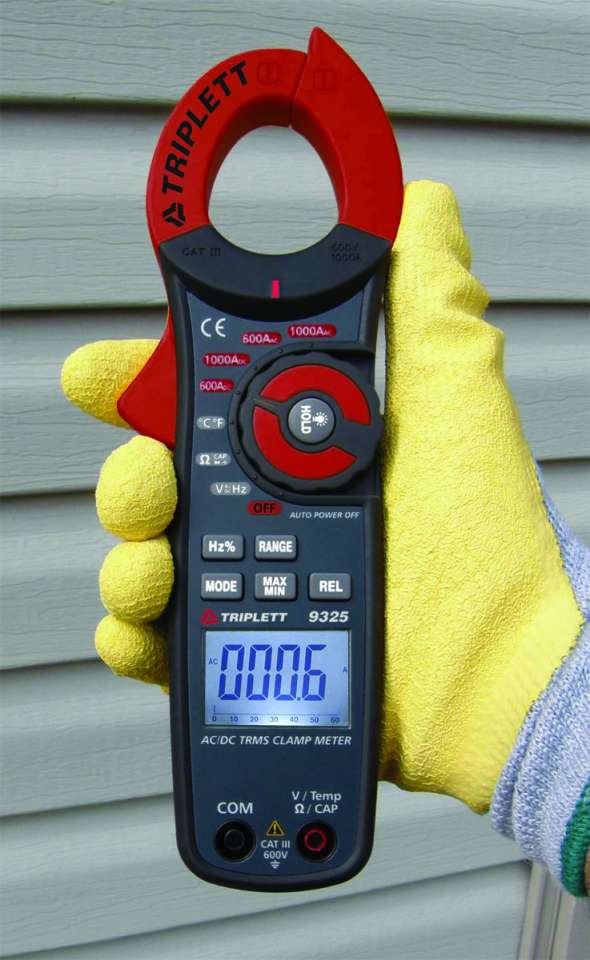

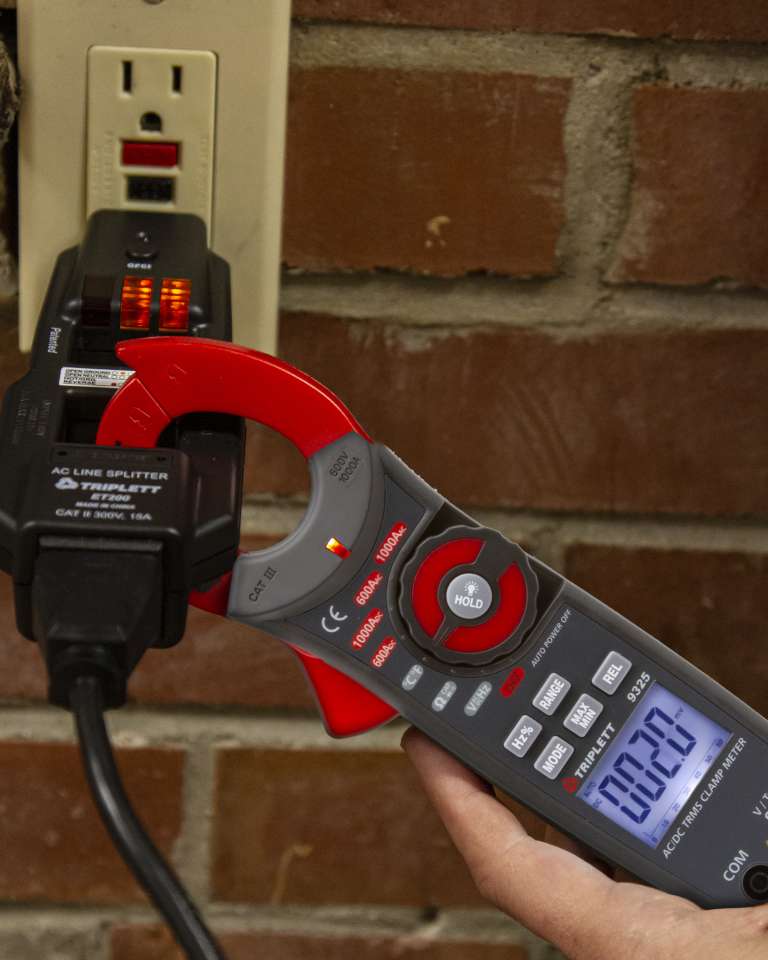

The Triplett 9325-NIST is a 3 3/4 (6000 count) 1000A True RMS AC/DC clamp-on meter with a backlit LCD display. It offers a large variety of measurement features including AC/DC Current, AC/DC Voltage, Resistance, Temperature, Capacitance, Continuity, Diode Test and NCV Detector. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With a CAT III 600V design, it provides superior resistance to damage from transient overvoltages in any demanding industrial setting. The Model 9325 is suited for a variety of industrial and residential applications such as security, electrical, HVAC installations and more. Includes test leads, Type K Temperature probe, 9V battery, case, and a Certificate of Traceability to N.I.S.T. 2 year warranty.
Features:
- 28 Ranges with True RMS measurement
- AC/DC Current measurements up to 1000A
- Temperature, Frequency, Capacitance measurement and built-in NCV Detector
- CAT III 600V safety rating, Includes test leads, Type K Temperature probe, 9V battery, Case and Certificate of Traceability to NIST. 2 year warranty

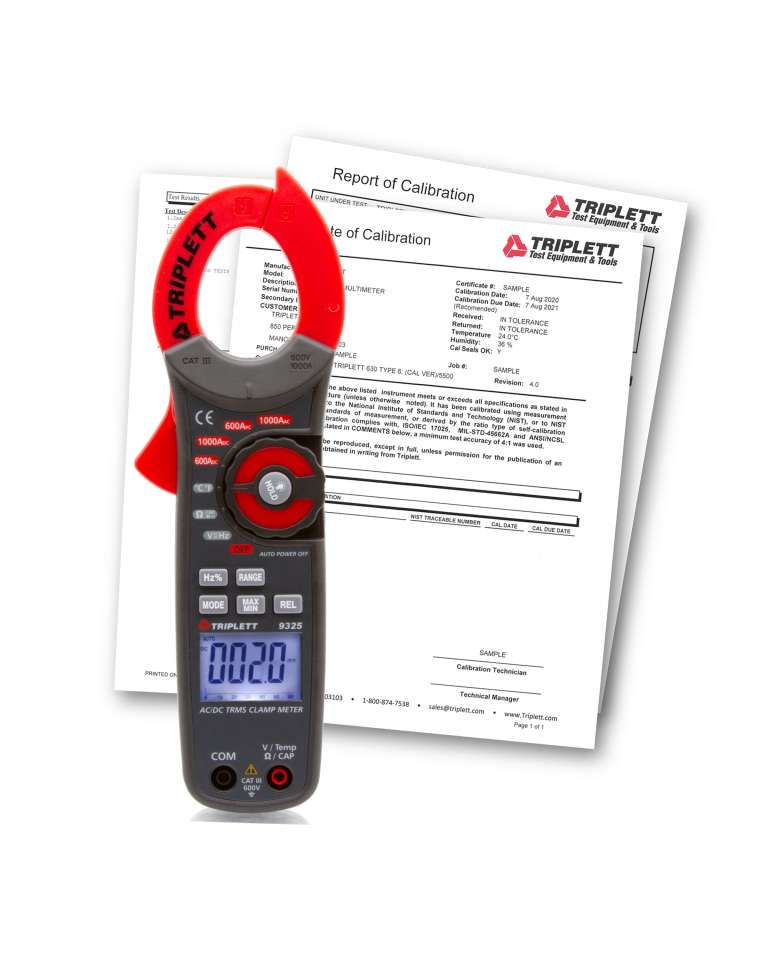

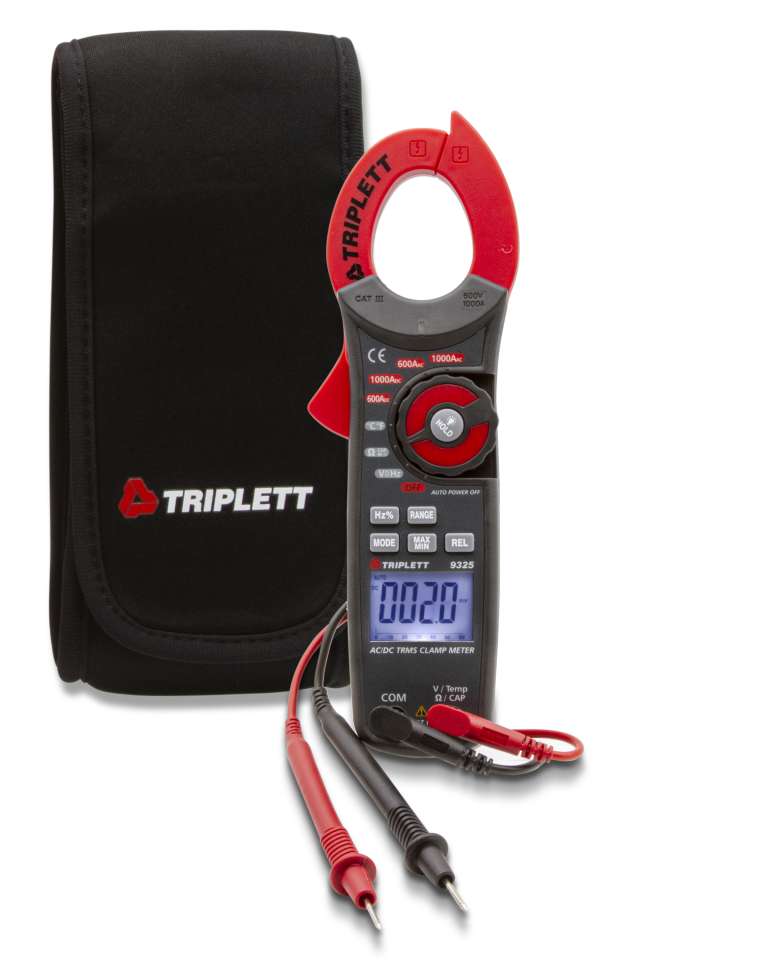

Includes: Includes Test leads, Type K Temperature probe, 9V battery, case, and a Certificate of Traceability to N.I.S.T.
Battery Type: 9V battery
| Specifications |
|---|
| True RMS/Averaging | Treu RMS |
| Display Counts | 6000 with analog bargraph |
| Clamp Size | 1.5" (40mm) |
| AC Current | 0.1 to 1000A |
| ACA Accuracy | ±2.8% |
| DC Current | 0.1 to 1000A |
| AC Voltage | 1mV to 600V |
| DC Voltage | 1mV to 600V |
| Resistance | 0.1Ω to 60MΩ |
| Temperature | -4 to 1400°F (-20 TO 760°c) |
| Capacitance | 0.01nF to 4000µF |
| Frequency | 0.01Hz to 10kHz |
| Duty Cycle | 0.1 to 99.9% |
| Safety Category | CAT III-600V |
| Dimensions | 9.5 x 2.75 x 1.5" (232 x 77 x 39mm) |
| Weight | 11.2oz (271g) |
Datasheet: https://www.files.triplett.com/datasheet/9325.pdf
User Manual: https://www.files.triplett.com/manual/9325.pdf
