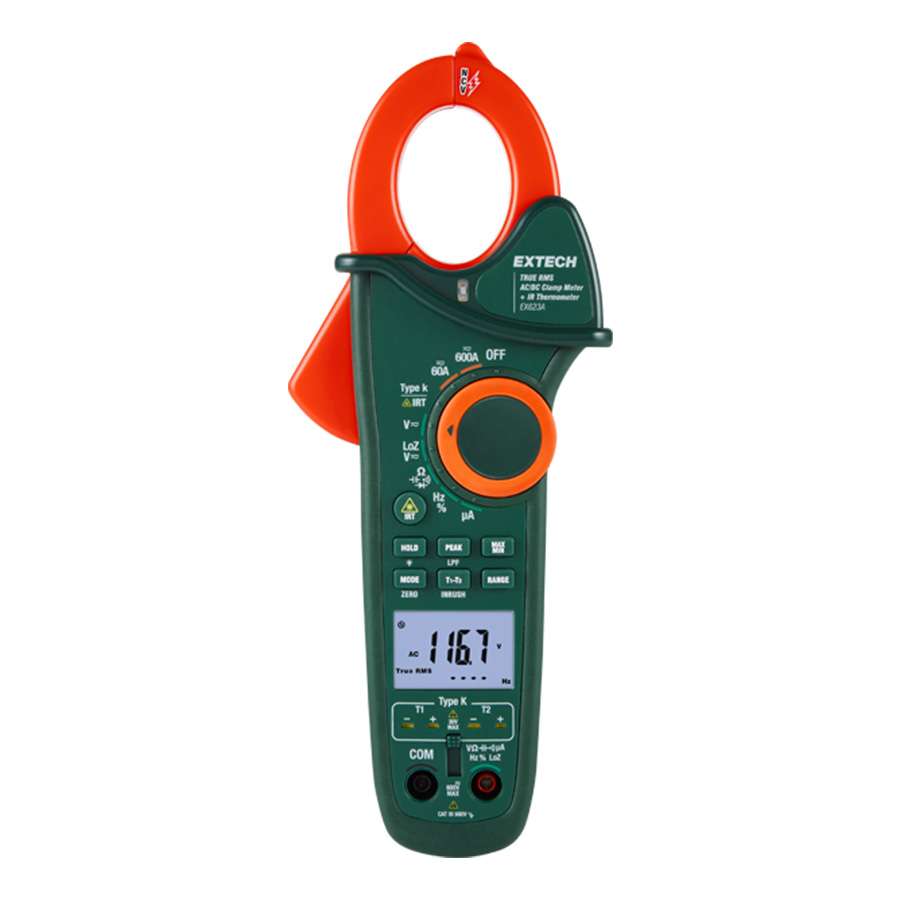

The EX623A True RMS AC/DC clamp meter combines dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement. It comes with a built-in infrared thermometer and a laser pointer for pinpointing hot spots and a Non-Contact Voltage (NCV) detector, so you can safely check for live electrical current. It features a DC micro-amp function that is ideal for flame rod measurements in HVAC systems, and its capacitance measurement capability extends up to 40 mF.
The EX623A comes complete with test leads, a 9 V battery, Type K thermocouple, bead wire temperature probe, and a carrying case.
Features:
• True RMS for accurate measurements of AC voltage and current measures
• 600 A AC/DC Current
• Low Impedance (LoZ) to improve accuracy reduce the possibility of ghost voltages
• Low Pass Filter (LPF) to ensure more accurate readings in noisy electrical environments
• Inrush (100 ms) current feature to capture start-up current
| Specifications |
| AC Current |
0.01 A to 600 A |
| AC Current Basic Accuracy |
±(1.5% + 5d) |
| AC Voltage |
0.1 mV to 600 V |
| Capacitance |
0.001 nF to 40 mF |
| DC Current |
0.01 A to 600 A |
| DC Microcurrent |
0.1 µA to 600 µA |
| DC Voltage |
0.1 mV to 600 V |
| Duty Cycle |
0.5% to 99.0% |
| Frequency |
0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz |
| Jaw Size |
32 mm (1.25 in) |
| Non-Contact Voltage (NCV) Detector |
Yes |
| Resistance |
0.1 Ω to 60 M Ω |
| Temperature (IR) Max Resolution |
-50°C to 270°C (-58°F to 518°F) |
| Temperature (Type K) Max Resolution |
-50°C to 1000°C (-58°F to 1832°F) |
