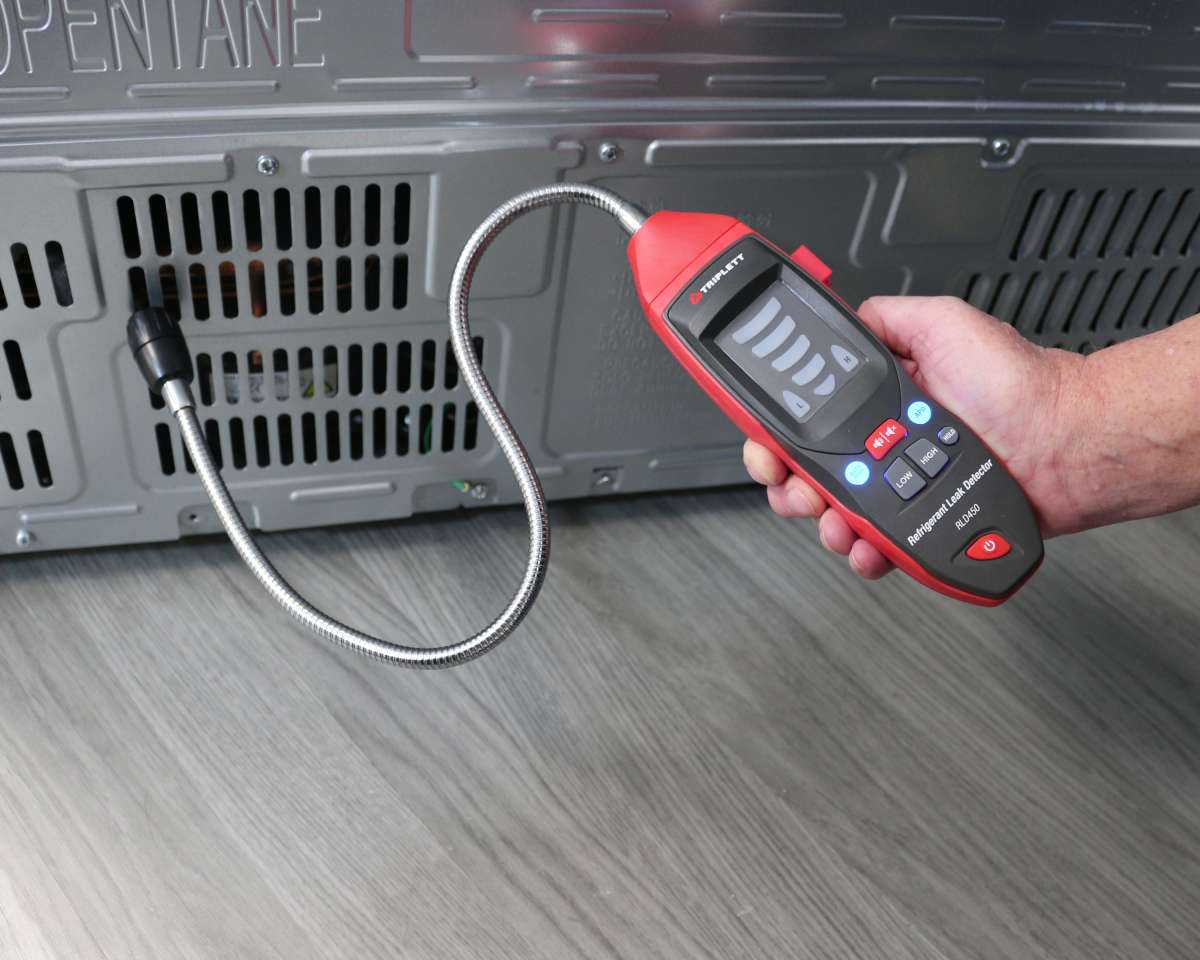

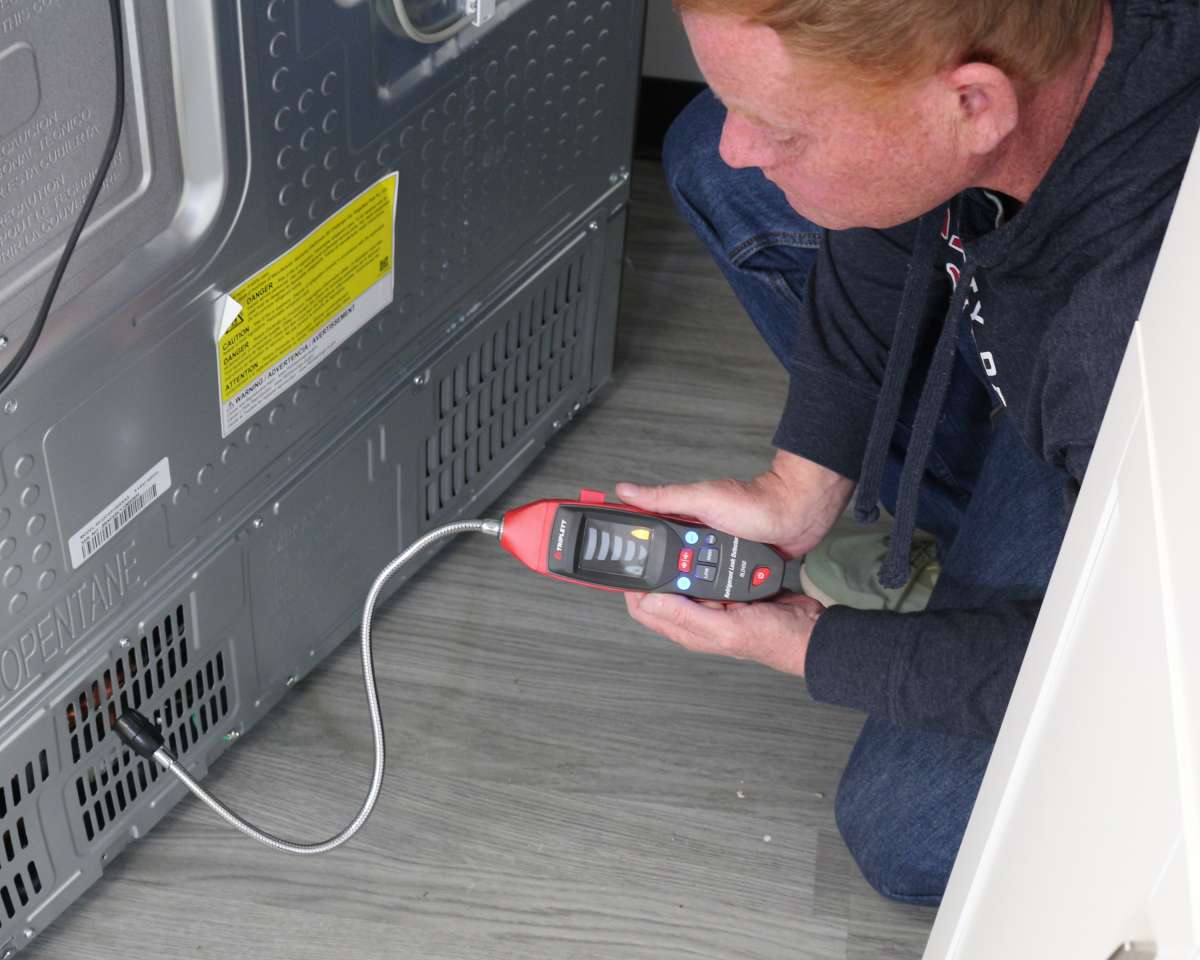

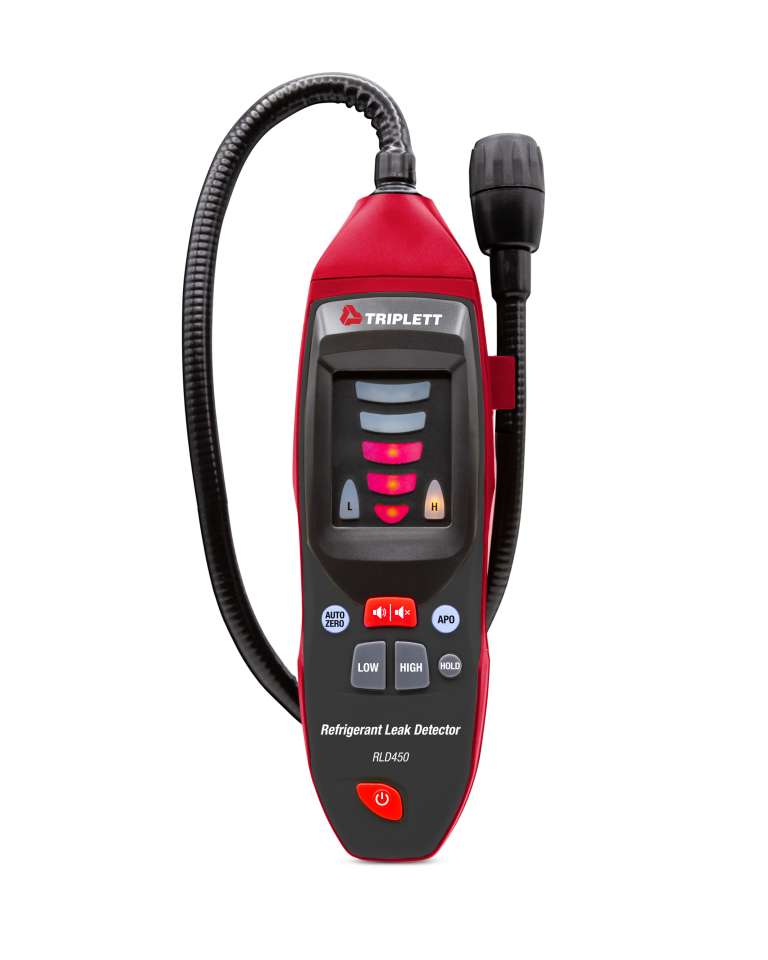

The Triplett Model RLD450 detects CFC, HFC, and HCFC (R134a, R404A, R407C, R410A, R22, R502, R12) refrigerant leaks in Air Conditioning and Refrigeration Systems. It features a replaceable thermistor sensor (RLD450-S), High/Low Sensitivity, 5 LED visual leakage level indicators with increasing audible alert, and fresh air calibration reset. The 20" (51cm) gooseneck probe can be used to check in hard-to-reach areas. It has a low battery indicator and an auto power off function (after 15 minutes) with disable to conserve battery life. Complete with sensor (installed), 3.7V Lithium battery with AC charger, and pouch case. 1 year warranty.
Features:
- Pinpoint halogen-based refrigerant leaks in Air Conditioning and Refrigeration Systems
- Detects CFC, HFC, and HCFC (R134a, R404A, R407C, R410A, R22, R502, R12) refrigerant leaks
- Replaceable thermistor sensor (RLD450-S)
- High/Low Sensitivity
- 5 LED visual leakage level indicators with increasing audible alert
- Fresh air calibration reset
- 20" (51cm) gooseneck probe
- Low battery indicator
- Auto power off (after 15 minutes) with disable

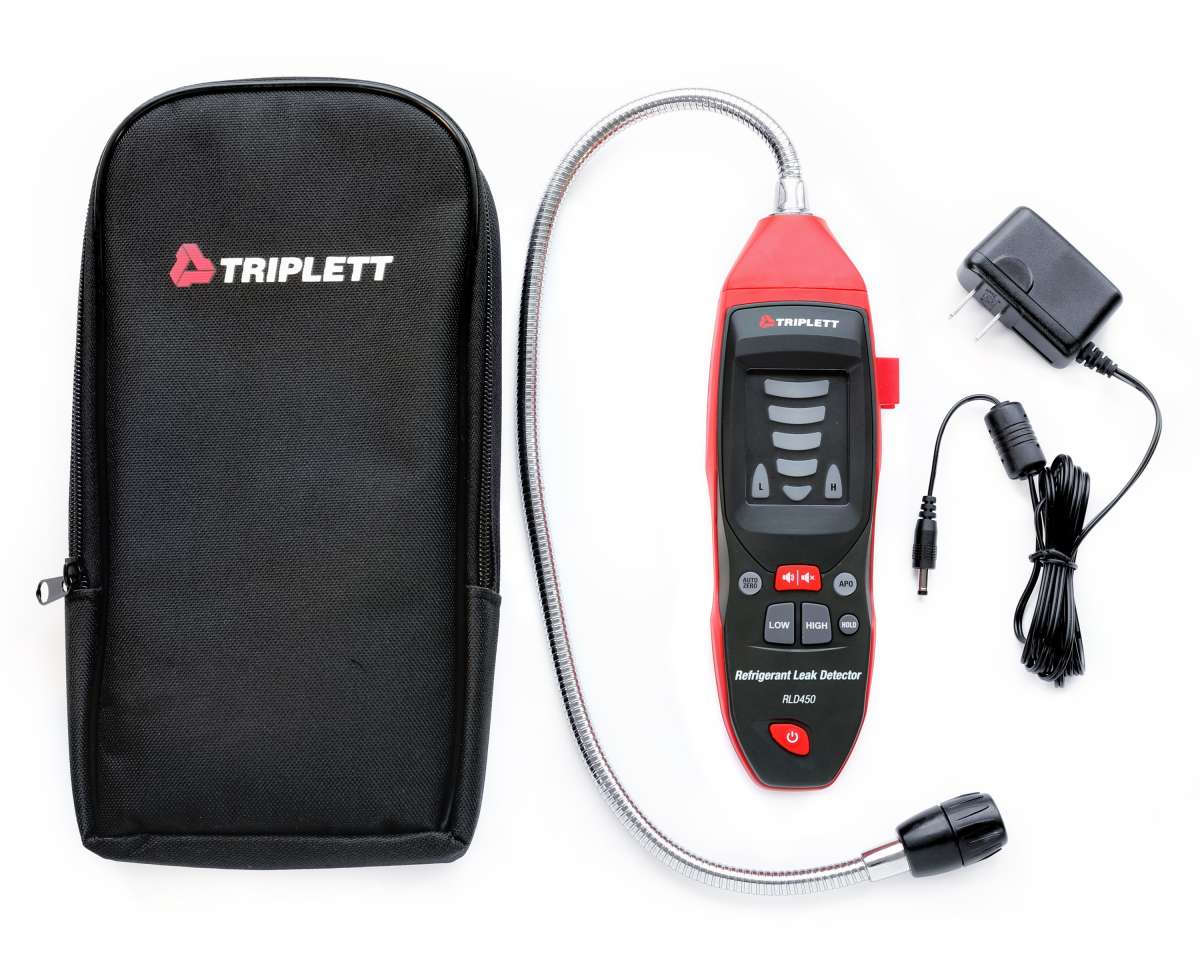

Includes: Includes sensor (installed), 3.7V Lithium battery with AC charger, and pouch case
Battery Type: 3.7V Li-on battery
| Specifications |
|---|
| Refrigerants | Detects halogen based refrigerants including CFCs, HFCs, and HCFCs such as R134a, R404A, R407C, R410A, R22, R502, R12 |
| Sensor | Replaceable thermistor (RLD450-S) |
| Sensitivity (R404A, R407C, R410A) | High: 4g/a
Low: 20g/a |
| Sensitivity (R22, R134a) | High: 3g/a
Low: 15g/a |
| Response Time | < 3 seconds |
| Recovery Time | < 10 seconds |
| Warmup Time | 50 seconds |
| Power | Rechargeable 3.7V Lithium battery |
| Dimensions | Meter: 8 x 2.7 x 1.8" (205 x 68.5 x 55mm)
Sensor with Gooseneck: 20.5" (520mm) long
Probe Diameter: 0.32" (8mm) |
| Weight | 19.5oz (552g) |
