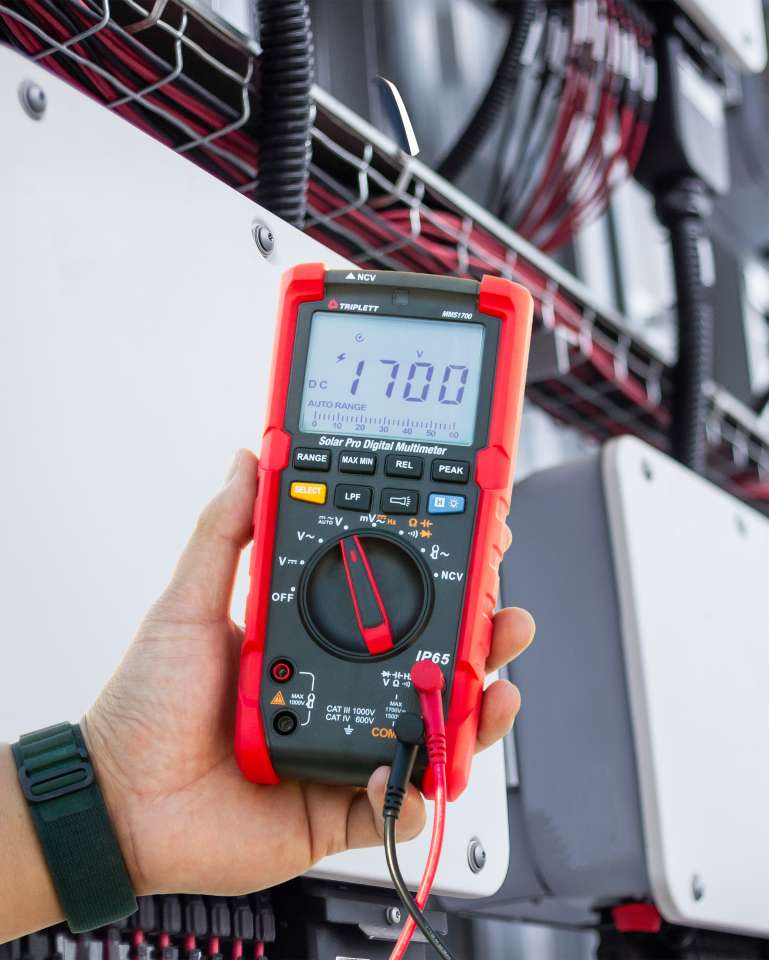

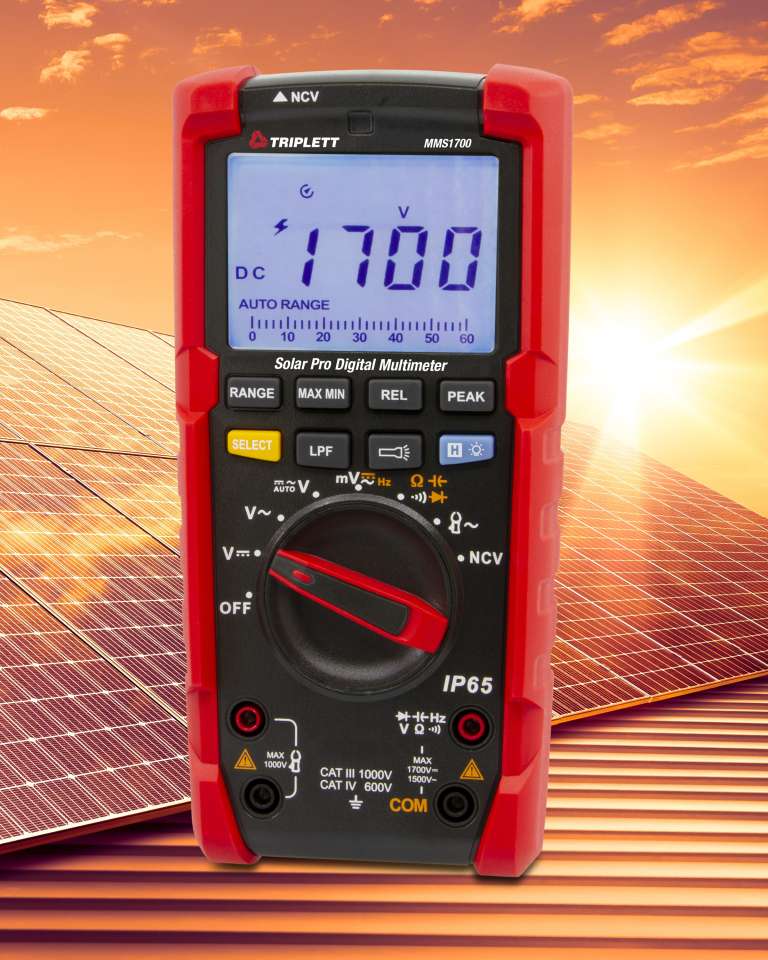

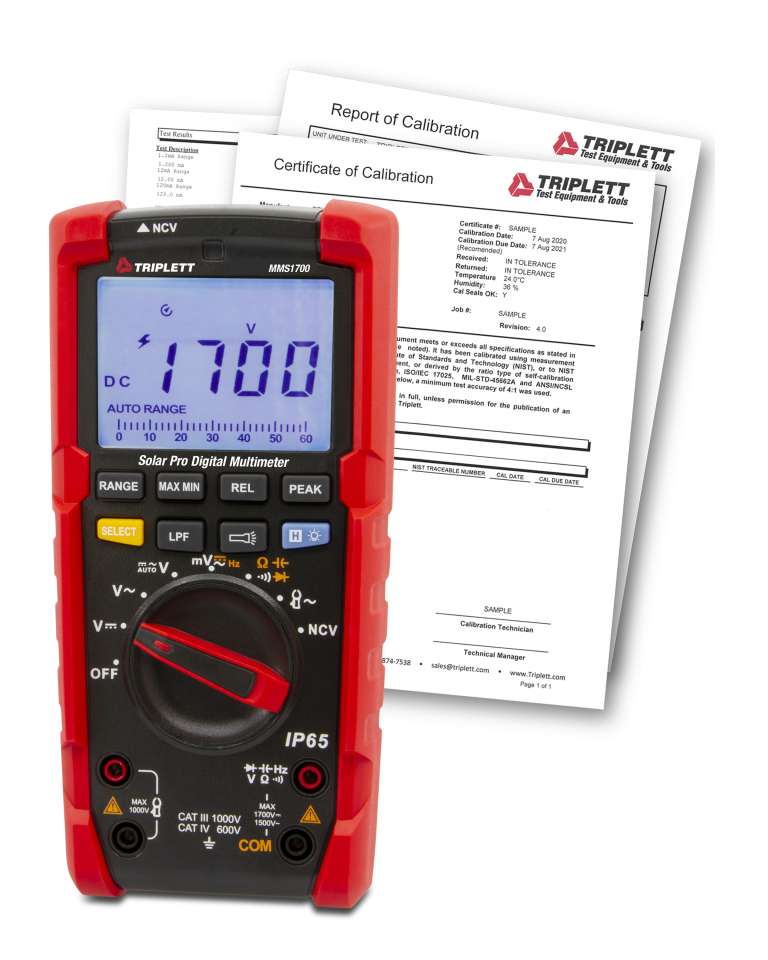

The Triplett Model MMS1700 Solar Pro DMM with Certificate of Traceability to NIST is specially designed for installation and maintenance in the photovoltaic high voltage field and can measure up to 1500VAC/1700VDC. It can also be used for the energy storage systems, UPS (uninterrupted power supplies), large-scale motors, and other high voltage environments. It also measures Resistance, Capacitance, Frequency, Diode and Continuity. The 3000A Clamp Adapter input can be used with any adapter that has a 10mV/A output. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional features include: µA Current measurement, Low Pass Filter (LPF), NCV Detector, Data Hold, Relative mode, Min/Max and Peak (<1mS) Min/Max. Auto power off with disable conserves battery life. A built-in flashlight can be used in dimly lit areas. CAT IV-600V safety category. Includes test leads, 9V battery and Certificate of Traceability to NIST. 1-year warranty.
Features:
- Specially designed for photovoltaic high voltage environments (1500VAC/1700VDC)
- Measures AC/DC Voltage, Resistance, Capacitance, Frequency, Diode and Continuity
- 3000A Clamp Adapter input can be used with any adapter that has a 10mV/A output
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Low Pass Filter (LPF)
- Built-in NCV Detector
- Data Hold and Relative mode
- Min/Max and Peak (<1mS) Min/Max
- CAT IV-600V

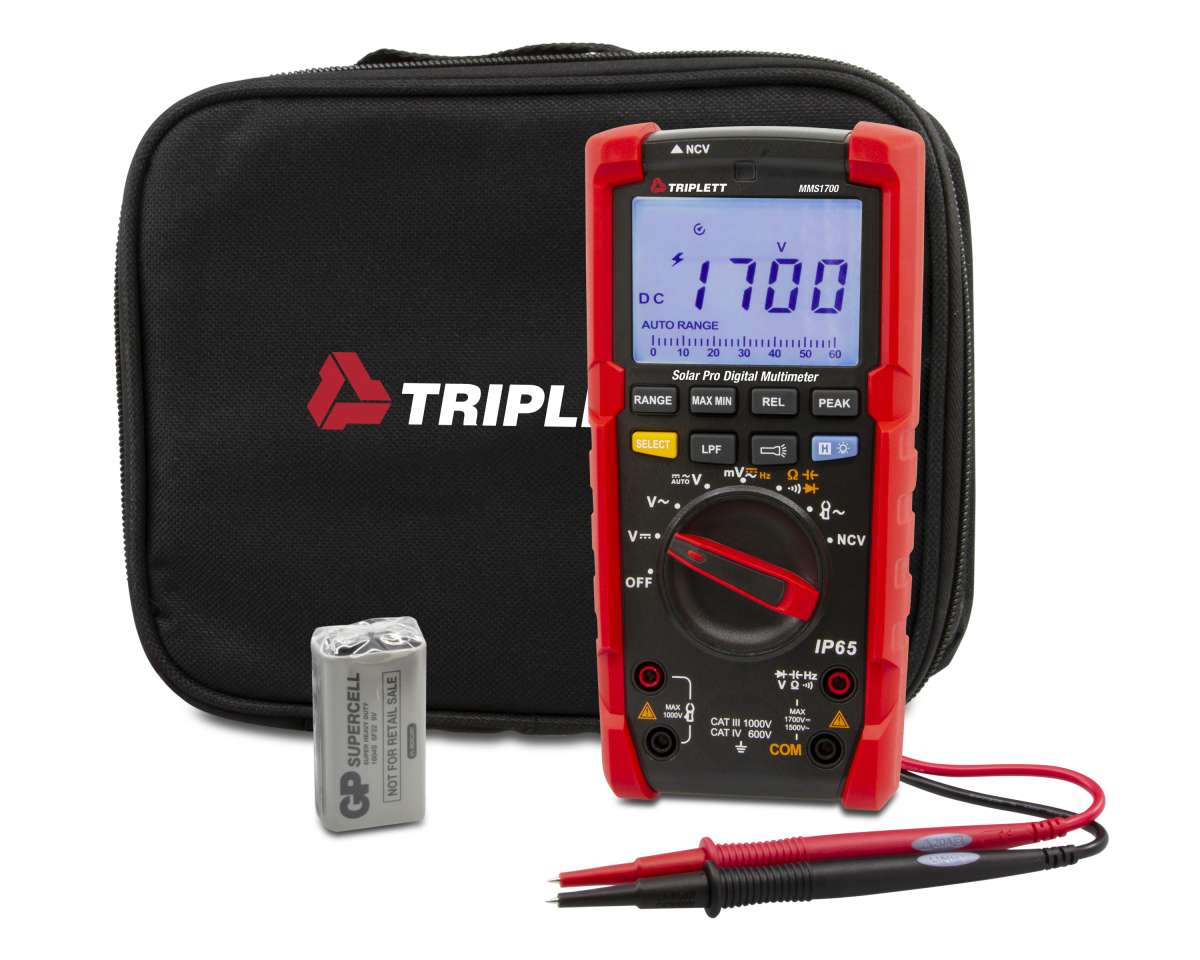

Includes: Includes test leads and 9V battery
Battery Type: 9V battery
| Specifications |
|---|
| MMS1700 |
| Display counts | 6000 count with analog bargraph |
| Basic Accuracy | ±0.2% |
| AC Voltage | 1500V |
| DC Voltage | 1700V |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency | 1MHz |
| Continuity | <10Ω |
| Lo Pass Filter (LPF) | Yes |
| NCV Detector | 40 - 600V (50/60Hz) |
| Clamp Adapter Input | 30A, 300A, 3000A |
| Safety Category | CAT IV-600V |
| Dimensions | 7.7 x 3.7 x 2.3" (195 x 95 x 58mm) |
| Weight | 17.1oz. (485g) |
User Manual: http://files.triplett.com/manual/mms1700.pdf
