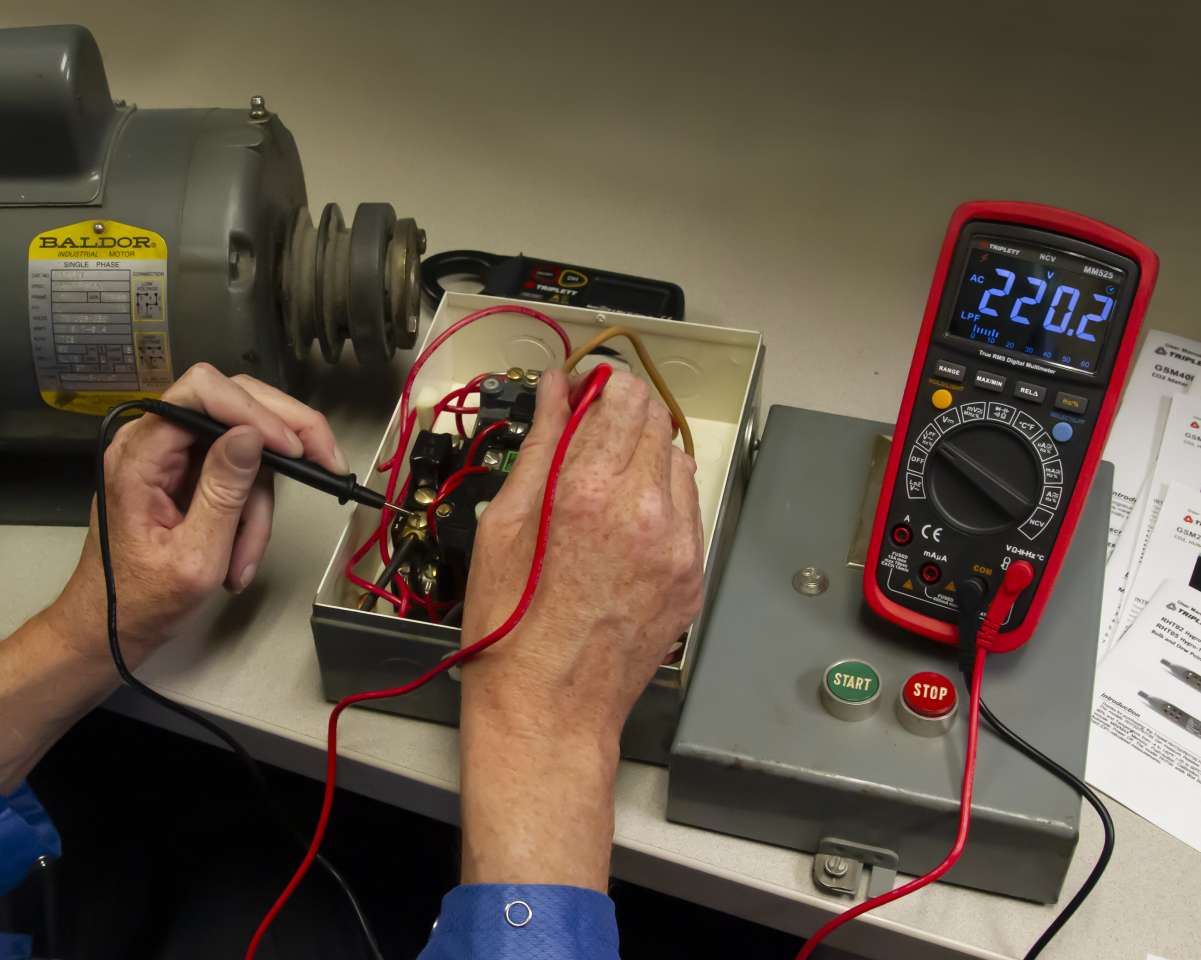

The Triplett MM525 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC µA Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Additional features include an EBTN (Enhanced Black Twisted Nematic) display with 31-segment analog bargraph, Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, data hold, relative mode, and a built-in NCV Detector. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design. ETL listed with CAT III 600V safety rating that provides superior resistance to damage from transient overvoltages in demanding settings. The Model MM525 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes Certificate of Traceability to N.I.S.T., test leads, temperature probe, pouch case, and (2) AA batteries. 1-year warranty.
Features:
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- 6000 count EBTN display w/bargraph
- LoZ mode (Low Impedance)
- µA Current measurement
- Low Pass Filter (LPF)
- Data Hold and Relative mode
- Min/Max and Auto power off
- Low battery indicator
- CAT III-600V safety category
- ETL listed

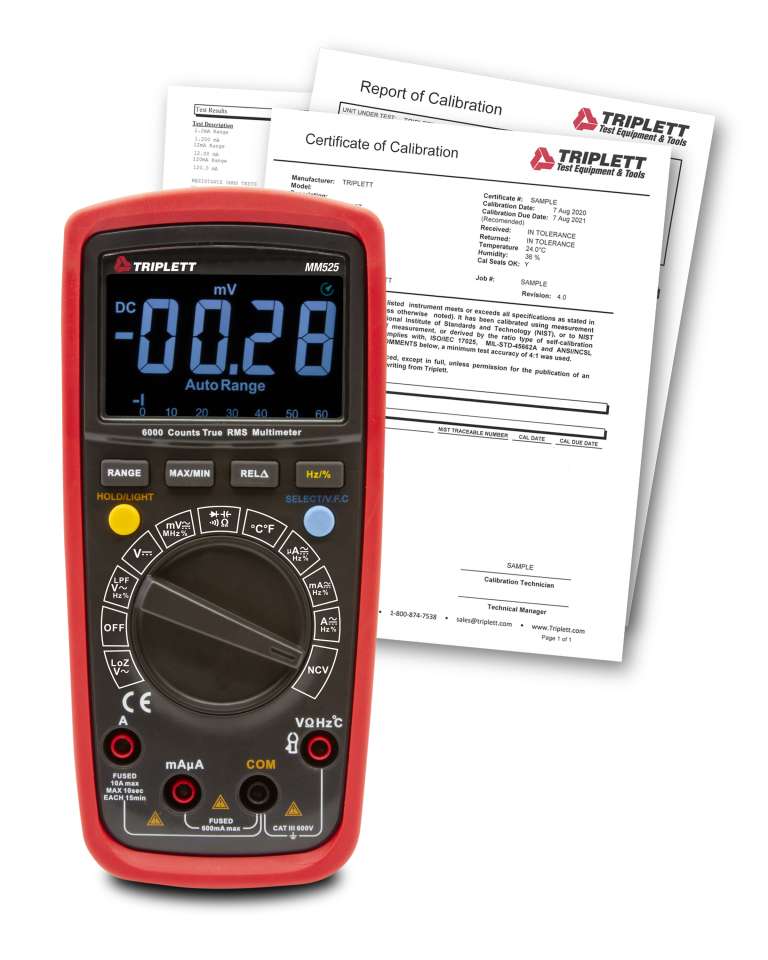

Includes: Includes Certificate of Traceability to N.I.S.T., test leads, temperature probe, pouch case, and (2) AA batteries
Battery Type: (2) AA batteries
| Specifications |
|---|
| MM520 |
| Display counts | 6000 count |
| Basic Accuracy | ±0.7% |
| AC/DC Voltage | 600V |
| AC/DC Current | 10A |
| AC/DC µA Current | 600µA |
| Resistance | 60MΩ |
| Temperature | -40 to 1832°F (-40 to 1000°C) |
| Capacitance | 100mF |
| Frequency | 10MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <10Ω |
| Lo Pass Filter (LPF) | Yes |
| LoZ | — |
| NCV Detector | Yes |
| Clamp Adapter Input | 10mV/A (60A max) |
| Safety Category | CAT III-600V |
| Dimensions | 6.9 x 3.2 x 1.9" (175 x 81 x 48.5mm) |
| Weight | 12.3oz. (350g) |
