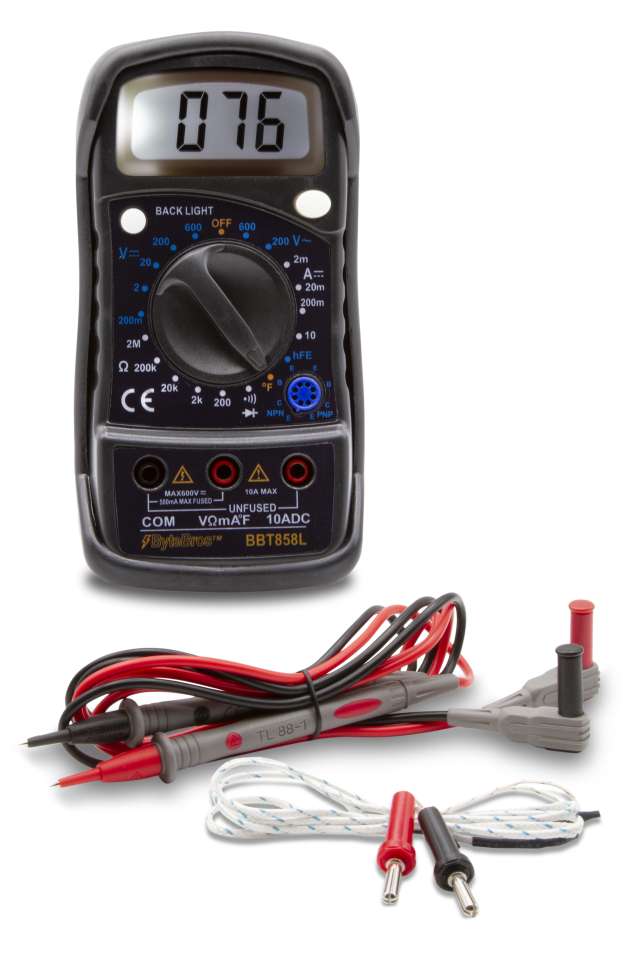

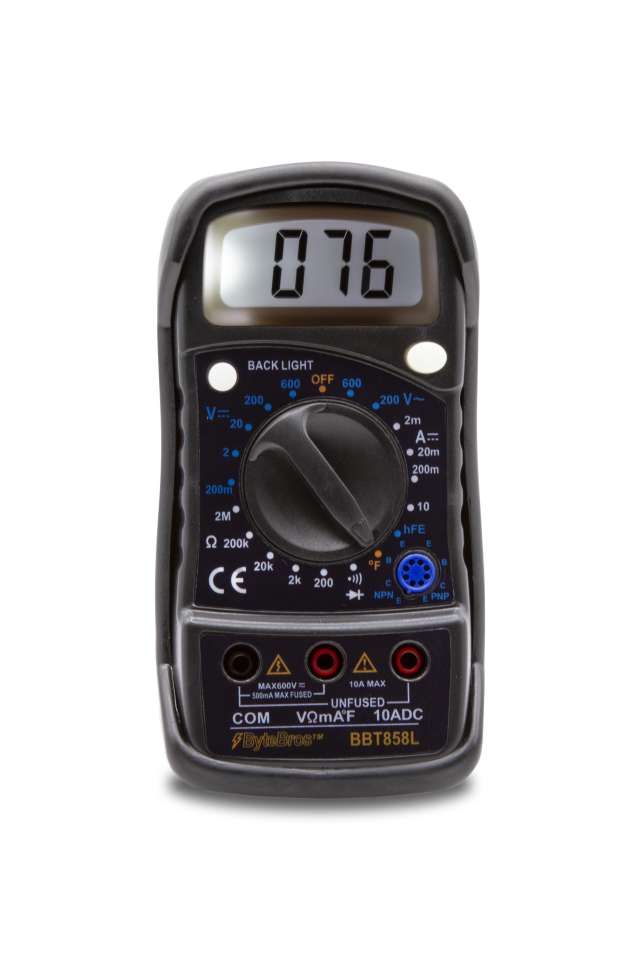

The Triplett/ByteBrothers BBT858L compact DMM is designed for use by electricians, technicians, and servicemen who require an instrument that is accurate, reliable, and always ready for use. It measures AC/DC Voltage, Dc Current, Resistance, Temperature, Transistor hFE, Diode and continuity. Readings are displayed on a large backlit LCD. Includes protective rubber boot, test leads, alligator clips, temperature probe and 9V battery. 1 year warranty.
Features:
- 3 1/2 large digit backlit display
- Perfect for both electronic and electrical use
- Data hold freeze the reading on the display
- Soft silicone probes for safety and reliability
- Removable protective boot with rear stand
- CAT II 600V rating
- 1 year warranty
Includes: Includes Protective rubber boot, test leads, alligator clips, temperature probe and 9V battery
Battery Type: 9V battery
| Specifications |
|---|
| Basic Accuracy | ±0.8% |
| AC Voltage | 100mV to 600V |
| DC Voltage | 0.1mV to 600V |
| DC Current | 1µA to 10A |
| Resistance | 0.1Ω to 2MΩ |
| Temperature | 32 to 1300°F |
| Transistor hFE | 0 to 1000 (NPN or PNP) |
| Safety Category | CAT II-600V |
| Dimensions | 3 x 5.75 x 1.75" (76.2 x 146 x 44.5mm) |
| Weight | 6 oz. (170g) |
Datasheet: https://www.files.triplett.com/datasheet/bbt858l.pdf
User Manual: https://www.files.triplett.com/manual/bbt858l.pdf
