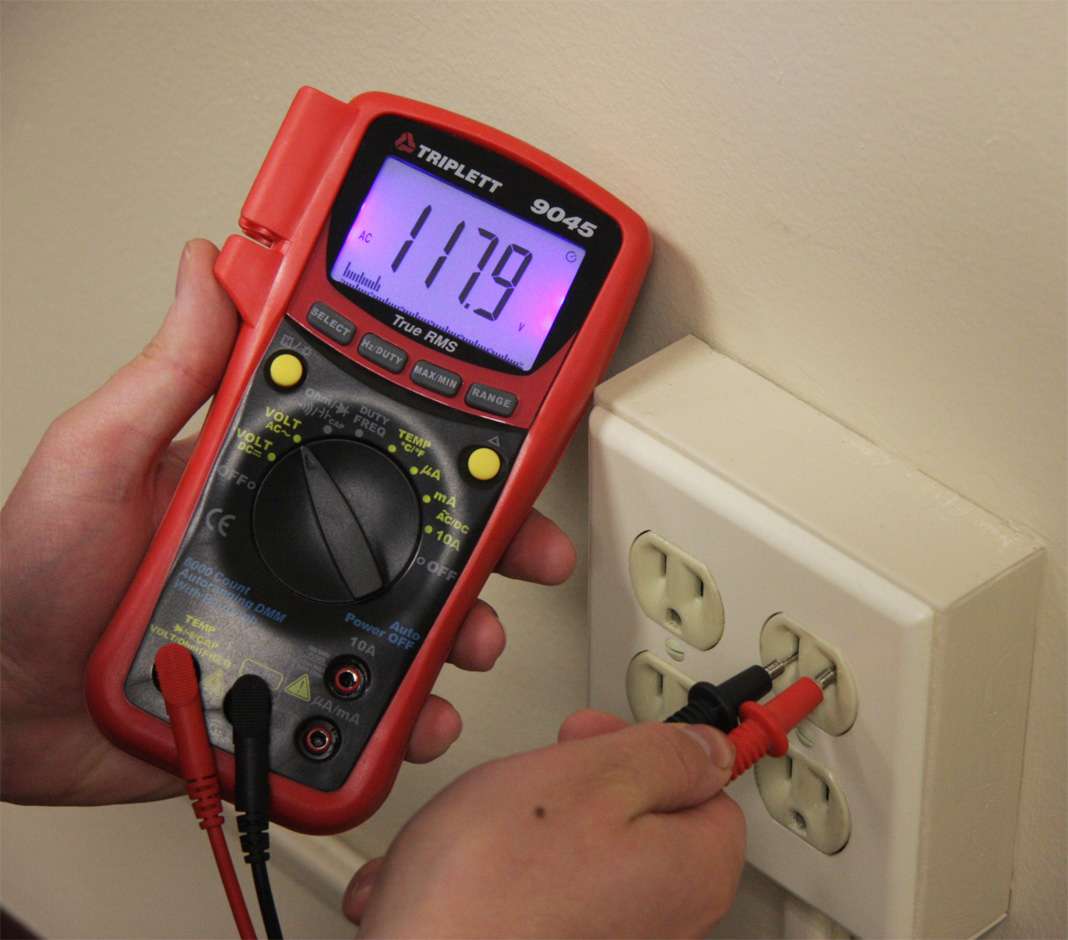

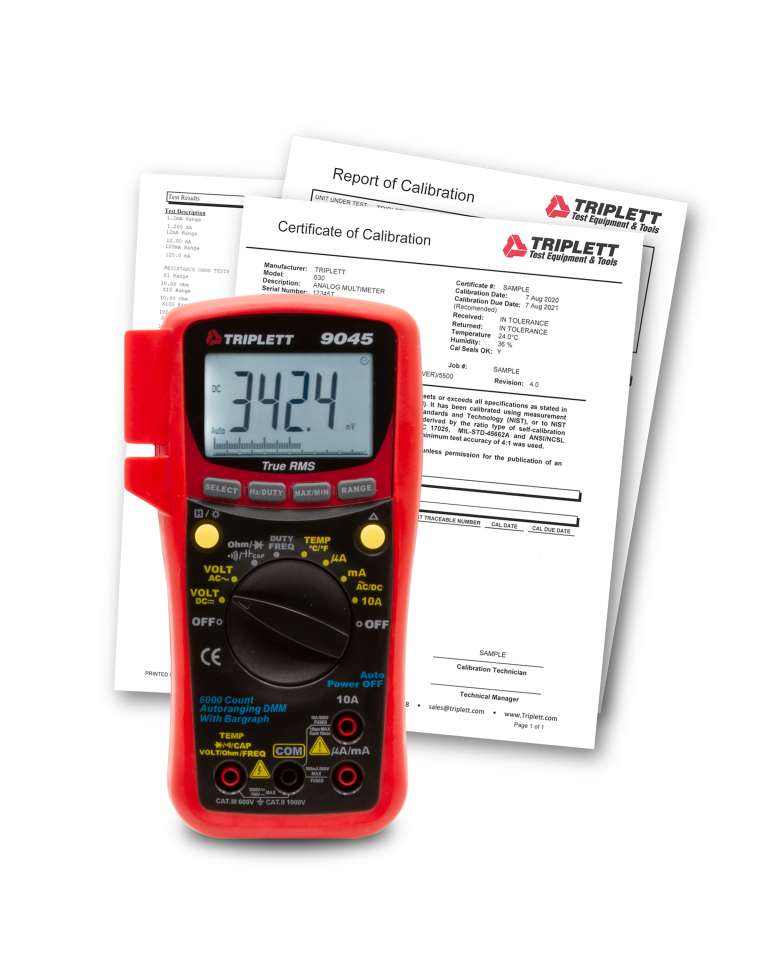

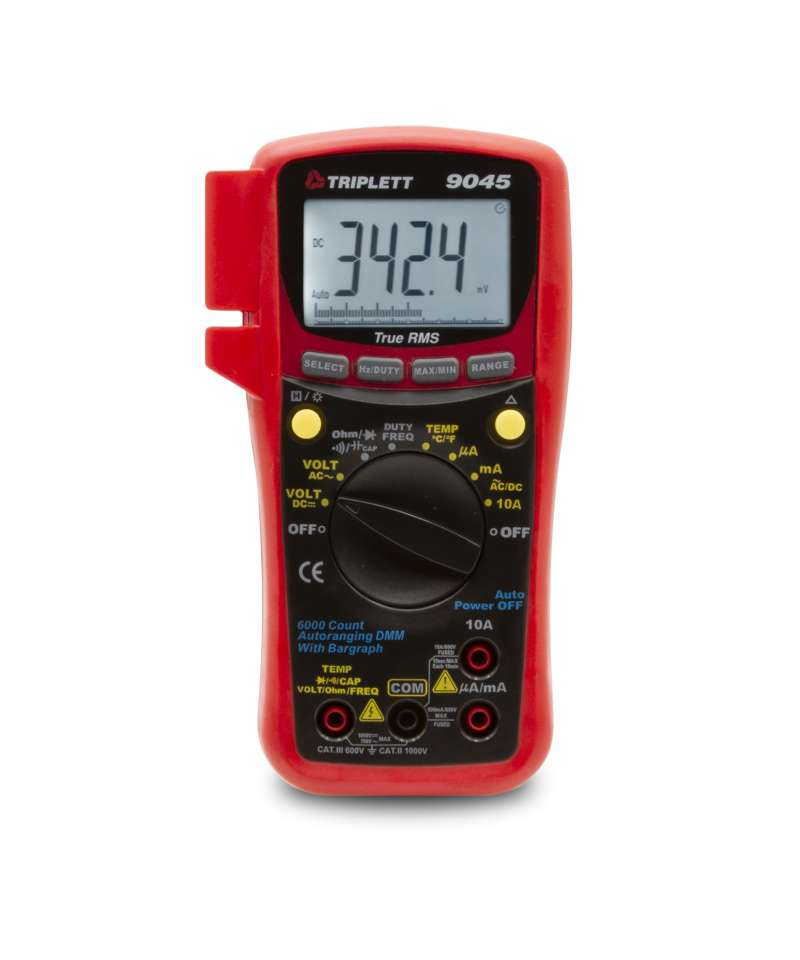

The Triplett 9045-NIST is a 3-3/4 digit (6000 count) high performance digital multimeter with True RMS readings. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximize battery life. CAT III 600V design provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9045 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, alligator clips, K type temperature probe, 9V battery, and a Certificate of Traceability to N.I.S.T. 2 year warranty.
Features:
- 44 measurement ranges with True RMS for non-sinusoidal or noisy waveforms
- 6000 count 3-3/4 digit backlit display with analog bargraph
- Temperature, Frequency and Capacitance measurement
- Double molded splash proof, dust proof, drop resistant case with built-in stand and CAT III 600V safety rating

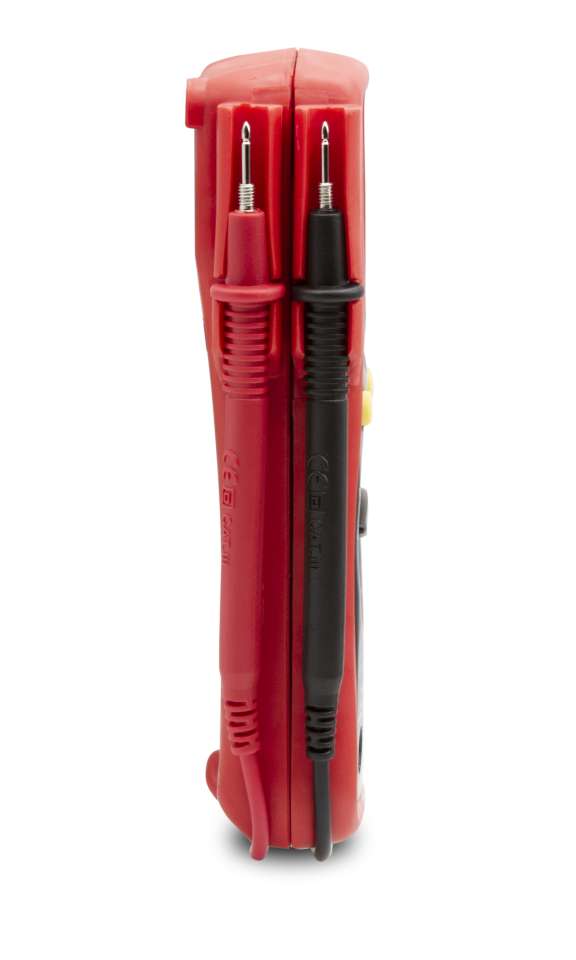

Includes: Includes Test leads, alligator clips, K type temperature probe, 9V battery, and a Certificate of Traceability to N.I.S.T.
Battery Type: 9V battery
| Specifications |
|---|
| Auto/Manual Ranging | Autoranging |
| True RMS/Averaging | True RMS |
| Basic Accuracy | ±0.8% |
| AC Voltage | 1mV to 750V |
| DC Voltage | 0.1mV to 1000V |
| AC Current | 0.1µA to 10A |
| DC Current | 0.1µA to 10A |
| Resistance | 0.1Ω to 60MΩ |
| Temperature | -4 to 1400°F (-20 to 750°C) |
| Capacitance | 10nF to 4000µF |
| Frequency | 0.001Hz to 10MHz |
| Duty Cycle | 0.1 to 99.9% |
| Analog Bargraph | 61 segments |
| Safety Category | CAT III-600V |
| Dimensions | 7 x 3.7 x 1.5" (178 x 94 x 38mm) |
| Weight | 11oz (312g) |
Datasheet: https://www.files.triplett.com/datasheet/9045.pdf
User Manual: https://www.files.triplett.com/manual/9045.pdf
