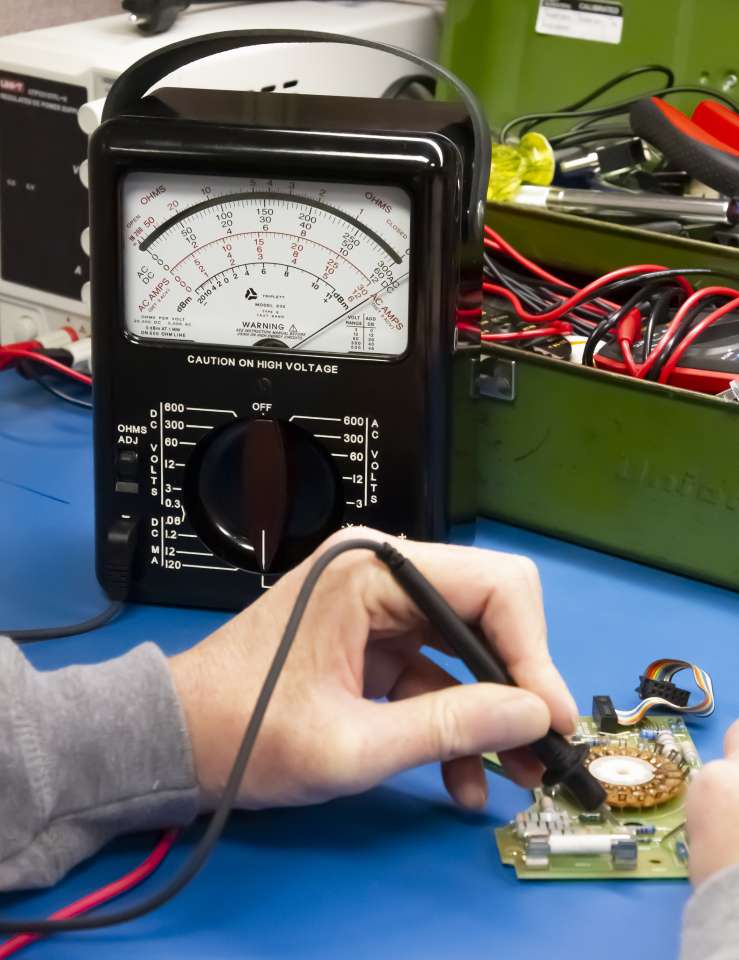

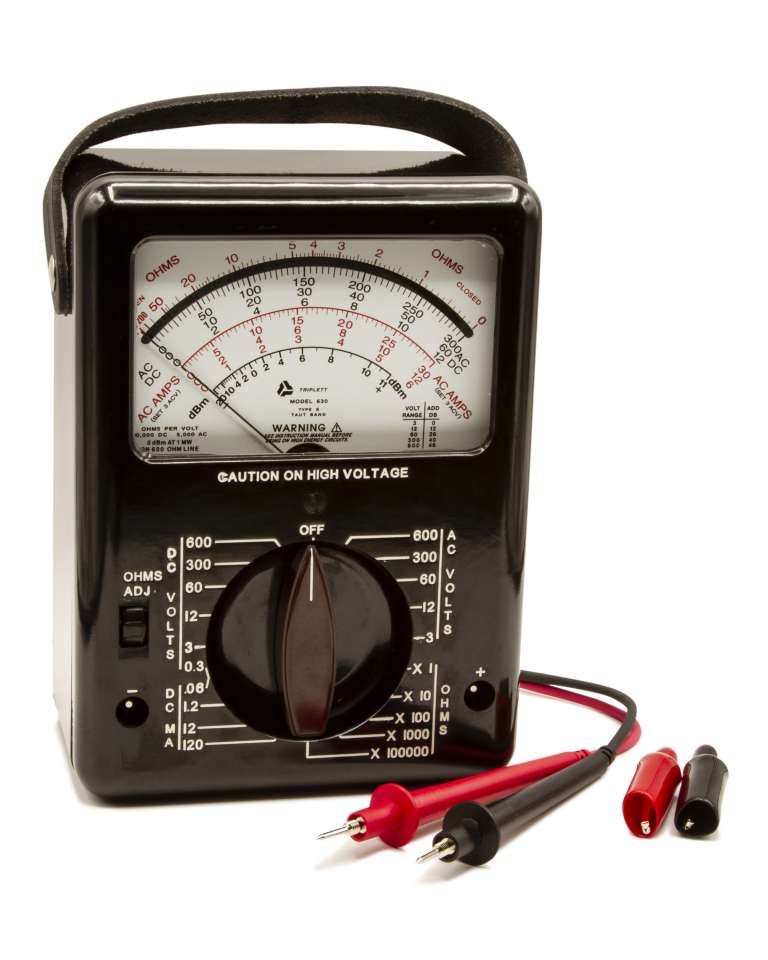

The Triplett 3030 (Model 630) is a rugged, analog multimeter. It has been designed to make fast, accurate measurements on all types of electrical and electronic equipment. The indicating portion of the meter is actuated by a taut band suspension movement having a sensitivity of 50 microampere full scale. This movement omits conventional pivots, bearings and hairsprings and provides increased repeatability by removing friction between both pivots and bearings. No moving parts are in contact and the elimination of the hairspring prevents both snagging and tangling. The tension spring acts as a built-in shock absorber. In addition, temperature variations will not cause sticky operation of the pointer. Includes test leads with alligator clips and batteries (1.5V and 30V).
Features:
- 28 ranges including AC/DC Voltage to 600V, DC Current to 0.12A and a Decibel function for audio work
- Glass meter window for added chemical resistance and a mirrored scale to reduce parallax error
- All ranges are fuse protected
- 3 year warranty
Includes: Includes Test leads with alligator clips and batteries (1.5V and 30V)
Battery Type: (1.5V C Battery and 30V NEDA Battery)
| Specifications |
|---|
| AC Voltage | 3V, 12V, 60V, 300V, 600V |
| DC Voltage | 0.3V, 3V, 12V, 60V, 300V, 600V |
| DC Current | 0.06mA, 1.2mA, 12mA, 120mA |
| Resistance | 1kΩ, 10kΩ, 100kΩ, 1MΩ, 100MΩ |
| Decibels | -20 to +57dBm |
| Dimensions | 7.5 x 5.88 x 2.25" |
| Weight | 3.25 lbs. |
Warranty: 1yr
Datasheet: https://www.files.triplett.com/datasheet/3030.pdf
User Manual: https://www.files.triplett.com/manual/3030.pdf
